Factory OEM custom hemispherical & slanted edge BK7/K9 optical glass domes with clear lens. Ideal for compact sensors & camera protection. Custom thickness & coating available.
Detail Information

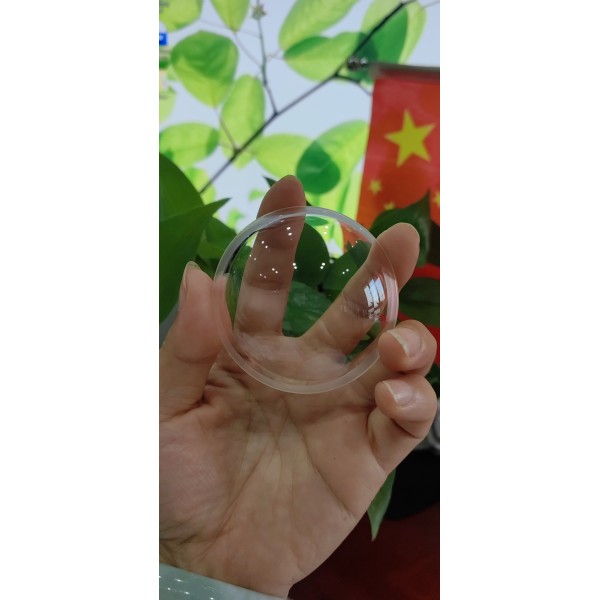

Custom Hemispherical & Slanted Edge Optical Domes | FELIX GLASS
What Are Optical Domes?
Optical domes, also known as optical ball domes, are high-performance protective components for optical systems. They ensure maximum light transmittance while shielding cameras, sensors, thermal imaging and infrared devices from harsh environments including water, dust, pressure and extreme temperatures.
FELIX GLASS specializes in manufacturing high-precision hemispherical and slanted-edge optical domes for global industrial, underwater, security and aerospace customers.
Key Features
- Ultra-precision polishing for clear, distortion-free imaging
- High transmittance in visible, UV and IR spectra
- Excellent mechanical strength & high pressure resistance
- Waterproof, dustproof and stable in extreme conditions
- Fully customizable shape, size, material and coatings
Available Materials
N-BK7 / H-K9L | Fused Silica / Quartz | Sapphire | Silicon (Si) | ZnSe / ZnS | Chalcogenide Glass | Custom Optical Glasses
Customization Options
- Shape: Hemispherical / Slanted Edge
- Size: Custom diameter & thickness
- Coatings: AR, AF, AG, IR coatings
- OEM / ODM: Full support for drawings & custom designs
Typical Applications
- Security & CCTV Cameras
- Thermal Imaging & IR Detection Systems
- Underwater & Deep-Sea Optical Equipment
- Aerospace & Meteorological Instruments
- Outdoor Optical Protection Systems
Why Choose FELIX GLASS?
- Professional optical components manufacturer with rich industry experience
- Strict quality control system for stable and reliable performance
- Fast quotation, flexible production and short lead time
- Professional engineering team for custom optical solutions
- Trusted by customers worldwide for quality and service
Contact Us
Email: liuchangfu520888@gmail.com
WhatsApp: +86 18998052888
WeChat: 18565032888
Tel: +86 18565032888
Alibaba: https://felixglass.en.alibaba.com
Send us your specifications today, and we will reply within 1 hour.
Video Description
| FELIX GLASS GROUP | |||
| >> HONG KONG FELIX OPTICAL GLASS CO., LIMITED | |||
| Global International Marketing Department, Hong Kong, China | |||
>> DONGGUAN FELIX GLASS MFG CO.,LTD | |||
Manufacturing Base, Dongguan, China | |||
>> HUIZHOU FELIX GLASS MFG CO.,LTD | |||
Manufacturing Base, Huizhou, China | |||
>> SUZHOU FELIX GLASS MFG CO.,LTD | |||
Manufacturing Base, Suzhou, China | |||
>> VIETNAM FELIX GLASS MFG CO.,LTD | |||
Manufacturing Base, Vietnam |
>>Customized Optical Glass with Vacuum Coating, Narrow Band & High Reflection Coated for Precision Optics
.........................................................................................................................................
Optical Glass Optical Lens Optical Prism Solutions
>> FELIX OPTICAL GLASS Features :
These Positive Meniscus Lenses are fabricated from ROHS-compliant BK7 glass (N-BK7) and are avalable uncoated or with one of our three broadband antireflection coatings: -A (350-700 nm),-B (650-1050 nm), or -C (1050-1700 nm). These coatings greatlyreduce the 4% loss per surface incurred when using an uncoated lens. Positive meniscus (convex-concave) lenses are designed to minimize spherical aberration, When used in combination with another lens, a positive meniscus lens will shorten the focal length and increase the numerical aperture (NA) of the system without introducing significant spherical aberration, When used to focus a colimated beam, the convex side of the lens should face thesource to minimze spherical aberration.
we are manufacturer of optical glass lens ,prisms ,spherical lens ,aspherical lens ,cylindrical lens ,optical window
plate,reflective mirror and filter, Wholesale Optical Glass Bk7 K9 AR Coating Diameter 25.4mm Focal Length 200mm Meniscus Lens for Telescopes Eyepieces
We can custom-made optical glass lens and prisms ,spherical lens ,aspherical lens ,achromatic lens ,optical window plate ,optical mirror ,filter and other optical glass product saccording to your detail request,drawing or sample Click on this link to obtain customized product quotes
we can make all kinds of optical glass products according to the drawing that customer supply if you have any needs about the optical glass products ,please free to let me know and we can also give you good price and good service Welcome To Inquiry
>>Optical glass, optical lens, optical prism, application scenarios:
[FELIX GLASS Optical Precision Glass Technology Partner]
>Coated Glass Application Solutions Partner In specialized application
scenarios requiring glass coating treatments, FELIX GLASS offers a comprehensive supply chain system to fulfill diverse project requirements.
>Mirror Glass Achieves reflective effects through surface coatings (Aluminum, Chromium, Indium Tin Oxide [ITO,
non-conductive]) Customizable functionality: light-transmitting, semi-transparent, or one-way light transmission.
>Optical Filters Utilizes multi-layer optical coating technology to selectively enhance or block specific spectral bands. Widely applied in optical devices: narrowband filters, infrared-transmissive filters, and precision optical filters.
Contact us today for tailored solutions engineered to your exact specifications and official price。
| WHY CHOOSE US? | |||
| FELIX GLASS |
| Compare projects | Other suppliers | FELIX GLASS | |
| Rapid Response | No, long quotation time, some need24H or more. | Regular quotation:<30 minutes.Response time:<4h during working hours,<12h during non -working hours. | |
| Communication Process | Mostly from a business backgroundand unprofessional, customers oftenexperience a communication gap | Easy! with experience in multiple projectsable to prevent risks for customers andprovide reference suggestions. | |
Professional Service | Mechanically understand customerdrawings, mechanically apply thecontent of the drawings. | Can understand the meaning behind thedrawings. Will provide professionalprevention and suggestions for customers.Will providerenderings for customer confirmation within12H. | |
Delivery Guarantee | NO | Will actively update the production progressfor customers, on -time delivery rate >98% | |
Fast Delivery Capability | NO | Urgent samples can be delivered in as fastas 48H. | |
Small orderser vice | MOQ 500 or 1000 or more. | Supports small - batch orders with MOQ 100 | |
After-sales Guarantee | Can't find anyone when there is aproblem, or shirk responsibilities. | If confirmed to be our quality problem or notproduced according to the drawing, 24Hrapid refund. | |
| FELIX OPTICAL GLASS Equipment List and Processing Scope | |||
Equipment name | Processing dimensions(mm) | Quantity | |
1 | CNC Cutting machine | 2500*2000 | 102 |
2 | Dual axis CNC (small size) | 350*250 | 97 |
3 | CNC polishing machine | 700*450 | 59 |
4 | Grinding Machine | 1500*800 | 112 |
5 | Optical glass coating machine | 300-200 | 89 |
6 | Ultrasonic cleaning machine | 300-200 | 91 |
7 | Automatic ultrasonic cleaning machine | 300-200 | 117 |
| 8 | Centering edge grinding machine | 800*1500 | 103 |
| 9 | Chemical strengthening furace | 1500*800 | 137 |
10 | Semi automatic printing machine (small size) | 330*200 | 92 |
11 | Semi automatic printing machine (large size) | 1500-800 | 118 |
12 | Optical parameter measuring instrument | 270*180 | 76 |
13 | Baking line | 800*1500 | 121 |
14 | Oven | 800~600
| 122 |
| >>FELIX GLASS is a professional glass deep processing manufacturer with 19 years of experience in optical lenses optical glass/AR/AG/AF display touch glass Glass products, etc. It has supplied more than 1,000 top well-known companies in the world, providing high quality and winning trust! | |||
| ✔ | ROHS CE GPSR FDA certification BSI certified ISO9001:2005 quality management system | ||
✔ | Professional team over 19 years’ experience under Japanese management system | ||
✔ | Help over 1000+ companies to make prototypes into mass production successfully | ||
✔ | Safe stock system of commonly used materials | ||
✔ | Latest instruments and equipment equipped | ||
✔ | Challenge the 100% on time delivery goal | ||
✔ | 100% full inspection report | ||
| ✔ | Cost-down solutions for over 200+ companies with success | ||
✔ | Free solutions provided based on different industries | ||
✔ | Support free samples (quick sample production) | ||
✔ | Small quantity (100-1000pcs) available | ||
| COMPANY EXHIBITION | |||
| FELIX GLASS |
| >>Provide Documents： >You can send us files. hand-drawn graphics, physical reference samples etc. >We support formats such as PDF.DXF.DWG. STEP. AI.CDR.EPS.etc.
>When using a custom font in your design, please create outlines before sending it to us, or provide us with the corresponding font file.
>It is preferable to provide vector files as they are not affected by scaling,making them suitable for printing Bitmap files may become bluny when enlarged. | ||
| | ||
| >>Selecting Appropriate Glass Materials： >Standard Thickness (mm):0.25.0.330.55.07.08.10.1.1.1.2.1.5.18.20.252.8.3.0.38.4.8>Based on Transparency: Clear Glass(affordable). Low lron Glass (transparency>93%).Smoked Glass(suitable for concealed windows) >Based on Surface Hardness: Regular Glass, Medium Alumina Glass. High Alumina Class>Based on Brand Classification: Gorilla Glass, Asahi Glass
Panda & CsG Glass and so on
>Based on Application Scenarios: Ordinary Glass.High-Temperature Glass(such as high borosilicate glass).Optical Glass (e.g.. BK | ||
| | ||
| >>Developing Suitable Techniques-Structures： >Based on Forming Methods: CNC Cutting (high precision)Laser Cutting(capable of cutting right-angle holes).Water jet Cutting (suitable for thick glass).There are advantages and disadvantages of different processing methods. so they are often combined for the best effect. >Class Forming Structures include:Various square,circular, and irregular cuts:drilling: chamfering: counter sinking: blind holes: 2.5D edge bevelling
>Class Surface Treatment: Flat grinding . polishing ultrasonic cleaning | ||
| | ||
| >>Establishing Suitable Techniques-Tempering Process The tempering process significantly enhances the strength of glass and improves its safety performance: >Chemical Tempering:Suitable for glass with a thickness below 2mm,The tempering process of the glass panel is completed by chemical substitution in the high temperature potassium nitrate liquid. >Physical Tempering:Suitable for glass with a thickness above 2mm. This process utilizes high-temperature quenching to achieve tempering. ls results in high impact resistance and enhanced safety of the glass. | ||
| | ||
| >>Developing Suitable Technique!-Printing Patterns: We can print the desired patterns and colors on your glass >Conventional Glass Printing Methods:Screen Printing(excellent and clear printing results), Digital Printing (capable of printing gradient patterns and colorful designs).
>Color Definition for Glass Screen Printing,Reference to physical samples,Pantonecolor codes, RAL colorcodes.
>Class Ink Classification: Regularink.High-temperature resistant ink, UV-resistantink.Light-diffusing ink, Semi-transparent inktransparent infared(IR) ink, | ||
| | ||
| >>Special Techniques andApplications for Glass Panels: >Anti-Fingerprint Coating Applying an anti-fingerprint coating to the glass surface will cause a fingerprint -resistant effect and a contact angle greater than 115 degrees (also known as the lotus effect). | ||
| | ||
| >>Anti-Refective Coating: Applying an optical anti-reflective coating to the glass surface increases its transmittance.Single-side anti-reflective coating achieves 95% transmittance, while double-side achieves 98% transmittance, This is suitable for applications such as cameras. high-definition displays. and more. | ||
| | ||
| >>Anti-Glare Treatment : Anti-glare treatment reduces glare on glass products alleviating eye fatigue for users. lt widely app lys in medical equipment, e-books in-car displays, financial payment devices,outdoor display devices, and more.Glossiness >80: Suitable for indoor use Glossiness 50-70: Suitable for outdoor devices.Glossiness 20-30: Suitable for touch panels(providing a paper-like touch sensation). | ||
| | ||
| >> Mirror Electroplating : Applying aluminum. chromium. indium oxide. nickel.and other materials onto the glass surface creates a mirror effect Applications such as smart mirrors :Aluminum or chromium plating.Metal gloss effects for switch panels and more : indium oxide plating for touch capability, or nickel plating for non-touch applications. | ||
| | ||
| >>Infrared-Transmitting Glass Panels : IR transparent glass are widely used in face recognition, iris recognition, radar, and remote control receiving windows.Available colors : black, red. and others Processing method : silk screen IR ink optical coating Parameters : Visible light transmittance<2%,>90% at 820nm & 940n | ||
| CUSTOMER AND FEEDBACK | |||
| FELIX GLASS |
| BERNAT BONNIN CEO Medical Devices.S.A | ||
Our Company Working with FELIX GLASS was an absolute pleasure! The product quality exceeded my expectations, and the customer service team was incredibly responsive. From order to delivery,everything was seamless. l'm already planning my next purchase-highly recommend to anyone looking for Display glass panel and optical lens! |
>>FAQ-1：
1: Can the AG and AR process be realized on a cover glass ?
A: AG, AR and AF can be realized on the same cover glass, which is called 3A. It is standard for display cover glass.
Q2: What kind of processes can achieve the “dead front effect” of cover glass?
Answer:
A: ①Printing, suitable for small area printing within 20*20mm.
②Electroplating, suitable for small sizes below 7 inches
③The glass material is gray glass, and the maximum size can be 32 inches.
④Film Adhesion, unlimited size
Q3: What is the stress standard after glass chemical strengthening?
A: Corning Gorilla Glass Stress Value: DOL>40um, CS>650Mpa
Soda Lime Glass Stress Value: DOL>8um, CS>450Mpa
Q4: What is the Dead Front Glass?
A: This question has written a lot of introduction, You can search on the FELIX GLASS website and you will find related videos, introductions, and pictures.
“Dead Fronteffect”(All-in-one-black), that is to say, the display is clearly visible when back-lit, and when non-backlit, the entire display including glass is completely black without a color difference. Dead front glass is widely used in smart homes, smart wearables, financials, medicals, and industrial control, etc.
Q5: Will the glass strength be affected after AG etching?
A: Definitely not. Because the etched glass surface is only about 0.05mm depth, and the chemical strengthening is immersion type, which can fully complete the replacement of ions. We have done too many time tests and the results showed that it didn’t affect the strength of the glass.
Q6: For AF（Anti-Fingerprint） coating, how much is the qualified water contact angle?
A: FELIX GLASS Standard Water Contact Angle is >105°, Abrasion Test: 200g weight，Steel Wool#0000, 2000times(back and forth as 1 time)，Recession Value within 15%
Q7: How to recognize the etched side?
A: The easiest way is to hold the AG glass under a fluorescent light and look at the tube reflected on the glass from the front. If the light is scattered on the glass, it is etched side. If the light is clearly visible, it is a non-ag side. This is the most direct way to distinguish from the visual effect.
Q8: How many days to deliver custom cover glass ?
A: Gorilla glass 3, gorilla glass 4, gorilla glass 2320.
Above 90% samples are delivered within 7 days.
For mass production, it’s always 15days
Q9: Specification Of Custom Gorilla Glass
A: The production information of gorilla glass (2320) and 4(5318)are enclosed. Please download for your reference.
Q10: What’s the unit of Haze ?
A: Haze refers to percentage of incident transmission light which deviates more than 2.5°accounts for total incident transmission light, the unit symbol is %. The higher the haze is, the lower the gloss and the resolution is.
Q11: Is it possible to print on the side of AG glass ?
A: No matter it’s single side AG glass or double sided AG glass, both can be silkscreen printed.
Q12: How Does FELIX GLASS Ensure The Glass Quality ?
A: To ensure the quality of custom gorilla glass and anti glare glass.
We will make full inspection after every procedure, IPQC and make spot check before delivery.
ISO9001:2008 quality management system is strictly carried out.
Q13: MOQ ?
A: 100pcs-1000pcs. We will provide you 10pcs samples in prototype stage
Q14: What’s the tolerance ?
A: Dimension: ±0.05mm ( 5”)
Printing: ±0.1mm
16.How many days to deliver custom anti glare glass ?
For custom anti glare glass, single side etching and double side etching.
FELIX GLASS import high quality raw material abroad, the applicable kinds are very wide. The lead time depends on the current stock, please kindly contact sales.
Q15: How Is The Processing Capability ?
A: For custom gorilla glass, gorilla glass 3, gorilla glass 4 and anti glare glass.
FELIX GLASS provide CNC machining,chemical strengthening,multi-color printing, AF coating, AR coating, anti glare etching and double side 3M tape service.
A. CNC machines to process any desired shape. Chamfer / Bevel/Holes etc.
B.Chemical strengthening to make glass stronger and tougher, with best performance of anti-scratch and anti-impact.
C.Multi-color printing technology to print any color on one glass once Pantone number is provided
D.Anti-fingerprint coating to keep surface clear and wipe fingerprints easily
E.Anti-reflective coating to increase the transmittance and reduce reflection of glass
F.Double side 3M tape to assemble the glass with other parts well
Q16: What’s the difference between single side AG glass and double sided AG glass?
A: FELIX GLASS AG glass is immersed etching. Technically speaking, we have to cover another side when we’re etching single side AG glass.
Q17: Will the gloss be varied after assembly.
A: If you bond the glass with other parts fully by optical bonding, the gloss will vary,the gloss of double side AG glass will increase by 10-20. If it’s single side AG glass or bonded half, the gloss varies small.
>>FAQ-2:
Q1: How do I get a quick quote ?
A:You can provide us with detailed pictures, drawings, production process requirements, and quantities as much as possible, and you will receive an accurate free quotation within 2 hours of receiving the information.
Q2: How to increase the success rate of sample production ?
A:When you express your intention to purchase, our engineers will intervene and provide evaluations and suggestions from the perspectives of structure, physical properties, application scenarios, etc. This is exactly what we are best at.
Q3: Can I get the sample?
A: If it is a sample we already have, it will be free. If it is customized according to your drawings, we will charge a cost fee.
Q4:How long is your delivery time?
A:Sample is 3-10days.Mass products are 5-12days by air,or 5-30 days by sea.
Q5:What’s the payment term?
A: T/T , Paypal L/C,...
Q6: I need to get a quote faster?
A: If you are very urgent to get the quotation, please call us or tell us in your email so that we will give priority to Your enquiry.
Related Products
TO GETA FREE SAMPLE
Send an inquiry now and get a free sample. We will reply you within 1-5 minutes and get the official best price within 1-3 hours!
- Phone
- *Title
- *Content
Learn more from our FAQ
- Can you customize the samples style according to my design requirement?
Of course! We can customize the process according to your needs: shape cutting, AR AG coating, high temperature oven, polishing and tempering, anti-UV ink printing, based on our mature supply system for processing and customization
- Can I get a sample with my own logo?
Since customized samples and shipping costs are high for both parties, in order to ensure a win-win situation for both parties and quality assurance, we only provide high-quality samples. But we can also provide existing product renderings and design mold services. Usually, we will first provide product renderings with your LOGO as a reference. Click to learn more about free samples
- What is your Production MOQ?
The minimum order quantity for our factory production is flexible and negotiable. Usually the MOQ is 100 pieces, and lower quantity is acceptable for trial order. Please feel free to let us know the quantity you need.
TO GETA FREE SAMPLE
Send an inquiry now and get a free sample. We will reply you within 1-5 minutes and get the official best price within 1-3 hours!
- Phone
- *Title
- *Content
Focus on the research and development and manufacturing of high-quality optical lens glass/display panel glass/glass products!
Navigation
Categories
- Automotive Display Glass Solutions
- Medical display glass solutions
- Industrial Technical Glass Solutions
- Aviation/ship/train glass solutions
- CE tempered glass solutions
- Solution Engineer Channel
- Optical Glass
- AR AF AG glass
- Glass materials
- Gorilla Glass
- Customized glass buyer channel
- Curved glass solutions
- Custom Optical Glass Domes (BK7/K9/Sapphire)
- Tempered Glass Mouse Pads
News
