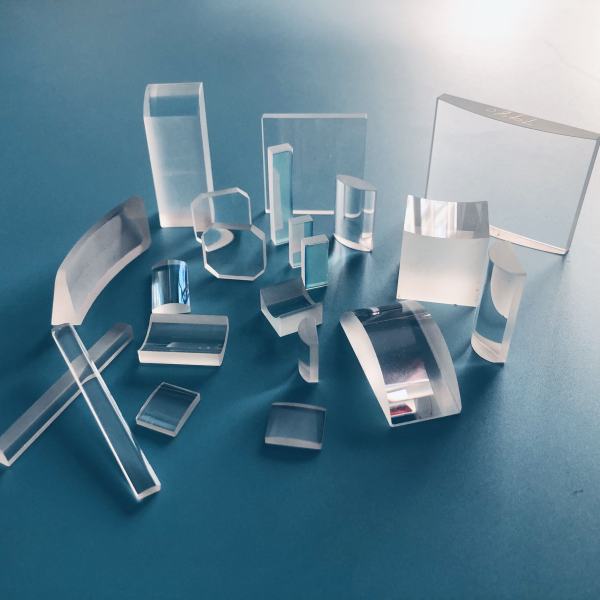

N-BK7 & Fused Silica Plano-Convex Plano-Concave For Laser Scanning Metrology

Share
Categories	Optical Prisms
Brand	FELIX GLASS optical glass Manufacturing base
Model	FG-IR-MEN-BLACKEDGE
Material	N-BK7 optical glass, high purity fused silica (fused quartz)
Surface Coating	Uncoated raw optical surface, no anti-reflection film
FOB port	SHENGZHEN SHANGHAI GUANGZHOU
Terms of Payment	L/C, D/A, D/P, Western Union
Download

Contact Now

Favorites

Detail Information

Uncoated Plano-Convex & Plano-Concave Cylindrical Lens, N-BK7 & Fused Silica For Laser Scanning Optical Metrology

Felix Glass uncoated cylindrical lens is a one-dimensional beam shaping optical element, available in plano-convex (positive focusing) and plano-concave (negative diverging) two structures. Two mainstream optical substrates are optional: N-BK7 crown optical glass and high-purity fused silica, without any anti-reflection coating to meet special optical path requirements where film layer reflection interference is prohibited.

Cylindrical lens only focuses or diverges light along one single axis, forming linear laser spot, which is the core optical component for laser scanning, contour measurement, linear optical metrology and machine vision line scan detection. Ultra-precision surface polishing ensures uniform linear beam quality, stable focal line consistency for long-term precision measurement equipment.

Core Optical Specifications

- Optional Substrate: N-BK7 optical glass / High purity synthetic fused silica

- Lens Structure: Plano-convex (positive) & Plano-concave (negative) cylindrical single element

- Surface Coating: Uncoated raw optical surface, no AR film deposition

- Working Spectrum: N-BK7:400–1100nm; Fused Silica:185–2100nm deep UV to near IR

- Surface Quality: Standard 60-40 scratch-dig, upgradeable to 40-20 high precision

- Surface Flatness: ≤ λ/10 @632.8nm precision polishing standard

- Beam Characteristic: One-dimensional linear focusing/diverging, line laser spot output

- Edge Treatment: Optional black edge paint for stray light suppression

Core Product Advantages

1. Dual substrate selection: N-BK7 for visible-near infrared low-cost measurement; fused silica for deep UV laser scanning metrology

2. Two cylindrical structures available: plano-convex for linear focusing, plano-concave for laser beam expansion

3. Uncoated bare surface design, eliminate coating film stray light interference, fit special metrology optical path demands

4. Ultra-precision cylindrical curved surface, uniform linear laser spot without distortion, stable measurement repeatability

5. Customizable aperture, cylindrical focal length, length and edge treatment to match laser scanning & linear measurement equipment

6. Low bubble & striation blank material, low internal light absorption, long service life for continuous industrial metrology

Typical Application Scenarios

- Laser scanning contour measurement & optical metrology equipment

- Line scan machine vision linear detection optical modules

- UV laser marking & linear laser positioning systems

- Industrial precision dimensional measuring instruments

- Semiconductor linear defect inspection optical assemblies

- Laboratory laser beam shaping experimental platforms

OEM Manufacturing Capability

We provide full one-stop cylindrical optical processing including N-BK7/fused silica blank cutting, ultra-precision cylindrical CNC grinding, high-precision surface polishing, edge chamfer/black edge treatment, strict linear beam uniformity testing and surface quality inspection.

Prototype sampling, small-batch trial production and mass manufacturing are supported. Every uncoated cylindrical lens is fully tested to meet customer-specified dimensional, spectral and beam shaping requirements before delivery.

FAQ

1. What is the difference between cylindrical lens and spherical lens?

Cylindrical lens only shapes light on one axis to form linear laser spot, suitable for linear scanning metrology; spherical lens focuses light on two axes to form circular spot.

2. What is the difference between N-BK7 and fused silica cylindrical lens?

N-BK7 works for 400nm+ visible & near infrared with lower cost; fused silica transmits deep UV below 300nm, high temperature resistant for UV laser scanning equipment.

3. Why choose uncoated cylindrical lens instead of AR coated?

Uncoated surface avoids extra reflection interference from coating film, meeting special optical metrology systems that require pure raw glass light transmission without film stray light.

4. What laser scanning metrology equipment matches this cylindrical lens?

It fits laser contour scanners, line scan machine vision detectors, UV laser linear positioning systems and industrial precision dimensional measuring instruments.

5. Do you provide sample production for uncoated cylindrical lenses?

We supply single-spec sample trial and mass customized production, all cylindrical lenses pass linear beam uniformity and surface quality inspection before shipment.
