2D and 2.5D Cover Glass
Flat and arc-edge cover glass for industrial terminals, tablets, appliances and handheld instruments.
Display Cover Glass
Functional & Display Glass
Custom Strengthened Aluminosilicate Display Cover Glass for Industrial HMI, Medical Touch and Smart Device Displays
Single-piece strengthened aluminosilicate display cover glass protects modern interactive displays while supporting optical clarity, scratch resistance, edge safety, printed borders, coating compatibility and stable touch operation in demanding assembly environments.
Chemical strengthening support AR, AG and AF coating options CNC edge and hole processing
Product Overview
What Is Display Cover Glass Used For?
Display cover glass is commonly selected when a display system requires a balanced combination of scratch resistance, optical transmission, mechanical durability, printing compatibility and long-term environmental stability. Felix Glass manufactures customized cover glass for medical diagnostic equipment, industrial control panels, wearable devices, household appliances, outdoor monitoring terminals and compact automotive display assemblies.
Core substrateHigh-strength aluminosilicate glass for medical and industrial grade cover lenses.
Alternative materialsSoda-lime glass for cost-sensitive designs and borosilicate glass for heat or chemical resistance.
Typical use logicChoose by touch frequency, impact requirement, coating target, shape complexity and assembly tolerance.
Material Properties
Aluminosilicate Display Glass Reference Data
Values are typical engineering references. Final performance depends on thickness, strengthening depth, edge condition, coating stack and customer drawing requirements.
| Property | Reference Value | Engineering Meaning |
|---|---|---|
| Visible transmission | 90% or above | Supports clear display reading after suitable surface treatment. |
| Hardness | Mohs 6-7 | Improves resistance to daily touch, cleaning and assembly wear. |
| Density | 2.45 g/cm3 | Useful for weight estimation in wearable and handheld devices. |
| Expansion coefficient | About 7.2 x 10-6 /K | Supports assembly evaluation with metal or plastic frames. |
| Working temperature | Up to 450 C reference | Depends on product structure, coating and stress condition. |
| Strengthening depth | 20-80 um customizable | Adjusted according to impact, thickness and edge design. |
Engineer Comparison
Why Aluminosilicate Glass Is Often Chosen
Higher scratch resistance than ordinary soda-lime display glass.
Excellent chemical strengthening response for thinner protective cover designs.
Improved impact resistance when thickness, edge finish and strengthening depth are matched correctly.
More suitable for long-term touch operation in medical, industrial HMI and outdoor terminal systems.
RFQ Core Specifications
Typical Technical Specification Range
Size range10 mm to 1200 mm
Thickness range0.3 mm to 10 mm
Size tolerance+/-0.05 mm reference
Surface quality60/40 or 40/20 MIL standard
FlatnessWithin 0.02 mm / 100 mm reference
Edge processingC-edge, full chamfer, 2.5D and 3D curved edge
Printing methodCeramic ink and silk screen border printing
Functional coatingsAR, AG, AF, anti-bacterial and ITO conductive options
Custom Options
Structures, Printing and Coating Choices
AR, AG and AF Coated Glass
Anti-reflection, anti-glare and anti-fingerprint coating options selected by viewing environment and cleaning cycle.

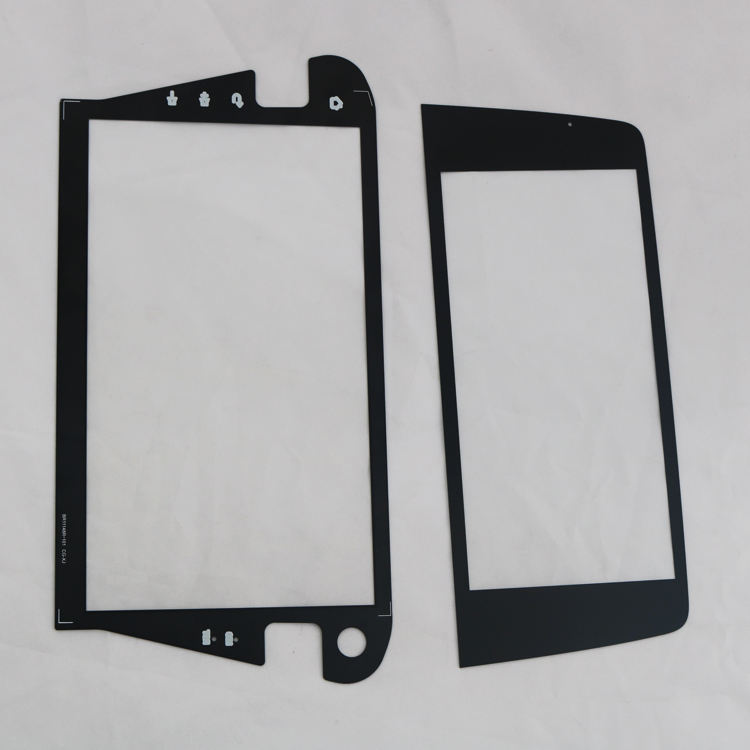

Printed and Irregular Shapes
Black border silk printing, custom color printing, sensor windows, holes, slots and special contours.
Application-Specific Builds
Medical anti-bacterial display glass, IK-rated impact designs and optical bonding grade cover lenses.
13 results
ViewShowcase
OEM industrial display cover glass with AG, AR and AF coating options, supporting prototype development and mass production
Custom automotive tempered touch screen cover glass custom print & cut for car central control, ADAS and DVR systems.
MOQ:5 piece
Unit Price:US $2.88-5.99
High‑hardness industrial narrow bezel glass cover for industrial touch screen and HMI panel.
MOQ:5 piece
Unit Price:US $2.88-5.99
Custom C/J shaped tempered glass for industrial touch displays, gaming machines, kiosks, and HMI systems. OEM/ODM support.
MOQ:5 piece
Unit Price:US $2.88-5.99
Custom C/J type tempered glass cover for industrial touch screen, high strength & scratch‑resistant.
MOQ:5 piece
Unit Price:US $2.88-5.99
automotive tempered streaming rearview mirror glass cover with AR AG coating, custom tempered auto mirror glass
MOQ:5 piece
Unit Price:US $2.88-5.99
Laptop screen tempered glass cover, high strength & clear view.
MOQ:5 piece
Unit Price:US $2.88-5.99
High-performance automotive display glass for infotainment systems, car DVR, and in-vehicle displays. OEM/ODM support
MOQ:5 piece
Unit Price:US $2.88-5.99
Custom tempered touch screen cover glas with AR AF AG coating, custom glass panel.
MOQ:5 piece
Unit Price:US $2.88-5.99
High-precision tempered cover glass with AR/AF/AG coating, 9H hardness. Custom sizes, OEM/ODM touch panels.
MOQ:5 piece
Unit Price:US $2.88-5.99
custom display cover glass with AR/AF/AG coating, 9H hardness, custom size/shape, OEM/ODM for industrial,
MOQ:5 piece
Unit Price:US $2.88-5.99
custom processed for medical monitors, HMI panels, automotive and outdoor displays.
MOQ:5 piece
Unit Price:US $2.88-5.99
Fully custom tempered glass display window panel, high transmittance, custom size for electronic devices & smart products.
Design Guidelines
Engineering Design Points for Custom Display Cover Glass
Stable cover glass projects usually start with drawing review, edge safety, sensor window planning, coating zone definition and assembly tolerance confirmation before prototype production.
Edge and hole designUse suitable chamfer radius, keep hole-to-edge distance stable, and reduce micro-crack risk before strengthening.
Printing and sensor windowsReserve border tolerance, camera windows, IR zones and zero-printing areas according to assembly stack.
Optical bonding readinessControl flatness, cleanliness, bonding border width and visual area transmission consistency.
Curved transition controlFor 2.5D and 3D structures, transition smoothness and coating feasibility should be evaluated together.
Manufacturing Capability
Precision Processing Workflow for Display Cover Glass
1Drawing evaluation and structure verification
2Low-stress blank cutting and CNC contour machining
3Fine grinding, polishing, chamfering and corner rounding
4Chemical strengthening, cleaning and dust-free handling
5Silk screen printing, curing and coating preparation
6Dimensional, flatness, optical and appearance inspection
Quality Inspection
Inspection Standards for Industrial and Medical Display Glass
Felix Glass checks dimensional tolerance, surface scratch and dig condition, edge quality, flatness, coating uniformity, printing border precision and batch transmittance consistency according to project requirements.
Zygo flatness verificationSpectrophotometer coating checkPrinting color consistencyMechanical sampling verification
FAQ
Frequently Asked Questions About Display Cover Glass
What is the difference between aluminosilicate and soda-lime display glass?
Aluminosilicate glass provides higher hardness, stronger chemical strengthening response and better long-term touch fatigue resistance for industrial and medical usage.
Can display cover glass support optical bonding?
Yes. Flatness, warpage and surface cleanliness can be controlled for full lamination and optical bonding requirements.
Can logos or borders be silk printed?
Yes. Black, white and custom ceramic ink printing can be applied for durable borders, icons, windows and brand marks.
Can the cover glass reach IK impact resistance grades?
IK07 to IK10 targets can be evaluated by adjusting thickness, strengthening depth, edge processing and structure design.
What is the minimum customizable thickness?
Ultra-thin display glass from 0.3 mm can be manufactured for wearable and portable device applications.
Can anti-bacterial coating be applied?
Medical-grade anti-bacterial coating is available for hospital diagnostic, nursing and healthcare display equipment.
Do you support prototype orders?
Prototype production can be arranged for drawing verification, optical testing, assembly trial and later batch production planning.
Which drawing formats are accepted?
DWG, DXF, PDF, STEP and common engineering drawing formats can be reviewed for customization.
Related Navigation
Display Glass Topic Authority Links
Use these related pages to compare display cover glass with touch panels, conductive glass, coated glass and application-specific display glass categories.
RFQ Documents
Useful Documents for Display Cover Glass Purchasing
Display Cover Glass Technical DatasheetAluminosilicate Material Properties SheetAR/AG/AF Coating SpecificationIndustrial Display Glass Inspection StandardCustom Display Glass Drawing GuideOptical Glass Cleaning and Maintenance GuideHigh-precision Glass Packaging Specification
Get Custom Quote
Upload Display Glass Drawings for Engineering Review
Share thickness, size, edge type, printing style, coating requirement, impact target and application environment. The engineering team can evaluate structure, process route and customization details before sampling.
