BK7 & Optical Glass Domes
Used for visible imaging, PTZ surveillance, LiDAR cover optics and protected optical assemblies where dimensional stability and controlled cost are required.
Optical Domes

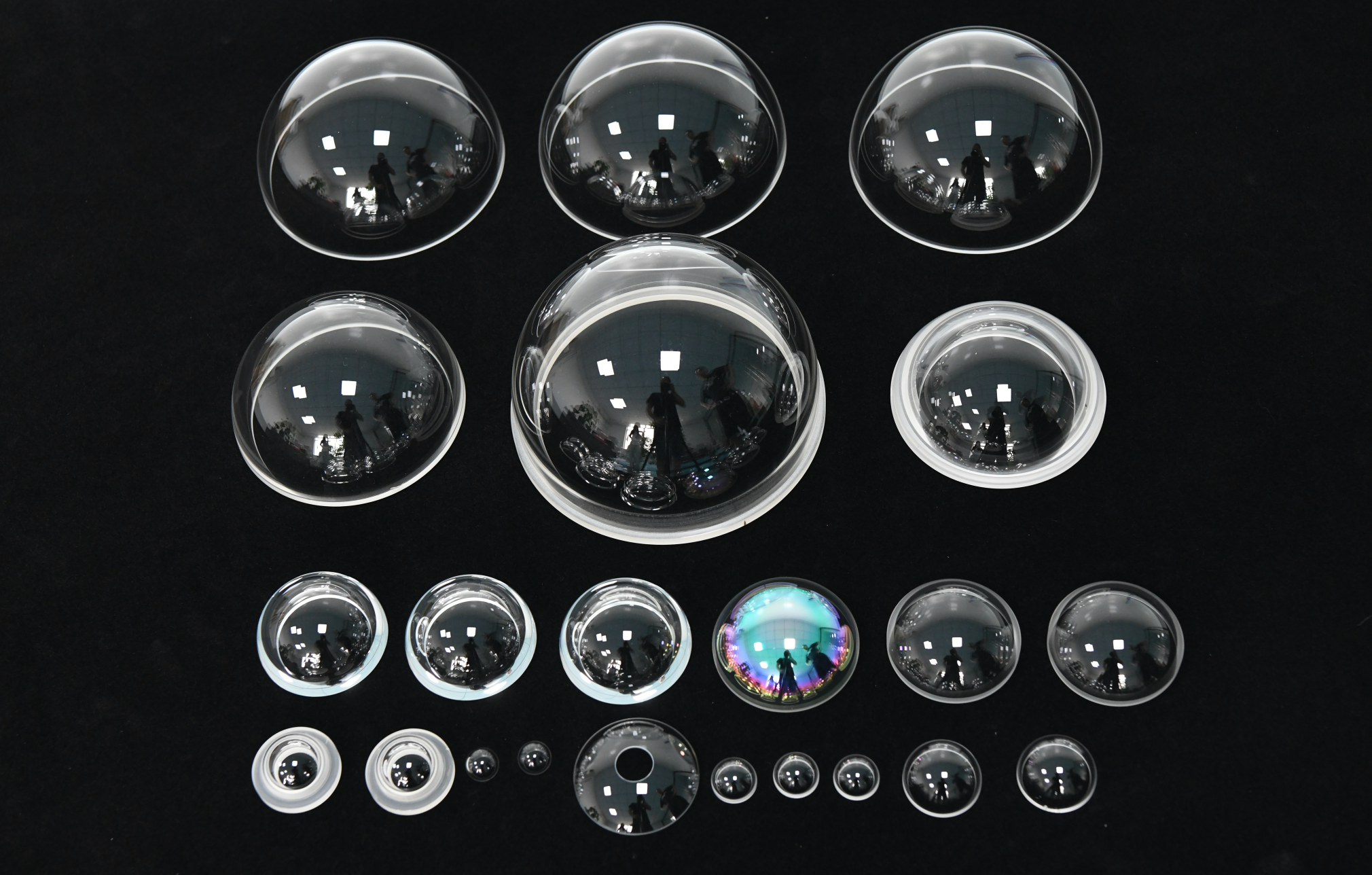

Felix Glass manufactures custom spherical optical domes for visible, UV and infrared optical systems, including sapphire domes, ZnSe domes, ZnS domes, fused silica domes and BK7 optical glass domes. Projects are reviewed according to wavelength, dome geometry, pressure load, coating band, wavefront requirement and mounting interface. Infrared thermal imaging domes and LWIR optical components are categorized in the Infrared Optics product group. Material choice affects transmission band, mechanical strength, coating compatibility, dome thickness and inspection method. Typical customization ranges shown for reference. Actual specifications depend on material selection and engineering requirements. Felix Glass supports hemispherical, deep spherical, flanged, pressure-resistant, multispectral and coating-integrated dome designs for OEM/ODM optical systems. Selected for abrasion resistance, marine pressure exposure, outdoor sensing and high-temperature industrial environments. Reviewed for MWIR/LWIR thermal imaging, multispectral sensing and infrared optical protection where material transmission is the primary selection factor. Custom edge forms, mounting shoulders, chamfers and sealing surfaces can be processed according to housing and assembly drawings. Coating design is matched to the substrate, wavelength range, dome curvature, incidence angle and operating environment. Every optical dome is manufactured under documented production and inspection procedures, with traceable process records from raw material verification through final optical inspection. Single-band or custom-band AR coating for visible, NIR and selected infrared systems. Broadband transmission support for multispectral sensors and wide-angle optical assemblies. Hard protective coating option for compatible infrared materials exposed to abrasion or outdoor conditions. Applied when project design requires reflective infrared optical surfaces or special thermal-band behavior. Useful for marine cameras, ROV/AUV domes, outdoor sensing covers and exposed surveillance systems.
Custom optical domes
Custom Precision Optical Domes | Sapphire, ZnSe, ZnS & Optical Glass Domes for LiDAR, Thermal Imaging & Optical Sensing Systems
19+ years of experience in custom precision optical component manufacturing
75,000 m2 standardized manufacturing facility with optical processing and testing workshops
ISO9001, CE, RoHS and REACH certified production support
Upload Optical Dome Drawing
Material selection
Optical Domes Base Material Selection & Multi-Parameter Performance Specifications
Material Transmission Range Refractive Index Hardness Maximum Recommended Diameter Typical Operating Environment Sapphire UV to mid-infrared, depending on grade and thickness nD about 1.76 Mohs 9 Typically up to 300 mm after drawing review High-pressure underwater, marine ROV/AUV, outdoor drone, high-temperature industrial ZnSe Visible red to long-wave infrared, commonly used around CO2 laser and thermal bands n about 2.40 at 10.6 um Knoop about 120 Typically up to 200 mm after radius and thickness review Thermal imaging cameras, infrared sensing, controlled laboratory optics ZnS Visible to infrared for multispectral optical systems n about 2.20 at 10.6 um Knoop about 160 Typically up to 200 mm depending on grade and geometry Multispectral sensing, outdoor infrared equipment, marine vision systems Fused Silica UV to near-infrared nD about 1.46 Mohs about 6.5 Typically up to 400 mm after process evaluation Vacuum, UV optics, outdoor drone, laboratory precision optics BK7 Visible to near-infrared nD about 1.517 Mohs about 6 Typically up to 500 mm depending on sag and wall thickness PTZ surveillance, LiDAR cover optics, laboratory optics, protected outdoor assemblies
Dome types
Multi-Type Precision Optical Domes for Visible, UV & Infrared Optical Systems
Sapphire Optical Domes
ZnSe & ZnS Infrared Domes
Flanged & Assembly-Ready Domes
Coating systems
Custom Multi-Layer Coating Solutions for Spherical Optical Domes
AR Anti-Reflection Coatings
BBAR Broadband Anti-Reflection Coatings
DLC Diamond-Like Carbon Hard Protective Coatings
Infrared Metal Reflective Coatings
Hydrophobic & Oleophobic Anti-Fouling Coatings
34 results
ViewShowcase
Custom flanged optical dome port with integrated one-piece flange for ROV/AUV. Rated to 3000m/7000m, JGS1 or sapphire.
Custom 3000m deep sea optical dome ports rated at 300 bar hydrostatic pressure for ROV, AUV and underwater camera housings.
Custom 7000m deep sea optical dome port for deep ROV/AUV camera. 20–60mm, Sapphire preferred, high pressure resistance.
Fused silica optical domes custom for UV, NIR, laser & high-temp use. CNC machining, optical polishing and AR/BBAR coating options.
Custom monocrystalline sapphire optical domes with AR coating. For subsea ROV, aerospace and EOIR thermal imaging systems,
Custom underwater optical dome for ROV & subsea cameras. Sapphire/fused silica/BK7/ZnS with AR/BBAR coating. Custom geometry.
Custom JGS1, JGS2, JGS3 fused silica optical domes with optimized UV transmission for sensor and aerospace applications.
MOQ:5 piece
Unit Price:US $2.88-5.99
Custom precision flanged optical dome glass manufacturer for security cameras and industrial machine vision. Multi-substrate
Custom BK7 pressure-resistant underwater optical glass dome manufacturer for ROV & deep sea marine cameras AR coating optional,
MOQ:5 piece
Unit Price:US $2.88-5.99
Custom precision optical glass dome manufacturer with BK7/fused silica/borosilicate for laser, aerospace and underwater optical
MOQ:5 piece
Unit Price:US $8.64
Anti-reflective optical glass dome reduces glare and light loss. Ideal for LiDAR, monitoring and outdoor optical equipment.
MOQ:5 piece
Unit Price:US $5.21-9.66
Custom OEM BK7 underwater pressure-resistant optical glass dome for ROV & deep sea marine camera. AR/anti-fog coating optional,
MOQ:5 piece
Unit Price:US $6.88-10.55
Felix Glass manufactures high-precision AR coated ZnS domes, infrared optical windows optimized for 8-14μm and 10.6μm
Custom multi-spectral CVD ZnSe hemispherical dome lens with 0.5–22μm wide transmission & customized broadband
MOQ:5 piece
Unit Price:US $6.56-9.56
Precision machined ZnSe optical dome with multispectral transmittance. Integrated lens design EO/IR and airborne detection
MOQ:5 piece
Unit Price:US $3.33-7.69
Custom AR coated sapphire dome, high transmittance for aerospace/surveillance. OEM supported.
MOQ:5 piece
Unit Price:US $2.88-5.99
Sapphire hemispherical dome with AR coating, IP68 for ROV, military & aerospace drone, OEM custom.
MOQ:5 piece
Unit Price:US $2.88-5.99
Custom BK7/K9 optical dome, high transmittance & low distortion for underwater cameras. OEM supported.
Custom sapphire/BK7 optical dome, high transmittance & pressure-resistant for surveillance/ROV. OEM supported.
MOQ:5 piece
Unit Price:US $2.88-5.99
Custom AR coated sapphire/BK7 hemispherical lens, high precision for cameras, sensors & industrial use. OEM supported.
MOQ:5 piece
Unit Price:US $2.88-5.99
Custom optical lenses, domes, windows and prisms manufactured with material, coating and inspection support for OEM projects.
MOQ:5 piece
Unit Price:US $2.88-5.99
Custom BK7/K9 optical glass dome, high transmittance & low distortion for underwater cameras. OEM supported.
MOQ:5 piece
Unit Price:US $5.88-9.58
Custom ITO conductive glass dome, high transmittance for underwater cameras & smart devices. OEM supported.
MOQ:5 piece
Unit Price:US $2.88-5.99
Factory OEM AR coated BK7/K9 optical glass dome lens, zero distortion, high pressure resistant, for camera & ROV systems.
MOQ:5 piece
Unit Price:US $2.88-5.99
Custom flanged K9/borosilicate glass dome, high transmittance & durable for security cameras. OEM supported.
MOQ:5 piece
Unit Price:US $5.24-8.96
Custom flanged tempered glass hemisphere dome, fully customizable for stable mounting & high clarity. OEM supported.
MOQ:5 piece
Unit Price:US $4.58-8.64
Custom AR coated optical glass dome manufacturer for LiDAR, surveillance cameras and optical sensing systems. High transmittance, low distortion,
MOQ:5 piece
Unit Price:US $2.88-5.99
High pressure resistant optical glass dome for ROV. Ensures clear imaging and long service life for marine engineering.
MOQ:5 piece
Unit Price:US $2.88-5.99
Custom flanged BK7/K9 dome lens, AR coated & high pressure resistant for underwater cameras & ROV systems. OEM
MOQ:5 piece
Unit Price:US $2.88-5.99
Custom AR coated tempered optical glass dome manufacturer for CCTV outdoor surveillance cameras. AR/AF/AG coating optional,
Optical dome integration should be reviewed as a coupled optical and mechanical problem. Radius, wall thickness, clear aperture, edge geometry, stress condition, refractive index and coating band all influence the final wavefront behavior and assembly reliability. Dome sag, curvature and pressure load are evaluated together before confirming manufacturable wall thickness. Surface figure, transmitted wavefront and clear aperture must match the optical path and sensor tolerance. Flanges, shoulders, chamfers and sealing edges are processed according to housing drawings. Marine pressure, humidity, abrasion, thermal load and cleaning method affect material and coating selection. Custom optical domes are used as protective and transmitting spherical optical elements in systems where flat windows cannot meet field-of-view, pressure or packaging requirements. Felix Glass supports drawing-based review for off-axis, flanged, partial spherical, window-integrated and housing-matched dome geometries. Feasibility is confirmed according to material brittleness, tool access, minimum edge thickness, polishing route and inspection method. Felix Glass owns full-process 5-axis CNC spherical grinding, ultra-precision polishing and vacuum coating production lines, supported by an independent optical laboratory with Zygo interferometers, spectrophotometers and surface profile inspection systems. Optical domes are commonly evaluated together with windows, lenses, prisms, filters and infrared optical components. Infrared thermal imaging domes and LWIR optical components are categorized in the Infrared Optics product group. Manufacturing support is available for medical device projects based on customer quality requirements. Felix Glass also provides long-term OEM/ODM supply for aerospace-related optical systems, LiDAR sensing, thermal imaging, marine vision, medical optics and semiconductor inspection. Size depends on material, radius, wall thickness and inspection requirement. BK7 and fused silica can usually support larger diameters than ZnSe or ZnS, subject to drawing review. Yes. Radius, sag, hemisphere depth and partial spherical geometry can be reviewed according to optical path and mechanical housing requirements. Typical RFQs include outer diameter, inner diameter, wall thickness, radius, clear aperture, edge thickness, surface quality, wavefront and coating band. Sapphire is selected for hardness and harsh exposure, ZnSe and ZnS for infrared transmission, fused silica for UV and thermal stability, and BK7 for visible optical assemblies. Yes, but pressure depth, sealing design, safety factor and dome thickness must be evaluated together with the selected material and housing design. Wavefront testing can be arranged for qualified geometries and materials. The exact method depends on dome diameter, curvature, wavelength and fixture feasibility. Hemispherical domes are commonly used as protective optical covers, while full spherical forms are more specialized and require separate review for polishing and inspection access. ZnSe, ZnS and other infrared materials may be reviewed depending on wavelength, system design and coating requirements. For detailed infrared optical material selection and professional LWIR optical solutions, please refer to our dedicated Infrared Optics product group. Cleaning method depends on coating and material. Use approved optical cleaning procedures and avoid abrasive wiping, especially on softer infrared materials. Available options include AR, BBAR, DLC hard protective coating, infrared reflective coating and hydrophobic or oleophobic anti-fouling coating where compatible. Yes. Marine projects are reviewed for pressure load, sealing edge, coating durability, cleaning exposure and optical field-of-view requirements. Off-axis and special geometry optical domes can be evaluated from drawings or 3D models, including tool access and inspection feasibility. Manufacturing support is available for medical device projects based on customer quality requirements and documented inspection needs. This page covers broad optical dome capability. Dedicated LWIR and infrared material solutions are organized under the Infrared Optics product group to keep search intent clear. Please provide 2D drawings, STEP or IGES files, material, diameter, radius, wall thickness, coating band, wavefront requirement, quantity and application environment. The process normally includes drawing review, material selection, quotation, prototype production, inspection confirmation, coating, final inspection and repeat production planning. Use these document requests to align material, dome geometry, coating band and inspection criteria before quotation. Material: Sapphire, ZnSe, ZnS, Fused Silica, BK7 Process: 5-Axis CNC Spherical Grinding, Ultra-Precision Spherical Polishing, Vacuum Optical Coating, Edge Chamfering Application: LiDAR Ranging, Thermal Imaging, Optical Sensing, Marine Vision, Medical Optics, Semiconductor Inspection, Aerospace-related Optical Systems Manufacturer: Hong Kong Felix Glass Co., Limited | Brand: Felix Glass | Country of Manufacture: China Upload your optical drawings, STEP/IGES 3D models, Zemax design files, tolerance requirements or coating specifications for professional engineering review and customized quotation. The page architecture is standardized for long-term stable operation, while content, FAQs, technical guides and application cases will be continuously iterated according to business development and search intent updates.
Design review
Engineering Design Considerations for Dome Optical Integration
Radius & Thickness
Wavefront Requirement
Mounting Interface
Environmental Exposure
Application scenarios
Core Industrial Application Scenarios of Custom Optical Domes
Aerospace-related Optical SensingLiDAR Ranging SystemsThermal Imaging CamerasMedical Diagnostic Optical SystemsIndustrial Infrared Temperature DetectionSemiconductor Wafer InspectionLaboratory Precision Optical MeasurementUnderwater Cameras & Marine ROV/AUV Optical Systems
Custom geometry

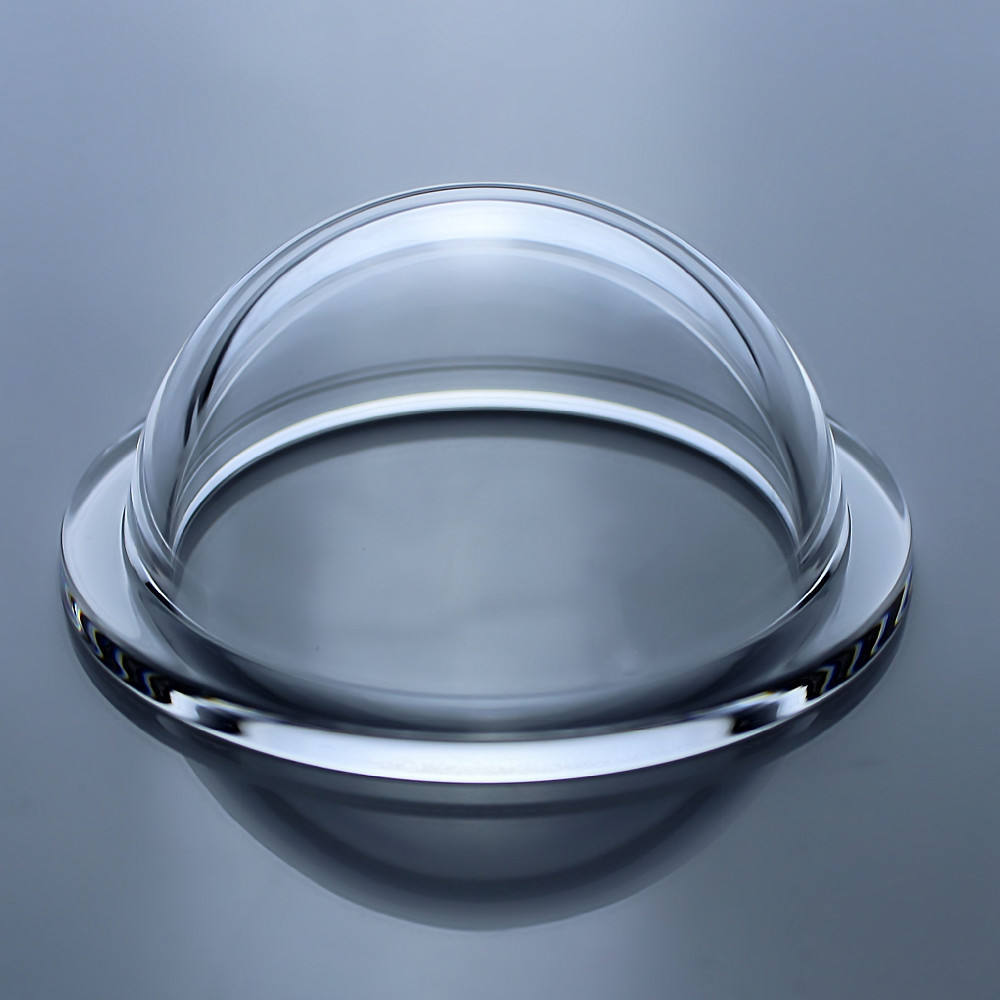

Custom Off-Axis & Special Geometry Optical Dome Services
Manufacturing and QC
Full QC Inspection & Wavefront Testing Workflow for Spherical Optics
Drawing ReviewRaw Material Verification5-Axis CNC Spherical GrindingUltra-Precision Spherical PolishingEdge ChamferingVacuum Optical CoatingDimensional & Surface InspectionWavefront / Transmission TestingClean Packaging
Related processing
Related Precision Processing Services for Optical Dome Projects
5-Axis CNC Spherical Grinding

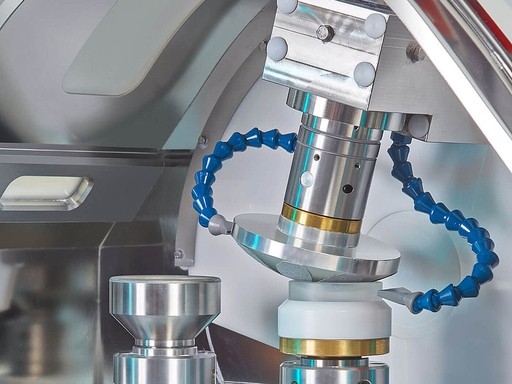

Ultra-Precision Spherical Polishing

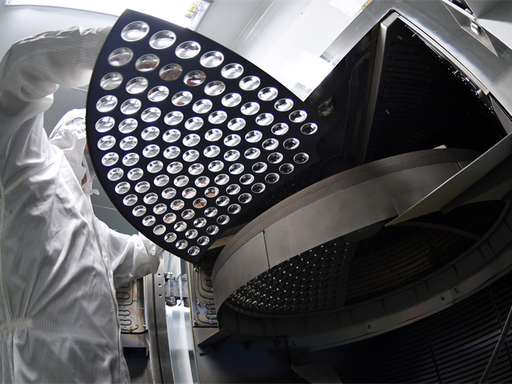

Vacuum Optical Coating
Compatible products
Compatible Optical Products for Custom Dome Optical Systems
Optical Components
Optical Windows
Optical Lenses
Optical Prisms
Optical Filters
Infrared Optical Components & Substrates
Sapphire Optical Dome
Sapphire Optics Material Hub
ZnSe & ZnS Infrared Material Hub
Fused Silica / Quartz Material Hub
Aerospace Optics Case Study
EO/IR Systems Case Study
Semiconductor Inspection Case Study
Optical Glass Material Selection Guide
Sapphire vs ZnS vs ZnSe Guide
Sapphire vs Borosilicate Glass Guide
Infrared Optics Category Guide
Engineering support
Engineering Support Full-Cycle Service for Custom Optical Domes
Documented manufacturing reviewMaterial, radius, thickness, coating and inspection requirements are reviewed before quotation.
Compliance supportISO9001, CE, RoHS and REACH documentation can support purchasing and quality review.
Prototype to repeat productionEngineering feedback, sample production and repeat production routing can be aligned with customer drawings.
Engineering FAQ
FAQ About Custom Optical Domes
What size optical domes can be customized?
Can dome curvature be customized?
What tolerances should be specified?
How should sapphire, ZnSe, ZnS, fused silica and BK7 be compared?
Can optical domes be used in high-pressure underwater systems?
Can transmitted wavefront error be inspected?
What is the difference between hemispherical and full spherical domes?
Which material is suitable for LWIR thermal imaging domes?
How should optical domes be cleaned?
What coating options are available?
Can domes be designed for marine ROV or AUV systems?
Can Felix Glass make off-axis optical domes?
Can custom domes be supplied for medical optical systems?
Are infrared dome products separated from visible optical domes?
What files should be provided for quotation?
What is the usual custom process?
Technical downloads
Technical Downloads for Optical Dome Engineering Evaluation
Optical Dome Design Guide
Optical Dome Material Selection Guide
Optical Coating Capability Datasheet
Custom Optical Drawing RFQ Template
Reserved Product Schema Data Fields
RFQ information
Request Engineering Review for Custom Precision Optical Domes
Learn more from our FAQ
- What is the minimum order quantity for custom precision optical glass components?
FELIX OPTICAL GLASS offers highly flexible MOQs to support customer projects, including prototype testing, small-batch trial orders, and high-volume production. All products can be fully customized to your drawings, tolerances, and application standards. Please send us your specifications, and we will reply within 1-5 hours and provide an accurate quotation after careful evaluation within 1-2 days.
- Can I get free glass samples for testing before bulk order?
Yes, our FELIX GLASS factory supports sample testing for a wide range of precision optical glass components and assemblies. The lead time for sample production is 3 to 7 working days. Please contact us today to arrange samples and obtain a customized solution that meets your needs.
- What is the production lead time for custom optical glass components?
A: The production cycle for standard samples is 3-10 working days, while mass production requires 15-35 working days, depending on the complexity of the product and the order quantity. We provide reliable precision optical glass components and fast delivery services for orders from industries such as defense, industrial equipment, medical devices, shipbuilding, robotics, automotive, and aerospace. Please submit your project details so we can provide you with an accurate delivery schedule.
- Are your optical glass products ISO, CE and RoHS certified?
All precision optical glass components from FELIX OPTICAL GLASS comply with ISO quality system standards as well as CE and RoHS requirements. We provide comprehensive test reports, spectral graphs, material certificates, and inspection documents for customer review. Please feel free to request complete certification details and a formal quotation at any time.
- Do you offer one-stop custom optical glass processing services?
Yes. We offer a full range of precision optical glass component processing services, including CNC machining, precision grinding, optical polishing, chemical/physical tempering, vacuum coating (AR anti-reflective coating, AF anti-fingerprint coating, AG anti-glare coating, IR infrared coating), and screen printing. From raw materials to finished products, every step is completed in our own factory. Please tell us your needs, and we will provide you with the most cost-effective solution.
