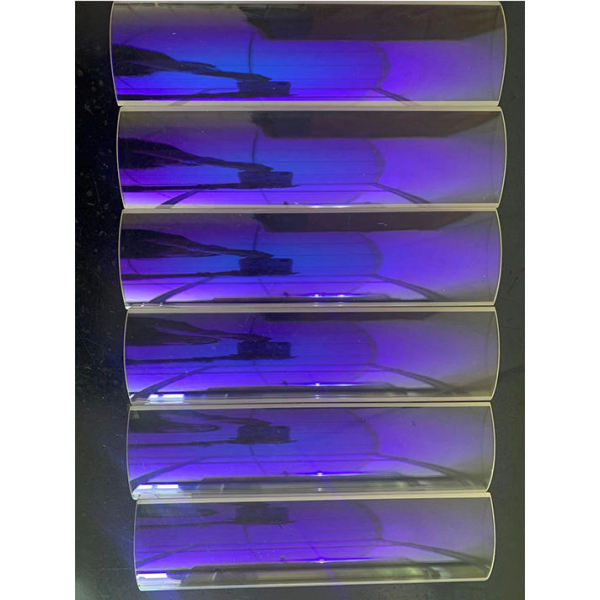

Curved UV Cold Mirror Dichroic Filter, UV Reflect IR Transmit Heat Insulation Glass For UV Curing Equipment

Share
Categories	Longpass Shortpass Filters
Brand	FELIX GLASS optical glass Manufacturing base
Model	FG-UV-COLD-MIRROR-CURVE
Substrate Material	UV grade JGS1 fused silica curved quartz blank
Optical Coating	Dichroic UV reflective cold mirror coating, high UV reflectivity & IR transmission
Customizable Spec	Custom curved radius, square/long strip size, edge chamfer, coating spectrum
Core Function & Application	Block infrared heat radiation, UV curing lamp, PCB exposure, UV ink printing production line
FOB port	SHENGZHEN SHANGHAI GUANGZHOU
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T
Download

Contact Now

Favorites

Detail Information

Curved UV Cold Mirror Dichroic Filter For Industrial UV Curing Equipment

Felix Glass curved UV cold mirror dichroic filter is made of high-purity JGS1 fused silica curved blank, coated with professional UV reflective dichroic thin film on both sides. It can highly reflect target UV curing wavelength while transmitting infrared thermal radiation, effectively isolate heat generated by UV mercury lamp or LED UV lamp, avoid high-temperature deformation of workpiece, so it is named cold mirror.

Curved surface design gathers UV light to improve light utilization efficiency, suitable for box UV curing machines and linear UV curing production lines. We support custom arc radius, square and long strip outlines, arbitrary size and customized spectral coating parameters. The coating has strong adhesion, scratch resistance and long service life under continuous UV irradiation.

Core Optical Specifications

- Raw Material: Bubble-free JGS1 UV grade fused silica quartz

- Coating Performance: UV reflectance ≥92%, infrared transmittance ≥85%

- Surface Quality: Standard 60-40 scratch-dig, aerospace grade 20-10 optional

- Custom Shape: Square curved, long strip curved, special irregular arc

- Working Temperature: Stable under long-term UV lamp high temperature environment

- Optional Process: Edge chamfer, single/double side coating, special film customization

Core Product Advantages

1. Curved concentrating design improves UV light efficiency, reduce energy loss of UV curing equipment

2. Excellent heat insulation performance, block infrared heat to protect printing, glue coating workpiece

3. JGS1 quartz substrate supports deep UV transmission, durable than ordinary K9 glass

4. Custom arc radius, length and width, match different UV lamp housing structure

5. Dichroic coating with strong anti-aging performance, no film peeling under long-time UV exposure

6. Small sample trial and mass industrial batch orders both acceptable, full spectral test report provided

Typical Application Scenarios

- UV glue curing box machine light source reflector

- Linear UV ink printing, UV coating continuous production line

- PCB circuit board UV exposure imaging equipment

- Electronic component UV bonding curing equipment

- Medical UV disinfection, UV sterilization lamp optical window

- Optical laboratory UV spectral analysis beam splitter

OEM Manufacturing Capability

We provide full one-stop processing including fused silica blank hot bending, ultra-precision curved surface polishing, vacuum dichroic cold mirror coating, edge chamfer treatment, spectral transmittance testing, dust-free packaging. Small R&D sample order and mass OEM supply are supported. Every curved UV cold mirror passes full coating adhesion and spectral performance inspection before delivery.

Standard FAQ

1. What is the working principle of UV cold mirror?

It reflects UV curing light and transmits infrared heat, cutting thermal radiation to prevent workpiece overheating deformation.

2. Can I customize the arc size and UV wavelength coating?

Yes, we customize curved radius, dimensions and dichroic coating matched to 365nm, 395nm, 405nm common UV bands.

3. What’s the difference between quartz cold mirror and glass cold mirror?

Fused silica quartz can transmit deep UV light, high temperature resistant, not easy to yellow after long-term UV irradiation, longer service life.

4. What shapes of curved cold mirror can you produce?

Square curved sheets and long strip curved sheets are standard, special irregular curved blanks can be customized according to drawings.

5. Do you support small quantity samples for UV equipment R&D test?

We accept 1 piece small sample order and provide complete spectral transmittance test certificate for each batch.
