Anti-Glare Medical Display Glass for Medical Imaging & Touch Systems
| Share | |
|---|---|
| Categories | Medical display glass |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FG‑MED‑AG‑005 |
| Substrate | Medical-grade low-iron biocompatible tempered glass |
| Coating Options | AG / AG+AR / AG+AF / AG+AR+AF |
| Visible Transmittance | ≥92%, AR coated up to 97% |
| AG Adjustable Haze | 5%–10% (medical low-haze grade for clear imaging) |
| AF Water Contact Angle | ≥110° |
| Surface Hardness | 9H Mohs scratch resistance |
| Common Thickness | 1.1mm, 2.0mm, 3.0mm |
| Disinfection Resistance | Tolerate alcohol, hydrogen peroxide repeated wiping |
| Working Temperature | -20°C ~ 120°C |
| Custom Processing | CNC cutting, full edge chamfering, black border silk printing, sensor hole drilling |
| Compliance | ISO 9001, RoHS, REACH, ISO 10993 biocompatible |
| Unit Price | US $ 7.53-9.89 / piece |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Anti-Glare Medical Display Glass for Medical Imaging & Touch Systems
Felix Glass anti-glare medical display glass is professional protective cover glass specially developed for clinical medical imaging and touch monitoring devices. Made of biocompatible low-iron tempered glass with precision AG anti-glare matte coating, it effectively eliminates ambient light reflection in wards and operating rooms. Optional AR anti-reflection and AF anti-fingerprint coatings are available to match strict medical hygiene and high-definition imaging demands. All glass meets hospital long-term disinfection and long-hour viewing requirements.
Core Coating Functions
AG Anti-Glare
Uniform micro matte etching diffuses harsh operating lamp and ward light glare, removes mirror reflection to avoid interfering doctor’s image judgment during diagnosis.
Optional AR Anti-Reflection
Boost light transmittance up to 97%, restore true color of CT, ultrasound and X-ray imaging screens for accurate medical analysis.
Optional AF Anti-Fingerprint
Hydrophobic oleophobic nano coating repels fingerprints and medical disinfectant residues, one wipe clean for frequent clinical touch operation.
Coating Combination Selection Guide
- AG Only: General ward patient monitors
- AG + AR: High-precision medical imaging diagnostic screens (ultrasound, radiology equipment)
- AG + AF: Multi-person shared touch medical terminals
- AG + AR + AF Triple Coating: Operating room high-end surgical display screens
Technical Specifications
| Property | Standard Parameter |
|---|---|
| Substrate | Medical-grade low-iron biocompatible tempered glass |
| Coating Options | AG / AG+AR / AG+AF / AG+AR+AF |
| Visible Transmittance | ≥92%, AR coated up to 97% |
| AG Adjustable Haze | 5%–10% (medical low-haze grade for clear imaging) |
| AF Water Contact Angle | ≥110° |
| Surface Hardness | 9H Mohs scratch resistance |
| Common Thickness | 1.1mm, 2.0mm, 3.0mm |
| Disinfection Resistance | Tolerate alcohol, hydrogen peroxide repeated wiping |
| Working Temperature | -20°C ~ 120°C |
| Custom Processing | CNC cutting, full edge chamfering, black border silk printing, sensor hole drilling |
| Compliance | ISO 9001, RoHS, REACH, ISO 10993 biocompatible |
Key Features
- Medical Low-Haze AG Coating: Balances anti-glare performance and imaging definition without distorting medical images
- Biocompatible Tempered Substrate: Safe for clinical environment, no harmful precipitation
- Disinfection Resistant Coatings: No peeling or performance loss after daily hospital sterilization
- 9H Hardness Anti-Scratch: Resist collision and scratch during frequent ward use

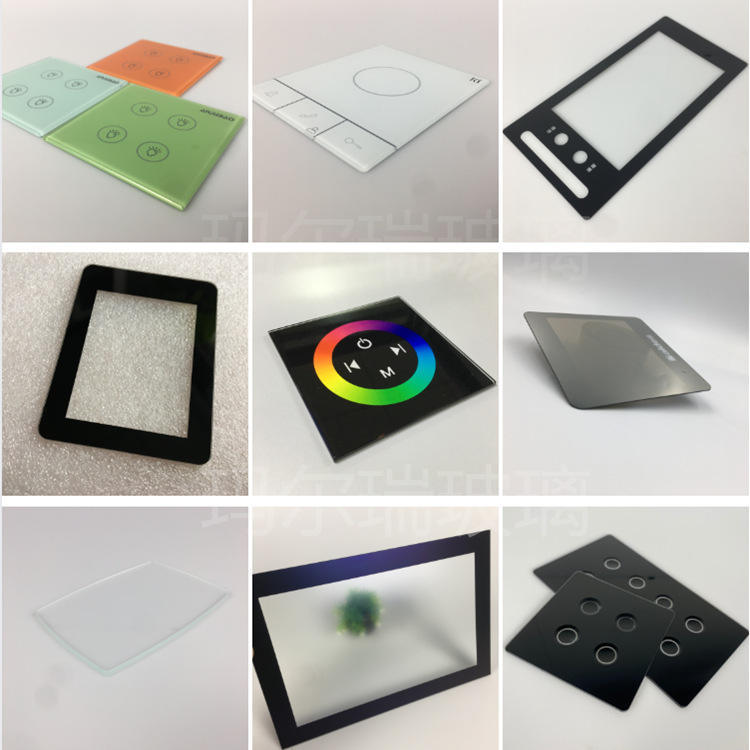

- Fully Customizable Appearance: Custom outline, black printed border and reserved holes for medical equipment assembly
Applications

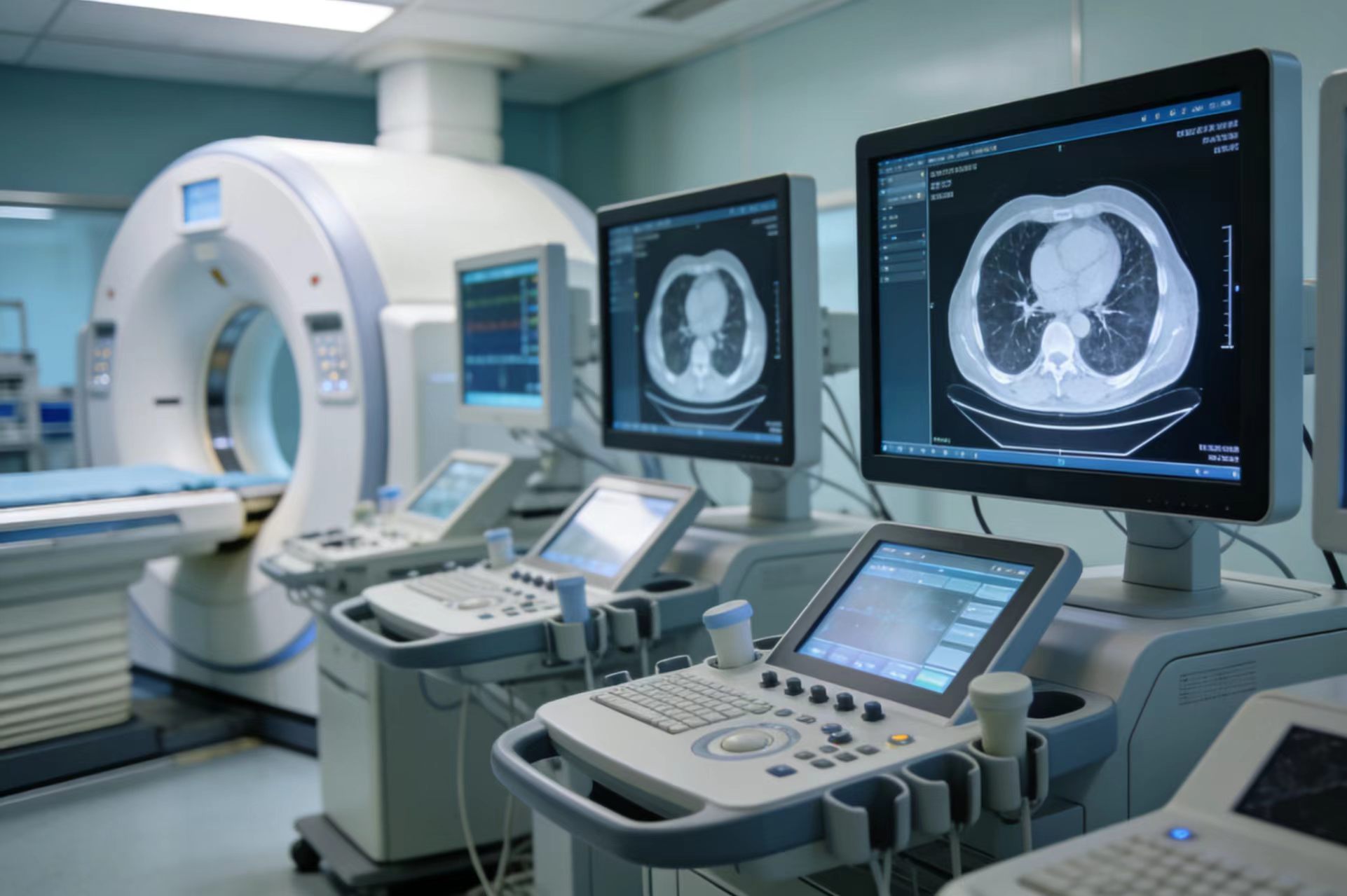

Ultrasound diagnostic touch screens, radiology medical imaging monitors, surgical operating room displays, ward patient monitoring terminals, ophthalmic detection equipment, in-vitro diagnostic touch control panels.
Custom Manufacturing Services
- Custom glass size, thickness and irregular shapes according to medical device drawings
- Flexible AG/AR/AF coating combinations for different clinical scenarios
- Silk screen black border, LOGO printing and precision sensor hole machining
- Small-batch prototype trial and mass production for medical equipment manufacturers
- Complete biocompatibility and optical performance test reports supplied
Why Choose Felix Glass
Specialized medical optical glass manufacturer focused on hospital display protective glass. All medical AG glass passes ISO 10993 biocompatibility testing, with independent medical coating workshop. Each product undergoes full inspection of haze, transmittance and coating stability before delivery. Our engineers provide professional coating matching suggestions for diagnostic and surgical medical equipment, supporting global delivery for medical device factories.
FAQ
Which coating combination is best for ultrasound imaging screens?
AG + AR combination, anti-glare for ward light while ensuring high-definition medical imaging.
Can AG coating withstand repeated medical alcohol disinfection?
Yes, dense magnetron sputtered coating resists long-term disinfectant wiping without failure.
Is this glass safe for clinical medical environments?
The substrate meets ISO 10993 biocompatibility standards, non-cytotoxic and safe for hospital use.
Can you customize printed black borders for medical displays?
Custom silk screen printing, edge chamfering and precision drilling are fully supported.
