lab ITO conductive slide Electrodes for Lab Electrochemistry - Felix Glass
| Share | |
|---|---|
| Categories | ITO Coated Conductive Glass |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | ITO-E01 1 |
| Substrate | Borosilicate glass / Fused silica (quartz) optional |
| ITO Layer | In₂O₃:SnO₂, thickness 100–200 nm |
| Sheet Resistance | 5 Ω/sq, 10 Ω/sq, 15 Ω/sq, 20 Ω/sq (custom) |
| Visible Transmittance | ≥85% @ 550 nm |
| Size (Standard) | 20×20 mm, 25×75 mm (microscope slide), 50×50 mm |
| Thickness | 0.5 mm, 1.1 mm, 1.5 mm |
| Surface Roughness | ≤3 nm RMS |
| Working Temp | ≤250°C |
| Chemical Stability | Resists dilute acid/alkali/organic solvents; ethanol/acetone cleanable |
| Custom Process | Cutting, drilling, patterning, etching, edge chamfering |
| Unit Price | US $ 2.88-6.26 / piece |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |

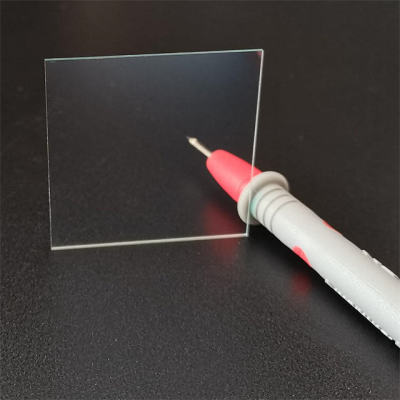

ITO Glass Electrodes | Lab Electrochemistry Conductive Glass Slides
Felix Glass supplies electrochemistry-grade ITO glass (Indium Tin Oxide coated glass) for academic & industrial labs. Made by magnetron sputtering of ITO thin film onto borosilicate/quartz substrate, it combines low sheet resistance, high visible transmittance, excellent chemical stability. It serves as a transparent working electrode for electrochemical and spectroelectrochemical measurements, widely used for cyclic voltammetry(CV), chronoamperometry, spectroelectrochemistry, sensors & photoelectrochemical cells.
Technical Specifications
| Property | Value |
|---|---|
| Substrate | Borosilicate glass / Fused silica (quartz) optional |
| ITO Layer | In₂O₃:SnO₂, thickness 100–200 nm |
| Sheet Resistance | 5 Ω/sq, 10 Ω/sq, 15 Ω/sq, 20 Ω/sq (custom) |
| Visible Transmittance | ≥85% @ 550 nm |
| Size (Standard) | 20×20 mm, 25×75 mm (microscope slide), 50×50 mm |
| Thickness | 0.5 mm, 1.1 mm, 1.5 mm |
| Surface Roughness | ≤3 nm RMS |
| Working Temp | ≤250°C |
| Chemical Stability | Resists dilute acid/alkali/organic solvents; ethanol/acetone cleanable |
| Custom Process | Cutting, drilling, patterning, etching, edge chamfering |
Product Types
Borosilicate ITO Glass (General Electrochemistry)
- Substrate: Borosilicate glass
- Resistance: 10–20 Ω/sq
- Applications: General CV, electrochemical sensing, electrochromic devices
Quartz/Fused Silica ITO Glass (UV & Photoelectrochemistry)
- Substrate: High-purity fused silica
- Transmittance: UV–Vis–IR (185–3500 nm)
- Applications: Deep-UV spectroelectrochemistry, photolithography, photocatalysis
Key Features
- Stable Conductivity: Uniform sheet resistance across surface; consistent electrochemical signals
- High Optical Transparency: ≥85% @550 nm, enables in-situ spectroelectrochemistry
- Excellent Chemical Resistance: Stable in aqueous electrolyte, organic solvents; easy cleaning
- High Flatness & Clean Surface: Low roughness, minimal background current
- Customizable: Cut-to-size, drilled, patterned/etched electrodes
Applications
- Electrochemical working electrodes (3-electrode cells)
- Cyclic Voltammetry (CV), chronoamperometry, impedance testing
- Spectroelectrochemistry & in-situ optical monitoring
- Photoelectrochemical cells & photocatalysis
- Biosensors, electrochromic devices, microfluidic chips
- Laboratory analytical & electrochemical research
Custom Services
- Custom dimensions & thickness
- ITO patterning/etching (electrode arrays, custom circuits)
- Drilling, notching, edge treatment
- Quartz/borosilicate substrate options
- Small batch & prototype orders supported
Why Choose Felix Glass
- Lab-grade quality, batch-to-batch consistency
- ISO 9001 certified, RoHS/REACH compliant
- Strict resistance & transmittance inspection
- Fast sampling & global shipping for academic/industrial labs
- Technical support for electrode design & cleaning protocol
