Custom single-sided or double-sided ITO coating for touch sensitivity, transparent electrode and EMI requirements.
ITO Coated Conductive Glass
Functional & Display Glass / ITO Conductive Glass
Custom Vacuum Sputtered ITO Conductive Glass for Touch Panels, Medical EMI Shielding & Optical Sensors

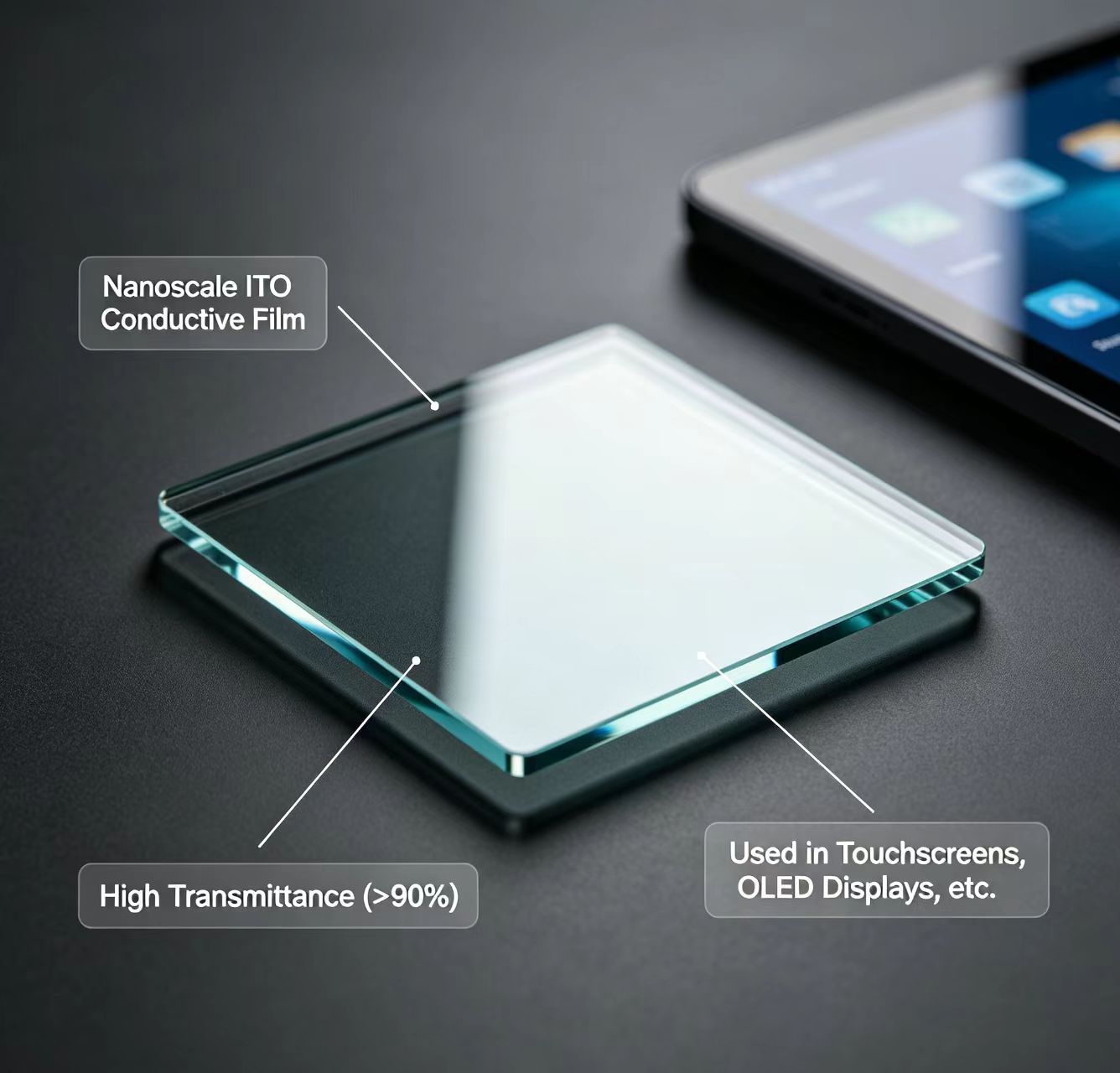

ITO conductive glass is an optical glass substrate deposited with transparent indium tin oxide conductive film by magnetron sputtering. It works as the conductive carrier for capacitive touch sensing, electromagnetic shielding, transparent electrode testing and precision optical signal detection.
Custom aluminosilicate, borosilicate, fused silica and soda-lime ITO substrates for engineered display and optical systems.
Finished Conductive Glass, Not Bare Touch Panel Substrate
Unlike an uncoated touch panel glass blank, ITO conductive glass already integrates a controlled transparent conductive layer for immediate touch circuit lamination, EMI shielding assembly or optical testing use.
Built Around Stable Film Uniformity
Felix Glass combines flatness polishing, multi-stage ultrasonic cleaning, Class 1000 cleanroom vacuum sputtering, CNC contour machining, chemical strengthening and ceramic ink printing to support reliable conductive and optical performance.
Ultra-thin wearable touch sensors through rigid industrial and medical display glass structures.
Prototype pieces and larger custom panels processed with controlled dimension and edge quality.
Dust-free cleaning and sputtering conditions for coating adhesion, optical bonding yield and stable surface resistance.
Base Glass Options for ITO Coating
- Aluminosilicate glass: mainstream medical and industrial touch ITO substrate with strengthening compatibility.
- Borosilicate glass: suitable for high-temperature optical test equipment and stable lab fixtures.
- Fused silica glass: selected for high UV and visible light transmission in specialized optical sensors.
- Soda-lime glass: practical option for cost-sensitive, low-frequency touch control equipment.
Precision Processing

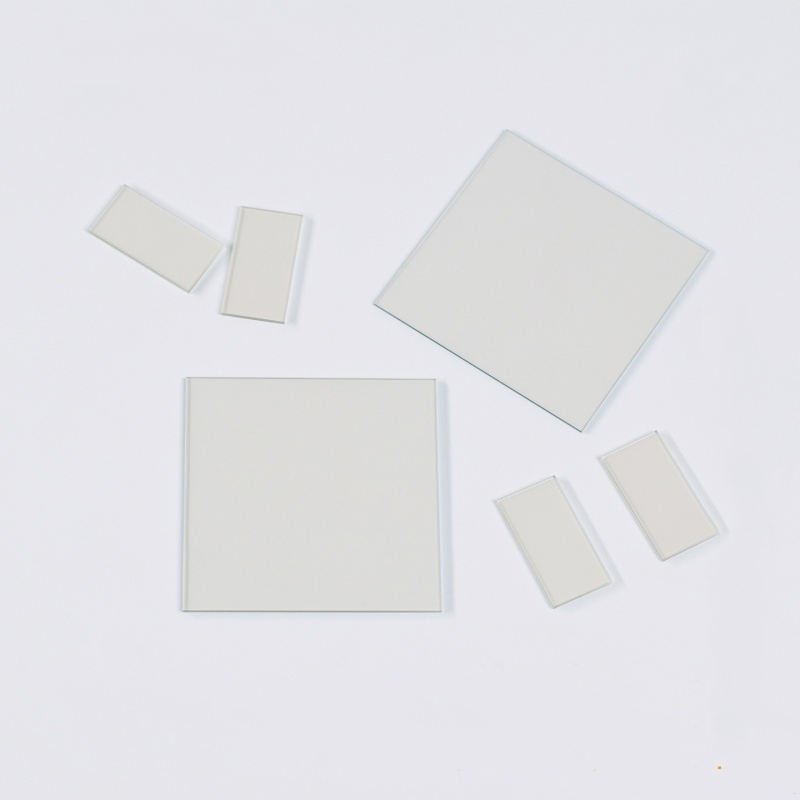

CNC contour machining, C-edge, full chamfer, 2.5D arc edge, custom holes and corner radius from R0.3 to R15.
Functional Coating Stack
ITO can be combined with AR, AG, AF, EMC transparent shielding and medical antibacterial coating according to assembly needs.
Printing & Assembly Fit
Black or white ceramic ink borders, reserved sensor windows and optical bonding compatible surface preparation are available.
5 results
ViewShowcase
MOQ:5 piece
Unit Price:US $2.88-6.26
Lab-grade FTO glass electrodes with 8–15 Ω/sq stable resistance, max 500°C heat resistance.custom processing available.
MOQ:5 piece
Unit Price:US $3.09-4.98
Professional ITO conductive glass with low resistance & high light transmittance. custom for electronics and optical equipment
MOQ:5 piece
Unit Price:US $2.8-6.03
Medical grade ITO conductive glass, high conductivity, high transmittance, ideal for hospital equipment and medical devices.
MOQ:5 piece
Unit Price:US $2.8-6.03
ISO 10993 compliant medical ITO glass. Biocompatible, high transmittance, disinfection resistant, custom cut
MOQ:5 piece
Unit Price:US $2.88-6.26
High-purity ITO glass electrodes for electrochemistry labs. 5–20 Ω/sq, ≥85% transmittance, borosilicate/quartz substrate,custom
Engineering Workflow for Custom ITO Conductive Glass
Felix Glass supports prototype verification and stable mass production through controlled substrate preparation, cleanroom sputtering, precision finishing and batch inspection.
Drawing Review
Glass thickness, edge type, hole position, printing margin, sheet resistance and application environment are checked before production.
Substrate Preparation
Low-stress cutting, fine grinding, polishing, chamfering and optional chemical strengthening prepare the base glass for coating.
ITO Sputtering
Class 1000 cleanroom vacuum magnetron sputtering controls film thickness, sheet resistance and coating uniformity.
Final Inspection
Dimensional tolerance, flatness, transmittance, surface defects, adhesion and sheet resistance are verified before packaging.
Application Scenarios
ITO coated glass is selected for interactive optical systems requiring transparent conductivity, stable capacitive response, anti-interference performance and long-term display assembly reliability.
Quality Inspection

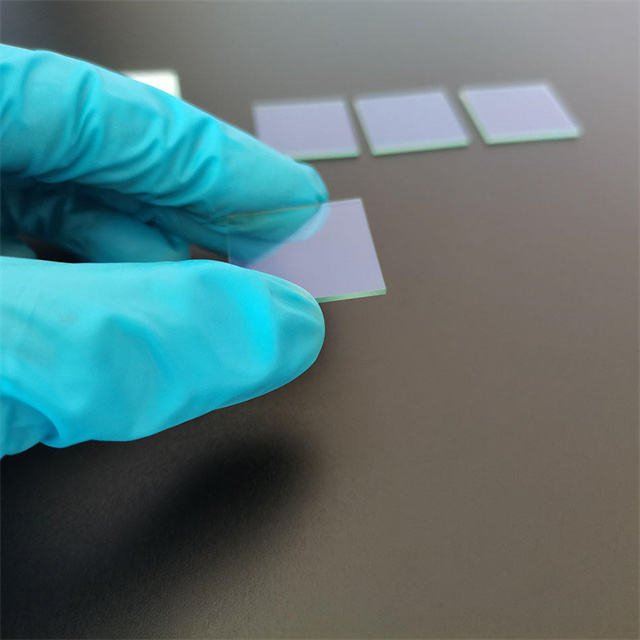

Inspection covers surface scratch and dig, micro-particles, warpage, coating adhesion, conductive uniformity, printing alignment and batch transmittance consistency.
Protective Packaging
ITO conductive surfaces are separated by protective release film and packed in dust-free shockproof compartments to reduce coating scratch and peeling risk during transit.
ITO Conductive Glass FAQ
What is the difference between bare touch panel glass and finished ITO conductive glass?
Bare touch panel glass is an uncoated mechanical substrate. Finished ITO conductive glass has a transparent conductive film already deposited for touch circuit lamination, EMI shielding or optical testing.
Can ITO conductive glass support OCA optical bonding?
Yes. Flatness, surface cleanliness and particle control are managed before coating to support standard OCA lamination and reduce bubble defects.
Can custom frame borders or logos be silk printed?
Yes. Black, white or customized ceramic ink printing can be arranged according to circuit frame and viewing-area requirements.
How should sheet resistance be selected?
The value depends on touch sensitivity, controller design, substrate size and EMI requirement. Felix Glass reviews drawings and application conditions before recommending a resistance range.
Request Custom ITO Conductive Glass Evaluation
Share glass thickness, edge style, target sheet resistance, printing requirements, coating stack, drawings and operating environment. Felix Glass can review manufacturability and suggest a practical substrate and coating route.
Learn more from our FAQ
- What is your MOQ for custom optical glass and display glass parts?
Felix Glass offers highly flexible MOQ to support client projects, including prototype testing, small batch trial orders and large-volume mass production. All products can be fully customized according to your drawings, tolerances and application standards. Send us your specs to get an accurate price quote within 24 hours.
- Can I get free glass samples for testing before bulk order?
Yes, our FELIX GLASS factory supports sample testing for a wide range of precision optical glass components and assemblies. The lead time for sample production is 3 to 7 working days. Please contact us today to arrange samples and obtain a customized solution that meets your needs.
- What is the production lead time for custom optical glass components?
What is the production lead time for custom optical glass components?
Answer: The lead time for standard samples is 3–7 business days, while mass production takes 15–25 business days, depending on product complexity and order volume. We provide reliable, rapid delivery for orders serving the industrial, medical, automotive, and aerospace sectors. Please submit your project details to receive an accurate delivery schedule.
- Are your optical glass products ISO, CE and RoHS certified?
All FELIX GLASS precision optical glass components comply with ISO quality system standards, as well as CE and RoHS requirements. We provide comprehensive test reports, material certificates, and inspection documentation for customer review. Please feel free to request full certification details and a formal quotation today.
- Do you offer one-stop custom optical glass processing services?
Yes. We provide a full range of in-house processing services, including CNC machining, precision grinding, optical polishing, vacuum coating (AR, AF, AG, IR), tempering, and screen printing. Every step—from raw material to finished product—is carried out within our own facility. Please let us know your requirements, and we will provide you with the most cost-effective solution.
