High-precision custom infrared windows, IR lenses, ZnSe and ZnS optical components manufactured according to engineering drawings for thermal imaging, laser and industrial infrared applications. Values are typical reference data and may vary depending on material grade, geometry and coating design. Felix Glass supports engineering drawing based manufacturing for infrared windows, lenses and multispectral components used in B2B optical systems. Typical Materials: ZnSe, Germanium (Ge) Infrared Material, Silicon, Sapphire, IR Quartz Typical Size: Diameter 5mm-300mm, thickness 0.5mm-50mm Typical Applications: thermal imagers, furnace monitoring, online industrial IR detection, sensor protection Custom Options: AR/IR coating, edge beveling, thread mounting, edge polishing, high-temperature resistant processing Typical Materials: ZnSe, Germanium (Ge) Infrared Material, ZnS Typical Size: 5mm-200mm customizable aperture Typical Applications: MWIR/LWIR thermal imaging, infrared focusing systems, night vision devices Custom Options: spherical/aspherical shaping, multi-layer IR coating, surface precision optimization Typical Materials: High-grade CVD ZnSe Typical Size: Laser-grade standard & large customized dimensions Typical Applications: CO2 laser processing equipment, infrared thermal detection Custom Options: high-power laser AR coating, low-loss surface polishing Typical Materials: Multispectral grade ZnS Typical Size: Custom flat & dome shapes Typical Applications: surveillance systems, multi-band optical detection, outdoor IR equipment Custom Options: hard coating, anti-environmental treatment, full-spectrum optimization Felix Glass provides customizable infrared coating options according to customer spectral requirements and working environment conditions.
Infrared Optical Components

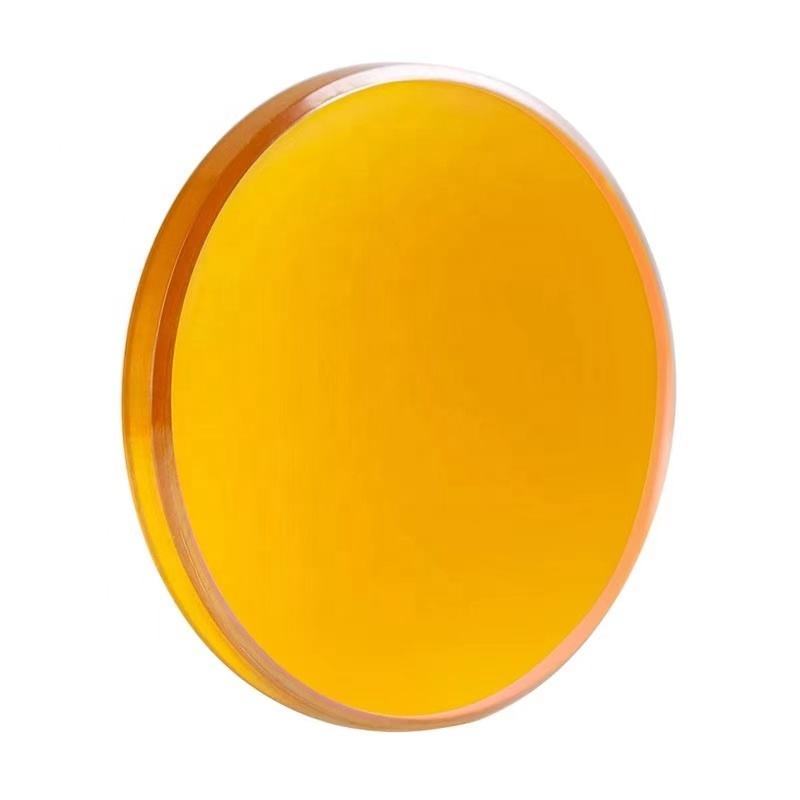

Custom Infrared Optical Components for Thermal Imaging & Industrial IR Systems
19+ years precision optical component manufacturing experience
75000 square meter independent optical precision manufacturing base
ISO9001 quality system with RoHS compliant materials
Request Custom Quote
Material Reference
Infrared Optical Material Types, Spectral Features and Applications
Material Type Typical Transmission Spectrum Common Tolerance Range Typical Industrial Applications ZnSe 3-12μm ±0.01mm CO2 Laser Optics & Thermal Imaging Germanium (Ge) Infrared Material 8-14μm LWIR ±0.01mm Long-wave Thermal Camera Systems ZnS (Multispectral) Visible to LWIR multispectral transmission range ±0.01mm Surveillance & Multispectral Detection IR Fused Silica Near IR ±0.01mm Industrial Near-infrared Monitoring Silicon (Si) 1.1-7μm ±0.01mm Medium-wave Industrial IR Detection Sapphire Broadband high-temperature IR transmission ±0.01mm High-temperature industrial IR equipment
Product Categories

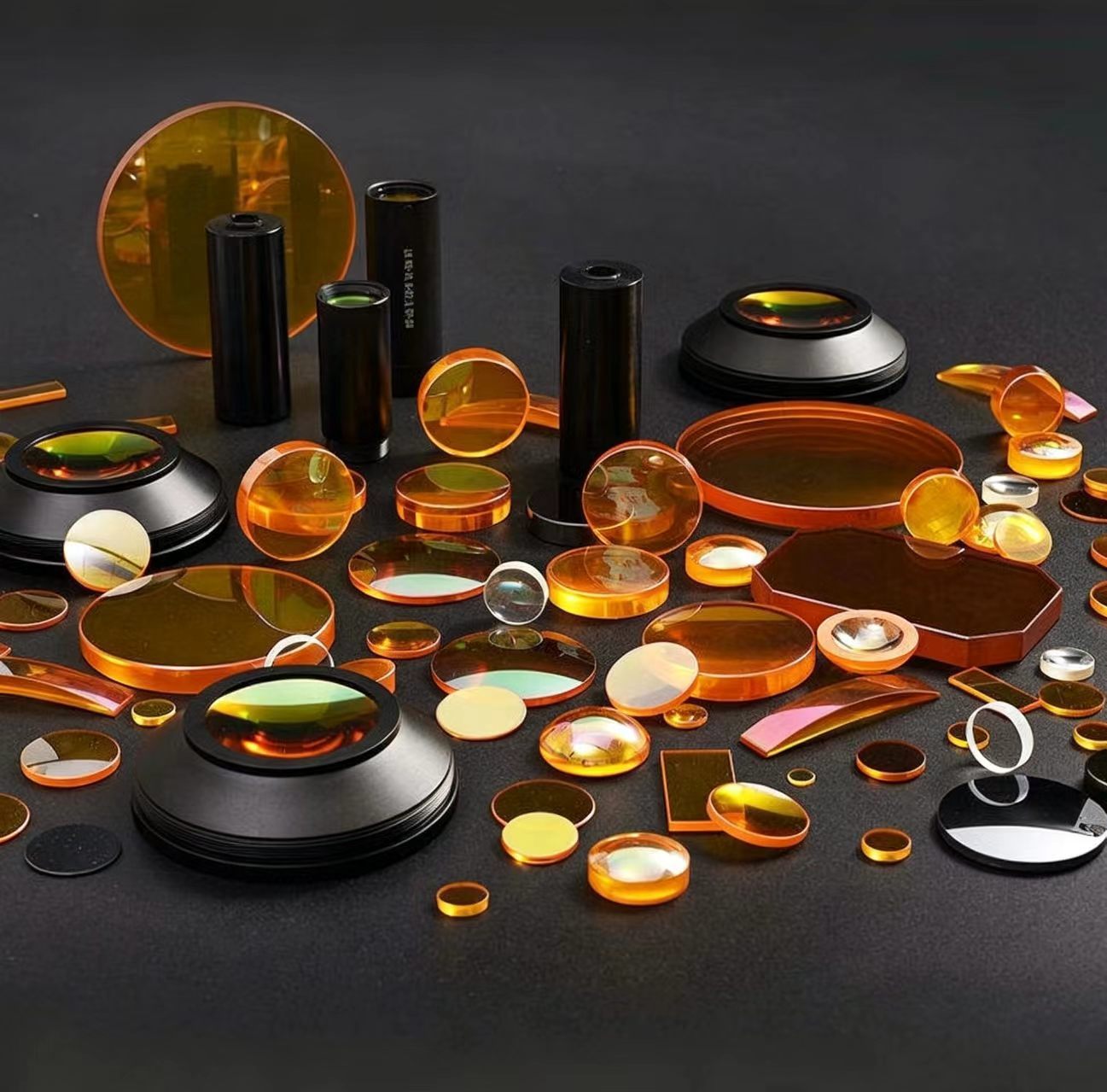

Customizable Infrared Windows, Lenses, ZnSe and ZnS Components

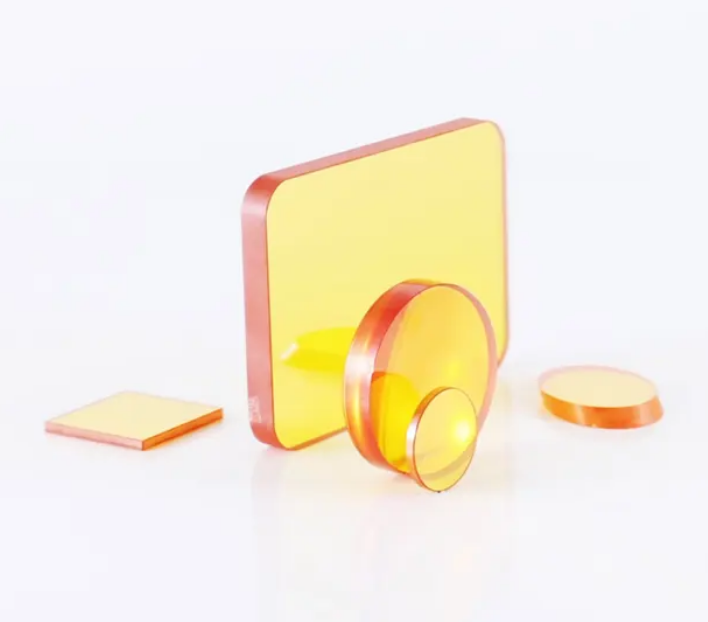

Infrared Windows

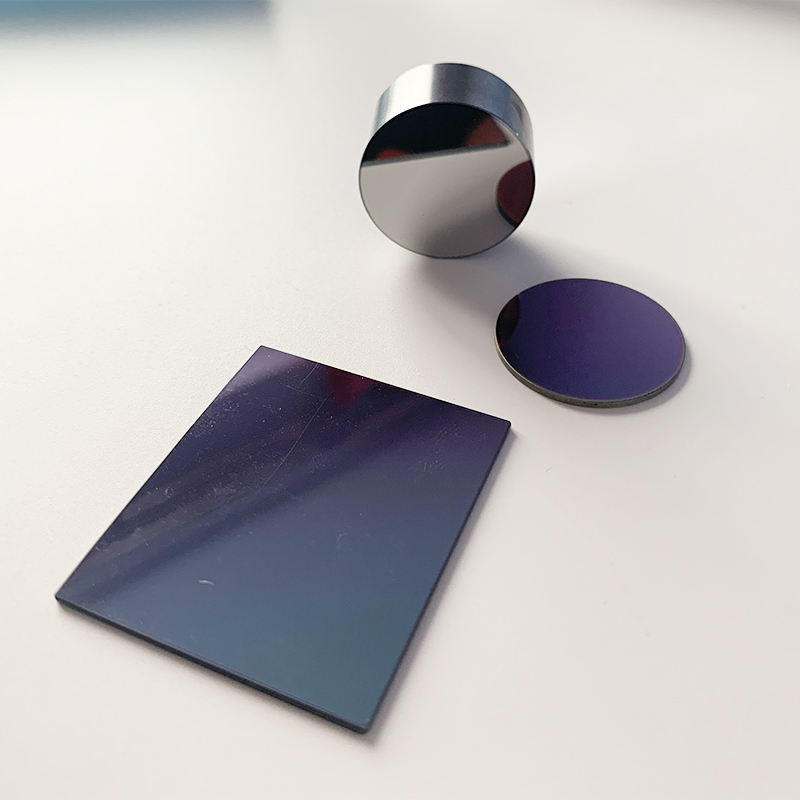

Infrared Lenses

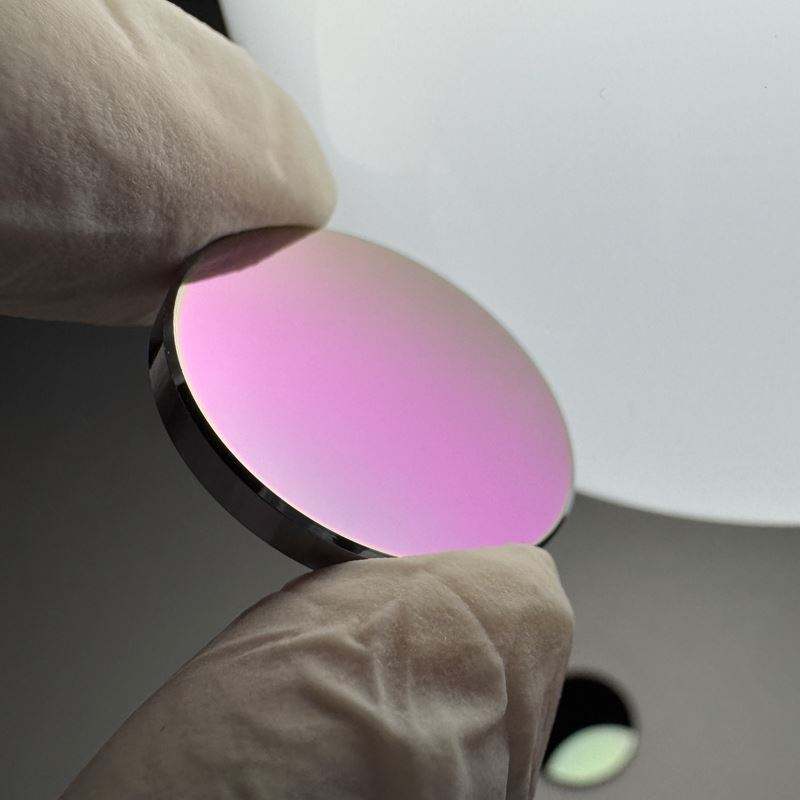

ZnSe Optical Components
ZnS Multispectral Components
Coating Options
Typical Infrared Coating Solutions for Different Spectral Requirements
BBAR 3-5μmfor MWIR industrial imaging systems
BBAR 8-12μmfor LWIR thermal camera equipment
DLC Diamond-Like Coatingfor harsh and abrasive working environments
High-temperature Hard AR Coatingfor industrial continuous high-temperature operation
Infrared optical components are selected according to wavelength band, operating temperature, coating requirement and the mechanical environment of the final system.
Custom available infrared materials include ZnSe CVD Infrared Material, Germanium (Ge) Infrared Material, Multispectral ZnS, Silicon IR Grade, Sapphire High-temperature IR Material and Infrared Fused Quartz.
Non-standard machining covers large-size infrared optics, ultra-thin IR windows, aspherical IR lenses and special-shaped infrared protective components.
Felix Glass operates full CNC grinding, precision polishing and vacuum coating production lines, supported by an independent optical inspection laboratory with complete infrared optical testing equipment.

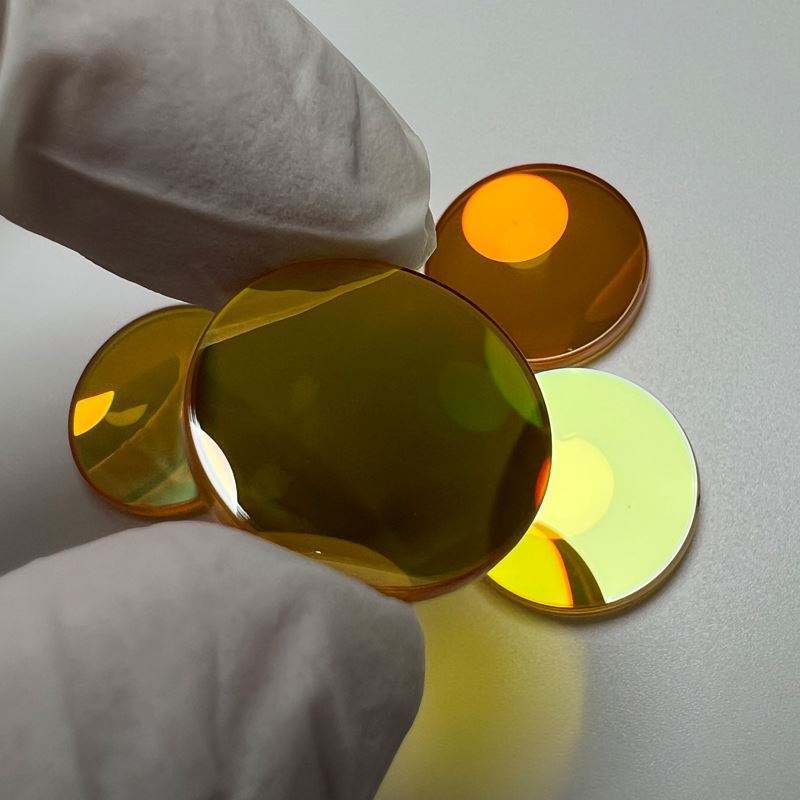

Infrared Material Cutting -> CNC Precision Shaping -> Fine IR Surface Polishing -> Vacuum Infrared Coating -> Optical Performance Testing -> Dust-Free Packaging
Choosing the appropriate infrared optical material depends on operating wavelength, transmission characteristics, environmental conditions, mechanical strength and coating requirements.
ZnSe is widely applied for CO2 laser systems and mid-infrared optical equipment due to its low optical loss at laser wavelengths. Germanium (Ge) Infrared Material provides stable high transmittance in the 8-14μm long-wave infrared band, making it suitable for thermal imaging cameras.

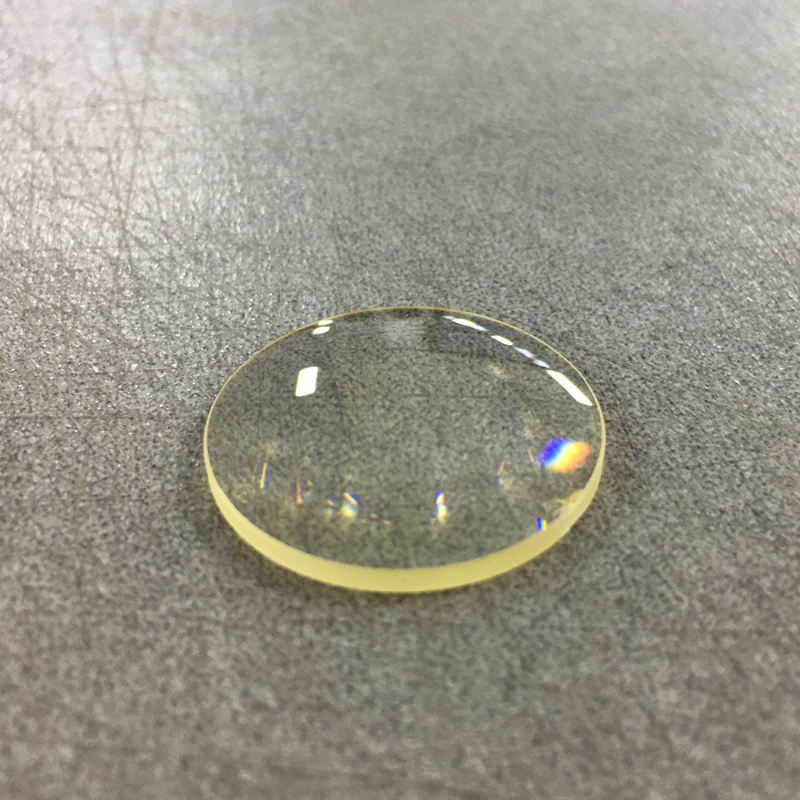

Multispectral ZnS delivers visible to LWIR multispectral transmission, balancing multi-band performance for surveillance and outdoor optical systems. Silicon and infrared quartz are commonly used for near-infrared and medium-infrared industrial monitoring devices.
Please provide material requirement, dimensions, tolerance, infrared spectral band, coating specification and application environment for engineering evaluation.
They are used for thermal imaging, laser processing, gas analysis, infrared spectroscopy, surveillance, industrial monitoring and scientific optical systems.
Common industrial ranges include near IR, MWIR 3-5μm and LWIR 8-14μm, selected according to the sensor, source and application environment.
ZnSe is often selected for CO2 laser and mid-IR optics, ZnS supports multispectral transmission, and Germanium is widely used for LWIR thermal imaging.
CVD ZnSe is commonly selected for CO2 laser optics because it supports the laser wavelength and can be processed with appropriate AR coating.
Germanium (Ge) Infrared Material is frequently used for 8-14μm LWIR thermal imaging systems, depending on system design and coating specification.
Yes. Felix Glass can evaluate drawings and manufacture custom geometry, thickness, surface quality, coating and mounting-edge requirements.
Options include BBAR coatings for MWIR or LWIR, DLC protective coatings and hard AR coatings for high-temperature or abrasive environments.
Typical dimensional tolerance can reach ±0.01mm depending on material, geometry, diameter, thickness and inspection requirements.
Provide material, dimensions, tolerance, spectral band, coating requirement, surface quality and application environment for engineering evaluation.
Inspection documentation can be supplied according to the project requirement, including dimensional, surface, transmittance and coating-related inspection items.
Material and coating must be selected for the actual temperature, thermal cycling, contamination and mounting conditions of the equipment.
Yes. Coating design can be evaluated according to target wavelength band, transmittance goal, working environment and substrate material.
FELIX OPTICAL GLASS offers highly flexible MOQs to support customer projects, including prototype testing, small-batch trial orders, and high-volume production. All products can be fully customized to your drawings, tolerances, and application standards. Please send us your specifications, and we will reply within 1-5 hours and provide an accurate quotation after careful evaluation within 1-2 days.
Yes, our FELIX GLASS factory supports sample testing for a wide range of precision optical glass components and assemblies. The lead time for sample production is 3 to 7 working days. Please contact us today to arrange samples and obtain a customized solution that meets your needs.
A: The production cycle for standard samples is 3-10 working days, while mass production requires 15-35 working days, depending on the complexity of the product and the order quantity. We provide reliable precision optical glass components and fast delivery services for orders from industries such as defense, industrial equipment, medical devices, shipbuilding, robotics, automotive, and aerospace. Please submit your project details so we can provide you with an accurate delivery schedule.
All precision optical glass components from FELIX OPTICAL GLASS comply with ISO quality system standards as well as CE and RoHS requirements. We provide comprehensive test reports, spectral graphs, material certificates, and inspection documents for customer review. Please feel free to request complete certification details and a formal quotation at any time.
Yes. We offer a full range of precision optical glass component processing services, including CNC machining, precision grinding, optical polishing, chemical/physical tempering, vacuum coating (AR anti-reflective coating, AF anti-fingerprint coating, AG anti-glare coating, IR infrared coating), and screen printing. From raw materials to finished products, every step is completed in our own factory. Please tell us your needs, and we will provide you with the most cost-effective solution.
