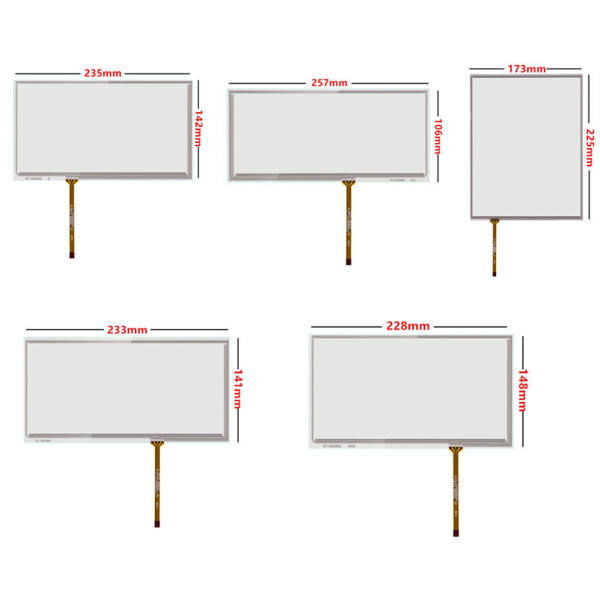

Medical Touch Panel Glass for Medical Equipment & Displays | OEM Medical Display Glass Manufacturer
| Share | |
|---|---|
| Categories | Medical Display Optical Glass |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FG‑MED‑T‑001 |
| Substrate | Biocompatible low-iron tempered glass |
| Medical Touch Panel Glass for Medical Equipment & Displays 2026 年 6 月 10 日•内容由 AI 生成，不能完全保障真实 Medica | AR / AR+AF / AG+AF / AR+AF+AG |
| Visible Transmittance | ≥92% (97% for AR coated) |
| Medical-Grade AG Haze | 5%–10% low distortion range |
| AF Water Contact Angle | ≥110° |
| Surface Hardness | 9H Mohs scratch resistance |
| Common Thickness | 1.1mm / 2.0mm / 3.0mm |
| Disinfection Resistance | Tolerate long-term alcohol & hydrogen peroxide wiping |
| Working Temperature | -20℃ ~ 120℃ |
| Custom Processing | CNC irregular cutting, full edge chamfering, black border printing, sensor hole drilling |
| Unit Price | US $ 2.88-5.99 / piece |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |

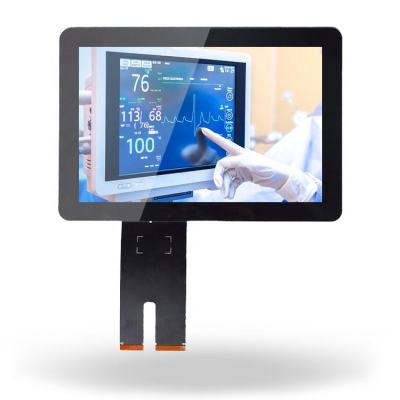

Medical Touch Panel Glass for Medical Equipment & Displays
3 Coating Core Functions
AR Anti-Reflection
AF Anti-Fingerprint
AG Anti-Glare
Coating Combination Selection Guide
- AR Only: High-precision medical imaging and diagnostic display equipment
- AR + AF: Patient monitors, ward terminals and general medical touch devices
- AG + AF: Public medical self-service kiosks and multi-user clinical terminals
- AR + AF + AG Triple Coating: Operating room surgical displays (premium medical grade)
Medical Environment Durability
- Resistant to repeated alcohol-based daily cleaning and sanitization
- Compatible with hydrogen peroxide and common medical disinfectants
- Maintains stable optical clarity and coating adhesion after frequent wiping cycles
- Engineered for high-touch, hygienically controlled medical environments
- No coating peeling, fading, or performance degradation under clinical operating conditions
Technical Specifications
| Property | Standard Parameter |
|---|---|
| Substrate | High-purity low-iron tempered glass (medical environment suitable) |
| Coating Options | AR / AR+AF / AG+AF / AR+AF+AG |
| Visible Transmittance | ≥92% (97% max for AR coated versions) |
| Medical-Grade AG Haze | 5%–10% low-distortion controlled haze |
| AF Water Contact Angle | ≥110° |
| Surface Hardness | 9H Mohs scratch resistance |
| Common Thickness | 1.1mm / 2.0mm / 3.0mm |
| Sanitization Stability | Stable under repeated medical-grade disinfection wiping |
| Working Temperature | -20℃ ~ 120℃ |
| Custom Processing | CNC cutting, full edge chamfering, black border printing, sensor hole drilling, custom masking |
| Compliance | ISO 9001, RoHS, REACH |
| Documentation | Relevant material compliance documents available upon request |
Key Features
- Medical-Grade Optical Performance: Low-haze, high-clarity coating formulation optimized for medical display accuracy
- Disinfection Resistant Coatings: Engineered to withstand continuous hospital sanitization routines
- High-Touch Hygienic Surface: AF coating reduces residue buildup for cleaner clinical operation
- 9H Industrial Toughness: Scratch and impact resistant for long-duration medical equipment service life
- OEM Fully Customizable: Custom shapes, borders, cutouts and printing for medical device integration
Applications
OEM Custom Manufacturing Services
- Custom dimensions, irregular shapes and thicknesses matching medical device design
- Tailored AR/AF/AG coating combinations for different clinical application scenarios
- Precision black border masking, logo printing and custom graphical markings
- Sensor holes, cutouts, notches and full safety edge chamfering
- Low-volume prototyping and mass production for medical device OEMs
- Material compliance documentation provided upon project request
