Custom Quartz Glass Plate Manufacturer | Custom Size Fused Silica Plates for Semiconductor & UV Optics

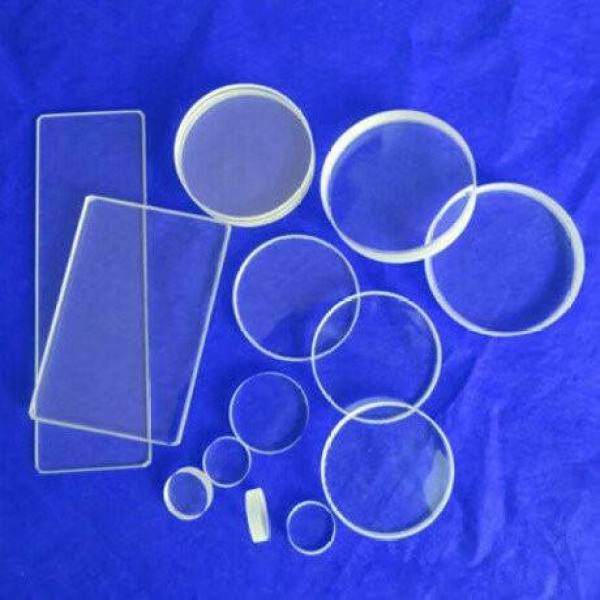

 Custom Quartz Glass Plate

Felix Glass is a professional custom quartz glass plate manufacturer and supplier. We produce tailor-made high-purity fused silica plates to match unique optical, semiconductor, laboratory and industrial requirements. All plates are made of ≥99.99% SiO₂ fused quartz with ultra-low thermal expansion, outstanding UV to infrared transmittance and strong chemical resistance.



We fully customize dimensions, outlines, edge processing and optical coatings, with three JGS material grades available to fit deep UV, general UV and infrared working environments. Every custom quartz plate complies with MIL-STD optical standards for precision industrial use.



Technical Specifications

Property	Value
Material	High Purity Fused Silica
SiO₂ Purity	≥99.99%
Density	2.20 g/cm³
Refractive Index	1.458 @ 587.6nm
Thermal Expansion Coefficient	5.5 × 10⁻⁷ /°C
Softening Point	1730°C
Annealing Point	1180°C
Continuous Working Temperature	1100°C
Instant Temperature Resistance	1300°C
Transmittance Range	185nm–3500nm
Average Transmittance	>90%
Surface Quality	60/40, 40/20, 20/10
Optical Flatness	λ/2, λ/4, λ/10
Custom Thickness	0.5mm–50mm
Custom Shapes	Round, square, rectangular, oval, irregular special outlines
Processing	Custom cutting, drilling, slotting, chamfering, double-sided polishing
Optional Coating	AR, UV anti-reflection, IR transmission coating



Product Types



JGS1 Deep UV Custom Quartz Glass Plate



Wavelength Range: 185nm–2500nm

Suitable for:



- Excimer laser equipment

- Semiconductor photolithography

- Deep UV sterilization devices

- UV spectrum detection instruments



JGS2 General UV Custom Quartz Glass Plate



Wavelength Range: 220nm–2500nm

Suitable for:



- Laboratory optical test equipment

- UV curing production lines

- Industrial optical inspection devices

- General optoelectronic equipment



JGS3 Infrared Custom Quartz Glass Plate



Wavelength Range: 260nm–3500nm

Suitable for:



- Infrared thermal imaging systems

- High-temperature furnace observation windows

- Aerospace infrared optical components

- Thermal sensing instruments



Key Features



Fully Customized Dimensions & Shapes



No fixed standard sizes. We cut quartz plates according to customer drawings, samples or parameter requirements, including irregular special outlines for unique equipment installation.



Ultra-High Optical Purity



Bubble-free and striae-free fused silica material ensures stable, distortion-free light transmission for precision optical systems.



Excellent Thermal Stability



Near-zero thermal expansion delivers strong thermal shock resistance, suitable for long-term operation under high and fluctuating temperatures.



Full Spectrum Light Transmission



Covers deep ultraviolet, visible light and mid-infrared bands to meet multi-band optical design demands.



Strong Chemical Inertness



Resist most acids, alkalis and organic solvents, perfect for chemical laboratories and corrosive industrial working environments.



Precision Custom Machining



Custom drilling, grooving and edge chamfering services, matched with optical-grade polishing to reach strict flatness and parallelism tolerances.



Applications



- Semiconductor wafer processing and photolithography equipment

- All types of UV laser and industrial laser processing equipment

- UV sterilization and UV curing automated production machines

- Laboratory analytical instruments and optical testing platforms

- Infrared thermal imaging and temperature sensing equipment

- Medical optical disinfection and diagnostic devices

- Aerospace and defense optical assemblies

- High-temperature industrial furnace sight observation windows



Full Customization Service



Felix Glass offers one-stop OEM & ODM custom service for quartz glass plates:



- Custom size, thickness, length and width

- Custom special shapes, irregular outlines and cutouts

- Precision processing: drilling, slotting, edge grinding and chamfering

- Single-sided or double-sided optical polishing

- Custom wavelength-matched AR, UV or IR anti-reflection coatings

- Strict custom tolerances for flatness, parallelism and surface roughness

Support small-batch prototype trial production and large-volume mass orders.



Why Choose Felix Glass



- Specialized custom quartz glass plate manufacturer with 15+ years export experience

- ISO 9001 certified factory with complete optical quality inspection system

- Complete JGS1/JGS2/JGS3 material grades to cover all spectral applications

- Advanced precision cutting, polishing and testing equipment

- Fast custom sample production and stable bulk delivery cycle

- Professional optical engineering team for drawing review and technical guidance

- Global shipping service for North American and European industrial buyers



FAQ



1.What information do I need to provide for custom quartz plates?

You can offer dimension parameters, drawings, physical samples, required surface flatness and coating demands for quotation and production.



2.What shapes can you customize?

Round, square, rectangular, oval and all irregular special outlines based on your design.



3.What is the maximum temperature for continuous use?

Custom quartz plates work stably at 1100°C continuously and withstand instant 1300°C high temperature.



4.Can I order small prototype samples before mass production?

Yes, we support small trial batches for performance testing and verification.



5.Which JGS grade should I select?

JGS1 for deep UV laser & lithography; JGS2 for lab & general UV equipment; JGS3 for infrared thermal systems.



6.Do you provide anti-reflection coating on custom plates?

AR, UV and IR targeted coatings are all available as custom options.



7.Are custom quartz plates resistant to thermal shock?

Thanks to ltra-low thermal expansion coefficient, they perform well under rapid temperature changes without cracking.



8.Can you drill holes or slots on custom quartz sheets?

Precision drilling, slotting and edge chamfering are included in our custom processing service.



9.What surface quality standards can you reach?

60/40, 40/20 and high-precision 20/10 MIL standard surface finishes are optional.



10.Is OEM and ODM customization available?

We fully support customized production according to customer technical specifications and drawings.

Request a Quote

Contact Felix Glass today for free technical consultation, custom quartz optical window solutions and competitive factory pricing. Our professional team supports your laser, semiconductor, vacuum and optical projects worldwide.
