How to Select ZnSe CO₂ Laser Protection Window for Industrial Laser Systems
Published by Felix Optical Glass Co., Limited — Precision industrial optical glass manufacturer for CO₂ laser infrared components
Industrial CO₂ laser cutting, engraving and welding systems rely heavily on high‑performance infrared optics. A poorly‑matched ZnSe CO₂ laser protection window will trigger thermal lensing, beam distortion, coating burnout, unexpected machine downtime and even costly damage to expensive laser‑head assemblies. Many system integrators and production engineers underestimate how critical this optical glass component is to overall equipment uptime. This expert buying guide from Felix Glass walks you through every engineering factor you need to evaluate before ordering your ZnSe laser optical glass for 10.6 μm industrial CO₂ laser systems.

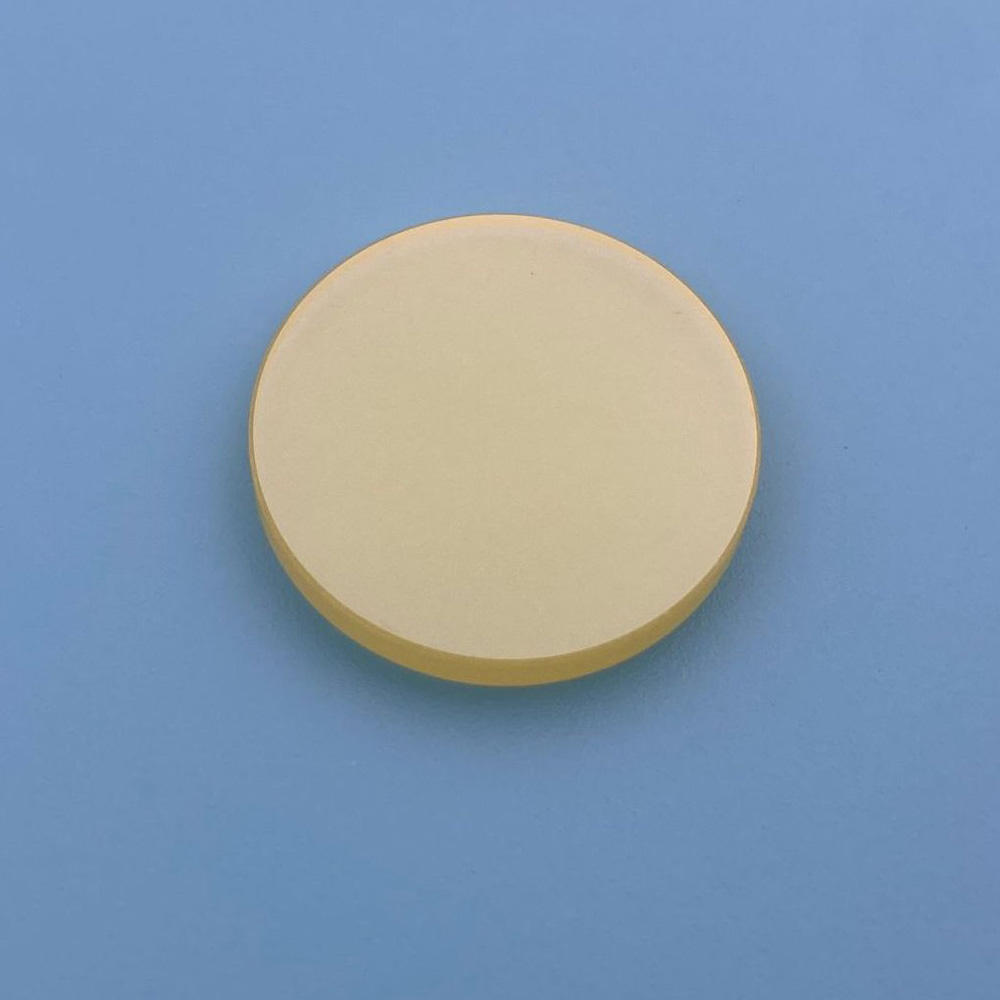

Figure 1: Laser‑grade CVD ZnSe optical glass window for CO₂ laser equipment
Why ZnSe CO₂ Laser Protection Window Is Critical for Industrial Optical Glass Laser Systems
Inside every CO₂ laser processing head, the ZnSe CO₂ laser protection window works as a physical barrier. It shields internal focusing lenses and mirrors from spatter, smoke debris, oil mist and particulate contamination generated during material processing, while transmitting the 10.6 μm infrared laser beam with minimal optical loss.
- Prevents hot processing debris from contaminating expensive internal laser optics
- Enables visible He‑Ne alignment light to pass together with 10.6 μm CO₂ infrared beam
- Absorbs thermal stress spikes to protect the core optical glass assemblies of your laser system
- Acts as a low‑cost consumable to avoid catastrophic repair costs for laser cutting heads
Selecting cheap non‑laser‑grade infrared optical glass will result in short service life, unstable beam quality and frequent production interruptions, even if mechanical dimensions physically fit your laser housing.
Core Material Properties of Laser‑Grade CVD ZnSe Optical Glass for 10.6 μm CO₂ Lasers
Not all zinc selenide substrates are equal. Industrial‑grade ZnSe CO₂ laser protection window must be manufactured by Chemical Vapor Deposition (CVD) to achieve ultra‑low bulk absorption at 10.6 μm CO₂ wavelength. Conventional optical glass cannot transmit far‑infrared CO₂ laser energy and will quickly melt under high‑power irradiation.
| Property |
Laser‑Grade CVD ZnSe @10.6 μm |
Remarks for optical glass selection |
| Transmission Range |
0.6 μm‑16 μm |
Optimized for CO₂ 10.6 μm infrared output |
| Bulk Absorption Coefficient |
<0.001 cm⁻¹ |
Low absorption reduces thermal lensing risk in high‑power laser systems |
| Refractive Index |
2.40 |
High index requires high‑quality AR anti‑reflection coating |
| Knoop Hardness |
120 |
Soft substrate; scratch‑sensitive optical glass, handle carefully |
| Density |
5.27 g/cm³ |
Affects thermal mass under continuous‑wave laser operation |
| Max CW Laser Damage Threshold |
≥15 kW/cm² @10.6 μm |
Key index for high‑power industrial CO₂ laser equipment |

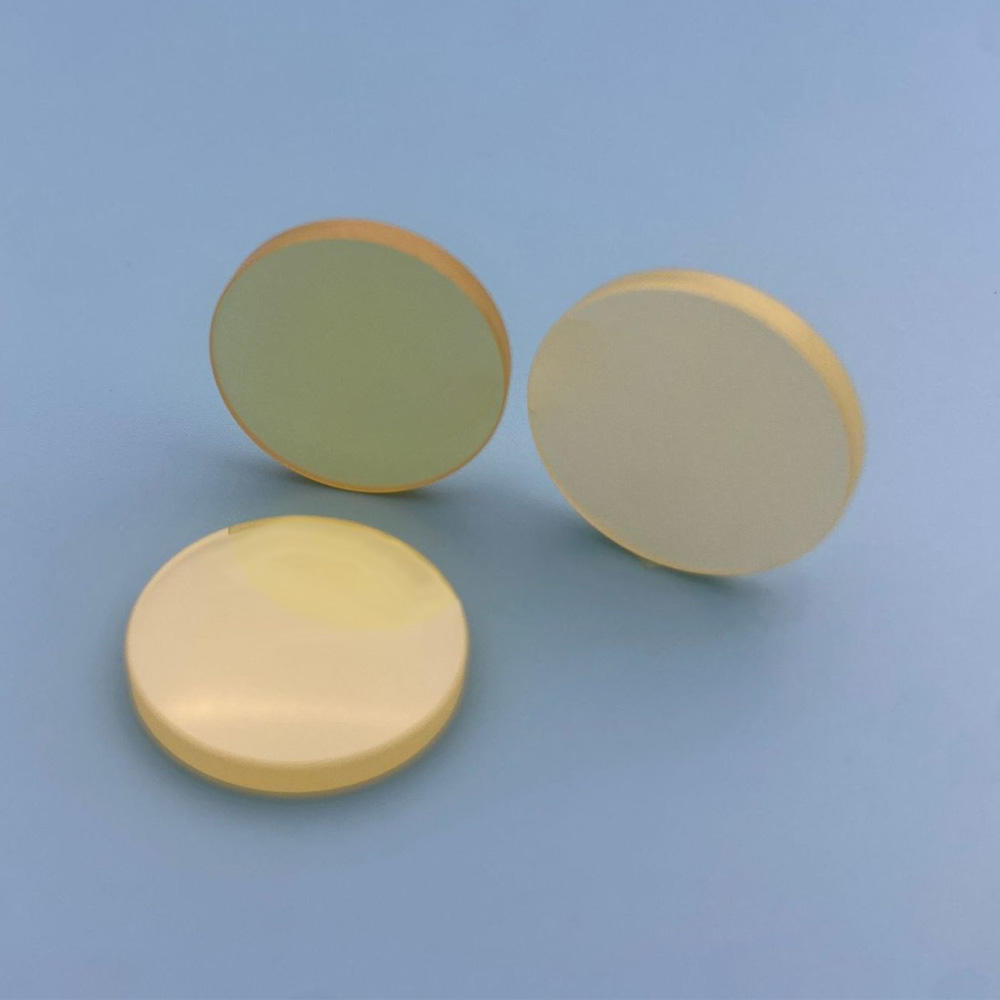

Figure 2: Batch samples of CVD ZnSe optical glass windows with different coating treatments
Common material‑grade pitfalls
Budget‑grade ZnSe blanks often contain grain boundaries, internal scattering centers and high impurity absorption. Even if dimensions match your laser housing, these defects will create hot‑spots under high‑power CO₂ laser irradiation and lead to premature window failure. Never confuse recrystallized ZnSe with genuine CVD‑laser‑grade optical glass for continuous high‑power CO₂ laser operation.
Key Specification Parameters When Specifying ZnSe CO₂ Laser Protection Window
When sourcing your ZnSe CO₂ laser protection window optical glass component, always confirm these core optical specifications before placing orders. Skipping these parameters will lead to compatibility mismatch for your industrial laser system.
- Clear Aperture: Effective optical area, must fully cover laser beam footprint; Felix Glass standard ≥90 % of physical diameter
- Surface Quality (Scratch‑Dig): For industrial CO₂ lasers, 60‑40 or 40‑20 for heavy‑duty applications; avoid large digs or deep scratches which cause laser‑induced damage
- Surface Flatness: λ/4 @632.8 nm recommended for high‑power CO₂ laser optical glass to minimize beam wavefront distortion
- Parallelism: Critical for multi‑axis dynamic cutting heads, keep parallelism ≤3 arc‑minutes for high‑precision equipment
- Chamfer: Controlled 0.3‑0.5 mm 45° chamfer prevents edge chipping during installation and handling
AR‑Coating & Laser‑Induced Damage Threshold for ZnSe Laser Optical Glass Windows
Anti‑reflection coating is one of the most important performance layers for ZnSe CO₂ laser protection window optical glass. Uncoated ZnSe will suffer large Fresnel reflection losses (~29 % total two‑surface reflection at 10.6 μm), wasting laser power and creating back‑reflection risks inside your laser system. Double‑sided BBAR AR‑AR coating can achieve transmission above 98.5% at 10.6 μm for industrial laser systems.
Coating selection guidance
- Single‑wavelength AR coating optimized for 10.6 μm: First choice for standard CO₂ laser cutting and engraving equipment
- Broad‑band AR BBAR coating: Suitable for multi‑wavelength CO₂ lasers covering 9.2‑12 μm spectrum range
- High‑LIDT coating grade: Mandatory for CW power ≥1000 W industrial laser optical glass assemblies
Laser‑Induced Damage Threshold(LIDT) defines maximum power‑density the coated ZnSe optical glass can withstand without permanent coating or substrate damage. Always request supplier LIDT test data for your operating laser mode (CW or pulsed) at 10.6 μm. Real‑world operating power‑density should stay well below the published LIDT rating to achieve long service life.
Mechanical Dimensions, Tolerance and Mounting Requirements for ZnSe CO₂ Protection Window
Even perfect optical‑grade ZnSe optical glass will under‑perform if mechanical dimensions and tolerances do not match your laser processing‑head mounting seat. Felix Glass supports diameter range from 3 mm up to 300 mm for both standard and custom ZnSe optical glass windows.
Standard dimension examples for industrial CO₂ laser systems
- Low‑medium power flat cutting head: Ø25.4 mm, Ø30 mm, Ø38.1 mm, thickness 3 mm
- High‑power flat‑head: Ø50.8 mm, thickness 4‑6 mm for enhanced thermal stability
- 3D dynamic large‑format cutting head: Ø80 mm ~ Ø100 mm, thickness ≥4 mm, tight parallelism requirement
Typical tolerance: Diameter tolerance +0 / ‑0.13 mm, thickness tolerance ±0.25 mm. Dimension tolerance and thickness tolerance directly affect clamping stress. Excessive clamping force will introduce stress birefringence into ZnSe optical glass and distort the laser beam. Confirm outer‑diameter tolerance, thickness tolerance and chamfer specification with your optical glass manufacturer before procurement.
How Operating Laser Power & Application Scenarios Affect ZnSe Optical Glass Window Selection
Application and laser power level define your final ZnSe CO₂ laser protection window specification. Below is Felix Glass practical engineering reference table for industrial CO₂ laser optical glass selection.
| CO₂ Laser Power Range |
Typical Application |
Suggested ZnSe Optical Glass Grade |
Recommended Thickness |
| <200 W |
Engraving, low‑power marking |
Laser‑grade CVD ZnSe, standard AR coating |
3 mm |
| 200‑1000 W |
Medium‑speed cutting, non‑metal processing |
Laser‑grade CVD ZnSe, standard high‑LIDT AR |
3‑4 mm |
| >1000 W High‑Power CW |
Heavy‑duty industrial cutting, high‑reflective material machining |
Premium low‑absorption CVD ZnSe, high‑damage‑threshold AR‑coating |
4‑6 mm |
When processing highly reflective materials, always upgrade to higher‑LIDT ZnSe CO₂ laser protection window optical glass. Back‑reflected energy can easily destroy standard‑grade infrared optics inside your laser head. Typical usages cover acrylic, wood, fabric, rubber and plastic processing for industrial CO₂ laser machines.
Common Failure Modes of Low‑Grade ZnSe CO₂ Laser Protection Window & How to Avoid Them
Field‑observed failure modes for inferior ZnSe optical glass in industrial laser systems include:
- Thermal runaway hot‑spots: Impurities or high bulk absorption inside low‑quality ZnSe substrate creates local overheating, leading to coating blistering and catastrophic window cracking
- Coating delamination: Poor coating‑substrate bonding under continuous high‑power infrared irradiation
- Thermal lensing drift: Excess absorption heats optical glass, changes refractive index, shifts laser focal point during long‑run production
- Edge chipping: Missing or poor‑quality chamfer during optical glass polishing process
Best practice: Source your ZnSe CO₂ laser protection window from a professional optical glass manufacturer, request material certification and coating specification datasheet rather than buying generic un‑qualified spare parts from marketplace retailers. Genuine CVD ZnSe raw material is the foundation for long service‑life.
Standard vs Custom‑Manufactured ZnSe Optical Glass Windows for Industrial CO₂ Laser Systems
Many industrial laser integrators require non‑standard sizes or special coating parameters for specialized equipment. Felix Optical Glass Co., Limited provides both off‑the‑shelf standard ZnSe CO₂ laser protection window optical glass and fully custom‑manufactured infrared optical components.
- Standard stock parts: Fast lead‑time for widely‑adopted circular diameters, pre‑coated for 10.6 μm CO₂ laser wavelength, typical lead‑time 7‑12 working days
- Custom options: Custom diameter, thickness, square geometry, special chamfer, tailored AR coating spectrum, tight optical‑tolerance batches for OEM laser‑system projects; custom lead‑time 15‑25 working days depends on complexity
- Support small‑batch prototype sampling and mass OEM orders; inspection reports including dimension, surface quality and transmission test documents can be provided upon request
For OEM volume projects, our engineering team reviews your laser‑system parameters and provides optimized ZnSe optical glass specification recommendations to balance performance, service‑life and total‑cost‑of‑ownership.
Practical Handling, Cleaning and Maintenance Tips for ZnSe CO₂ Laser Protection Window
Even premium laser‑grade ZnSe optical glass is relatively soft and vulnerable to surface scratches and contamination. Proper handling extends service‑life significantly for your ZnSe CO₂ laser protection window:
- Always wear lint‑free gloves or finger cots when touching ZnSe optical glass surfaces; never touch optical active surfaces with bare fingers, only hold edge area.
- Use filtered oil‑free compressed air or clean nitrogen to blow loose dust before wiping optics to avoid coating scratching.
- Clean using lens‑grade tissue or cotton swab dampened with high‑purity isopropyl alcohol; wipe in one continuous outward stroke, do not rub back‑and‑forth.
- Monitor surface contamination during production shifts. Replace ZnSe window immediately if you observe coating burn‑marks, haze or visible scratches which cannot be cleaned away.
- Store spare ZnSe optical glass components inside dry sealed packaging to avoid environmental contamination before installation. Keep uniform mounting pressure during installation to prevent stress‑caused beam distortion.
Need qualified ZnSe CO₂ laser protection window optical glass samples or datasheet?
Felix Glass is a professional optical glass manufacturer for industrial infrared laser components. Send your laser‑system parameters (power, wavelength, dimension drawing, coating requirement) to our engineering team, we can provide specification review, quotation and sample support for your CO₂ laser project. Sample order is available for evaluation.
👉 View our ZnSe CO₂ laser protection window product page
Frequently Asked Questions About ZnSe CO₂ Laser Protection Window & Optical Glass Components
Q1: Can regular fused silica optical glass replace ZnSe CO₂ laser protection window?
A: No. Fused silica optical glass does not transmit 10.6 μm far‑infrared CO₂ laser energy; it will rapidly overheat and fail under CO₂ laser irradiation. CVD ZnSe infrared optical glass is the standard substrate for CO₂ 10.6 μm protection windows.
Q2: What causes short service‑life of ZnSe CO₂ laser protection window in my production laser?
A: Main causes: low‑grade substrate material, mismatched AR coating, insufficient LIDT rating for your laser power, surface contamination, excessive mounting clamping‑stress, or poor environmental protection against cutting spatter smoke.
Q3: Can Felix Glass manufacture custom‑size ZnSe optical glass windows for special OEM CO₂ laser systems? What about sample orders?
A: Yes. Felix Optical Glass Co., Limited delivers both standard stock and custom‑machined ZnSe CO₂ laser protection window optical glass for OEM industrial laser‑system customers. We support 1‑piece sample order as well as mass‑volume production. Send your drawing and technical requirements for engineering evaluation and quotation.
Related internal reading: High‑Power CO₂ Laser Optics Selection Guide | IR Optical Glass Components for Industrial Laser Systems
Disclaimer: All technical data provided for general engineering reference only. Always verify final specifications against your laser‑system OEM manual. Felix Optical Glass Co., Limited © All rights reserved.
