Case Study: Custom Sapphire Viewport for High‑Temperature Kiln Continuous Monitoring
Case Study: Custom Sapphire Viewport for High‑Temperature Kiln Continuous Monitoring

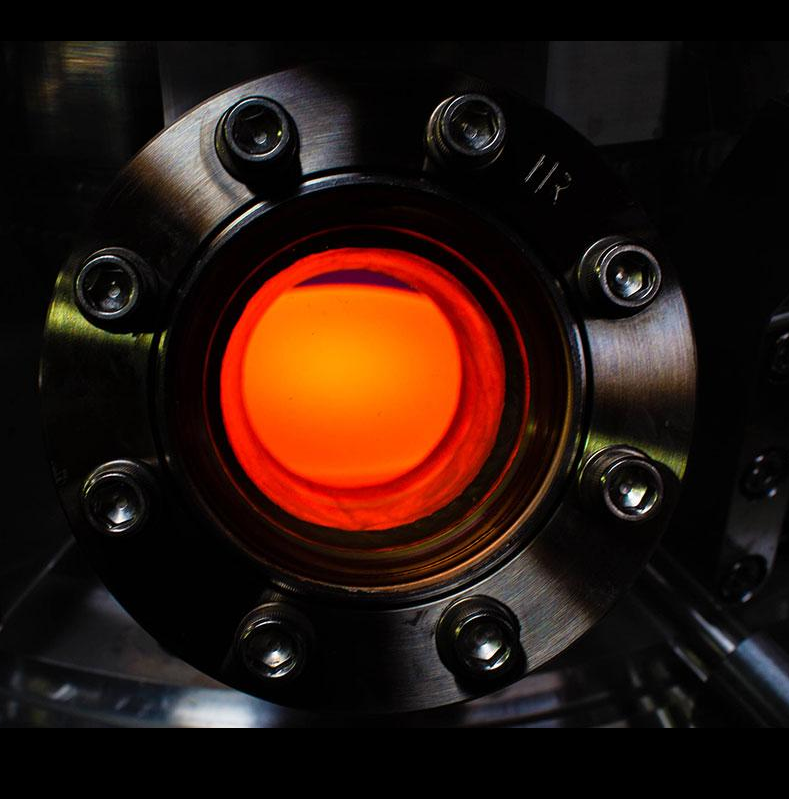

Custom‑manufactured sapphire viewport for kiln thermal monitoring
Industrial kiln continuous monitoring requires optical windows that survive sustained high temperature, thermal cycling and harsh dust‑filled operating environments. Standard glass cannot withstand such extreme working conditions. Felix Glass delivered a custom sapphire viewport solution for a thermal‑processing equipment manufacturer.
Project Challenges
- Long‑term exposure to high working temperature inside kiln
- Frequent thermal shock during equipment start‑stop cycles
- Dust and particle contamination on the observation surface
- Tight dimensional tolerance for mechanical sealing assembly
Felix Glass Solution

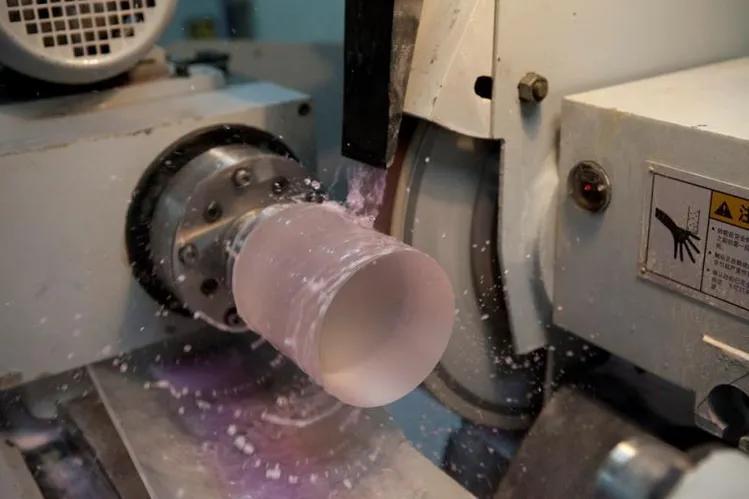

We adopted single‑crystal sapphire as base material for its outstanding thermal stability and mechanical strength. Precision CNC machining meets strict dimension and sealing requirements. Surface polishing ensures stable infrared and visible‑light transmittance for real‑time thermal imaging monitoring.
Project Outcomes
- Sapphire viewport sustains continuous high‑temperature operation without cracking or deformation
- Reliable optical transmission keeps thermal monitoring system working accurately
- Precision‑machined edges support reliable field sealing and easy on‑site replacement
- Completed prototype validation and moved smoothly to serial mass production
Felix Glass provides full OEM & ODM engineering support for custom sapphire optical components, covering drawing review, prototype sampling, performance testing and volume manufacturing for worldwide industrial system integrators.
For your high‑temperature optical viewport requirements, reach out to our optical engineering team for specification evaluation.
