AR Coating (Anti-Reflective)
Single-layer, narrowband and broadband designs for defined optical conditions
Custom anti-reflective coating requirements reviewed around the substrate, operating band, incidence angles and final application.

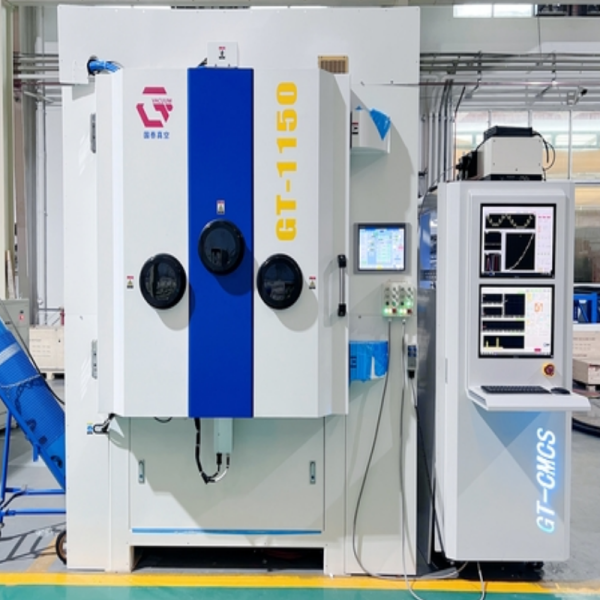

Review AR Specifications1. Custom Anti-Reflective Coating Services
Felix Glass supports application-specific AR coating projects for optical windows, lenses, domes and display glass. The coating is reviewed together with the substrate, operating wavelengths, ray angles and environment.
AR reduces surface reflection within specified conditions. It does not eliminate substrate absorption or replace requirements for polishing, cleanliness and optical geometry. Send a drawing and measurable spectral targets for a coating review.
2. AR Coating Specification Checklist
| Requirement | Information to provide |
|---|---|
| Substrate | Exact material or approved grade and thickness |
| Geometry | Drawing, clear aperture, coated faces and masking |
| Wavelength | Discrete lines or continuous bands with tolerances |
| Optical limits | Maximum or average reflection; finished-part transmission |
| Angles | Nominal incidence and operating angular range |
| Polarization | S, P, unpolarized or another defined condition |
| Interfaces | Air, adhesive, water or other adjacent medium |
| Environment | Cleaning, humidity, temperature and abrasion exposure |
| Reports | Spectra, test configuration, sampling and qualification scope |
Numerical performance and process feasibility are confirmed for the proposed component. Example wavelengths are design inputs, not blanket service guarantees.
3. How AR Coatings Reduce Reflection
Thin-film AR designs use the optical properties and thicknesses of layers to reduce reflected light through interference. The response depends on wavelength, angle, polarization, substrate and the medium on the other side of the interface.
A coating optimized for one optical condition may behave differently elsewhere. Define the real operating conditions rather than asking for the lowest reflection without a band or angle.
4. Single-Layer AR Coatings
A single-layer design, such as an appropriate MgF₂ coating, can be considered when its reflection reduction meets the application. Material selection and the achievable spectrum depend on the substrate and operating conditions.
Provide the wavelength band and allowable residual reflection. Do not assume a single-layer coating provides the same performance as a multilayer design across a wide band or at every viewing angle.
5. Narrowband and Laser-Line AR
Narrowband or V-coat designs focus performance near specified wavelengths. They can be reviewed for defined laser or sensing lines where the required band is limited.
Include wavelength tolerance, incidence angles and polarization. For laser use, provide operating conditions and any required damage qualification separately. A low-reflection result alone does not establish a laser-damage threshold.
6. Broadband Anti-Reflective Coatings
BBAR designs target reduced reflection across a continuous band. The required bandwidth, angular range and maximum residual reflection determine the design tradeoffs.
Specify whether acceptance uses a band average, a maximum at every wavelength or both. A favorable average can conceal a local peak. Define any weighting and spectral sampling used to calculate the reported result.
7. Visible, Near-Infrared and Infrared Requirements
State the exact operating band rather than only visible or infrared. Examples of RFQ inputs include a visible imaging band, a 905 or 940 nm sensor channel, a 1550 nm line, or an application-specific infrared band. Each requires a compatible substrate and coating review.
If one component serves multiple channels, list them separately and identify priorities. A visibly clear sample does not establish near-infrared performance, and an AR film cannot make a strongly absorbing substrate transmit the required band.
8. Incidence Angle and Polarization
AR performance can change when the ray angle differs from the design condition. At oblique incidence, S- and P-polarized light can have different responses. Define the full angular range and the polarization condition used for acceptance.
For curved lenses and domes, local angles vary across the useful aperture. Provide the ray geometry or system conditions needed to review this variation. A flat witness measured at normal incidence does not automatically represent every location on a dome.
9. One-Sided, Two-Sided and Bonded Interfaces
Label the surfaces and state which require coating. Define each interface, including whether it will face air, liquid, adhesive or another material. Reflection from an uncoated second face may remain relevant to the finished component.
Do not apply an air-interface design assumption to a bonded or immersed face. Identify sealing lands, adhesive regions, edges and areas that must remain uncoated. Coating scope should follow the installed optical path and assembly requirements.
10. Substrate Preparation and Optical Quality
The incoming surface should meet the agreed geometry, polishing and cleanliness requirements. Provide surface figure, roughness and defect criteria where they affect the application.
Coating does not repair chips, scratches or bulk defects. Specify whether optical and surface-quality acceptance applies before coating, after coating or both. Thin components may also need assessment of coating-related stress and final figure.
11. AR with AG, AF or Conductive Layers
AR, AG and AF provide different functions. AR reduces selected reflection losses; AG redistributes reflected light through scattering; AF supports cleanability or repellency. Combining them requires evaluation of the complete surface system.
For display covers, assess haze, appearance, reflected color and cleaning durability with the intended display. For camera or sensor apertures, define any regions that must remain free of scattering texture.
When combined with ITO, include electrical contacts, conductive-area requirements and the full optical stack. Added layers may restrict direct access to the conductive surface, so pad exposure and masking need explicit definition.
12. Durability, Cleaning and Environmental Qualification
Specify relevant humidity, temperature cycles, abrasion, adhesion and cleaning exposures, together with post-test optical and physical limits. Name any required method and revision rather than relying on a general claim of durable AR.
Coating suitability depends on the substrate, stack and exposure. An initial reflection result does not establish a service lifetime. Agree on qualification sampling and distinguish stressed test samples from shipment units.
Use cleaning instructions compatible with the finished coating and assembly. Do not infer resistance to every chemical or wiping method from a single durability test.
13. Inspection, Spectral Reports and RFQ Inputs
Specify whether reflectance is per surface or for an assembled element, and whether transmission includes the substrate and both faces. Reports should identify wavelength range, angle, polarization, aperture and measurement reference.
Agree on finished-part testing, witness-coupon use, sampling and traceability. A witness can support coating-process monitoring, but its relationship to curved geometry or the final assembly must be established.
Send the drawing, substrate, coated faces, wavelength and angular requirements, environmental tests and quantities. Paid prototypes, tooling or coating-run costs, minimum order and lead time are confirmed after review. Include protective packaging and any special cleanliness requirements.
14. Frequently Asked Questions
Does AR coating eliminate all reflections?
No. Residual reflection depends on wavelength, angle, polarization and the coating design. Specify measurable limits under the intended conditions.
Which should I choose: single-layer AR, V-coat or BBAR?
Start with the spectral and angular requirements. A limited wavelength range and a continuous imaging band can favor different designs.
Is average reflectance the same as maximum reflectance?
No. An average summarizes the band, while a maximum limits the highest allowed value. Specify both when necessary.
Can an AR coating improve transmission through an absorbing material?
It can reduce surface reflection, but it cannot remove the substrate’s bulk absorption.
Should both faces receive AR coating?
That depends on the optical path, interfaces and performance budget. Identify each face and its surrounding medium.
Can AR be used with AG or AF?
A compatible combination can be reviewed, with appearance, optical performance and durability evaluated together.
Does a reflection curve prove laser suitability?
No. Laser damage qualification requires defined operating and test conditions in addition to spectral performance.
What is required for an AR coating quotation?
Provide the drawing, substrate, coated faces, spectral limits, angles, polarization, environment, quantities and reporting requirements.
15. Request an AR Coating Review
Send your component drawing and optical operating conditions to Felix Glass. A clear specification helps establish the coating family, interface design and inspection plan for your window, lens, dome or display cover.
