N-BK7 Optical Components Engineered for Industrial Laser Systems
Industrial laser marking, cutting, welding and engraving equipment relies on high-transmission N-BK7 optical components to stabilize laser beam output. Felix Glass produces custom BK7 lenses, prisms, beam splitters, protective viewports and optical windows for North American industrial laser machine manufacturers. Our precision-polished BK7 optics support visible and near-infrared laser wavelengths, with customizable anti-reflection coatings, CNC machining and cleanroom finishing to meet OEM mass production standards.
- 350–2500 nm transmission
- ±0.001 mm CNC tolerance
- RoHS compliant export

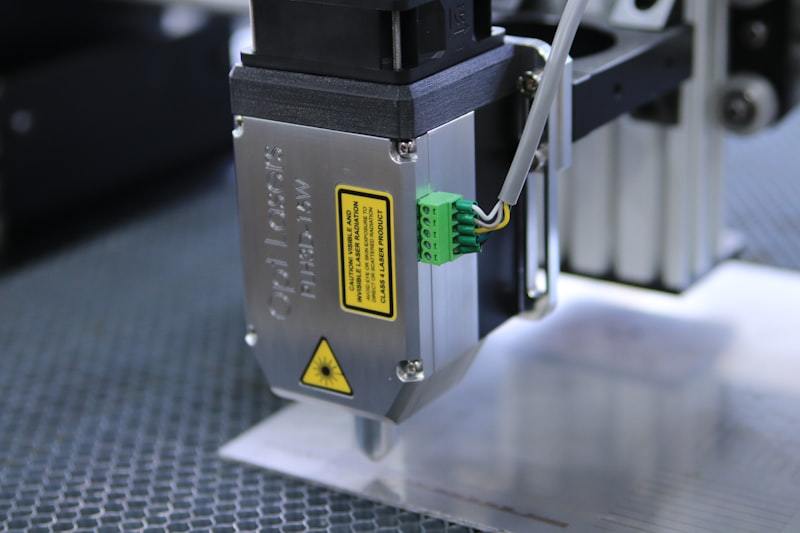

Custom N-BK7 optical components for fiber laser systems
Why N-BK7 Glass Is the Optical Standard for Industrial Laser Equipment
N-BK7 is the most widely specified borosilicate crown glass for industrial laser optics because it delivers a balanced combination of optical clarity, mechanical stability and repeatable machinability. For laser equipment builders that need consistent beam quality at high duty cycles, N-BK7 remains the most cost-effective substrate in the visible and near-infrared band.
Material Science
Schott-grade N-BK7 is a homogeneous, bubble- and inclusion-free crown glass with low thermal expansion (7.1 × 10⁻⁶/K) and excellent refractive index uniformity (Δn ≤ 1 × 10⁻⁶). These properties keep optical surfaces dimensionally stable under continuous laser workshop operation.
Optical Performance
Internal transmittance exceeds 99.5% per 25 mm thickness across 350 nm to 2.5 μm. Low absorption in the visible and near-infrared band prevents thermal lensing, beam drift and wavefront distortion that typically shorten the service life of laser optical assemblies.
Manufacturing Compatibility
N-BK7 polishes quickly to surface flatness of λ/10 or λ/20 and surface roughness of Ra 0.005 μm. It accepts single-layer, multi-layer broadband and laser-line anti-reflection coatings, and supports custom CNC machining of diameters, thicknesses, curved surfaces and prism geometries.
Core Product Advantages of Our BK7 Laser Optical Components
Six manufacturing and engineering strengths that allow Felix Glass to deliver BK7 laser optics ready for direct integration into your laser system assembly line.
Stable N-BK7 Substrate
Low thermal expansion, high transmittance from 350 nm to 2.5 μm, ideal for fiber laser marking, cutting and welding systems.
Custom AR Anti-Reflection Coating
Single-layer, multi-layer broadband and laser-line coatings reduce light loss, improve laser energy utilization and prevent internal scattering.
High-Precision CNC Machining
Dimensional tolerance up to ±0.001 mm matches all mainstream industrial laser equipment assembly interfaces and mounting standards.
Scratch-Resistant Polished Surface
Hard-surface polishing extends service life under continuous laser workshop operation and reduces replacement frequency.
Full OEM Customization
Any shape, thickness, aperture, coating and packaging configuration is available for direct laser system integration.
US Market Compliance
RoHS-certified material, batch delivery and US-standard export packaging for laser equipment factories in the USA and Canada.
Main BK7 Optical Parts for Industrial Laser Equipment
Six standard BK7 optical component families most frequently integrated into industrial laser marking, cutting, welding and engraving systems.

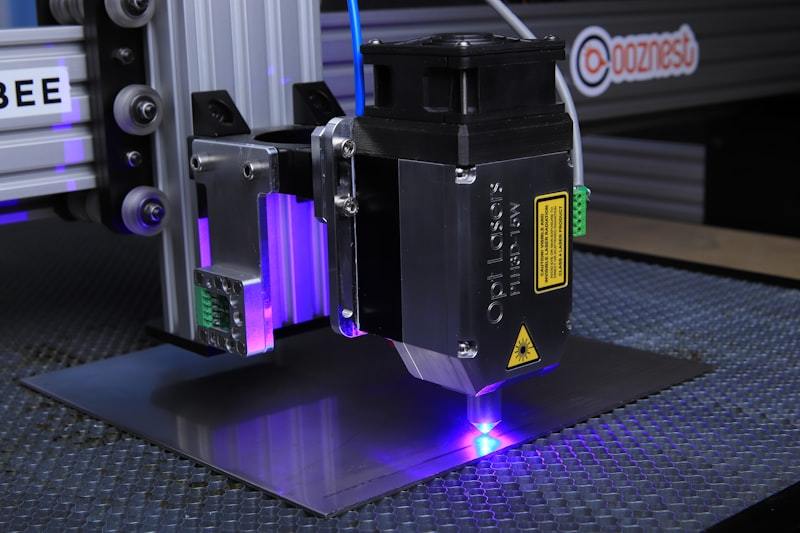

Laser Marking Protective Window
Coated BK7 viewport that protects the scanner head from spatter and contamination while keeping laser transmittance above 99% per surface.

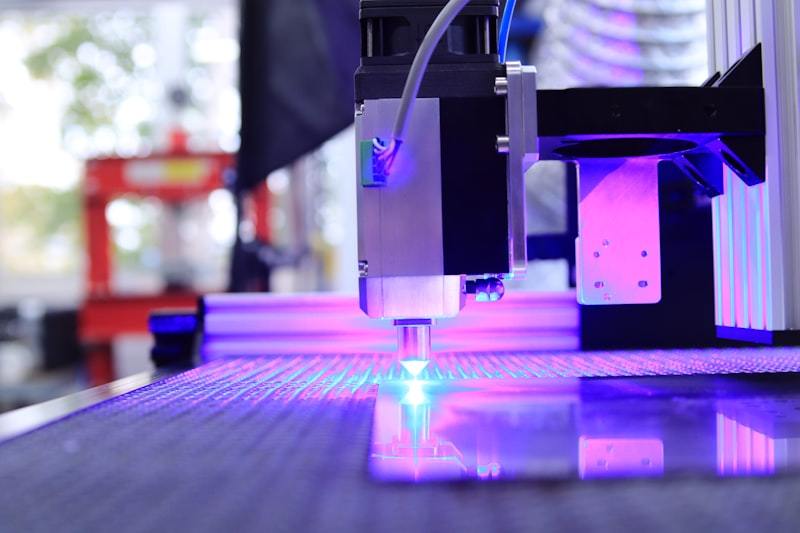

Laser Collimating BK7 Lens
Plano-convex and plano-concave BK7 lenses for collimating fiber laser output, available with 1064 nm AR or broadband AR coatings.
Beam Splitter Prism for Laser Positioning
Cemented or optical-contact BK7 cube and plate beam splitters for red pilot laser / invisible working laser combination.

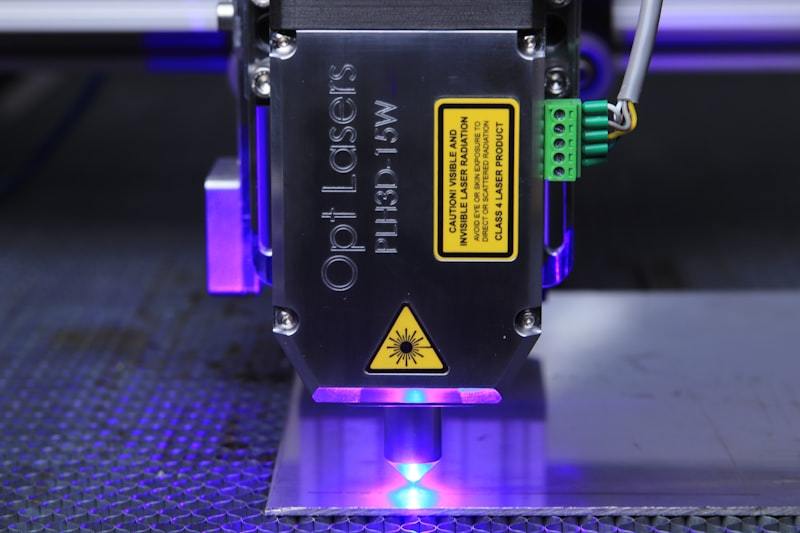

Focus Lens for Laser Cutting Machines
Mono- and double-plano BK7 focusing lenses for CO2 and fiber laser cutting heads, optimized for 10.6 μm and 1064 nm wavelengths.
Optical Flat Glass for Laser Calibration
λ/10 and λ/20 BK7 optical flats for laser beam collimation testing, optical bench reference and interferometric calibration.
Custom BK7 Blanks for Secondary Processing
Cut-to-size BK7 substrate blanks supplied to laser optics integrators for downstream polishing, edging and coating operations.
BK7 Laser Optics Across Industrial Application Scenarios
N-BK7 optical components from Felix Glass are integrated into the following categories of industrial laser systems across the North American market.
Fiber Laser Metal Marking Equipment
20 W – 100 W fiber laser markers used in serial number, logo and barcode marking on stainless steel, aluminum, copper and titanium parts.
CO2 Laser Engraving and Cutting Machines
30 W – 150 W CO2 laser systems for non-metallic cutting, signage, leather engraving and acrylic fabrication.
Laser Welding Automation Production Lines
Galvanometer-scanner-based and robot-mounted laser welding cells for automotive, battery tab and electronic assembly lines.
Semiconductor Laser Calibration Instruments
Beam profilers, alignment tools and wafer-inspection modules that require N-BK7 reference flats and beam splitters.
Precision Laser Measurement Testing Devices
Laser interferometers, displacement sensors and triangulation gauges that depend on λ/10 or λ/20 BK7 optical components.
Medical Laser Cosmetic Equipment
Aesthetic and dermatology laser platforms that integrate BK7 protective windows, focusing lenses and beam shaping optics.
Engineered for Laser Engineers — Roles and Pain Points Solved
Felix Glass BK7 laser optical components are designed around the real procurement and engineering decisions made by laser equipment manufacturers in the USA and Canada.
Target Buyer Roles
- Laser System Engineer
- Laser Machine Procurement Manager
- Precision Optics Designer
- Automation Equipment Factory Purchaser
Common Pain Points
- Ordinary glass causes laser beam distortion and unstable marking effect.
- Poor coating leads to high light loss and low laser processing efficiency.
- Non-standard optical parts cannot match existing laser equipment structure.
- Short service life of optical windows increases production cost through frequent replacement.
Our Solutions
Technical Parameter Overview — N-BK7 Laser Optical Components
Standard N-BK7 material and process specifications applied across Felix Glass BK7 laser optical components. Custom parameters are available on request.
Frequently Asked Questions About BK7 Laser Optical Components
Engineering and procurement questions North American laser equipment manufacturers most often ask about Felix Glass N-BK7 optics.
Q1. Why choose N-BK7 glass for industrial laser equipment?
N-BK7 has uniform optical performance, low absorption in the visible and near-infrared band, affordable cost and easy precision processing, which makes it the most cost-effective optical material for industrial laser systems.
Q2. Can you customize BK7 laser optics with special sizes?
Yes, we support full custom CNC machining for any diameter, thickness, curved surface and special-shaped prisms according to your laser equipment drawings.
Q3. What AR coatings are suitable for fiber laser machines?
We provide 1064 nm single-layer anti-reflection coating and broadband AR coating covering 800–1100 nm for mainstream fiber laser systems.
Q4. What is your sample and bulk order lead time?
Sample lead time is 5–7 working days. Mass production orders require 12–18 working days, depending on quantity, coating and complexity.
Q5. Do you supply BK7 optical components to US laser equipment manufacturers?
We have long-term OEM cooperation with multiple laser machine factories in the United States and Canada, supporting export packaging and US market technical documents.
Related Resources and Internal Links for BK7 Laser Optics
Continue your research with these three Felix Glass resources commonly reviewed by laser equipment engineers alongside this industrial laser optics solution page.
BK7 Material Introduction
Optical grade N-BK7 material properties, refractive index data and transmission curve.
View material pageBK7 Laser Optical Components Catalog
Complete Felix Glass BK7 laser optics product catalog with standard dimensions and coatings.
View product catalogIndustrial Laser Marking System Case Study
How a North American laser marking equipment OEM integrated Felix Glass BK7 optics into a serial production line.
Read customer caseGet Your Custom BK7 Laser Optics Quote Within 24 Hours
If you need custom BK7 optical components for your industrial laser marking, cutting or welding equipment, send your technical drawings and wavelength requirements to our optical engineering team. We will provide a free optical design review and quotation within 24 hours for North American laser equipment manufacturers.
- 24-hour quotation turnaround
- US-standard export packaging
- RoHS certified N-BK7 material
