Multi-Band Sapphire EO/IR Protective Window | Aerospace Thermal Surveillance Optical Windowce

Multi-Band Sapphire EO/IR Protective Window for aerospace thermal surveillance and night vision systems

Multi-Band Sapphire EO/IR Protective Window for Thermal Surveillance

Custom UV-IR Transmissive Sapphire Protective Window for Aerospace EO/IR & Night Vision Systems

Our multi-band sapphire protective window is developed for aerospace EO/IR thermal imaging and tactical night vision surveillance equipment. Single crystal sapphire features broadband UV to infrared light transmission and excellent thermal shock resistance. It serves as the front optical protective window for airborne surveillance systems, effectively resolving lens abrasion, temperature cycle failure and optical signal attenuation under harsh airborne environments.

Request A Free Quote Contact Us via WhatsApp

Core Pain Points We Solve

Ordinary optical materials cannot realize stable transmission covering UV, visible and infrared multi-spectrum

Conventional protective windows crack easily under drastic high-low temperature thermal shock

Tactical airborne equipment faces sand erosion and surface scratching during field operation

Many coatings degrade rapidly under long-term outdoor ultraviolet radiation

Product Key Advantages

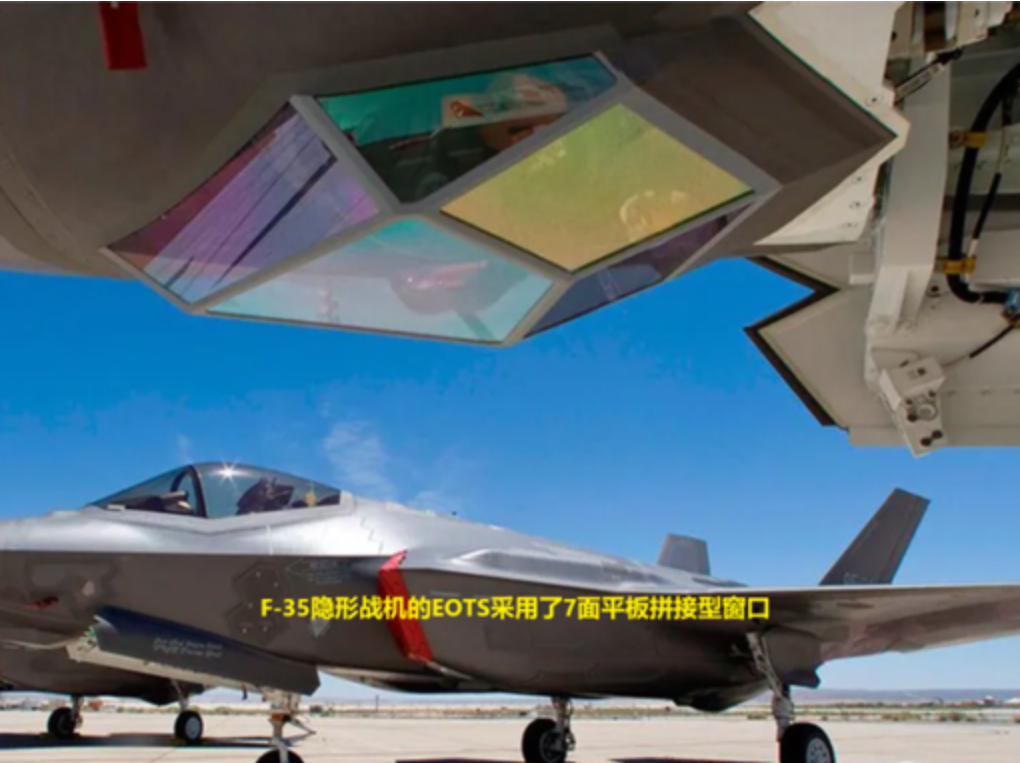

Multi-band sapphire optical window for aerospace EO IR thermal imaging system

Single crystal sapphire substrate with multi-spectrum AR coating for night vision devices

Flat sapphire protective window close-up for tactical surveillance camera

Custom shaped sapphire panel for airborne EO/IR optical module

Thermal shock resistant sapphire viewport for dual-band imaging equipment

Sapphire EO/IR protective window installed on aerospace surveillance equipment field application

Broadband UV-IR Transmittance

Suitable for multi-spectrum EO/IR dual-band imaging systems

Outstanding Thermal Shock Stability

Adapts to extreme temperature changes of aerospace equipment

Mohs 9 High Hardness

Anti-abrasion against sand, dust and external impact

Custom Multi-Band AR Coating

Reduce light reflection and boost imaging clarity

CNC Contour Shaping Support

Edge chamfering and light shielding silk screen printing available

Chemically Inert Material

Excellent resistance to humidity, salt fog and harsh outdoor environments

Engineering Specification Table

Item	Specification
Base Material	Single crystal optical sapphire
Mohs Hardness	Grade 9
Transmission Range	UV, visible light to infrared broadband
Surface Coating	Custom multi-band AR anti-reflection coating
Core Characteristic	Thermal shock resistant, multi-spectrum transmissive, abrasion resistant
Target Application	Aerospace EO/IR thermal imager, tactical night vision surveillance system

Multi-Band Sapphire EO/IR Protective Window technical drawing for airborne optical module

In-House Manufacturing Capability

All processing is completed inside our Class 100 dust-free workshop: Sapphire blank slicing, double-sided ultra-precision polishing, precision CNC machining, multi-spectrum vacuum AR coating, ultrasonic cleaning and comprehensive optical performance testing. No outsourced procedures, stable consistent quality for aerospace and tactical optical projects.

Precision CNC shaping processing for aerospace sapphire EO/IR window blank

CNC Precision Contour Machining

Double-sided ultra-precision polishing of multi-band sapphire optical substrate

Double-Sided Optical Polishing

Vacuum workshop for multi-spectrum AR coating on sapphire optical window

Multi-Spectrum Vacuum AR Coating

Precision edge chamfering & silk screen shading processing

Edge Chamfer & Silk Screen

Multi-spectrum optical parameter inspection for sapphire EO/IR window

Optical Comprehensive Inspection

Our optical engineering team provides full technical support:
✓ Custom multi-spectrum AR coating formulation development
✓ Structural optimization design suggestion
✓ Aerospace temperature & environmental simulation consultation
✓ Prototype verification & DFM manufacturability optimization
✓ After-sales technical support for system integration
Every optical component undergoes 100% optical inspection before delivery.

Why Choose Felix Glass

19+ Years of Experience

Rich experience manufacturing custom sapphire optical components

Aerospace Optical Experience

Mature multi-spectrum coating solutions for EO/IR surveillance systems

Prototype & Mass OEM

Support small batch prototype validation and large-volume OEM production

Strict Pre-Shipment Testing

Rigorous optical and environmental testing completed before shipment

Flexible Customization

Custom outline size, thickness and multi-spectrum AR coating

Frequently Asked Questions

Q1: Can you customize geometry, thickness and multi-band coating per our engineering drawings?

A: Yes. We fully customize dimensions, contour and optical coatings according to customer technical drawings and spectrum requirements.

Q2: What is the sample lead time?

A: Sample production cycle: 8~14 working days after drawing and specification confirmation.

Q3: Is sapphire suitable for long-term airborne alternating hot & cold environments?

A: Single crystal sapphire features low thermal expansion coefficient and superior thermal shock resistance, ideal for continuous airborne EO/IR surveillance platforms.

Get Your Custom Optical Quotation

Submit your spectrum requirements, dimension specifications and drawing files via the RFQ form below. Our optical engineer will share detailed parameters and quotation within 24 hours.
