ROV Underwater Optical Window & Sapphire Dome: High Pressure Subsea Viewport
Deep-sea subsea equipment faces ultra-high water pressure, seawater corrosion, and underwater impact. Ordinary optical glass will crack, fog, or delaminate under deep submersion. ROV and AUV underwater viewports require extreme mechanical strength and corrosion resistance. This page compares fused silica and sapphire subsea windows and provides clear material selection standards for underwater engineering.
1. Underwater Window Material Overview

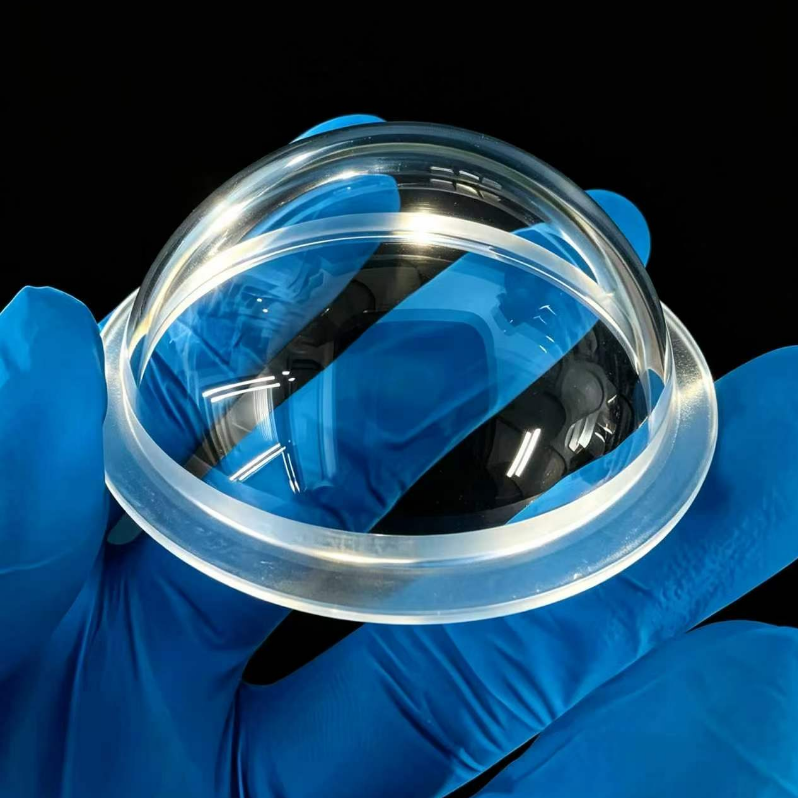

Sapphire Underwater Window & Dome features ultra-high pressure resistance, seawater corrosion resistance, and extreme structural stability, becoming the standard material for deep-sea ROV, AUV, and underwater camera systems.
Fused Silica Underwater Window offers high light transmittance and cost advantages, suitable for shallow-water industrial observation equipment with low pressure requirements.
2. Performance Comparison Table
| Parameter | Fused Silica | Sapphire | Engineering Recommendation |
|---|---|---|---|
| Deep Water Pressure Resistance | Medium | Ultra-high | Sapphire for deep-sea submersion |
| Seawater Corrosion Resistance | Good | Superior | Sapphire for long marine service |
| Structural Toughness | General | Excellent | Sapphire anti-impact underwater |
| Light Transmittance (VIS-NIR) | >90% | >85% | Both meet imaging needs |
| Mohs Hardness | 5.5–6 | 9 | Sapphire anti-scratch |
| Cost | Low | High | Fused silica for shallow water cost control |
3. Material Selection Guide (Quick Decision Table)
| Project Requirement | Best Material |
|---|---|
| Deep-sea ROV/AUV >1000m submersion | Sapphire |
| Long-term marine subsea operation | Sapphire |
| High-pressure hemispherical dome viewport | Sapphire |
| Shallow water observation equipment (<200m) | Fused Silica |
| Cost-sensitive underwater monitoring device | Fused Silica |
4. Technical Specifications
| Specification | Standard Range | Custom Available |
|---|---|---|
| Window Shape | Flat window / hemispherical dome / hyperhemispherical | Yes, per drawing |
| Dome Diameter | 10mm – 200mm | Yes |
| Wall Thickness | 2mm – 15mm (pressure-rated) | Engineering calculation |
| Pressure Rating | Up to 6000m depth (sapphire) | Custom depth rating |
| Surface Quality | 60/40 to 20/10 | High-precision imaging grade |
| Optical Coating | Broadband AR VIS-NIR / anti-fouling | Custom underwater coating |
5. Application Scenarios
- Deep-sea ROV/AUV pressure-resistant sapphire domes
- Underwater camera and underwater monitoring viewports
- Subsea detector and marine scientific research equipment
- Shallow-water underwater observation and fishing detection devices
- Offshore oil & gas subsea inspection systems
6. Coating Solution
| Coating Type | Wavelength Range | Feature | Application |
|---|---|---|---|
| Broadband AR | 400–1100nm | <1% reflectance | Underwater camera imaging |
| NIR AR | 850nm / 905nm / 1064nm | <0.5% reflectance | Underwater LiDAR & ranging |
| Anti-fouling / Hydrophobic | Broadband | Marine growth resistance | Long-term subsea deployment |
| Dual-side AR + protective | Custom band | Both surfaces coated | High-transmission subsea optics |
7. FAQ
Q: Why use sapphire for deep-sea windows?
A: Sapphire withstands ultra-high deep-sea pressure and seawater corrosion, avoiding cracking and water leakage in long-term subsea operation. It is the industry standard for >1000m depth applications.
Q: Can fused silica be used underwater?
A: Yes, but only suitable for shallow water (<200m) and low-pressure environments, not for deep-sea engineering or high-pressure dome viewports.
Q: What is the maximum depth rating for sapphire domes?
A: Depending on dome diameter and wall thickness, sapphire domes can be engineered for up to 6000m water depth. We provide pressure calculation per your specification.
Q: Can you provide pressure test certification?
A: Yes. We offer hydrostatic pressure testing reports and material certificates for custom subsea viewports upon request.
8. Custom Manufacturing & Request a Quote
Hong Kong Felix Optical Glass Co., Limited customizes sapphire domes, flat underwater windows, and fused silica subsea viewports with high-precision tolerance, pressure-resistant structure, and underwater optical coating for marine engineering equipment.
Available custom capabilities:
- Custom shape: flat window, hemispherical dome, hyperhemispherical dome
- Pressure-rated wall thickness engineering for target depth
- Broadband AR, NIR AR, anti-fouling hydrophobic underwater coatings
- Hydrostatic pressure test reports and material certificates available
Email: james@felixglass.com | Tel: +86 185 6503 2888
- What is the minimum order quantity for custom precision optical glass components?
FELIX OPTICAL GLASS offers highly flexible MOQs to support customer projects, including prototype testing, small-batch trial orders, and high-volume production. All products can be fully customized to your drawings, tolerances, and application standards. Please send us your specifications, and we will reply within 1-5 hours and provide an accurate quotation after careful evaluation within 1-2 days.
- Can I get free glass samples for testing before bulk order?
Yes, our FELIX GLASS factory supports sample testing for a wide range of precision optical glass components and assemblies. The lead time for sample production is 3 to 7 working days. Please contact us today to arrange samples and obtain a customized solution that meets your needs.
- What is the production lead time for custom optical glass components?
A: The production cycle for standard samples is 3-10 working days, while mass production requires 15-35 working days, depending on the complexity of the product and the order quantity. We provide reliable precision optical glass components and fast delivery services for orders from industries such as defense, industrial equipment, medical devices, shipbuilding, robotics, automotive, and aerospace. Please submit your project details so we can provide you with an accurate delivery schedule.
- Are your optical glass products ISO, CE and RoHS certified?
All precision optical glass components from FELIX OPTICAL GLASS comply with ISO quality system standards as well as CE and RoHS requirements. We provide comprehensive test reports, spectral graphs, material certificates, and inspection documents for customer review. Please feel free to request complete certification details and a formal quotation at any time.
- Do you offer one-stop custom optical glass processing services?
Yes. We offer a full range of precision optical glass component processing services, including CNC machining, precision grinding, optical polishing, chemical/physical tempering, vacuum coating (AR anti-reflective coating, AF anti-fingerprint coating, AG anti-glare coating, IR infrared coating), and screen printing. From raw materials to finished products, every step is completed in our own factory. Please tell us your needs, and we will provide you with the most cost-effective solution.
