Poor dome performance leads to scratch, rupture or image degradation in harsh marine environments. Seawater corrosion shortens service life Hydrostatic pressure causes dome rupture at depth Seabed sediment abrasion scratches optical surface Low transmittance blurs underwater imaging quality ROV camera dome available in sapphire, fused silica and BK7 with custom coating and sealing interface. Sapphire is premium for deep‑sea long‑term deployment; fused silica and BK7 fit medium‑shallow depth budget projects. Deliver reliable optical dome solutions matched to your subsea operating conditions. Sapphire is chemically inert for long‑term deep‑subsea deployment. Fused silica and BK7 are available for shallow‑to‑medium depth budget‑oriented underwater missions. Sapphire dome supports up to 10 000 m full‑ocean depth. Fused Silica and BK7 maximum depth are constrained by material mechanical performance. Mohs‑9 sapphire resists seabed sediment scouring. Fused silica and BK7 have lower hardness for low‑sediment underwater environments. Above 96 % visible‑light transmittance. Single‑sided or double‑sided anti‑reflection coating for visible, UV or IR spectrum requirements. Custom diameter, wall thickness, radius and sealing flange geometry to fit your existing ROV / AUV mechanical assembly. Minimal optical distortion under ocean temperature fluctuation for continuous underwater observation tasks. Reference parameters for custom‑made ROV and subsea camera dome. Complete in‑house production workflow for marine‑grade optical dome quality assurance. Custom‑manufactured underwater optical domes for global marine engineering customers. Specialized precision optical component manufacturer Delivered multiple subsea optical projects Support low‑volume sample and mass production orders Dimensional and optical performance testing Material, dimension and coating fully customizable A: Yes. We customize dome radius, diameter, wall thickness and sealing flange geometry based on your CAD files or technical specifications. A: Sapphire is premium option for deep‑sea and long‑term deployment. Fused silica and BK7 are also viable for shallow‑medium depth underwater missions with pressure and abrasion constraints. A: Sample order: 8‑14 working days. Mass‑production order: 18‑25 working days, subject to drawing complexity. A: Yes, single‑sided and double‑sided broadband AR coatings are available for visible, UV and infrared spectrum requirements. A: Yes. Fused silica fits medium‑depth projects with UV optical requirements. BK7 delivers cost‑effective solution for shallow‑water short‑term underwater systems. Our optical engineer will recommend proper material according to your working depth, spectral requirement and project budget. Please provide working depth, spectral requirement, dimension drawing or specifications. Our optical engineer will send detailed quotation for you within 24 hours.
Core Pain Points For Subsea Optical Dome Deployment

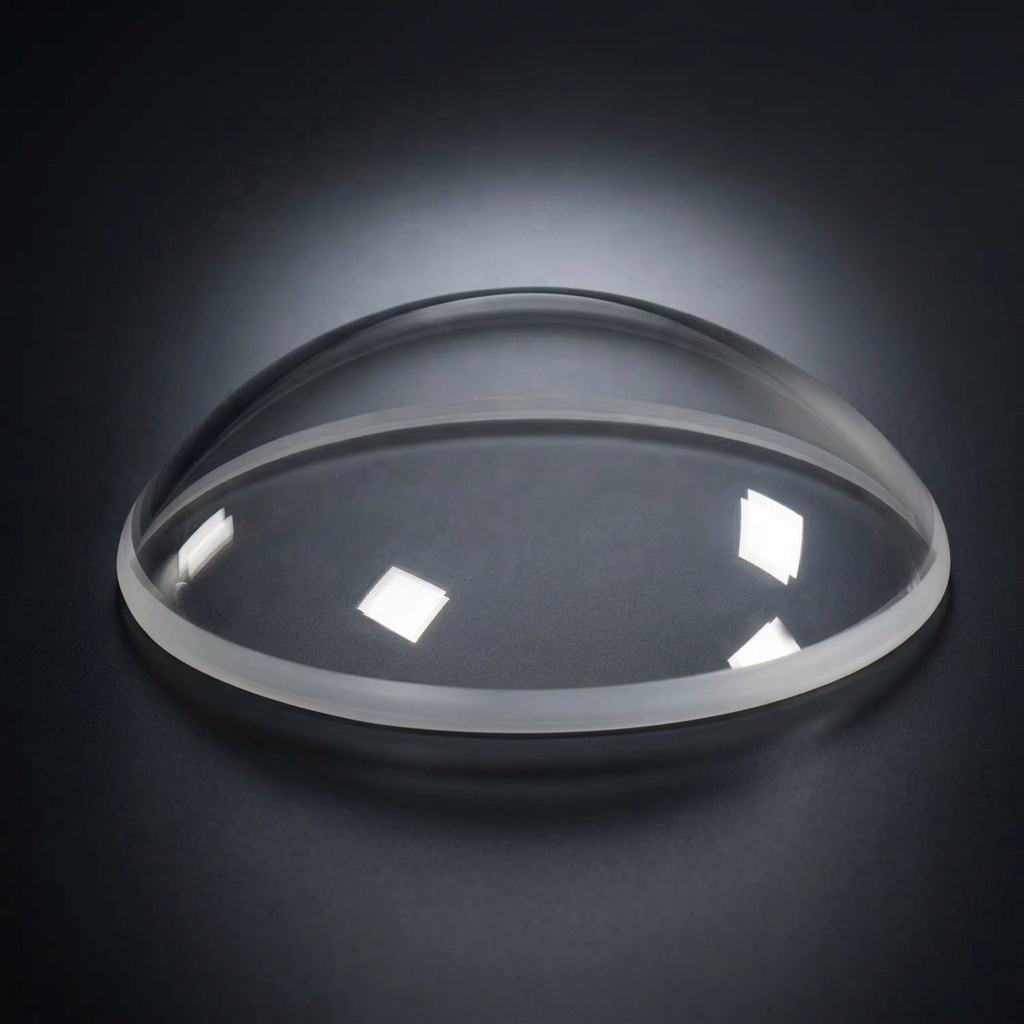

Custom Underwater Optical Dome & Subsea Dome Lens
Material Selection for Underwater & Subsea Optical Dome
Material
Working Depth Range
Core Strength
Main Limitation
Typical Application
Sapphire
0‑10000 m Full‑ocean depth
Mohs 9 hardness, anti‑abrasion, seawater inert, long service life
Higher cost for large‑size parts
Work‑class ROV, AUV, offshore subsea station
Fused Silica
0‑1500 m Medium depth
Excellent UV transmittance, no birefringence, moderate cost
Low abrasion resistance, avoid deep‑sea heavy sediment
Shallow‑medium ROV, underwater UV spectral detection
BK7 Optical Glass
0‑300 m Shallow‑water only
Low cost, excellent visible‑light imaging performance
Poor seawater resistance, not for UV, forbidden for deep dive
Near‑shore prototype, short‑term underwater camera system
Key Advantages of Our Custom Subsea Optical Dome
Marine‑Grade Seawater & Salt‑fog Resistance
Custom Hydrostatic Pressure Resistance
Abrasion‑Resistant Optical Surface
High Transmittance With Custom AR‑Coating
CNC Precision Custom Machining
Stable Optical Performance Under Wide Temperature
Underwater Optical Dome Technical Specifications
Available Material
Sapphire / Fused Silica / BK7
Max Working Depth(Sapphire)
Up to 10 000 m
Surface Transmittance
≥96 % Visible Band
Coating Options
Single‑sided / Double‑sided AR Coating
Diameter Range
5 mm‑200 mm, fully custom
Machining Tolerance
±0.01 mm high precision
Typical Application
ROV, AUV, underwater camera, marine observation station
Full‑Cycle Manufacturing Process for Subsea Optical Dome
CNC Precision Machining
Ultra‑Precision Grinding
Optical Polishing
AR Coating Process
100 % Optical Metrology Inspection
Why Choose Felix Glass For Subsea Optical Dome Manufacturing
19+ Years Experience
Marine Project Cases
Prototype & OEM
Full‑Item Inspection
Full Customization
FAQ | Custom Underwater Optical Dome for ROV & Subsea
Q1: Can you produce ROV optical dome according to customer CAD drawings?
Q2: Is sapphire dome suitable for long‑term seawater immersion?
Q3: What is typical lead‑time for custom subsea optical dome?
Q4: Do you provide anti‑reflection AR coating service?
Q5: Can I select Fused Silica or BK7 instead of sapphire for ROV optical dome?
Request Your Custom Underwater Optical Dome Quotation
- What is your MOQ for custom optical glass and display glass parts?
Felix Glass offers highly flexible MOQ to support client projects, including prototype testing, small batch trial orders and large-volume mass production. All products can be fully customized according to your drawings, tolerances and application standards. Send us your specs to get an accurate price quote within 24 hours.
- Can I get free glass samples for testing before bulk order?
Yes, our FELIX GLASS factory supports sample testing for a wide range of precision optical glass components and assemblies. The lead time for sample production is 3 to 7 working days. Please contact us today to arrange samples and obtain a customized solution that meets your needs.
- What is the production lead time for custom optical glass components?
What is the production lead time for custom optical glass components?
Answer: The lead time for standard samples is 3–7 business days, while mass production takes 15–25 business days, depending on product complexity and order volume. We provide reliable, rapid delivery for orders serving the industrial, medical, automotive, and aerospace sectors. Please submit your project details to receive an accurate delivery schedule.
- Are your optical glass products ISO, CE and RoHS certified?
All FELIX GLASS precision optical glass components comply with ISO quality system standards, as well as CE and RoHS requirements. We provide comprehensive test reports, material certificates, and inspection documentation for customer review. Please feel free to request full certification details and a formal quotation today.
- Do you offer one-stop custom optical glass processing services?
Yes. We provide a full range of in-house processing services, including CNC machining, precision grinding, optical polishing, vacuum coating (AR, AF, AG, IR), tempering, and screen printing. Every step—from raw material to finished product—is carried out within our own facility. Please let us know your requirements, and we will provide you with the most cost-effective solution.
