Core Pain Points We Solve
Bubbles & striae in low-grade quartz cause beam distortion in precision optical systems
Ordinary glass cracks under high temperature and rapid thermal shock cycles
Single substrate cannot cover deep UV, near UV and infrared multi-spectrum requirements
Hard to source quartz with custom cutouts, drilling, grooving and wavelength-specific AR coating
Key Features
Custom Dimensions & Freeform Shapes
No standard stock sizes. Fabricate per your drawing, sample or specs: round, rectangular, oval and irregular profiles.
Optical Grade High Purity
Bubble & striae controlled fused silica for distortion-free UV / IR light transmission.
Superior Thermal Shock Resistance
Near-zero thermal expansion, stable operation under cycling high-temperature environments.
Broadband Optical Transmission
Covers deep UV, visible and mid-infrared bands to match multi-aperture optical designs.
Excellent Chemical Inertia
Resistant to most acids and solvents, suitable for corrosive lab and industrial environments.
Precision Optical Machining
CNC drilling, grooving, chamfering, single / double-sided polishing to tight flatness & parallelism tolerances.
Technical Specifications
| Property | Value |
|---|---|
| Material | High Purity Fused Silica Quartz |
| SiO₂ Purity | ≥99.99% |
| Density | 2.20 g/cm³ |
| Refractive Index | 1.458 @ 587.6nm |
| Thermal Expansion Coefficient | 5.5 × 10⁻⁷ /°C |
| Softening Point | 1730°C |
| Annealing Point | 1180°C |
| Continuous Working Temp | 1100°C |
| Instant Peak Temp | 1300°C |
| Transmission Band | 185nm–3500nm |
| Average Transmittance | >90% |
| Surface Quality | 60/40, 40/20, 20/10 MIL-O-13830 |
| Optical Flatness | λ/2, λ/4, λ/10 @632.8nm |
| Available Thickness | 0.5mm–50mm |
| Custom Geometry | Round, square, rectangular, oval, irregular |
| Processing Options | Cutting, drilling, slotting, chamfering, double-side polish |
| Optional Coatings | UV AR, Broadband AR, IR Anti-reflection coating |
JGS Grade Selection Guide
JGS1 Deep UV Fused Silica Plate
Wavelength: 185nm–2500nm
Ideal for: Excimer laser, semiconductor lithography, deep UV sterilization, UV spectroscopy
JGS2 General UV Fused Silica Plate
Wavelength: 220nm–2500nm
Ideal for: Lab optical testers, UV curing lines, industrial inspection, general optoelectronics
JGS3 Infrared Fused Silica Plate
Wavelength: 260nm–3500nm
Ideal for: IR thermal sensing, high-temperature furnace sight window, aerospace IR optics
Typical Applications
- Semiconductor lithography & wafer processing equipment
- UV excimer laser and industrial laser systems
- UV curing, UV disinfection and automated optical inspection
- Analytical lab instruments & optical test platforms
- Infrared temperature sensing and thermal imaging hardware
- Medical UV diagnostic & sterilization optics
- Aerospace optical assemblies
- High-temperature furnace viewport windows
One-Stop Custom Optical Service
Felix Glass supports full OEM & ODM custom fused silica quartz plates:
- Custom length, width, thickness and outline
- Irregular shape cutting, cutout and contour machining
- Precision drilling, grooving, edge grinding & chamfering
- Single / double-sided optical polishing
- Wavelength-tailored anti-reflection coatings
- Tight tolerance control for flatness, parallelism & roughness
We accept low-volume prototype sampling and high-volume mass production orders.

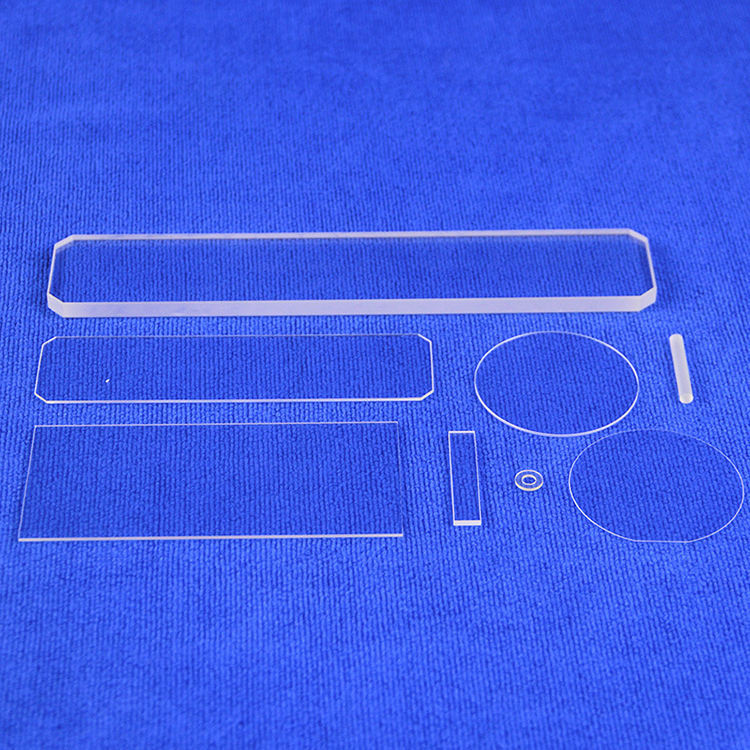

Precision CNC Machining
Optical Grade Polishing
Why Partner With Felix Glass
15+ Years Optical Export
Specialized fused silica & infrared optical component factory
ISO 9001 Certified
Complete QA inspection workflow for optical specs
Full JGS Grade Coverage
JGS1 / JGS2 / JGS3 for UV to IR optical designs
High-Precision Fabrication
Advanced polishing, coating & metrology equipment
Global OEM Support
Fast sampling, stable lead time for industrial clients
Frequently Asked Questions
Q1. What data do you need for quotation?
A: Provide drawing / sample, dimension, flatness, surface quality, wavelength and coating requirements.
Q2. What shapes can you fabricate?
A: Round, square, rectangular, oval and custom irregular profiles.
Q3. Continuous working temperature limit?
A: Stable continuous operation at 1100°C, withstand transient 1300°C peak.
Q4. Can I order prototype samples?
A: Yes, small-batch trial orders available for optical performance verification.
Q5. How do I select JGS1 / JGS2 / JGS3?
A: JGS1 = Deep UV / excimer laser; JGS2 = general UV & lab; JGS3 = infrared transmission.
Q6. Can you apply anti-reflection coatings?
A: Custom UV AR, broadband AR and IR anti-reflection coatings are optional.
Q7. Is fused silica resistant to thermal shock?
A: Ultra-low thermal expansion enables good thermal shock resistance against rapid temperature swing.
Q8. Can you drill holes or slots on quartz plate?
A: Precision drilling, slotting, contour cutting and chamfering services are available.
Q9. What surface finish grades are available?
A: MIL standard 60/40, 40/20 and high precision 20/10 surface quality.
Q10. Do you support OEM / ODM?
A: Fully custom fabrication following your optical specifications and engineering drawings.
Send Your RFQ Today
Get fast technical support and factory pricing for custom fused silica quartz plates. Our optical engineering team supports semiconductor, laser, UV and infrared projects worldwide. Quote within 24 hours.
