High Quality UV Grade JGS1 Fused Silica Dome Lens, High Temperature Resistant Quartz Optical Dome

High Quality UV Grade JGS1 Fused Silica Dome Lens, High Temperature Resistant Quartz Optical Dome
High Quality UV Grade JGS1 Fused Silica Dome Lens, High Temperature Resistant Quartz Optical DomeHigh Quality UV Grade JGS1 Fused Silica Dome Lens, High Temperature Resistant Quartz Optical DomeHigh Quality UV Grade JGS1 Fused Silica Dome Lens, High Temperature Resistant Quartz Optical DomeHigh Quality UV Grade JGS1 Fused Silica Dome Lens, High Temperature Resistant Quartz Optical DomeHigh Quality UV Grade JGS1 Fused Silica Dome Lens, High Temperature Resistant Quartz Optical DomeHigh Quality UV Grade JGS1 Fused Silica Dome Lens, High Temperature Resistant Quartz Optical Dome
Share
CategoriesInfrared Windows, Lenses & Domes
BrandFELIX GLASS optical glass Manufacturing base
Product SpecificationsFG-JGS1-QTZ-DOME
Substrate MaterialJGS1 synthetic fused silica; source and grade confirmed
Dome GeometryHemispherical or drawing-defined dome; specify inner and outer radii
Surface CoatingUncoated or band-specific AR, subject to review
Spectral SelectionUV / visible / selected NIR; confirm grade, thickness and coating
ApplicationUV sensing, spectroscopy and optical protection per project review
FOB portSHENGZHEN SHANGHAI GUANGZHOU
Terms of PaymentL/C, D/A, D/P, Western Union
DownloadDownload pdfDownload pdfDownload pdfDownload pdf
Detail Information
High Quality UV Grade JGS1 Fused Silica Dome Lens, High Temp

Send your drawing or sample requirement for a fast quotation. MOQ, lead time and coating options are confirmed within one business day.

Request a Quote

Open Product Inquiry Form

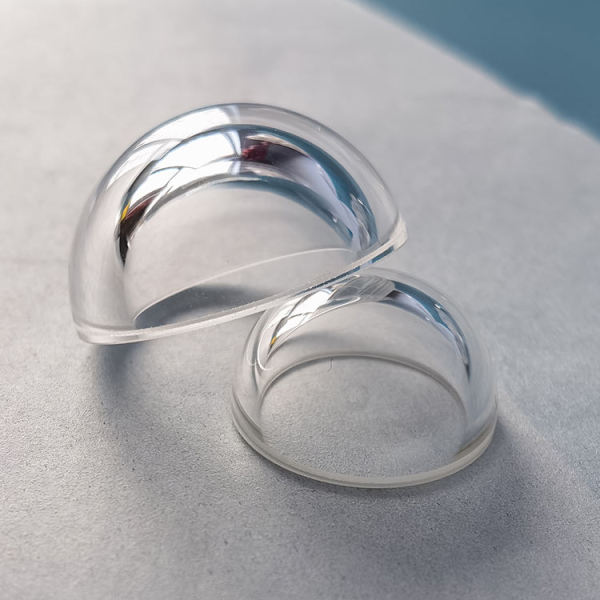

 High Quality UV Grade JGS1 Fused Silica Dome Lens, High Temperature Resistant Quartz Hemispherical Optical Dome


Felix Glass JGS1 fused silica dome lens is manufactured from high-purity UV-grade synthetic fused silica (JGS1 quartz glass), a candidate substrate for UV optical systems, subject to grade and spectral review. Its inner and outer geometry must be evaluated in the optical model; a protective dome is not automatically a focusing or distortion-correcting lens.

Select the exact JGS1 source and grade against the operating wavelength, thickness, OH content, homogeneity and required transmission. Low thermal expansion can support thermal-stability applications, but temperature, gradients, dwell, atmosphere, mounting and coating define the service conditions; no universal 1100°C continuous-use rating is assumed.

UV AR options require the wavelength band, incidence range, polarization, coated faces and spectral acceptance. Environmental protection depends on the assembled mount and seals; dome geometry alone does not establish distortion correction or an ingress rating.


Core Optical Specifications


- Raw Material: UV-grade JGS1 synthetic fused silica, source and material acceptance agreed in the order
- Dome Shape: Full hemispherical single-piece spherical dome
- Transmission Spectrum: UV, visible or selected NIR use; confirm grade-specific transmission through the actual optical path
- Max Operating Temperature: Project-specific operating and storage temperature, thermal gradients and mounting review
- Thermal Expansion Coefficient: Low expansion; use grade data over the specified temperature interval
- Optional Coating: Custom broadband AR coating optimized for deep UV wavelength
- Average UV Transmittance: Minimum spectral transmission defined with band, AOI, polarization and coated faces
- Surface Quality: 60-40 or 40-20 review targets; agree method, inspected area and feasibility
- Custom Parameter: Custom dome diameter, wall thickness, inner & outer curvature radii


Core Product Advantages


1. JGS1 UV-grade fused silica supports deep ultraviolet transmission, ideal for UV laser and UV spectroscopy equipment unavailable for common infrared crystal materials
2. Low-expansion substrate selection with project-specific thermal and mounting evaluation.
3. Drawing-based inner and outer radii, wall thickness, height and clear aperture.
4. Material quality and documentation agreed against the selected optical grade.
5. Custom UV broadband AR coating optional, greatly boost deep UV transmittance and suppress stray light interference
6. Fully customizable dome size, curvature and coating spectrum to match UV laser, spectral analysis and high-temperature monitoring optical systems


Typical Application Scenarios


- UV laser projects at a specified wavelength, subject to grade, coating and laser-damage requirement review
- Laboratory UV-Vis-NIR Fourier transform spectrometers
- High-temperature furnace industrial online optical temperature monitoring systems
- Semiconductor wafer UV inspection optical assemblies
- Medical UV optical diagnosis & ultraviolet detection instruments
- Aerospace high-temperature UV remote sensing optical modules



OEM Manufacturing Capability


We provide full one-stop JGS1 fused silica optical processing including high-purity quartz blank hot forming, ultra-precision hemispherical spherical polishing, UV broadband AR coating, edge deburring, strict deep UV transmittance testing and high-temperature stability inspection.
Prototype sampling, small-batch trial production and factory mass supply are supported. Define dimensional, surface, spectral and any environmental tests, sampling and report scope before order acceptance.


Standard FAQ


1. What is the difference between JGS1 fused silica dome and ZnS/ZnSe infrared dome?
Choose JGS1, ZnS or ZnSe from exact material data and the required band, optical path and environment. They are different substrates and are not interchangeable based on a generic UV/IR label.
2. What temperature environment can JGS1 quartz dome adapt to?
Provide temperature limits, thermal ramps, gradients, dwell, atmosphere and the coated/mounted condition for review. Any thermal rating requires agreed validation.
3. Can I customize UV anti-reflection coating and dome size for UV laser equipment?
Yes, we support custom hemispherical diameter, wall thickness, curvature radii, and UV AR coating for an agreed wavelength and incidence range, subject to feasibility and laser exposure requirements.
4. What equipment matches this JGS1 fused silica dome lens?
It fits deep UV laser machines, laboratory UV spectrometers, industrial high-temperature furnace monitoring equipment and semiconductor UV detection optical assemblies.
5. Do you provide factory mass supply for JGS1 quartz optical domes?
We offer factory direct bulk supply, small trial samples and OEM customization, inspection scope and reports are agreed for the approved drawing and quotation

Review the fused silica dome material and acceptance planning guide before submitting your drawing. Include the grade, radii, wall thickness, aperture, wavelength, coating and quantities.
