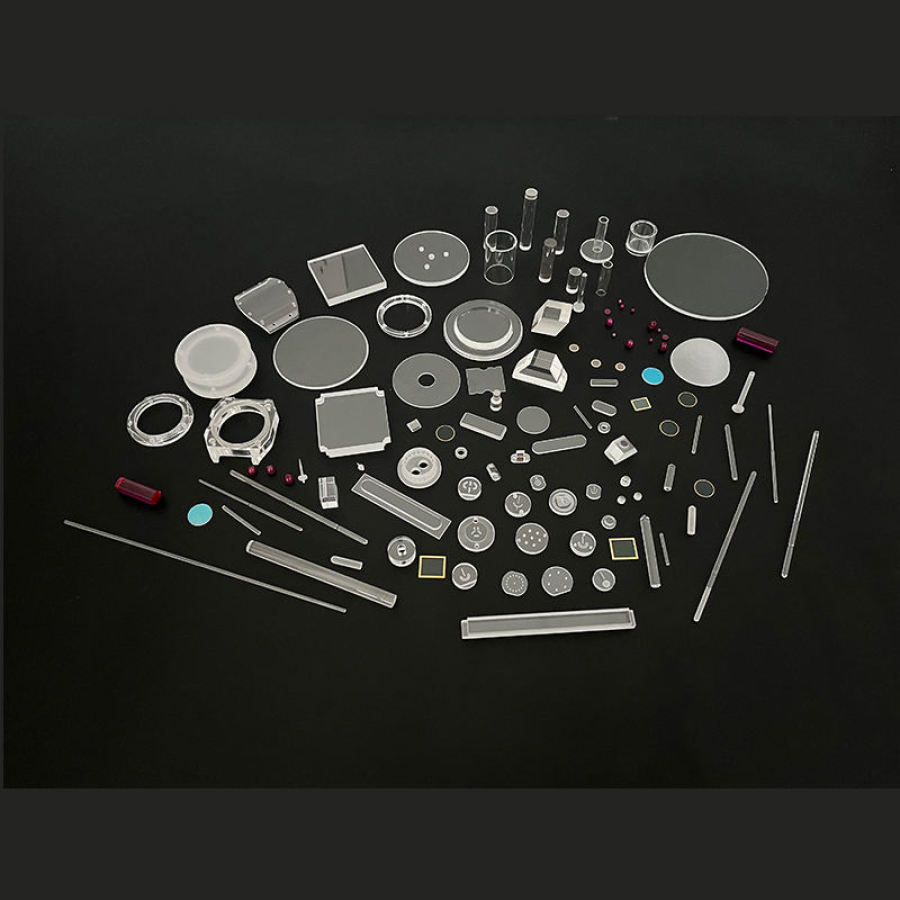

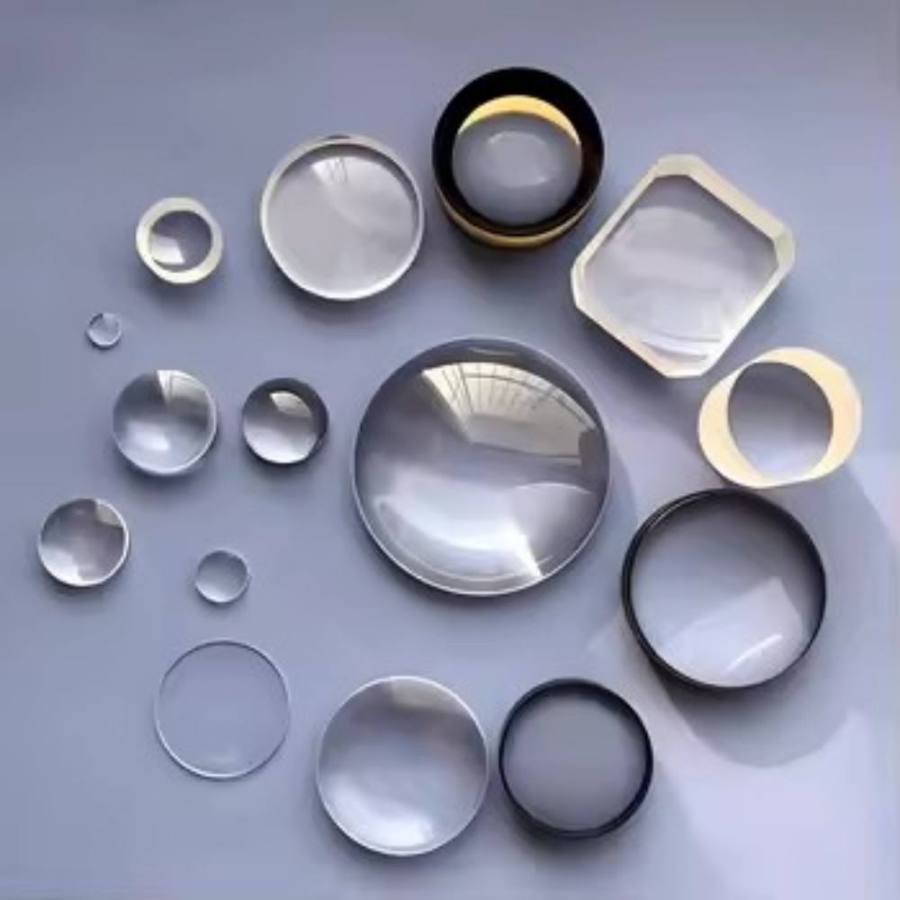

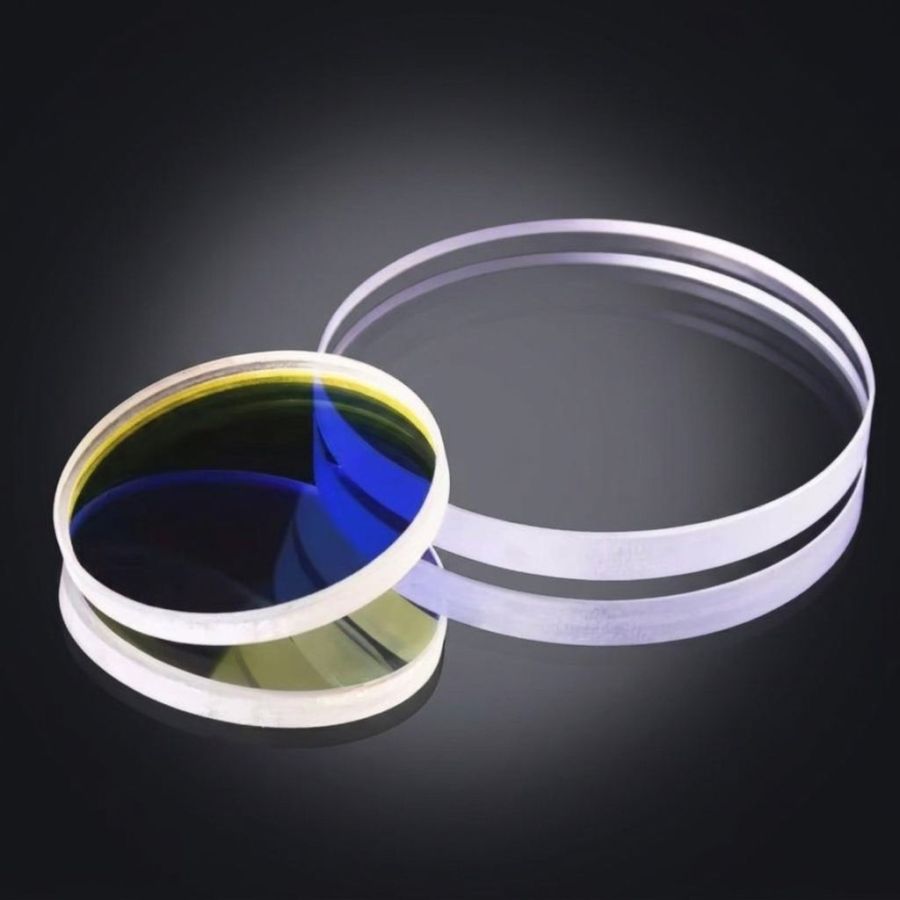

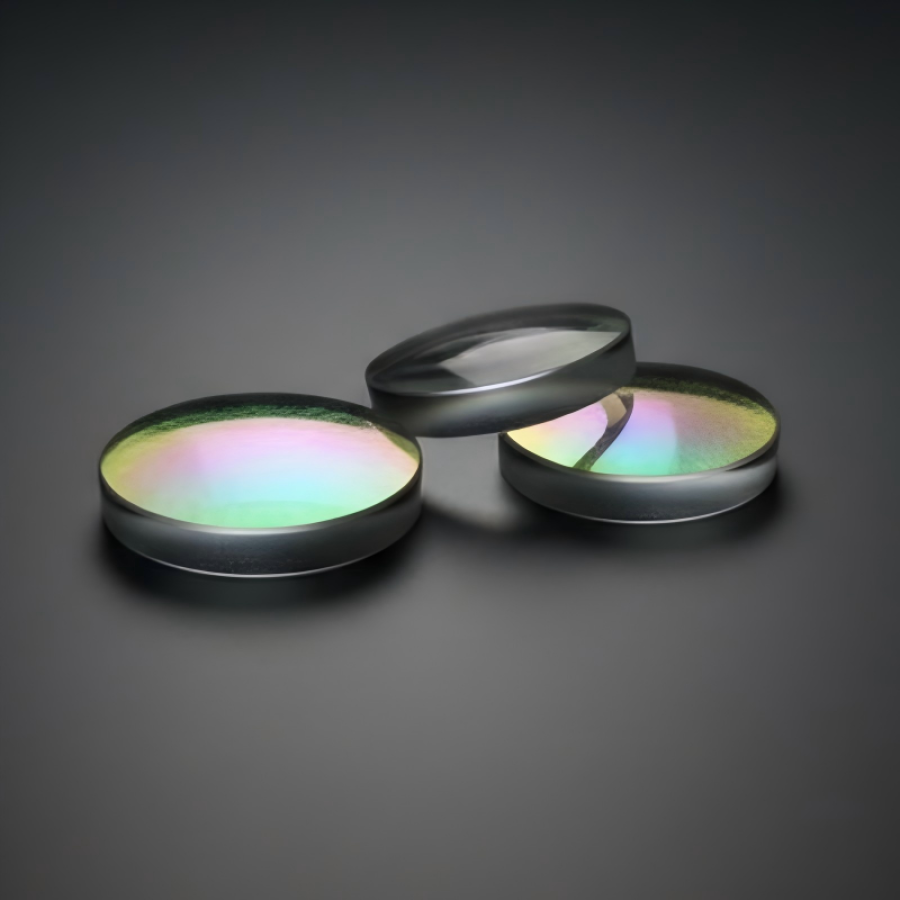

IR Transmission Sapphire Window for EO/IR Systems
| Share | |
|---|---|
| Categories | Sapphire Optical Windows |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FG-SAP-IRWIN-EOIR |
| Material | Optical-grade single-crystal sapphire |
| Crystal Orientation | C-axis or A-axis, customizable |
| Dimension | Custom diameter, width, thickness, and shape to drawing |
| Angle Tolerance | Not applicable to a standard flat window; define wedge if required |
| Surface Quality | 40-20, 20-10, or tighter by specification |
| Surface Flatness | Up to λ/10 at 632.8 nm |
| Clear Aperture | Custom to drawing; confirm usable optical area in RFQ |
| Transmission | 0.15 μm to 5 μm broadband material range |
| Coating | AR or BBAR mid-IR coating to target wavelength |
| MOQ | 1-piece sample support |
| Lead Time | Typically 7–15 working days; confirm by design and quantity |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, T/T |
| Download |  |
Detail Information
Sapphire Optical Windows for EO/IR Integration
1. Product Overview
Our IR transparent sapphire window adopts a high-purity single-crystal sapphire substrate with broadband transmission from 0.15 μm to 5 μm, supporting day-and-night EO/IR electro-optical detection systems. Mohs 9 hardness helps resist scratching, thermal shock, and harsh airborne environments.
For an Optical Engineer, R&D Manager, or Procurement Engineer, the selection decision begins with the operating band, clear aperture, allowable wavefront error, mechanical envelope, coating target, and environmental load. Felix Glass reviews these inputs before confirming a production specification.
Review the Sapphire Optics capability page
Material Fit
2. Why Sapphire Fits Harsh-Environment EO/IR Windows
Thermal Stability
Single-crystal sapphire is considered when the window must tolerate temperature change while maintaining dimensional stability.
Optical Control
Orientation, flatness, surface quality, clear aperture, and AR or BBAR coating can be specified for the optical path.
For material comparisons and selection guidance, use the Felix Glass technical blog.
Interest
3. Core Optical Performance
- Full IR-spectrum support covering visible, near-infrared, and mid-wave infrared within the specified sapphire range.
- Surface flatness to λ/10 at 632.8 nm and surface quality options up to 20-10 or tighter, subject to drawing review.
- Custom BBAR anti-reflection coating to reduce reflection loss in the selected operating band.
- Dimensional tolerance control to ±0.01 mm for precision payload integration, subject to part geometry.
Drawing-Based Configuration
4. Standard and Custom Specifications
Round, square, and rectangular blanks are available with customizable diameter, thickness, edge profile, crystal orientation, and coating. Standard stock sizes may support sampling, while production terms are confirmed against the approved drawing and inspection plan.
| Material | Optical-grade single-crystal sapphire | Crystal Orientation | C-axis or A-axis, customizable |
|---|---|---|---|
| Dimension | Custom diameter, width, thickness, and shape to drawing | Angle Tolerance | Not applicable to a standard flat window; define wedge if required |
| Surface Quality | 40-20, 20-10, or tighter by specification | Surface Flatness | Up to λ/10 at 632.8 nm |
| Clear Aperture | Custom to drawing; confirm usable optical area in RFQ | Transmission | 0.15 μm to 5 μm broadband material range |
| Coating | AR or BBAR mid-IR coating to target wavelength | MOQ | 1-piece sample support |
| Lead Time | Typically 7–15 working days; confirm by design and quantity | Brand | Felix Glass Co., Limited |
Buyer Review
5. Specification Review by Buyer Role
Optical Engineer
Provide wavelength band, incidence angle, clear aperture, flatness, surface quality, wavefront requirement, and coating target.
R&D Manager
Define environmental conditions, test method, prototype quantity, acceptance criteria, and the path from sample validation to production.
Procurement Engineer
Confirm drawing revision, quantity breaks, documentation, packaging, requested delivery date, and supplier approval requirements.
See the custom optical components FAQ for common ordering questions.
Manufacturing Control
6. Manufacturing and Quality Inspection
All sapphire windows go through CNC precision grinding, double-sided polishing, and interferometer flatness testing before delivery. Factory inspection records and material certification can be provided according to the order specification.
- 01
Drawing Review
Confirm material, orientation, geometry, tolerances, coating, and acceptance method.
- 02
Precision Processing
Use controlled cutting, CNC grinding, polishing, edge processing, and cleaning.
- 03
Coating and Inspection
Apply the specified optical coating and verify required dimensional, surface, and optical characteristics.
Acceptance Planning
7. Quality Documentation and Acceptance
Material: Request material certification and crystal-orientation confirmation when required.
Geometry: Identify critical dimensions, datum scheme, edge profile, wedge, and clear aperture.
Surface: Define surface quality, flatness, scratches, chips, coating-zone limits, and cosmetic acceptance.
Optical: State the test wavelength, transmission or reflection target, incidence angle, and report format.
Desire
8. EO/IR Application Scenarios
Airborne EOTS
Protective optical windows for electro-optical targeting and imaging pods.
Night-Vision Surveillance
Windows for defense-related observation and thermal imaging assemblies.
Industrial Thermal Imaging
Protective interfaces for high-temperature infrared monitoring equipment.
UAV IR Payloads
Hard optical protection for compact airborne sensing and imaging modules.
Furnace Monitoring
Optical access windows for vacuum and high-temperature IR observation.
Design Input
9. Engineering Integration Checklist
- Target spectral band and minimum transmission requirement
- Window geometry, thickness, clear aperture, and mechanical mounting method
- Permitted wedge, transmitted wavefront error, surface flatness, and surface quality
- Coating wavelength, angle of incidence, polarization, durability, and environmental exposure
- Operating temperature, thermal cycling, pressure differential, shock, vibration, and abrasion
- Prototype quantity, production forecast, documentation, packaging, and delivery schedule
Technical Evaluation
10. Frequently Asked Questions
What information is needed to quote an EO/IR sapphire window?
Provide the drawing, dimensions, clear aperture, tolerances, surface quality, flatness or transmitted wavefront requirement, wavelength band, coating target, quantity, and delivery schedule.
Can crystal orientation be customized?
C-axis or A-axis orientation can be reviewed. State the required orientation and its relationship to the optical and mechanical datums on the drawing.
How should the AR or BBAR coating be specified?
Define the wavelength range, target transmission or reflection, angle of incidence, polarization if relevant, coated surfaces, environmental durability, and acceptance test method.
Is a one-piece prototype available?
One-piece sample support is available. Feasibility, price, and lead time are confirmed after the drawing and inspection requirements are reviewed.
Action
11. Order Support
A 1-piece sample is available, with a typical lead time of 7–15 working days. Felix Glass supports OEM and ODM customization for crystal orientation, coating, dimensions, edge profiles, and mechanical flange machining. Final schedule and feasibility depend on the approved drawing, inspection plan, and order quantity.
Send the Drawing
Include the current revision and identify all critical-to-function dimensions.
Define Optical Requirements
State the operating band, coating target, clear aperture, surface quality, and flatness.
Confirm Commercial Inputs
Provide prototype and production quantities, documentation needs, and requested delivery date.
RFQ Module
12. Request a Drawing-Based Quote
To receive a project-specific review, include material, crystal orientation, dimensions, angle or wedge requirement, surface quality, surface flatness, clear aperture, transmission band, coating, quantity, and requested lead time.
