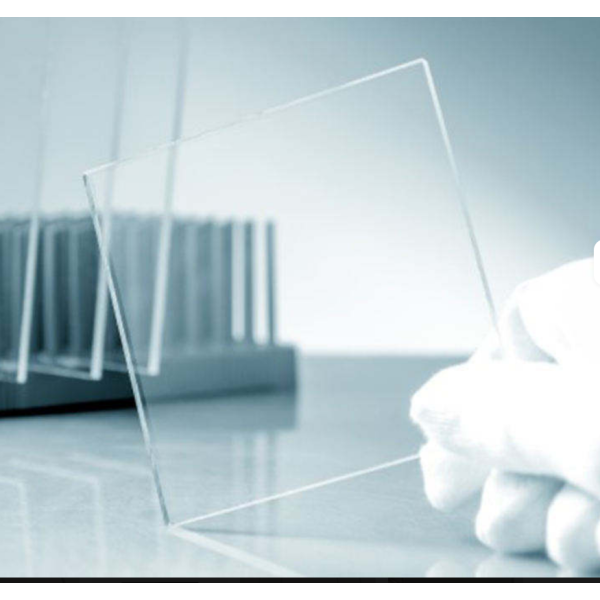

Medical Grade ITO Conductive Glass Manufacturer | Custom ITO OEM for Medical Lab Heating - Felix Glass
| Share | |
|---|---|
| Categories | ITO Coated Conductive Glass |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | MDG-0539 |
| Base Substrate | Borosilicate glass / UV fused silica quartz |
| Conductive Film | High-conductivity ITO (In₂O₃:SnO₂) thick uniform coating |
| Sheet Resistance (Heater Grade) | 3–10 Ω/sq (low resistance for fast heating) |
| Visible Transmittance | ≥83% @ 550 nm |
| Standard Dimensions | 50×50mm, 75×100mm, 100×150mm, custom sizes |
| Glass Thickness | 1.1mm, 1.5mm, 2.0mm, 3.0mm |
| Working Temperature Range | RT ~ 180°C constant temperature control |
| Heating Uniformity | Temperature deviation ≤ ±1.5°C across whole surface |
| Surface Roughness | ≤3 nm RMS for sample observation |
| Insulation Safety | Insulated edge processing to prevent electric leakage |
| Custom Processing | Cutting, drilling, electrode printing, ITO circuit patterning, edge chamfering |
| Chemical Resistance | Resistant to lab solvents, alcohol and mild disinfectants |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
ITO Glass for Medical Equipment & Laboratory Systems
Medical Grade ITO Conductive Glass Manufacturer
Custom transparent conductive glass for medical displays, touch interfaces, sensors and diagnostic instruments.
Dongguan Felix Glass Co., Ltd. supplies drawing-based ITO conductive glass with project-specific substrate, sheet-resistance target, optical requirements, electrode pattern, busbar, edge finishing and inspection criteria.
Specify the Electrical & Optical InterfaceSubstrate · Ω/sq target · Transmission · Pattern · Busbar · Inspection
Buyer & Engineering Risks
Common Failure Points in Medical-Equipment ITO Glass Projects
The conductive coating is only one part of the design. Electrical uniformity, optics, pattern geometry and assembly compatibility must be defined together.
Pattern & Contact Reliability
Unclear electrode geometry, busbar, contact area or keep-out zones can cause assembly and functional failures.
Documentation & Change Risk
Uncontrolled substrate, inspection methods or revision changes can delay validation and repeat production.
Requirement-to-Part Translation
Engineering Solutions for Custom Medical ITO Glass
Each solution links the design risk to a measurable drawing or inspection requirement.
Balance conductivity and visibility
Capability: sheet-resistance and optical requirement review. Solution: define Ω/sq target together with wavelength, transmission method and permitted visual appearance. Buyer benefit: fewer conflicting specifications.
Control the electrical layout
Capability: drawing-based pattern and busbar review. Solution: confirm active area, isolation gap, edge exclusion, contact pads and orientation. Buyer benefit: improved assembly readiness.
Support validation and repeat supply
Capability: revision control and agreed inspection plan. Solution: establish the approved sample, reporting scope and packaging requirement before production. Buyer benefit: clearer acceptance and change control.
Five-Part ITO Architecture
Define the Conductive Glass as a Complete Interface
These five dimensions form the quotation and validation baseline.
Glass Substrate
Glass type, thickness, size, flatness, edge finish and thermal or chemical requirements.
Conductive Layer
ITO side, sheet-resistance target, uniformity requirement and measurement method.
Optical Performance
Transmission wavelength, haze, color, reflectance and cosmetic acceptance criteria.
Electrode Pattern
Active area, etched isolation, line/space feasibility, contact pads, busbar and orientation.
Assembly & QC
Bonding zones, cleaning, packaging, traceability and mutually agreed test records.
Typical Product Configurations
Medical-Equipment ITO Conductive Glass Options
Configurations are starting points only. Final construction is defined by the customer drawing and system requirements.
Medical Display Electrode Glass
Transparent conductive glass for display, control and sensing interfaces.
- Custom outline and thickness
- Defined conductive side
- Optical and cosmetic requirements
Patterned ITO Electrode Glass
Drawing-defined conductive areas and isolation geometry for custom circuits.
- Pattern feasibility review
- Contact and keep-out zones
- Busbar options when required
Sensor & Laboratory ITO Glass
Conductive optical substrates for analytical, sensing and research assemblies.
- Active-area definition
- Custom contact layout
- Project-specific inspection
ITO Glass with Printing
Conductive glass combined with drawing-defined mask, legend or border printing.
- Printing and conductive-area coordination
- Optical opening control
- Assembly-m arking options
Specification Checklist
Data Required to Quote Medical ITO Conductive Glass
No universal resistance, transmission, tolerance or MOQ is claimed. Provide the functional target and measurement method.
| Specification | Information to Provide | Quotation / QC Relevance |
|---|---|---|
| Application | Medical display, diagnostic instrument, laboratory sensor, touch interface or other equipment | Defines functional and documentation priorities |
| Substrate | Glass type, thickness, overall size, shape and any approved equivalent | Controls optics, processing, availability and cost |
| Sheet Resistance | Target in Ω/sq, permitted range, test points and measurement method | Defines the conductive-layer acceptance criterion |
| Optical Requirements | Wavelength, transmission/haze/color target and test method | Prevents ambiguous optical claims |
| ITO Pattern | Active area, isolation lines, line/space, edge exclusion, pads and orientation | Determines patterning feasibility |
| Busbar / Printing | Material, geometry, resistance target, color, adhesion and curing limitations | Supports electrical connection and visual integration |
| Mechanical Processing | Size tolerances, holes, slots, chamfers, corners, edge finish and datum scheme | Defines fit and handling safety |
| Surface & Cleanliness | Cosmetic criteria, handling, particle/contamination limits and protective film | Establishes inspection and packing controls |
| Documentation | Drawing revision, material declaration, inspection report and change-notice expectations | Supports customer design-control requirements |
| Procurement | Prototype quantity, production forecast, destination and target schedule | Supports MOQ, lead-time and packaging evaluation |
“Medical grade” on this page describes the intended equipment market and controlled customization. It does not, by itself, claim ISO 13485 certification, biocompatibility, sterility, implant suitability or regulatory approval.
Industry → Equipment → Interface → ITO Glass
ITO Conductive Glass for Medical & Laboratory Equipment
The ITO glass is supplied as an engineered component for integration by the equipment manufacturer.
Patient MonitoringDisplay/control module → transparent conductive interface → custom ITO glass
Diagnostic ImagingOperator interface → display or touch electrode → patterned ITO substrate
Laboratory AnalyzersOptical/electrical cell → conductive transparent surface → ITO glass
Medical HMIControl panel → touch or sensing layer → ITO electrode glass
Research SensorsExperimental assembly → electrode or heated surface → custom-pattern ITO glass
Equipment DisplaysLCD/OLED assembly → transparent conductive component → sized ITO glass
Manufacturing & Verification
Custom ITO Glass Processing Support
The actual process route is confirmed from the substrate, conductive-layer requirement, pattern, printing, dimensions and inspection plan. We do not claim that every operation is performed in-house.
Factory Identity
Dongguan Felix Glass Co., Ltd. provides drawing review, glass processing and coordinated project delivery.
Mechanical Processing
Custom sizing, profile, holes, slots and edge treatments are evaluated against the substrate and ITO layer.
Pattern & Printing
ITO patterning, isolation, busbar and decorative printing options are reviewed for project feasibility.
Inspection
Sheet resistance, dimensions, appearance and optical checks are defined by mutually agreed criteria.
Validation-Gated Delivery
Medical ITO Glass Prototype-to-Production Workflow
The customer retains responsibility for finished-device validation and regulatory compliance.
Requirement Review
Application, drawing, electrical, optical and documentation needs are checked.
DFM & Quotation
Substrate, pattern, tolerances, exceptions and inspection methods are clarified.
Prototype
Prototype parts are prepared against the agreed revision.
Customer Validation
The customer evaluates electrical, optical, assembly and device-level performance.
Pilot Batch
Repeatability, reporting, packing and handling are confirmed.
Production
Repeat orders follow the controlled drawing and approved requirements.
Final Inspection
Agreed electrical, optical, dimensional and cosmetic checks are completed.
Protected Shipment
Conductive surfaces and contact areas are protected for transport and handling.
Lead time: confirmed after substrate availability, pattern complexity, printing, quantity, validation and inspection scope are reviewed.
Product-Specific Process
ITO Conductive Glass Materials & Workflow
Only the operations required by the approved construction are included.
Substrate & ITO Definition
Confirm glass, thickness, conductive side, sheet-resistance and optical targets.
Mechanical Processing
Prepare the drawing-defined outline, holes, slots, corners and edges.
Electrode Patterning
Create or source the approved active areas, isolation and contact geometry.
Busbar / Printing
Apply the agreed electrical or visual printing where required and feasible.
Inspect, Clean & Pack
Verify agreed criteria and protect the conductive surface for shipment.
Related Functional Glass
Conductive, Display & Optical Glass Solutions
Use a dedicated product path when the requirement is driven by another surface function.
Engineering & Procurement FAQ
Medical ITO Conductive Glass Questions
Project-specific answers avoid misleading universal performance claims.
What does “medical grade ITO glass” mean on this page?
It means custom ITO glass intended for integration into medical or laboratory equipment with controlled drawing, inspection and documentation requirements. It does not automatically mean the glass is sterile, biocompatible, implantable, ISO 13485 certified or approved as a finished medical device.
Can you customize sheet resistance?
Provide the target and permitted range in Ω/sq, measurement method, test locations, substrate and optical requirements. Feasibility is confirmed after the complete specification is reviewed.
Can you create a custom ITO electrode pattern?
Patterned areas, isolation gaps, contact pads and keep-out zones can be reviewed from DXF, Gerber or dimensioned drawings. Minimum feature feasibility depends on the construction and process route.
Can silver busbars or printed borders be added?
Busbar and functional or decorative printing options can be evaluated. Provide artwork, dimensions, resistance or adhesion requirements, color target and curing restrictions.
Which glass substrates are available?
Availability depends on thickness, size, optical requirement, ITO construction and supply route. State the preferred substrate and whether an equivalent may be proposed.
What is the MOQ?
MOQ depends on substrate, ITO coating, patterning, tooling, printing and inspection scope. Include both prototype quantity and forecast production demand.
What is the lead time?
Lead time is confirmed after substrate availability, pattern complexity, tooling, quantity and quality-document requirements are reviewed.
What inspection records can be supplied?
Sheet-resistance, dimensional, cosmetic, optical or other records can be quoted when test methods, sampling and acceptance limits are agreed.
How do you protect the conductive surface?
Handling and packaging are selected to protect the ITO surface and contact areas. Tell us whether protective film, individual packing, cleanliness, labeling or traceability is required.
