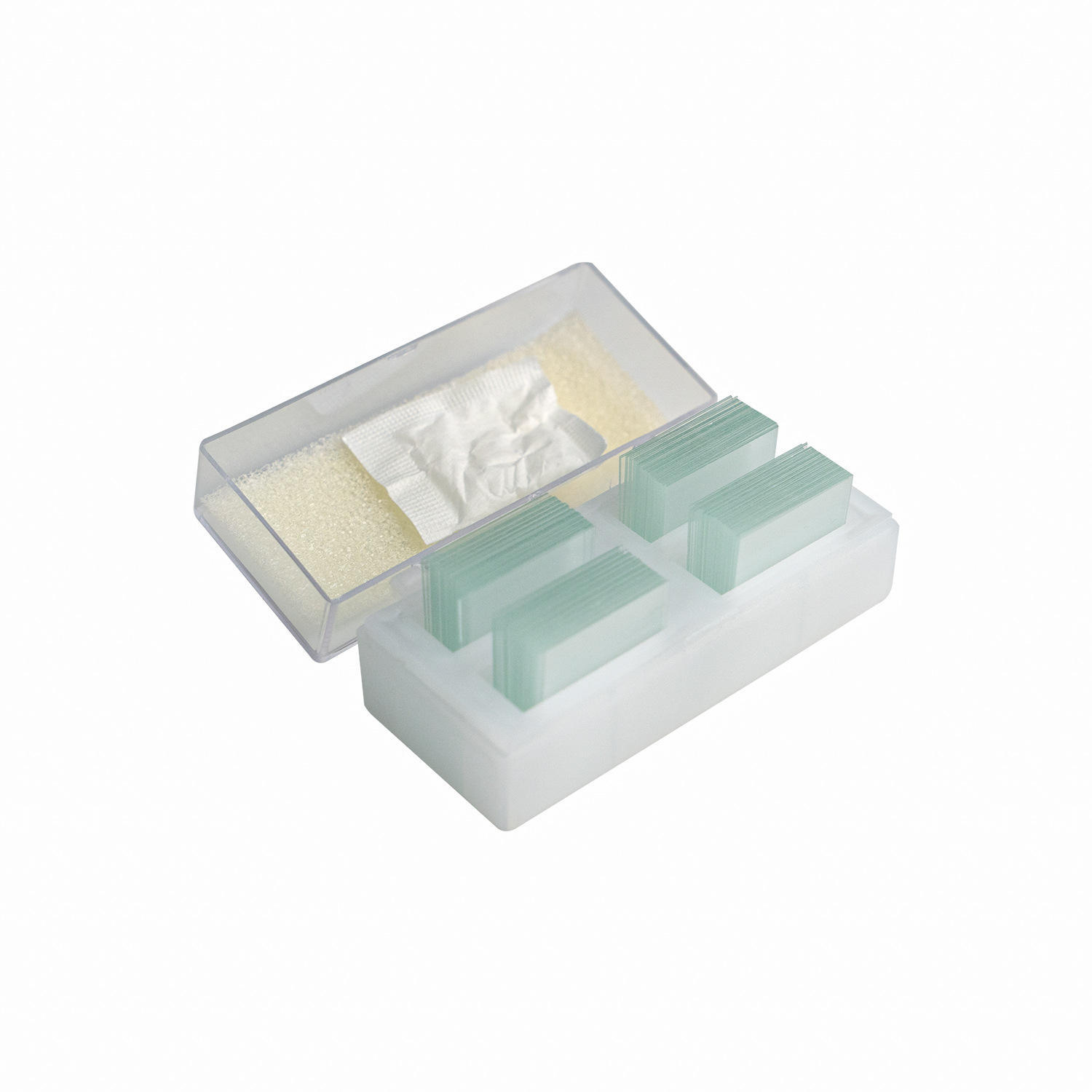

Microscope Cover Glass & Glass Slides | Laboratory Optical Cover Slips for Biological Microscopy
| Share | |
|---|---|
| Categories | Laboratory Optical Glass |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Material | Soda Lime Glass / Borosilicate Glass Optional |
| Standard Sizes | 18×18mm,20×20mm,22×22mm,24×24mm |
| Thickness Grade | No.1, 0.13–0.17mm |
| Application | Biological Microscopy, Histology, Laboratory Research |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union, T/T |

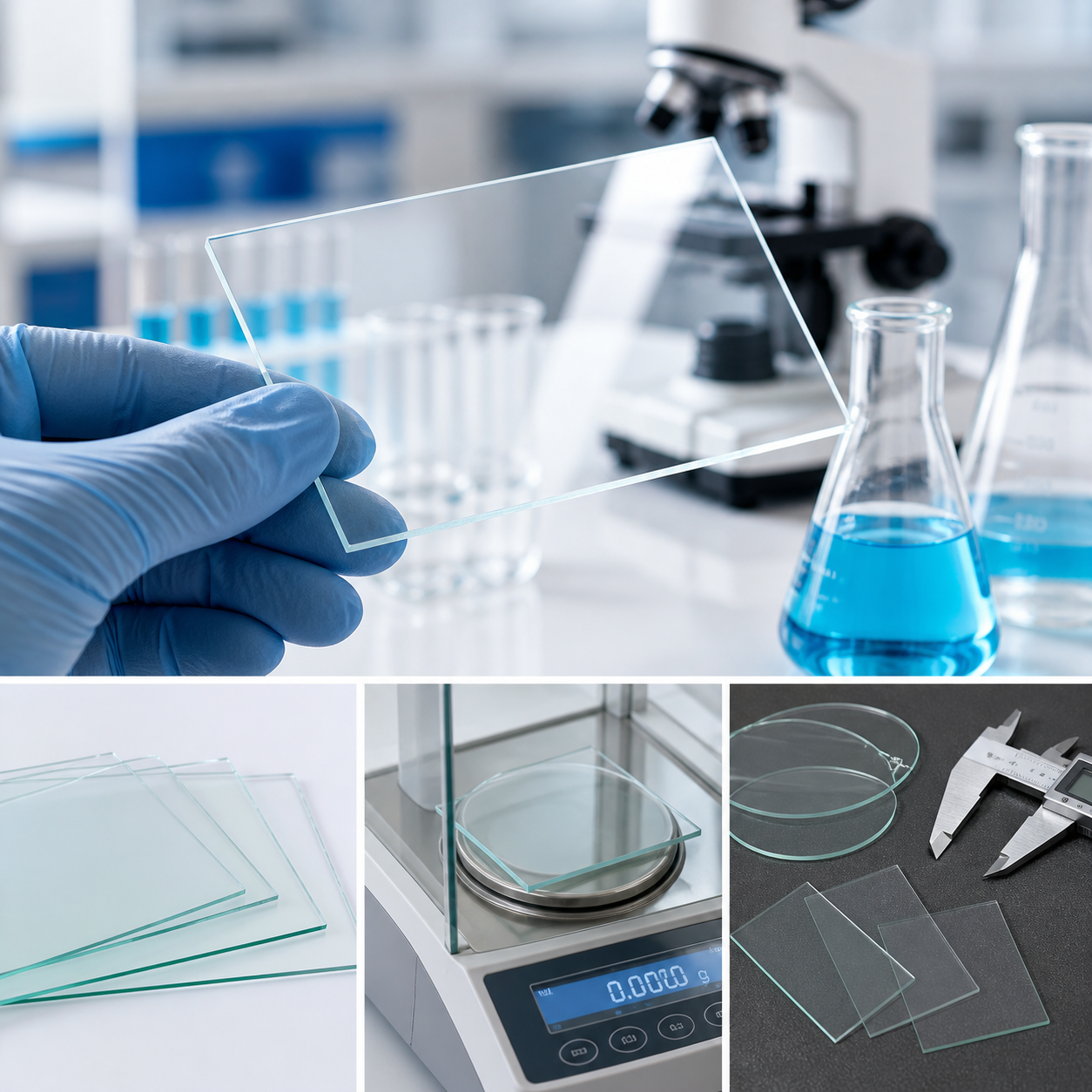

Felix Glass manufactures precision microscope cover glass and blank microscope slides for biological laboratories, medical pathology, educational institutions, industrial microscopic inspection and research laboratories. Our microscope cover slips and glass slides are fabricated from high-transmission soda lime optical glass, with ultra-smooth polished surfaces, precisely controlled thickness and clean chamfered edges, delivering consistent optical performance for brightfield, phase contrast and fluorescence microscopy observation. Standard laboratory cover glass acts as the critical optical interface between specimen and microscope objective. Uniform flatness, low autofluorescence and controlled dimensional tolerances eliminate optical distortion, reduce stray light interference and protect biological samples during imaging. We supply standardized sizes as well as custom cut-to-size optical cover glass to meet OEM microscopy equipment and special experimental requirements. Premium soda-lime glass substrate offers excellent visible light transmission, low autofluorescence, suitable for routine microscopy and basic fluorescence observation. Standard No.1 thickness 0.13–0.17mm, consistent across each batch, matching the correction requirements of standard microscope objectives. All edges finely ground and chamfered to prevent cuts during sample preparation; avoids scratching immersion oil lenses and sample surfaces. Strictly cleaned production process, minimal surface contaminants. Compatible with aqueous mounting media, glycerin and common biological mounting agents. Polished surfaces, free of scratches, pits and bubbles within clear aperture We maintain regular stock of the most widely adopted square cover glass dimensions: 18×18mm, 20×20mm, 22×22mm, 24×24mm. These sizes are universally compatible with biological specimen slides for histology, cytology and educational labs. For special-purpose microscopic equipment, flow cell assemblies, microfluidic chips and custom optical fixtures, we provide precision CNC cutting service for rectangular, round and irregular outline optical glass sheets. Minimum dimensional tolerance ±0.1mm. Customers can select regular plastic box packaging or moisture-resistant vacuum aluminum foil packaging to prevent dust and humidity contamination during ocean shipping for overseas laboratory distributors. Multi-stage ultrasonic cleaning + dust-free drying for customers requiring ultra-low particle surface for sensitive imaging experiments. Custom printed box labels, outer carton marking, private labeling for laboratory consumable distributors worldwide. Round optical cover sheets for inverted microscopes, flow cells, and industrial microscopic inspection fixtures. Low thermal expansion borosilicate glass option for applications requiring higher temperature resistance and lower autofluorescence. Standard cover slips for tissue section mounting, pathological slide preparation in hospitals and diagnostic laboratories. Ideal for adherent cell slides, microorganism slides, brightfield and basic fluorescence cell imaging. Cost-effective consistent quality microscope slides and cover glass for biology classroom practical training. Flat optical cover sheets used as protective windows for metallurgical microscope sample observation fixtures. Custom cut thin glass as transparent top cover for lab-on-chip and microfluidic experimental devices. Optical window substrates for small bench-top microscope manufacturers and analytical instrument suppliers. Felix Glass produces laboratory optical glass sheets with full in-house processing: raw glass plate cutting, precision edge grinding & chamfering, multi-stage cleaning, dust-free inspection and final packaging. Strict batch control guarantees stable dimensional and optical consistency for long-term laboratory consumable supply partners. Our sales & engineering team supports global laboratory distributors: Full production traceability from raw glass panel to finished packaged cover glass and slides. Each glass sheet checked for scratches, air bubbles, chips and contamination before packing. Regular sampling thickness and dimension testing to maintain tight tolerance for microscopy use. We can provide sample units for laboratory quality verification before large bulk orders. Standard samples can be shipped within 3 working days. Felix Glass supplies microscope cover glass and blank microscope slides to laboratory equipment distributors, pathology suppliers, educational material vendors and instrument OEMs across North America, Europe, Southeast Asia and Australia. We support flexible order volume, mixed-size container loading and customized packaging solutions to help our partners expand their lab consumable product line. Large inventory of 18×18,20×20,22×22,24×24mm cover glass and 1×3 inch blank slides for fast order fulfillment. Produce non-standard rectangular, round thin glass sheets according to customer drawings for special instruments and experiments. Print customer brand name, part number and specification on plastic boxes and outer cartons without extra high minimum quantities. Available with moisture-proof vacuum foil packaging to prevent dampness during long ocean transit. Tell us your required cover glass sizes, quantity, preferred packaging and destination market. Our export sales team will send formal quotation with lead time and export packing details within 2 working days.Microscope Cover Glass & Glass Slides | Laboratory Optical Cover Slips for Biological Microscopy
Key Advantages of Felix Glass Microscope Cover Slips & Slides
High Optical Transparency
Tight Thickness Tolerance
Safe Ground & Chamfered Edges
Clean & Low Extractables
Optical & Physical Specifications
Parameter
Specification
Base Material
High-grade Soda Lime Optical Glass; Borosilicate glass available on custom request

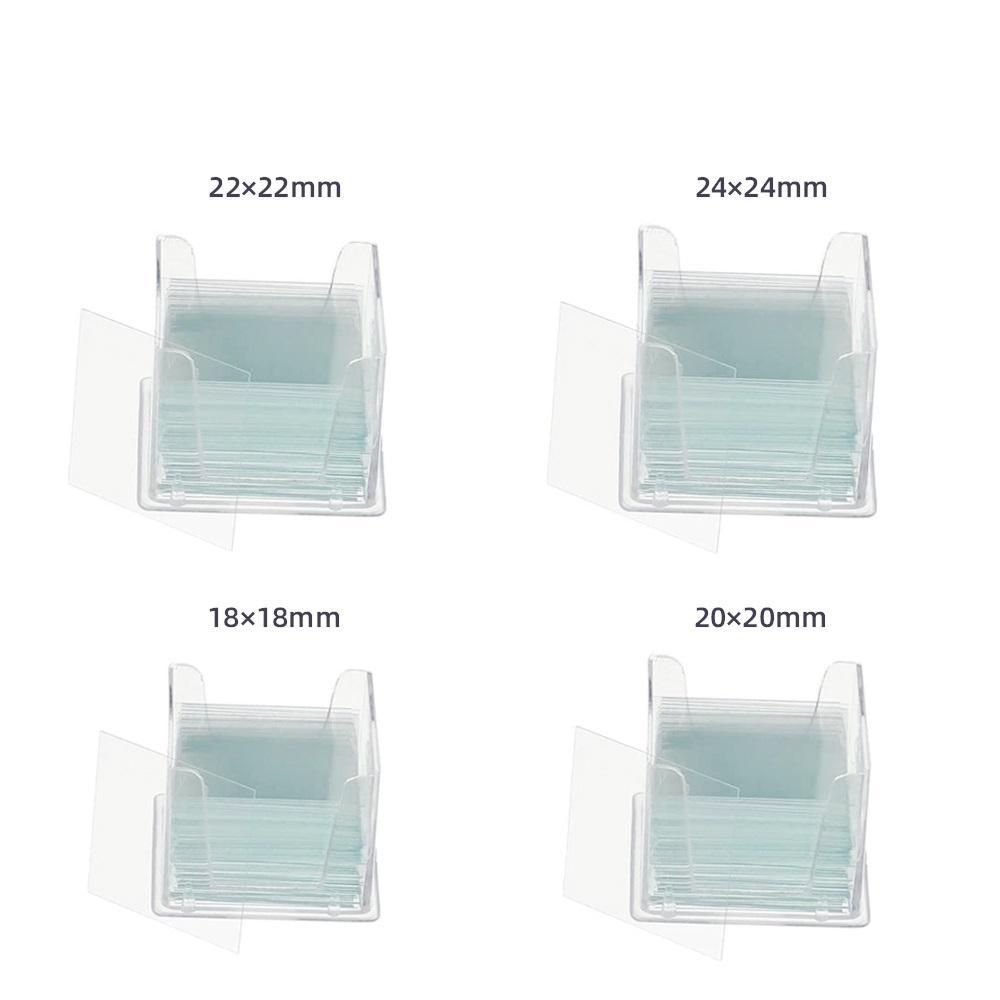

Cover Glass Standard Sizes
18×18mm, 20×20mm, 22×22mm, 24×24mm; rectangular custom sizes supported

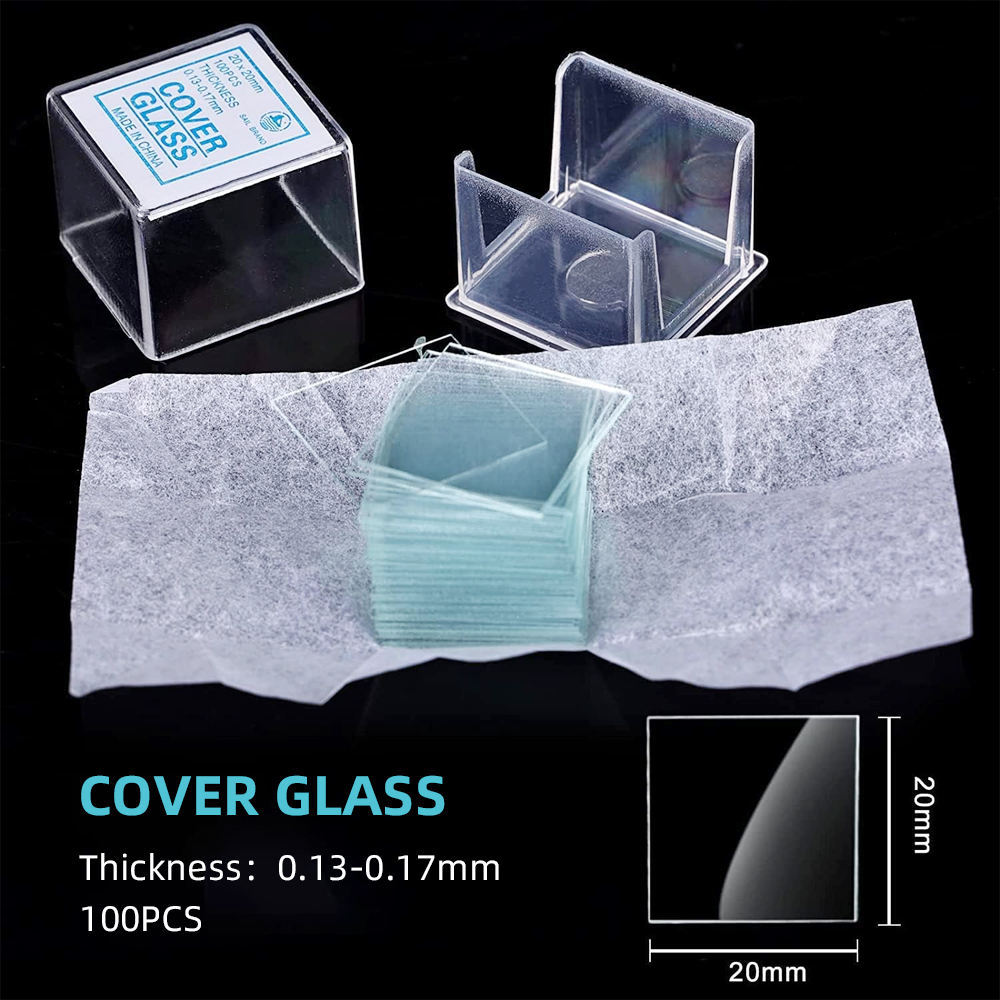

Cover Glass Thickness Grade
No.1: 0.13 mm – 0.17 mm (industry standard for biological microscopy)
Microscope Slide Standard Size
25.4 × 76.2 mm (1"×3"), blank plain slides with ground edges
Slide Thickness
1.0 mm – 1.2 mm
Surface Quality
Edge Treatment
Full ground, smooth chamfered edges
Transmission (400–700 nm)
≥ 89% (uncoated)
Autofluorescence Level
Low, suitable for routine fluorescence microscopy
Packaging Option
Plastic storage box packaging / vacuum aluminum foil moisture-proof packaging
Standard Pack Quantity
Cover Glass: 100 pcs/box; Microscope Slides: 50 pcs or 100 pcs per unit
MOQ
1 box for standard sizes; custom cut sizes negotiated
Lead Time
Standard stock items: 2–5 working days; custom cutting: 7–14 working days
Standard Sizes & Custom Cutting Service
Optional Surface Treatment & Custom Processing
Ultra Clean Ultrasonic Washing
OEM Brand Packaging
Circular Custom Cut Glass
Borosilicate Substrate Upgrade
Application: Biological & Medical Laboratory Microscopy
Histopathology Sample Slides
Cytology & Cell Observation
University & School Teaching Labs
Application: Industrial Inspection & Research Instrumentation
Material Metallographic Observation
Microfluidic Chip Cover Layers
OEM Microscope Component

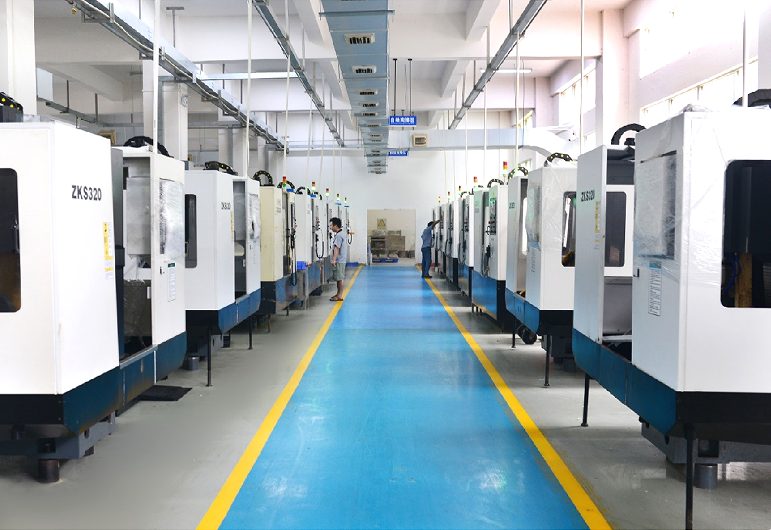

Manufacturing Process of Microscope Cover Glass & Slides
CNC Precision Cutting
Edge Grinding & Chamfering
✓ Standard size stock fast delivery
✓ Custom dimension cutting service
✓ OEM private label packaging solution
✓ Bulk wholesale competitive pricing
✓ Combined container mixed items shipment
Every batch carries visual quality inspection records before shipment.Quality Control & Production Standards
ISO 9001:2015 Managed Factory
100% Visual Inspection
Consistent Dimensional Control
Wholesale & OEM Service for Global Lab Consumable Distributors
Ready Stock Standard Sizes
Custom Cut Special Sizes
Private Label OEM Packaging
Export-Friendly Packing
Related Technical Resources & Products
Frequently Asked Questions
Request Wholesale Quotation & Sample Support
Need Custom Optical Glass Solution?
Send us your drawing, dimension & coating requirements for fast quotation within 24 hours.
Get Free RFQCustom Precision Optical & Glass Components Manufacturer – Felix Glass Co., Limited.
We supply Industrial Glass, Sapphire Optics, Optical Lenses/Prisms/Filters, Infrared IR Optics, Functional & Display Glass, N-BK7/H-K9L Optical Glass, supporting OEM mass production and laboratory custom prototypes. Flexible MOQ & free sample service available. Fill in the form to download full datasheets and get factory wholesale price within 24 hours.
- Name
- *Title
- *Content
- What is your MOQ for custom optical glass and display glass parts?
Felix Glass offers highly flexible MOQ to support client projects, including prototype testing, small batch trial orders and large-volume mass production. All products can be fully customized according to your drawings, tolerances and application standards. Send us your specs to get an accurate price quote within 24 hours.
- Can I get free glass samples for testing before bulk order?
Yes, our FELIX GLASS factory supports sample testing for a wide range of precision optical glass components and assemblies. The lead time for sample production is 3 to 7 working days. Please contact us today to arrange samples and obtain a customized solution that meets your needs.
- What is the production lead time for custom optical glass components?
What is the production lead time for custom optical glass components?
Answer: The lead time for standard samples is 3–7 business days, while mass production takes 15–25 business days, depending on product complexity and order volume. We provide reliable, rapid delivery for orders serving the industrial, medical, automotive, and aerospace sectors. Please submit your project details to receive an accurate delivery schedule.
- Are your optical glass products ISO, CE and RoHS certified?
All FELIX GLASS precision optical glass components comply with ISO quality system standards, as well as CE and RoHS requirements. We provide comprehensive test reports, material certificates, and inspection documentation for customer review. Please feel free to request full certification details and a formal quotation today.
- Do you offer one-stop custom optical glass processing services?
Yes. We provide a full range of in-house processing services, including CNC machining, precision grinding, optical polishing, vacuum coating (AR, AF, AG, IR), tempering, and screen printing. Every step—from raw material to finished product—is carried out within our own facility. Please let us know your requirements, and we will provide you with the most cost-effective solution.
