8–14μm BBAR Broadband Coating
Optimized for long-wave infrared atmospheric window, low reflectivity over full LWIR band, improved thermal signal transmission.
Home / All / Custom Precision Optical Components / Infrared Optics / ZnSe Infrared Window / Large-Diameter ZnSe & ZnS IR Window 8-14μm BBAR Coated | Custom LWIR Infrared Window
Looking for Custom Optical Components?
✔ OEM / ODM Customization
✔ Free Drawing DFM Technical Review
✔ 24-Hour Professional Quotation
✔ Flexible Low MOQ & Fast Prototypes
Large-Diameter ZnSe & ZnS IR Window 8-14μm BBAR Coated | Custom LWIR Infrared Window
| Share | |
|---|---|
| Categories | ZnSe Infrared Window |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FG-IR-WIN-LARGE-814-ZNSEZNS01 |
| Material | CVD ZnSe / Multispectral ZnS |
| Coating | 8-14μm BBAR AR Coating |
| Max Diameter | Φ350mm |
| Surface Quality | 20/10,40/20,60/40 MIL |
| Application | LWIR Thermal Imaging,PTZ,Vehicle,Airborne |
| Service | Custom OEM & ODM |
| Lead Time | 15-30 working days |
| Download |  |
Detail Information
Felix Glass supplies custom large-diameter CVD ZnSe and multispectral ZnS infrared windows pre-coated with 8–14μm broadband anti-reflection coating. Designed specifically for long-wave infrared thermal imaging systems, these big-aperture IR windows minimize surface reflection within the 8‑14μm atmospheric window, boost thermal image contrast and reduce ghost reflections. We support custom round, rectangular and domed large-size blanks, suitable for high-end PTZ thermal cameras, perimeter surveillance, vehicle thermal vision and airborne IR payloads. Standard small infrared windows cannot meet wide-field, high-resolution thermal camera aperture demands. Without 8–14μm BBAR coating, Fresnel reflection creates bright stray light and reduces signal-to-noise ratio for LWIR detectors. Our large-diameter CVD ZnSe and MS-ZnS windows are precision polished and coated for the 8–14μm atmospheric transmission band. Multispectral ZnS delivers superior mechanical strength for outdoor vibration-prone platforms; large ZnSe offers excellent homogeneity for high-precision thermal optics. Both versions suppress reflection loss and protect LWIR detector chips from dust, humidity and impact. Extra-large diameter CVD ZnSe / ZnS blanks, circular, rectangular and domed shapes available per customer drawings. Choose homogeneous ZnSe or rugged multispectral ZnS, matched to your thermal imaging environment and mechanical load requirements. The 8–14μm BBAR coating is the core feature of this product, engineered exclusively for long-wave infrared thermal imaging rather than CO₂ laser use. Multispectral ZnS is the preferred substrate for most outdoor, vehicle-borne and airborne large windows thanks to higher hardness and better abrasion resistance. Large ZnSe windows are selected when wavefront homogeneity and low scattering are top priorities, though ZnSe requires gentler handling. DLC overcoat can be added on ZnS versions for sand and scratch protection upon request. Large-format LWIR windows are built for systems that need wide field of view and high thermal resolution. The 8–14μm BBAR coating ensures stable thermal performance in standard atmospheric LWIR band. Large BBAR-coated ZnS windows for high-definition pan-tilt thermal cameras used in border and perimeter security. Shock-resistant large ZnS IR windows for automotive and armored vehicle LWIR thermal observation systems. Custom big-aperture LWIR windows for drone and manned aircraft thermal imaging payloads. Verify large blank availability, diameter, thickness, surface figure, 8–14μm BBAR coating and mounting constraints. Screen qualified big-size ZnSe / MS-ZnS blanks, inspect internal inclusions and bulk homogeneity. Specialized large-format CNC grinding for plano, rectangular or domed geometries. Ultra-precision polishing followed by broadband LWIR AR coating deposition and coating mapping test. FTIR transmission test at 8–14μm, interferometer inspection; reinforced shockproof packaging for large fragile optics. Large-diameter ZnSe / ZnS IR windows have longer lead time than standard small windows due to limited CVD large blank supply and specialized coating chambers. We strongly recommend sharing your CAD drawing, clear aperture target, mechanical mounting interface and operating environment at RFQ stage. Our IR engineers will advise whether MS-ZnS or ZnSe is better, and confirm if additional DLC hard coating is required for outdoor rugged service. Your priority is excellent optical homogeneity, low wavefront distortion for high-end stationary laboratory thermal imaging systems. The optic faces vibration, windblown dust, outdoor exposure, vehicle or airborne installation; higher mechanical durability needed. This broadband coating is optimized for LWIR thermal imaging, not suitable for 10.6μm CO2 laser transmission optics. It is broadband anti-reflection coating optimized for the long-wave infrared atmospheric window used by most uncooled LWIR thermal cameras. We can produce custom ZnSe / MS-ZnS IR windows up to Φ350mm; exact feasibility depends on blank stock and drawing geometry. Yes, rectangular large format ZnSe and ZnS windows with 8–14μm BBAR coating are fully customizable from drawings. DLC over BBAR is available for MS-ZnS only, adding scratch and erosion protection for harsh outdoor deployment. No. This coating is tuned for 8–14μm thermal band. Select our dedicated CO2 laser ZnSe windows for 10.6μm applications. Share your drawing, target diameter or rectangular size, substrate selection (ZnSe or MS-ZnS), mounting requirements and order quantity. Felix Glass infrared optical team will review large blank availability, coating yield and lead time, and provide formal quotation for your custom 8–14μm BBAR coated LWIR window.

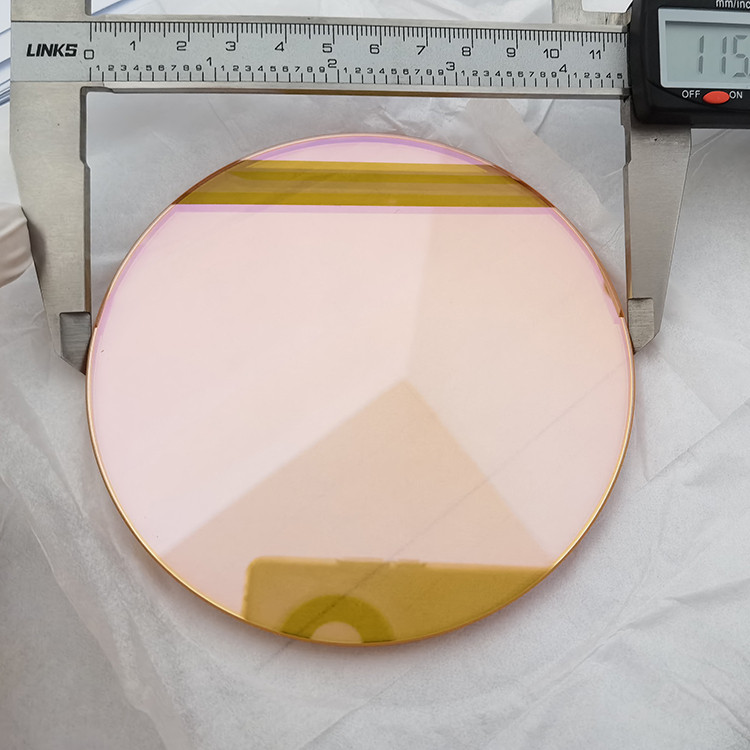

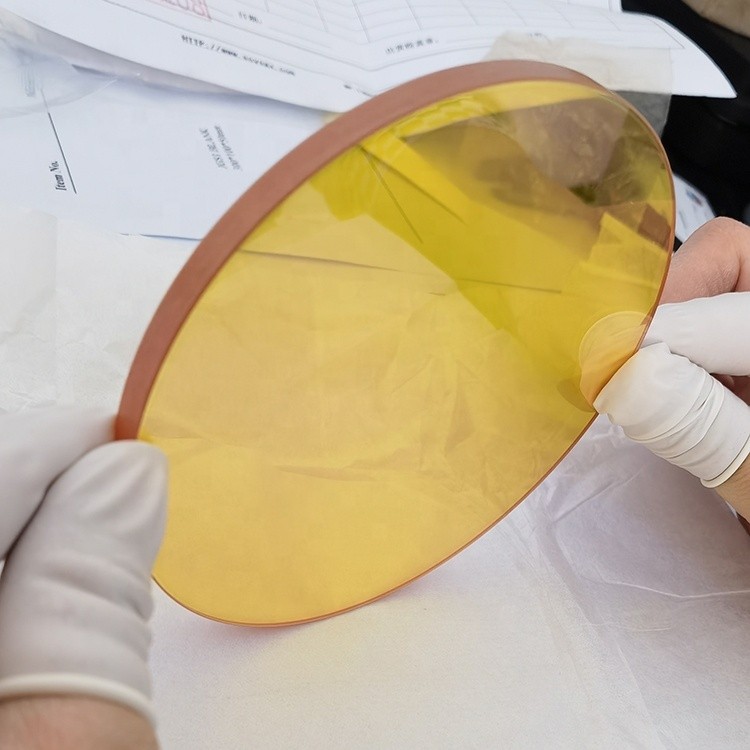

Large format ZnSe ZnS infrared window with 8-14μm BBAR coating for LWIR thermal imaging
Large-Diameter ZnSe / ZnS IR Window 8-14μm Coated | Custom LWIR Infrared Window
Direct answer
LWIR Imaging Pain Points Solved By 8-14μm Coated Large ZnSe / ZnS Windows
Large Aperture Custom Capability
Two IR Substrate Options
Attention to specification
Material & Coating Technical Notes For Engineering Review
Interest stage
Key Specifications for Large-Diameter 8-14μm Coated ZnSe / ZnS IR Window
Product type
Large-Diameter ZnSe / ZnS IR Window 8-14μm Coated | Custom LWIR Infrared Window
Model reference
FG-IR-WIN-LARGE-814-ZNSEZNS01
Material
CVD ZnSe / Multispectral CVD ZnS (MS-ZnS)
Coating
8–14μm BBAR anti-reflection coating; DLC hard coating optional on ZnS
Large Size Range
Φ100mm up to Φ350mm; custom rectangular dimensions
Surface Quality
60/40, 40/20, 20/10 MIL STD scratch-dig
Surface Irregularity
λ/4, λ/8 @10μm
Transmittance (coated)
Typically ≥92% average across 8–14μm band
Edge Treatment
Protective chamfer, black edge masking available
Clear Aperture
≥90% of finished dimension
MOQ
Low MOQ for thermal camera prototype validation
Inspection Tools
FTIR spectrometer, IR interferometer, CMM large-aperture metrology
Application match
Main Applications of Large 8–14μm Coated ZnSe & ZnS IR Windows
PTZ Long-Range Thermal Surveillance

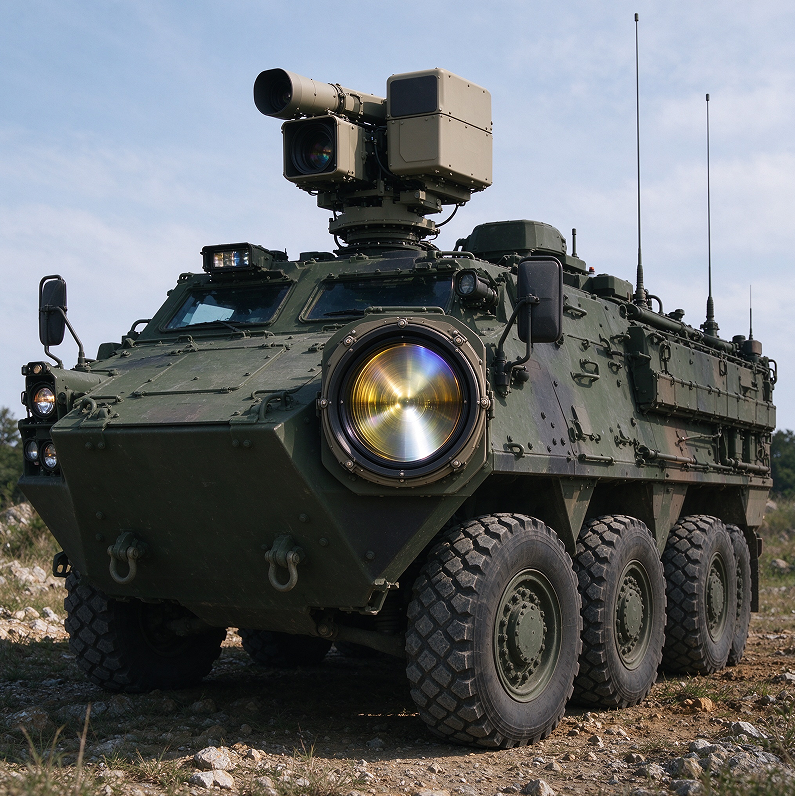

Vehicle-Borne Thermal Vision
Airborne Thermal Payloads
Desire stage
Felix Glass Custom Large IR Window Production Workflow
Drawing & Feasibility Review
Large CVD Blank Selection
Large-Aperture Grinding & Shaping
Polishing + 8–14μm BBAR Vacuum Coating
FTIR Test & Heavy-Duty Packaging
Original capability retained
Custom Large LWIR Window Sampling & Bulk Manufacturing
Decision support
ZnSe vs MS-ZnS for Large 8–14μm LWIR Windows
Pick Large ZnSe Window When
Pick Large MS-ZnS Window When
About The 8–14μm BBAR Coating
Related infrared optics & smaller IR windows
Internal Links For IR Optics Product Cluster Comparison
Buyer FAQ
FAQ About Large-Diameter 8-14μm Coated ZnSe / ZnS IR Windows
What is 8–14μm BBAR coating for?
What is the maximum diameter you can make?
Can I get rectangular large LWIR windows?
Can DLC coating stack on top of the 8–14μm BBAR?
Is this coated window suitable for CO2 laser?
Action stage
Send Your Large IR Window Drawing & Aperture Specs For Quotation
