Why the Original Laser Marking Optical Path Needed Review

The original case reported unstable transmission, surface damage and beam distortion during extended fiber laser marking operation. For the equipment team, those issues affected fine text and small-pattern consistency while increasing the frequency of optical-component replacement.

• Transmission stability had to match a 1064 nm fiber laser source.
• The focusing and beam-routing elements needed consistent optical quality.
• A replaceable outlet window was required to intercept metal spatter.
• Component geometry had to fit the OEM's existing optical and mechanical stack.

Why N-BK7 Was Selected for This Laser Marking System

N-BK7 was selected for its stable visible-to-near-infrared optical behavior, polishability and suitability for broadband AR coating. The original project stated more than 90% single-surface transmission without coating and used the material across the lens, prism and protective-window positions.

N-BK7 can be a practical choice for low- and medium-power 1064 nm marking equipment, but substrate and coating selection should still be checked against pulse characteristics, fluence, beam diameter, contamination exposure and operating temperature. For material comparison, see the BK7 vs. fused silica lens guide.

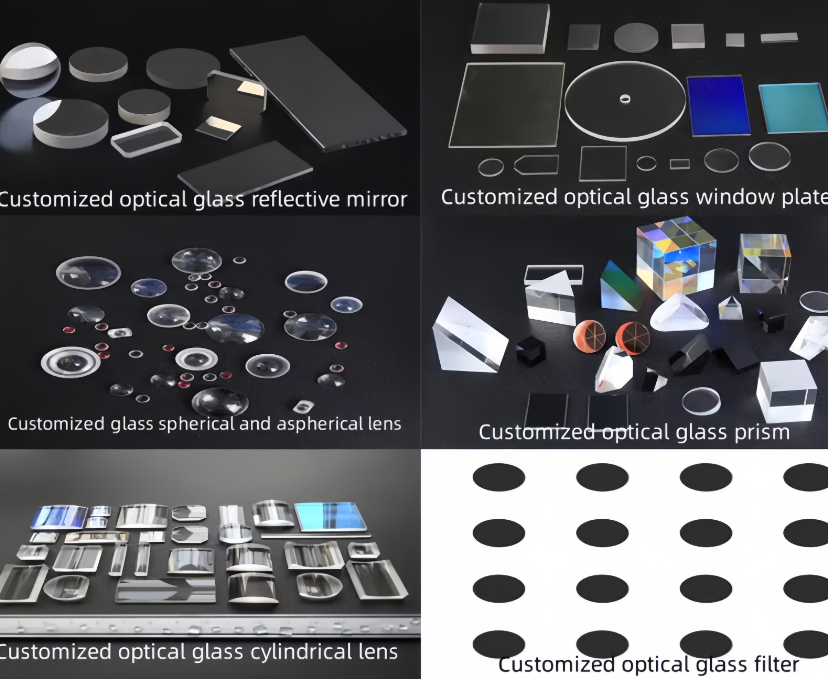

Matched BK7 Components in the Optical Assembly

Related component families are available in laser focus lenses and optical prisms.

Drawing-Based Optical and Mechanical Specification

These values describe the original case and available customization scope. Final specifications must be confirmed against the customer's drawing and laser operating conditions.

Precision CNC, Polishing and Cleaning Process

The stated production route starts with an N-BK7 blank and proceeds through CNC grinding, fine polishing, edge deburring and ultrasonic cleaning. Five-axis machining can be used where steps, counterbores, mounting grooves or special outlines are part of the drawing.

AR Coating Strategy for the 1064 nm Optical Path

The original case described an optional 400–1100 nm AR coating and stated transmission above 92% per coated surface. A production coating should be defined by center wavelength or working band, angle of incidence, polarization, allowable reflection, environmental durability and laser exposure rather than by a generic AR label alone.

For higher peak power, short pulses or small beam diameters, the laser-induced damage threshold of the complete coated optic should be reviewed before material approval.

Spectral and Interferometric Quality Control

Each batch in the original workflow was checked by spectral scanning across the visible and near-infrared range. Interferometric inspection was used to control wavefront-related surface quality, with flatness stated up to λ/4. Dimensional, cosmetic and coating inspections can be aligned with the purchase drawing and acceptance plan.

Optical Path Matching for Laser Marking Equipment

A matched component set helps the R&D team coordinate beam routing, collimation, focusing and outlet protection around one mechanical envelope. The simplified arrangement below follows the sequence in the original case.

Reported Result from the North American OEM Project

A US metal-processing equipment manufacturer replaced its ordinary glass optics with the custom BK7 assembly and evaluated it over six months of continuous operation. The original case reported lower beam distortion, improved qualification of fine text and small patterns, stable marking on stainless steel, aluminum and alloy workpieces, and a fourfold extension of the optical-component replacement cycle.

These are reported results from one customer project, not performance guarantees. Results vary with laser parameters, optical design, coating, contamination, alignment and maintenance.

Prototype, Batch Supply and Export Packaging

Finished lenses and prisms are separated in anti-collision, dust-controlled trays and vacuum sealed for export transportation. The original case stated 7–10 working days for prototype samples and 15–20 working days for mass orders, subject to drawing complexity, coating schedule, inspection scope and order quantity.

RFQ Checklist for Engineering and Procurement Teams
