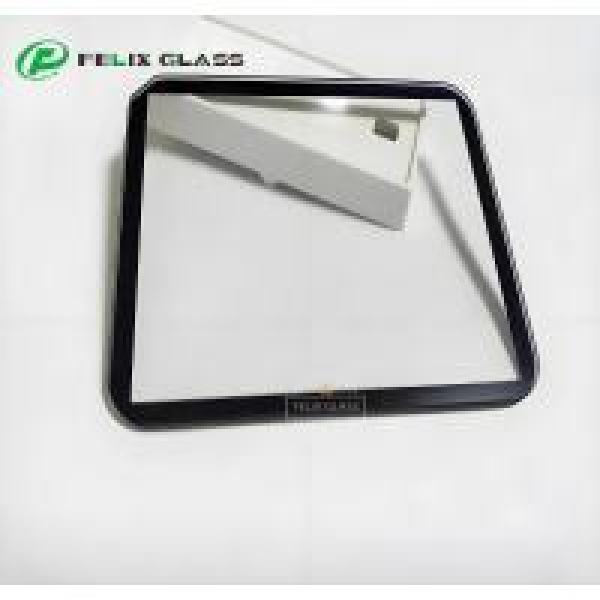

AR AF AG Coated Glass Custom Multi-Coated Touch Screen Cover Glass for Display - Felix Glass
| Share | |
|---|---|
| Categories | Industrial Touch Panel Glass |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FG-MIR-001 |
| Substrate | Ultra-low iron tempered glass |
| Available Coatings | AR / AR+AF / AG+AF / AR+AF+AG triple coating |
| Light Transmittance | ≥92% (97% for AR coated) |
| AG Haze Range | 5%–15% adjustable |
| AF Water Contact Angle | ≥110° |
| Thickness Options | 0.7mm, 1.1mm, 2.0mm, 3.0mm, 5.0mm |
| Working Temp | -40℃ ~ 180℃ |
| Custom Deep Processing | Irregular mirror cutting, full edge chamfering, black silk screen border, camera & sensor hole drill |
| Compliance Standard | ISO 9001, RoHS, automotive high-low temperature aging test certified |
| Unit Price | US $ 2.88-5.99 / piece |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Felix Glass Co., Limited manufactures custom multi-coated touch screen cover glass for industrial HMI, medical, automotive, outdoor and commercial display equipment. The ultra-low-iron tempered glass can combine anti-reflection, anti-fingerprint and anti-glare functions to support screen clarity, routine cleaning and viewing under challenging light. Size, thickness, outline, edge profile, holes, printed border and coating combination can be reviewed from your drawing. Prototype and production quantities are available for OEM display projects. An oleophobic surface helps resist fingerprints and oil, making frequently touched screens easier to wipe during normal maintenance. A controlled matte surface diffuses direct sunlight or workshop lighting to reduce mirror-like reflections. Haze can be adjusted to balance glare control and image detail. Consider for medical imaging equipment and optical instruments where transmission and lower reflection are the priority. Common for medical touch monitors, factory HMIs and POS screens that need clarity plus easier routine cleaning. Useful for outdoor kiosks and EV charging terminals exposed to bright light and frequent touch. Review for automotive and all-weather industrial displays when reflection, glare and fingerprints must be considered together. Values shown are the original product specification range. Final tolerances, coating performance and inspection methods should be confirmed against the application drawing and purchase specification. Choose the coating stack around ambient light, touch frequency, cleaning method, optical target and operating environment rather than treating AR, AF and AG as interchangeable labels. Automation controls and factory interfaces exposed to overhead lighting, dust and repeated operation. Monitors, ultrasound systems and touch interfaces that require readable images and defined cleaning compatibility. Instrument and center-control screens where sunlight, reflections and fingerprints affect the viewing experience. Kiosks, EV charging terminals, advertising displays and self-service POS equipment. Confirm the outline, thickness, coating, optical zone, printing, holes and target quantity. Cut, drill, notch, chamfer and polish the low-iron glass to the approved drawing. Apply the specified black border, logo and AR, AF or AG treatment in the agreed sequence. Check dimensions, appearance and agreed optical or surface characteristics before packing. Support sample evaluation before repeat production and global shipment. For US display-equipment buyers, a useful supplier review depends on measurable specifications, drawing control and repeatable inspection. Felix Glass supports coating selection, prototype review and production planning for custom touch display cover glass. AR reduces reflection, AF helps resist fingerprints and AG diffuses harsh incident light. The right combination depends on the viewing environment and cleaning routine. AR + AF is often reviewed when clarity and easy cleaning are priorities. Share the disinfectant, wipe frequency and optical requirements so compatibility can be evaluated. Cleaning durability depends on the specified coating and test method. Include the alcohol concentration, wipe material and cycle requirement in the project specification. State the required test standard and acceptance method. A “9H” value should be tied to the agreed procedure rather than treated as a universal material rating. Yes. Outline cutting, holes, notches, edge finishing, black borders, logos and positioning marks can be reviewed from a drawing. Compare these Felix Glass pages when your project needs a complete touch panel, a different coated-glass configuration, an HMI cover or a medical-display cover. Send the glass drawing, display size, thickness, coating combination, optical targets, border artwork, holes or notches, quantity and cleaning or environmental requirements. Felix Glass Co., Limited will review manufacturability and the inspection plan before quotation.
Attention · Custom display protection
AR, AF and AG Coated Touch Screen Cover Glass for Industrial Displays
AR optical controlAF easy-clean surfaceAG glare management
Interest · Coating functions
3A Coating Core Functions
AF Anti-Fingerprint
AG Anti-Glare
Interest · Configuration guidance
Coating Combination Selection Guide
AR Only
AR + AF
AG + AF
AR + AF + AG
Interest · Engineering baseline
Technical Specifications
Substrate Ultra-low-iron tempered glass Available coatings AR, AR + AF, AG + AF, or AR + AF + AG Light transmittance At least 92%; up to 97% for the specified AR configuration Surface reflectance Target at or below 0.5%, subject to wavelength and test method AG haze range 5%–15% adjustable AF water contact angle At least 110° at the agreed test condition Surface hardness 9H requirement available; confirm the test method in the drawing or quality plan Thickness options 0.7 mm, 1.1 mm, 2.0 mm, 3.0 mm and 5.0 mm Working temperature -40°C to 180°C, subject to the complete assembly and coating specification Custom processing CNC cutting, drilling, notches, edge chamfering and black-border screen printing Referenced systems ISO 9001; RoHS and REACH documentation can be reviewed for the project
Interest · Product details
Key Features for Touch Display Integration
Desire · Application fit
Applications
Industrial HMI
Medical Displays
Automotive Displays
Outdoor and Commercial
Desire · Drawing-based production
Custom Manufacturing Services
Requirement Review
Glass Processing
Printing and Coating
Inspection
Prototype to Production
Desire · Supplier evaluation
Why Work With Felix Glass Co., Limited
Coating and substrate reviewDimensional and appearance checksPrototype and production supportProtective export packing
Desire · Buyer questions
FAQ
What is the difference between AR, AF and AG?
Which coating is suitable for a medical touch screen?
Can the surface be used with repeated alcohol cleaning?
How should hardness be specified?
Can Felix Glass make custom shapes and printed borders?
