Deep Sea ROV & AUV Sapphire Viewport Retrofit for High-Pressure Saltwater Environments

Update Time:2026/7/19 22:23:56

When a US-based subsea detection equipment manufacturer faced repeated optical viewport failures across their deep sea ROV and AUV fleet, they turned to Felix Glass for a sapphire-grade retrofit solution. This case study details how we engineered a corrosion-resistant, high-pressure optical window system that extended service life from months to years in 3000-meter saltwater operating conditions.

Industry: Deep Sea Subsea Detection & Marine Robotics

Solution: Single-crystal sapphire optical viewport with anti-saltwater coating and high-pressure flange integration

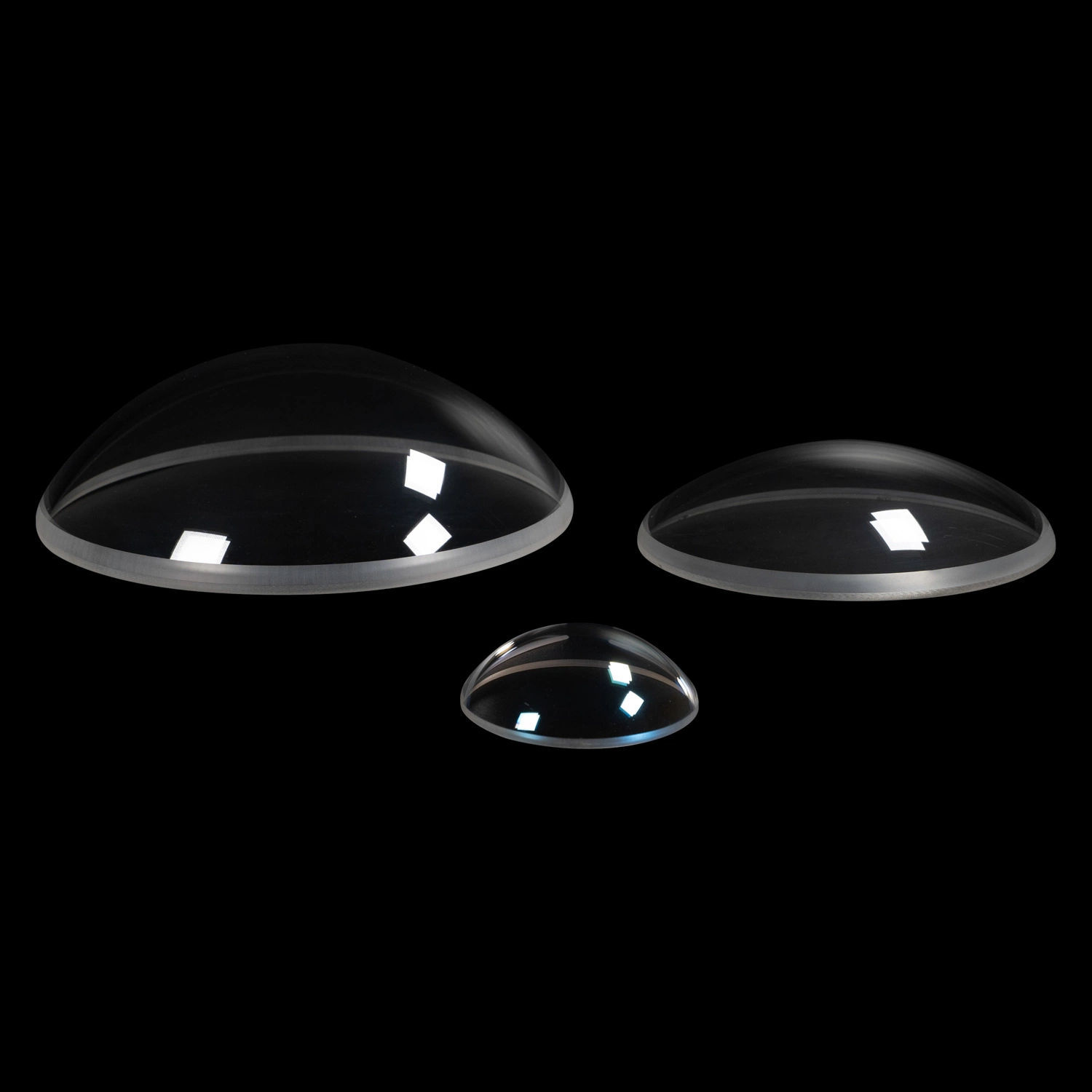

Felix Glass deep sea high pressure sapphire viewport upgrade case for ROV, AUV and underwater detection camera systems

The Challenge: Saltwater Corrosion, Pressure Leakage, and Short Service Life

The client's existing optical viewports, originally fabricated from conventional optical glass and fused silica, were degrading after fewer than 200 operational hours in deep sea saltwater environments. Three critical failure modes were identified:

Saltwater Corrosion

Chloride ions in seawater attacked the glass surface and sealant interface, causing optical haze and progressive material loss at the viewport boundary within weeks of deployment.

High-Pressure Leakage

At operating depths exceeding 2000 meters, the original viewport-to-housing seal failed under sustained hydrostatic pressure, allowing moisture ingress into the camera and sensor compartment.

Excessive Maintenance Cycles

Frequent viewport replacement drove per-unit operational costs upward by over 40% annually. Each ROV required dry-dock servicing every 2 to 3 deployment cycles for viewport inspection and re-sealing.

The Felix Glass Sapphire Solution

We engineered a complete optical viewport retrofit package built around single-crystal sapphire, delivering a step-change improvement in pressure tolerance, chemical resistance, and optical clarity for the client's ROV and AUV detection systems.

CNC-machined sapphire viewport blank

Single-Crystal Sapphire Substrate

Mohs 9 hardness with near-zero porosity eliminated the surface degradation pathways exploited by saltwater under high pressure. The sapphire viewport maintained optical transmission across visible and near-IR bands without haze development.

Proprietary Anti-Saltwater Coating

A multi-layer hydrophobic and oleophobic coating was applied to the outer sapphire surface, reducing salt crystal adhesion and simplifying in-water cleaning during deployment. Coating durability was validated through 500-hour salt spray testing per ASTM B117.

High-Pressure Flange Integration

Each viewport was CNC-machined to a precision tolerance of ±0.01 mm and integrated with a custom-designed titanium alloy flange assembly. The metal-to-sapphire seal interface was engineered for sustained operation at 300 bar (3000-meter equivalent depth) with a certified safety factor of 1.5x.

Verified Performance Results

After 18 months of field deployment across the client's Atlantic and Pacific operational fleets, the sapphire retrofit delivered measurable improvements across all critical performance metrics.

3,000m

Certified Operating Depth

Full hydrostatic pressure certification to 300 bar with titanium alloy flange assembly

900+hrs

Continuous Saltwater Operation

No optical degradation or seal leakage after 900+ hours in saltwater at operational depth

62%

Maintenance Cost Reduction

Annual ROV servicing frequency reduced by 62%, eliminating per-cycle viewport replacement

0

Pressure-Related Failures

Zero field-reported viewport leakage or structural failure across the entire retrofitted fleet
