Custom Industrial Display Cover Glass & Touch Panel Glass Manufacturer
AG AR AF Coated Chemically Strengthened Touch Panel Glass for Industrial HMI, Medical Equipment and Automotive OEM Manufacturers
Prototype Lead Time: 7 Working Days | Mass Production: 10–15 Days | Max Custom Size: 1100×1100mm
Felix Glass specializes in OEM custom chemically strengthened aluminosilicate display cover glass for industrial HMI touch terminals, medical monitoring panels and vehicle cockpit ADAS screens. Full CNC custom cutting, drilling and tailored AG/AR/AF optical coatings available for all OEM touch equipment manufacturers.
Every glass panel undergoes full dimensional & optical inspection to maintain stable performance under vibration, high temperature and repeated disinfection for US & European industrial OEM buyers.
Request Custom Industrial Glass Quote
Send your CAD drawings, dimension requirements or application details. Our optical engineers will review your project within 24 hours.
Why Global OEM Buyers Choose Felix Glass
Direct Factory Communication
No middle markup, one-on-one optical engineer support for drawing revision & optimization.
Pre-Production Engineering Review
Optical parameter & structural optimization before formal mass manufacturing.
Flexible Prototype Support
MOQ=1 single piece for equipment optical testing & validation.
Ion Exchange Strengthened Glass
6H–9H hardness, strong scratch & impact resistance for frequent touch screens.
Custom AG AR AF Coatings
Tunable haze & reflectivity for outdoor, medical & vehicle operating environments.
Stable Mass OEM Production
Independent production lines guarantee consistent quality & on-time bulk delivery.
Full OEM Manufacturing Capability
Glass Processing
- CNC Cutting & Milling
- Edge Polishing & Chamfer
- Hole Drilling & Engraving
- Chemical Ion Strengthening
Optical Coating
- AG Anti-Glare Coating
- AR Anti-Reflection Coating
- AF Anti-Fingerprint Coating
- Anti-Scratch Hard Coating
Strict Quality Control
- Light Transmittance Test
- Haze & Gloss Inspection
- Surface Hardness Testing
- Dimensional Precision Check
Common Touch Display Pain Points We Resolve
Your Existing Glass Troubles
❌ Severe mirror glare under strong sunlight
❌ Hard-to-clean fingerprint oil residue
❌ Low hardness, easy surface scratch
❌ Limited custom machining capability
❌ Unstable coating quality between batches
Our Targeted OEM Solutions
✓ Custom AG anti-glare coating for outdoor strong light scenes
✓ Top AF oil-repellent layer for easy medical disinfection
✓ Ion exchange strengthening to boost surface durability
✓ Full CNC custom holes, chamfers & silk screen frames
✓ 100% batch optical inspection for coating consistency
Target OEM Industry Applications
Industrial HMI Touch Panels
Machine control terminals, outdoor self-service kiosks, automation equipment displays.
Medical Touch Displays
Patient monitors, surgical control touch panels, disinfection-resistant glass.
Automotive HMI & ADAS
Car central control, instrument & driving auxiliary touch screens.
Factory Production Gallery

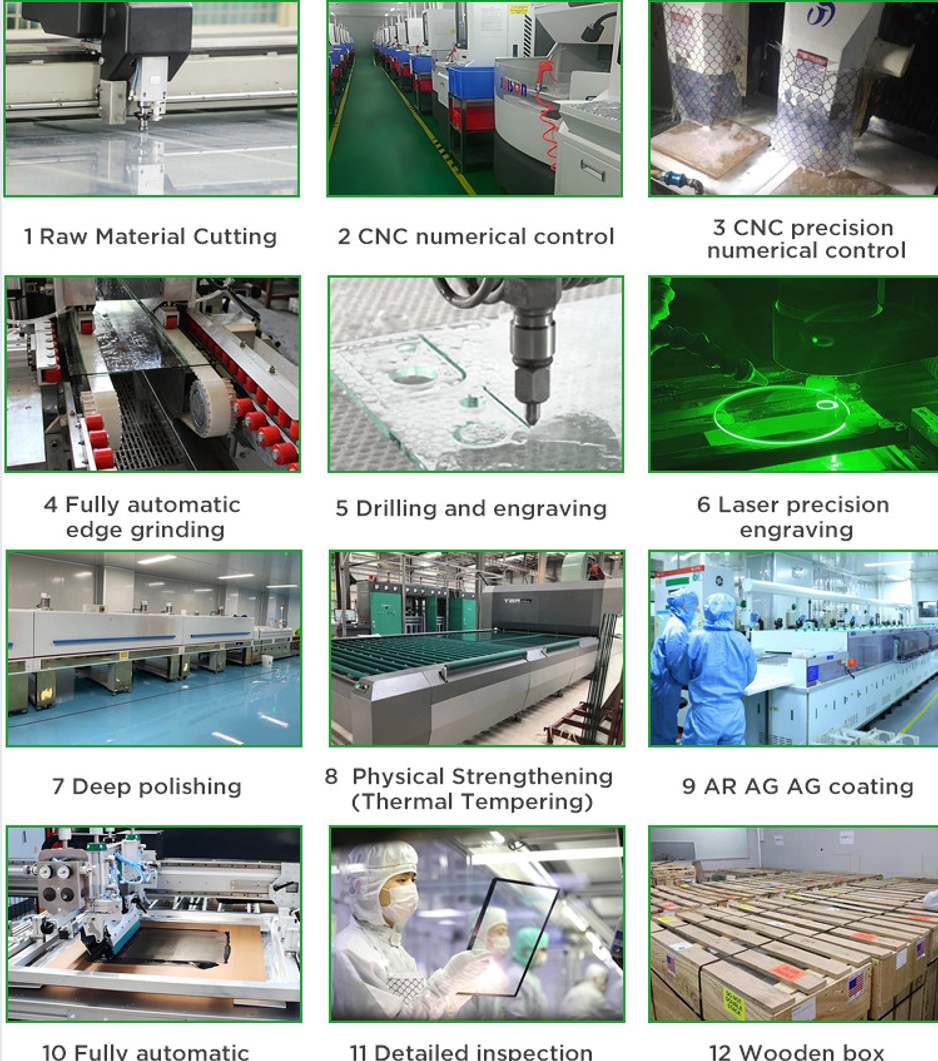

Complete 12-Step Glass Production Workflow
Common Glass Specifications
| Parameter Item | Typical Specification |
|---|---|
| Material | Sapphire / BK7 / Fused Silica / Borosilicate |
| Size | Ø50mm / Custom Dimension Available |
| Thickness | 0.5 mm – 20 mm |
| Tolerance | ±0.01 mm ~ ±0.1 mm |
| Surface Quality | 60/40, 40/20 |
| Flatness | λ/4 @632.8nm |
| Parallelism | <3 arc min |
| Transmission | >90% (Visible Range) |
| Coating | AR / IR / ITO / AF / AG Custom Coating |
| Hardness | Mohs 5 ~ 9 |
| Temperature Resistance | 200 ℃ ~ 1200 ℃ |
| CTE | 0.5 ~ 9 ×10⁻⁶ /K |
All parameters can be customized according to your engineering drawings. Please provide detailed requirements for optical coating, mechanical tolerance and operating environment when sending RFQ.
Need Custom Size & Coating Parameters?
Submit CAD drawings to get engineering review within 24 hours
Get Free Engineering EvaluationGlass Material Selection Reference
| Glass Material | Chemically Strengthenable | Typical Pencil Hardness | Core Characteristics | Applicable OEM Scenarios |
|---|---|---|---|---|
| Corning Gorilla Glass | Yes | 7H – 9H | Deep ion-exchange layer, superior drop & scratch resistance | Premium automotive cockpit, high-end medical touch panels |
| Corning Eagle XG | No | 5H | Ultra-flat, low-distortion display substrate, heavy-metal-free | LCD/OLED display panels, precision optical base plates |
| Corning Lotus NXT | No | 5H | High thermal stability, low shrinkage during high-temperature processing | OLED display backplane substrate, micro-display equipment |
| AGC Dragontrail Glass | Yes | 6H – 7H | Balanced toughness, stable performance, cost competitive | Industrial automation touch screens, medium-grade HMI terminals |
| NEG Dinorex | Yes | 6H – 8H | Excellent surface smoothness, stable strengthening consistency | Outdoor kiosks, wearable equipment, touch display cover |
| Schott D263 Teco | Yes | 6H – 7H | Thin borosilicate, outstanding thermal shock resistance | Sensor windows, lab equipment, miniature optical covers |
| Schott Borosilicate 33 | No | 5H | Low thermal expansion, excellent acid & alkali resistance | Optical viewports, chemical testing instruments, furnace windows |
| Schott AF32 | No | 5H | Alkali-free glass, CTE matched with silicon wafer | Semiconductor packaging, MEMS sensor substrates |
| Fused Silica Glass | No | 5H | Ultra-wide spectrum transmission, extreme thermal stability | Laser equipment, UV optical windows, high-temperature viewports |
| ITO Coated Glass Substrate | Depends on base glass | Depends on base glass | Transparent conductive ITO film, customizable substrate | Capacitive touch sensors, optical testing fixtures |
| Extra White Clear Glass | Yes (shallow strengthening layer) | 5H – 6H | High visible light transmittance, economical solution | Indoor static display, low-frequency touch equipment |
| Borosilicate Glass (General Grade) | No | 5H | Low thermal expansion coefficient, strong temperature change resistance | Industrial observation windows, laboratory optical components |
| Rainbow Aluminosilicate Glass | Yes | 6H – 8H | Domestic high-alumina glass, stable strengthening performance, cost advantage | Mid-range industrial HMI, commercial touch cover panels |
| Nanbo Extra White Glass | Yes (shallow strengthening layer) | 5H – 6H | Ultra-low iron content, high light transmittance, stable supply | Display protective glass, lighting & optical observation windows |

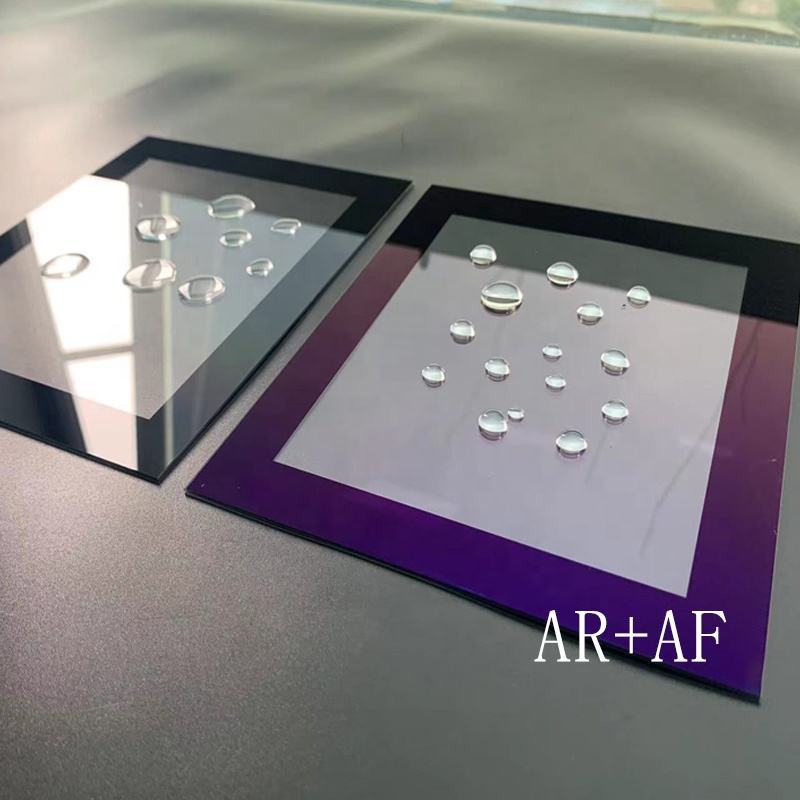

AG / AR / AF Coating Function Comparison
Real OEM Customer Case (Before & After)
Customer Type: US Medical Monitoring OEM Manufacturer
Application: Ward Patient Touch Display Panels
Spec: 210×145mm × 1.1mm Aluminosilicate, AG+AF Composite Coating, Black Silk Screen Border
Before (Original Glass Issues):
- Strong lamp reflection affecting operator observation
- Hard to erase fingerprint stains after daily disinfection
- Low surface durability leading to frequent scratches
Our OEM Solution: Ion-exchange strengthened substrate with moderate-haze AG layer + top AF anti-fingerprint coating, smooth safety edge chamfer.
After Improved Results: Indoor glare significantly reduced, daily disinfection simplified, equipment maintenance frequency lowered.
Buyer Frequently Asked Questions
MOQ starts from 1 prototype piece for engineering validation.
Yes, single and combined anti-glare, anti-reflection, anti-fingerprint coatings are available.
Industrial HMI, medical monitoring equipment, automotive cockpit & ADAS touch screens.
Fully OEM supported, custom shapes and holes per customer engineering drawings.
Prototype lead time:7 working days after drawing confirmation.
Free Optical Engineering Support For Your Project
Send CAD & PDF drawings today for full professional technical review within 24 hours
- ✓ Professional glass material matching suggestion
- ✓ Optimized thickness & tolerance plan
- ✓ Suitable AG/AR/AF coating scheme
- ✓ Production feasibility evaluation
No hidden consulting charges for OEM buyers.
Get Free Engineering Evaluation Upload Your DrawingRelated OEM Solutions: Industrial HMI Glass | Touch Panel Glass
| Coating Type | Core OEM Benefit |
|---|---|
| AG Anti-Glare | Eliminate outdoor mirror reflection |
| AR Anti-Reflection | Raise indoor screen light transmittance |
| AF Anti-Fingerprint | Easy medical alcohol disinfection wiping |
| AG+AR Composite | Balanced performance for all-weather HMI |
| AG+AR+AF All-in-One | Premium medical & vehicle touch equipment |
- What is your MOQ for custom optical glass and display glass parts?
Felix Glass offers highly flexible MOQ to support client projects, including prototype testing, small batch trial orders and large-volume mass production. All products can be fully customized according to your drawings, tolerances and application standards. Send us your specs to get an accurate price quote within 24 hours.
- Can I get free glass samples for testing before bulk order?
Yes, our FELIX GLASS factory supports sample testing for a wide range of precision optical glass components and assemblies. The lead time for sample production is 3 to 7 working days. Please contact us today to arrange samples and obtain a customized solution that meets your needs.
- What is the production lead time for custom optical glass components?
What is the production lead time for custom optical glass components?
Answer: The lead time for standard samples is 3–7 business days, while mass production takes 15–25 business days, depending on product complexity and order volume. We provide reliable, rapid delivery for orders serving the industrial, medical, automotive, and aerospace sectors. Please submit your project details to receive an accurate delivery schedule.
- Are your optical glass products ISO, CE and RoHS certified?
All FELIX GLASS precision optical glass components comply with ISO quality system standards, as well as CE and RoHS requirements. We provide comprehensive test reports, material certificates, and inspection documentation for customer review. Please feel free to request full certification details and a formal quotation today.
- Do you offer one-stop custom optical glass processing services?
Yes. We provide a full range of in-house processing services, including CNC machining, precision grinding, optical polishing, vacuum coating (AR, AF, AG, IR), tempering, and screen printing. Every step—from raw material to finished product—is carried out within our own facility. Please let us know your requirements, and we will provide you with the most cost-effective solution.
