custom ZnS lens Optical Components | Infrared Windows, Lenses & Custom Fabrication
| Share | |
|---|---|
| Categories | ZnSe Infrared Lens |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FE-GXQZ-0120 |
| Material | Zinc Sulfide (ZnS) |
| Spectral Range | 3 μm – 14 μm |
| Refractive Index (10 μm) | 2.25 |
| Density | 4.09 g/cm³ |
| Mohs Hardness | 3.0 |
| Coating Option | IR Anti-Reflection Coating (single side / double side) |
| Dimensional Tolerance | ±0.02 mm |
| Surface Quality | Standard optical grade |
| Working Temperature | -40℃ ~ 80℃ (normal environment) |
| Applications | Defense & EO/IR Systems，Aerospace Infrared Optics，Laboratory |
| Unit Price | US $ 6.56-9.56 / piece |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |

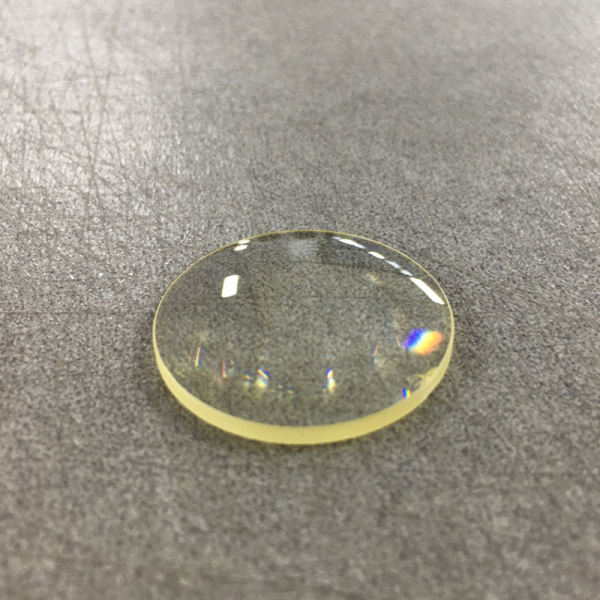

ZnS Infrared Lenses | Custom IR Optical Lenses for Infrared Systems
Core Advantages
- Wide transmission range from 3 μm to 14 μm, fits mainstream infrared working bands
- Good mechanical strength and scratch resistance, adapt to harsh field environments
- Easy for precision machining, achieve tight dimensional and surface tolerance
- Low optical absorption, stable imaging effect under long-term operation
- Support single/double side IR anti-reflection coating to enhance transmittance
- Complete specifications, fast delivery for standard models
Available Lens Types
- Plano-Convex ZnS Lenses: Widely used for light collimation and focusing
- Double-Convex ZnS Lenses: Ideal for high-efficiency beam focusing
- Meniscus ZnS Lenses: Applied for image correction and optical assembly
- Custom Shaped Lenses: Special curvature, aperture and irregular lenses per drawings
Key Technical Specifications
| Item | Parameter |
|---|---|
| Material | Zinc Sulfide (ZnS) |
| Spectral Range | 3 μm ~ 14 μm |
| Refractive Index (10 μm) | 2.25 |
| Mohs Hardness | 3.0 |
| Available Coating | IR Anti-Reflection Coating |
| Dimensional Tolerance | ±0.02 mm |
| Surface Quality | Standard optical grade |
| Operating Temperature | -40℃ ~ 80℃ |
Main Applications
- Thermal imaging cameras & infrared detection equipment
- Industrial non-contact temperature measurement devices
- Defense & EO/IR optical systems
- Laboratory infrared spectroscopy instruments
- General infrared optical assemblies
Custom Service
- Custom diameter, center thickness and focal length according to requirements
- Various edge chamfering, grinding and surface processing
- Targeted infrared coating for specific spectral bands
- Small batch trial orders and mass production are both acceptable
Call to Action
Related Links
FAQ
Q1: What are ZnS infrared lenses used for?
Q2: What types of ZnS lenses do you supply?
Q3: Can you add anti-reflection coating on ZnS lenses?
Q4: How about the durability of ZnS lenses?
Q5: Can you make ZnS lenses with special focal length?
