Custom Sapphire Optical Components | All Shapes Custom Sapphire Optics
| Share | |
|---|---|
| Categories | Sapphire Optical Components |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FELIX GLASS CSOC-001 |
| Material | High-Purity Single-Crystal Sapphire |
| Spectral Range | 150nm ~ 5.5μm (UV-Vis-Mid IR) |
| Mohs Hardness | 9.0 |
| Working Temperature | -270°C ~ 1600°C |
| Surface Quality | 40/20, 20/10, 10/5 Optical Grade |
| Dimensional Tolerance | ±0.01mm ~ ±0.05mm |
| Available Coating | Single-layer / Multi-layer AR coating |
| Custom Method | Drawing Customization / Dimension Customization |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Custom Sapphire Optical Components | All Shapes Custom Sapphire Optics
Custom sapphire optical components are high-performance single-crystal alumina optical parts manufactured for precision UV, visible, and infrared optical systems. Sapphire material features ultra-high hardness, wide spectral transmittance, excellent thermal stability and chemical inertness. We supply standard sapphire optical parts and fully customized components in any size, shape, thickness and coating according to customer drawings and technical requirements. Our custom sapphire optics deliver stable and long-lasting performance in aerospace, semiconductor, laser and harsh industrial environments.
Core Advantages
- Mohs 9 ultra-high hardness, superior scratch and wear resistance
- Ultra-wide transmission range from 150nm UV to 5.5μm mid-infrared
- Excellent high-temperature resistance up to 1600°C continuous working temperature
- Strong chemical stability against acid, alkali and corrosive gas
- Low optical distortion and consistent refractive index
- Fully customizable shape, dimension, surface quality and coating
- Strict tolerance control for high-precision optical assembly
Available Custom Types

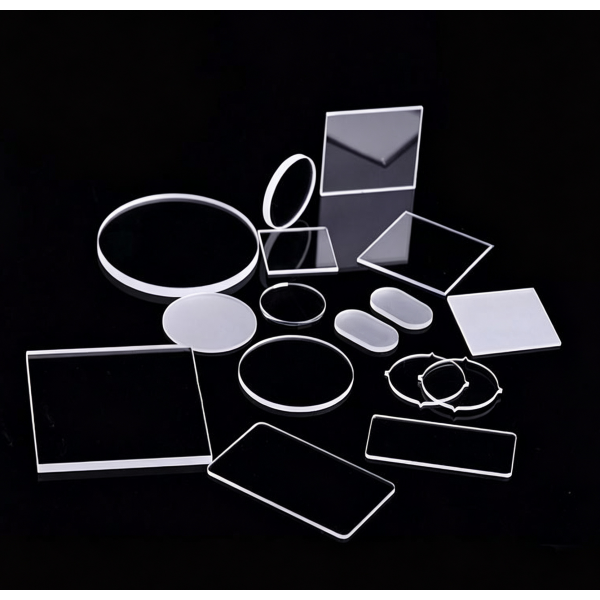

Custom Sapphire Windows: Round, square, rectangular, oval and irregular flat viewport windows
Custom Sapphire Lenses: Plano-convex, biconvex, plano-concave, meniscus and special curvature lenses
Special Sapphire Components: Sapphire domes, sapphire rods, sapphire tubes, step pieces and irregular optical profiles
Key Technical Specifications
| Item | Parameter |
|---|---|
| Material | High-Purity Single-Crystal Sapphire |
| Spectral Range | 150nm ~ 5.5μm (UV-Vis-Mid IR) |
| Mohs Hardness | 9.0 |
| Working Temperature | -270°C ~ 1600°C |
| Surface Quality | 40/20, 20/10, 10/5 Optical Grade |
| Dimensional Tolerance | ±0.01mm ~ ±0.05mm |
| Available Coating | Single-layer / Multi-layer AR coating |
| Custom Method | Drawing Customization / Dimension Customization |
Main Applications
Aerospace and defense EO/IR optical systems
Semiconductor vacuum chambers and wafer inspection equipment
UV curing, fluorescence spectroscopy and precision optical instruments
High-power laser systems and thermal imaging devices
High-temperature furnace viewports and corrosion-resistant industrial equipment
Laboratory analytical and detection instruments
Custom Service
Custom diameter, thickness, shape and edge chamfering processing
Custom flat windows, curved lenses and special-shaped sapphire parts
Single-side or double-side anti-reflection coating for UV, visible and IR band
Precision grinding, polishing and contour machining
Small batch sample order and large-volume mass production support
RFQ – Get Quote in 24 Hours
Send us your drawings or specifications:
• Material requirements
• Application type
• Wavelength conditions
• Environmental requirements
Our engineering team will provide:
✔ Technical feasibility analysis
✔ Manufacturing recommendation
✔ Detailed quotation within 24 hours
Related Links
Link: Related Articles: [Knowledge Center] Sapphire Material Properties & Industrial Optical Applications
Exclusive FAQ
Q1: What custom sapphire optical parts can you produce?
A: We customize all types of sapphire optics, including flat windows, optical lenses, domes, rods, tubes and irregular-shaped sapphire components. All sizes and shapes can be processed according to your drawings.
Q2: What is the advantage of custom sapphire optics?
A: Sapphire owns Mohs 9 extreme hardness, ultra-wide spectral transmission and ultra-high temperature resistance. It is far more durable than ordinary glass and quartz optics for harsh environment applications.
Q3: Can you provide AR coating on custom sapphire parts?
A: Yes. We provide customized anti-reflection coatings for UV, visible and infrared bands to improve light transmittance and optical system efficiency.
Q4: Do you support small-batch custom orders?
A: Yes. We support prototype sampling, small-batch trial production and large-scale mass production to meet different project requirements.
Q5: What tolerance can you guarantee for custom sapphire components?
A: We maintain strict optical-grade tolerance from ±0.01mm to ±0.05mm, with high surface flatness to ensure stable optical performance.
