2–32 inch range
Panel dimensions and active area are reviewed against the selected display and controller.
Home / All / Custom Display &Functional Glass / Industrial Touch Panel Glass / 2-32 Inch Custom Projected Capacitive Touch Screen Panel 10-40 Multi Touch Points Support AG AR AF
Looking for Custom Optical Components?
✔ OEM / ODM Customization
✔ Free Drawing DFM Technical Review
✔ 24-Hour Professional Quotation
✔ Flexible Low MOQ & Fast Prototypes

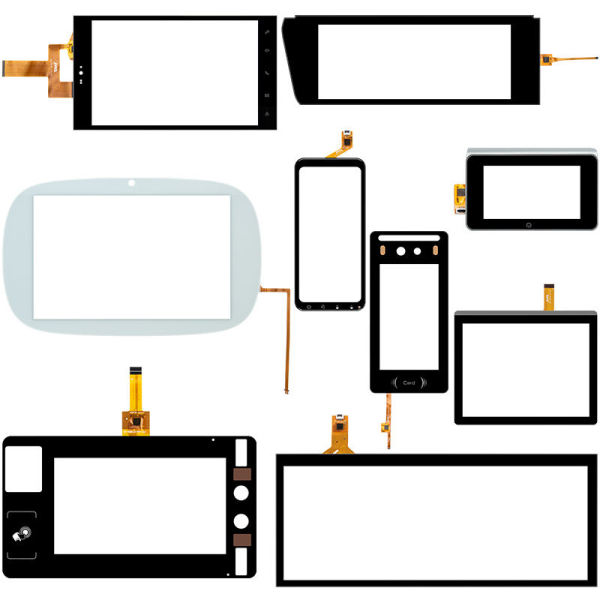

2-32 Inch Custom Projected Capacitive Touch Screen Panel 10-40 Multi Touch Points Support AG AR AF
| Share | |
|---|---|
| Categories | Industrial Touch Panel Glass |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | CTS-232-01 |
| Substrate | Ultra-low iron tempered glass |
| Surface Treatment | Value | AG / AR / AF / Normal Optional |
| Light Transmittance | ≥92% (97% for AR coated) |
| AG Haze Range | 5%–15% adjustable |
| AF Water Contact Angle | ≥110° |
| Thickness Options | 0.7mm, 1.1mm, 2.0mm, 3.0mm, 5.0mm |
| Working Temp | -40℃ ~ 180℃ |
| Custom Deep Processing | Irregular mirror cutting, full edge chamfering, black silk screen border, camera & sensor hole drill |
| Compliance Standard | ISO 9001, RoHS, automotive high-low temperature aging test certified |
| Item | Touch Points | Value：10~40 Points |
| Glass Hardness | Value | 6H Tempered Explosion-proof |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Felix Glass Co., Limited · Model CTS-232-01
1. Projected Capacitive Multi-Touch Performance
This custom projected capacitive touch panel is available from 2 to 32 inches for industrial displays, medical interfaces, self-service terminals, smart retail equipment, and home-automation controls. The standard configuration supports 10 touch points, with project options up to 40 points.
The original product content describes driver-free operation for supported host systems and touch recognition through thin gloves. Controller, operating system, glove material, cover thickness, grounding, and display stack should be confirmed for each integration.
This product remains in the Industrial Touch Panel Glass category.
Values below retain the existing product specification. Final size, controller, interface, touch points, glass, coating, temperature range, and compliance evidence are confirmed against the approved drawing and project requirements.
Drawing-based geometry
2. Custom Size, Viewing Area, and Panel Shape
The source content lists standard project coverage from 2 to 32 inches, including rectangular, square, and irregular outlines. Border width, viewing area, openings, and overall dimensions can be adapted to the LCD module and housing drawing.
Custom outlines
Rectangular, square, rounded, and irregular profiles can be evaluated from CAD files.
Viewing-area alignment
Black borders and transparent windows are matched to the LCD and enclosure stack-up.
Openings and features
Camera, sensor, button, mounting, and positioning features can be included in the drawing review.
Browse other display solutions in the Felix Glass product catalog.
Mechanical and signal structure
3. Tempered Cover Glass, FPC, and Lamination Structure
The original content lists 6H tempered cover glass, a metal flexible printed circuit connection, and close lamination intended to limit bubbles and delamination during operation.
- Cover glass: the visible attributes describe ultra-low-iron tempered glass and a 6H hardness reference.
- FPC connection: length, pinout, connector, bending zone, shielding, and controller interface are project-specific.
- Lamination: adhesive type, optical bonding, bubble limits, environmental cycling, and rework criteria should be defined.
- Impact terminology: the source uses “explosion-proof”; the actual impact or breakage requirement should be stated through a test method and acceptance value.
Company and manufacturing information is available on About Us.
Surface choices
4. Normal, AG, AR, and AF Glass Options
The product supports untreated glass or AG, AR, and AF surface options. The coating or treatment should be selected from the installation lighting, display brightness, touch frequency, cleaning process, and optical target.
Normal glass
A baseline surface for applications that do not require added glare, reflection, or fingerprint control.
AG anti-glare
Diffuses reflected light. The visible attributes list an adjustable haze range of 5%–15%.
AR anti-reflection
Reduces surface reflection. The attributes list light transmittance of at least 92% and a 97% reference for AR-coated glass.
AF anti-fingerprint
Reduces oil adhesion. The attributes list a water-contact-angle reference of at least 110 degrees.
Optical values require an agreed wavelength range, angle, substrate, coating side, sample condition, and measurement method.
Source data consolidated
5. Projected Capacitive Touch Panel Specifications
| Touch technology | Projected capacitive touch |
|---|---|
| Size range | 2–32 inches; custom profiles subject to review |
| Touch points | 10 standard; project options up to 40 |
| Cover glass | Ultra-low-iron tempered glass; 6H hardness reference |
| Surface | Normal, AG, AR, or AF |
| Thickness options | 0.7, 1.1, 2.0, 3.0, and 5.0 mm |
| FPC interface | Industrial flexible circuit connection; configuration by project |
| Temperature references | -20°C to +70°C in the original description; -40°C to 180°C in visible attributes |
The source contains conflicting temperature ranges. The correct operating and storage ranges must be confirmed for the selected glass, sensor, controller, FPC, adhesive, and display module before quotation.
Integration scenarios
6. Medical, Industrial, Kiosk, Retail, and Automation Applications
The original product content identifies the following application groups. Each installation should be reviewed for touch behavior, cleaning, lighting, temperature, ingress protection, glove use, and regulatory requirements.
Related technical and application articles are available in the Felix Glass blog.
OEM and ODM inputs
7. Size, Outline, Printing, FPC, and Coating Customization
The source content lists customization for size, outline, silk-screen logo, FPC length, and surface treatment. Visible attributes also list irregular cutting, full-edge chamfering, black border printing, and camera or sensor holes.
- 1Send LCD and housing drawings
- 2Define active area and border
- 3Select glass and surface option
- 4Confirm controller and FPC
- 5Agree samples and validation
- 6Release the approved production files
Start from the Felix Glass home page for an overview of available materials and processes.
Documentation review
8. Quality-System and Compliance Documentation
The original description lists ISO 9001, ISO 14001, CE, RoHS, FDA, and SGS, while the visible attributes list ISO 9001, RoHS, and automotive high/low-temperature aging-test certification.
These references do not establish that every configuration carries every approval. Buyers should request the current certificate, test report, scope, issuing organization, product coverage, and validity period required for their market and end equipment.
Certificate scopeConfirm the company, site, product, process, and dates covered.
Test reportsMatch samples, methods, limits, and environmental conditions to the project.
Incoming approvalDefine appearance, dimensions, touch behavior, optical values, and packaging checks.
Selection checklist
9. When Standard Touch Specifications Do Not Fit
If a standard configuration does not match the application, provide the constraints that drive the design: display size, cover-lens outline, host operating system, controller, touch points, glove requirement, cover thickness, bonding method, ambient light, temperature, ingress protection, cleaning chemistry, compliance, and annual volume.
This information allows the touch stack and glass processing route to be evaluated together. Use Contact Us when the project requires a preliminary technical discussion.
Related guidance
10. Related Touch and Functional-Glass Resources
The original description included unrelated quartz, ITO, FTO, and duplicate product-link placeholders without verified destinations. Those placeholders are removed. The current product catalog and blog provide the approved internal paths for comparing related display cover glass, conductive substrates, and surface treatments.
RFQ input checklist
Send project requirements
11. Request a Custom Projected Capacitive Touch Panel Quote
Send the LCD drawing, active area, outer profile, touch-point requirement, host system, controller preference, FPC pinout and length, glass thickness, AG/AR/AF option, printing artwork, openings, bonding method, temperature range, compliance documents, sample quantity, and production forecast.
