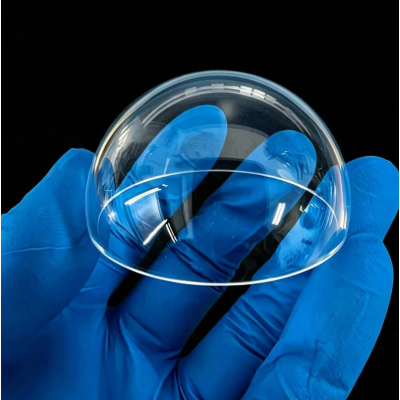

Custom Sapphire Optical Dome | Complete Product Range
| Share | |
|---|---|
| Categories | Sapphire Optical Dome |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FG-CAOD-2026 |
| Material | Single Crystal Sapphire, ZnS, ZnSe, BK7/K9 Optical Glass |
| Shape | Hemispherical, Hyper-Hemispherical, Flanged Dome |
| Coating Option | AR Broadband Coating, Anti-Fog Coating, Custom Coatings |
| Diameter Range | Custom OEM 10mm – 350mm |
| Tolerance | Precision Optical Grade, Custom Optical Tolerance |
| Pressure Resistance | Deep Sea High Pressure / Atmospheric Version |
| Environment Resistance | Salt-Fog Resistant, Thermal Shock Resistant |
| Processing | CNC Machining, Edge Chamfering, Polishing |
| Minimum Order | Small Batch Prototype & Mass Production Available |
| Application | Underwater ROV, UAV EOIR, Thermal Imaging, Marine Monitoring |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union, T/T |
| Download |  |
Detail Information
Felix Glass manufactures customized single crystal sapphire optical domes, alongside BK7 fused silica, ZnS, ZnSe and germanium infrared domes for deep-sea ROV/AUV, UAV aerospace EO/IR, thermal surveillance, and industrial night vision imaging systems. We support drawing-based customization including hyper hemispherical, hemispherical, flanged integrated structure, CNC contour machining, edge chamfering, precision polishing and multi-layer broadband AR / BBAR anti-reflection coating services to match multi-spectrum optical requirements. This product is classified under Optical Dome & Protective Window to match engineer search intent for infrared and underwater optical components. All data shown are typical reference values. Final material, coating, dimension, optical indicators and tolerances shall be confirmed based on official engineering drawings and project specifications. Our optical dome series solves common engineering challenges including pressure rupture, seawater corrosion, sand abrasion, light attenuation and thermal shock failure under harsh outdoor, marine and airborne operating environments. Multiple substrate options cover UV, visible light, near infrared, MWIR and LWIR, supporting visible surveillance and long-wave thermal imaging simultaneously. Strong salt fog corrosion resistance, stable thermal shock performance, suitable for long-term use in deep sea, desert and high-low temperature alternating conditions. Check more optical components in the Felix Glass product catalog. Sapphire optical domes can adapt to extreme working conditions of deep-sea high pressure, offshore salt spray, airborne rapid temperature changes. Different substrates are recommended according to the actual application spectrum and environment. Pressure resistance data is related to wall thickness, diameter and structural design. Formal pressure test report can be provided for project verification. Felix Glass accepts customer CAD engineering drawings to process various dome structures, including hemispherical, hyper hemispherical, half sphere, integrated flanged dome, customized wall thickness and installation positioning structure. Custom spherical radius, outer diameter, inner diameter and wall thickness controlled according to optical design requirements. Precision edge chamfering, flat edge, sealing step processing to facilitate assembly and glue sealing. Single-band AR, broadband BBAR anti-reflection coating to reduce surface reflection and improve light transmittance. High-precision grinding and polishing, strict surface quality inspection, tolerance standard negotiable according to project demand. More manufacturing capability information available on About Us. Single crystal sapphire supports broadband transmission from ultraviolet to mid-infrared. ZnS, ZnSe and germanium materials focus on mid-wave and long-wave infrared, widely matched with thermal imaging infrared detector modules. All finished domes undergo spectrophotometer transmittance and reflectance testing before delivery. Customers can specify target wavelength, transmittance threshold and inspection sampling standards according to system optical design. Material selection suggestions can be found in the Felix Glass blog. Surveillance optical domes work outdoors for a long time, facing sand impact, seawater erosion, dust friction. Sapphire material effectively avoids frequent scratch damage of optical windows. Anti-reflection coating improves optical efficiency; regular cleaning maintenance is still required in severe dust environment. Light reflection on the dome surface will reduce imaging clarity, cause ghost images and reduce detection distance. Customized single-layer or multi-layer anti-reflection coatings can greatly improve light transmittance. We provide targeted coating solutions for visible light, near-infrared, mid-wave infrared and long-wave infrared bands. Engineers can select coating schemes according to the working spectrum of imaging equipment. Return to the Felix Glass home page to view all precision optical components. The following options cover conventional customized requirements. Final manufacturability will be reviewed after receiving customer engineering drawings. After drawing review, material and process scheme are confirmed, the production cycle is as follows: For optical performance, assembly and environmental test verification. Process stability verification before formal mass production. Actual delivery time subject to order quantity, raw material status and coating schedule. Adopt shockproof foam separation and moisture-proof export carton packaging, suitable for sea freight and air freight transportation. The following contents describe conventional performance. Specific indicators need to be confirmed according to project drawings and testing standards. Single crystal sapphire is the preferred solution, with excellent pressure resistance and seawater corrosion resistance. We can provide pressure test verification support according to operating depth. Yes. We support all kinds of hyper hemispherical dome processing. Feasibility evaluation will be carried out according to diameter, wall thickness and spherical radius provided by CAD drawings. Yes. Spectral transmittance test data can be provided for batch goods as required by customers for equipment qualification review. Support customized broadband anti-reflection coating for MWIR and LWIR to improve infrared signal transmittance of thermal imaging systems. The maximum size depends on blank raw material specifications. Send your drawing to our engineer for one-to-one feasibility evaluation. Felix Glass has complete in-house processing capacity to support prototype, trial order and long-term mass OEM supply for surveillance equipment manufacturers. Please provide CAD drawing, required substrate material, dome dimension, target spectrum, coating requirements, surface quality standard, annual demand quantity and test specifications. Our optical engineers will evaluate manufacturability and provide quotation & sample plan quickly.
Felix Glass Co., Limited · Model FG-DOME-001
1. Custom Sapphire Surveillance Optical Dome Overview
Material & optical advantages
2. Core Advantages of Sapphire & Infrared Optical Dome
2.2 Broad spectrum transmission
2.3 Excellent environmental resistance
Harsh environment adaptability
3. Pressure, Salt Fog & Thermal Shock Resistance
Drawing-based precision manufacturing
4. Custom CNC Machining & Polishing Standards
Dome contour machining
Edge processing
Optical coating service
Dimensional tolerance control
Optical performance
5. Multi-Band Light Transmittance Performance
Surface protection performance
6. Anti-Abrasion & Anti-Corrosion Surface Characteristics
High hardness anti-scratchSapphire material effectively prevents surface scratches caused by sand and debris impact.
Salt fog corrosion resistanceStable chemical properties, adapt to long-term offshore and marine working environment.
Coating durabilityHigh-quality vacuum AR coating with stable performance after temperature cycle aging test.
Anti-reflection optimization
7. Broadband AR & BBAR Anti-Reflection Coating Solution
Custom specification list
8. Optional Customization Parameters
Specification item
Available options
Project confirmation
Substrate Material
Single Crystal Sapphire, BK7/H-K9L, ZnS, ZnSe, Germanium
Working spectrum, environment, cost budget
Dome Structure
Hemisphere, hyper hemisphere, flanged integrated dome
FOV requirement, installation space, assembly structure
Size & Wall Thickness
Custom outer diameter, inner diameter, spherical radius, wall thickness
Pressure resistance limit, optical design constraints
Optical Coating
Single band AR, broadband BBAR anti-reflection coating
Target wavelength, transmittance & reflectance target
Surface Quality
40/20, 20/10 MIL optical surface grade
Imaging system sensitivity requirements
Edge Treatment
Flat edge, chamfer edge, sealing step processing
Housing assembly and sealing design
Sampling & mass production cycle
9. Lead Time for Samples & Volume Orders
Prototype samples: 10–14 working days
Trial small batches: 16–22 working days
Mass production orders: 25–35 working days
Technical FAQ
10. Optical Dome Technical Frequently Asked Questions
Which material should I choose for deep sea ROV dome?
Can hyper hemispherical sapphire domes be customized?
Can you provide optical transmittance test reports?
Is BBAR coating available for infrared ZnS domes?
What is the maximum processing diameter of sapphire dome?
Can long-term stable mass supply be guaranteed?
RFQ preparation checklist
