Custom Multispectral ZnS IR Window | Cleartran FLIR Grade, DLC + BBAR Coating, 8-12μm LWIR
| Share | |
|---|---|
| Categories | ZnSe Infrared Window |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FG -ZNS-WIN75 |
| Material | Multispectral ZnS (Cleartran / FLIR grade optional) |
| Dimension | Custom(+0.00/-0.10mm), |
| Clear aperture | ≥67.5mm (>90%) |
| Surface figure | λ/4 @632.8nm |
| Surface quality | 60/40 or 40/20 scratch/dig |
| Outer side | DLC hard carbon coating, MIL-C-48497A / TS-1888 standard |
| Inner side | BBAR anti-reflection coating, Tavg ≥95% @8–12μm |
| Working band | 8~12μm long wave infrared |
| Applications | Thermal imaging, FLIR camera, infrared detection system, optical protection dome & window |
| Download |  |
Product Overview

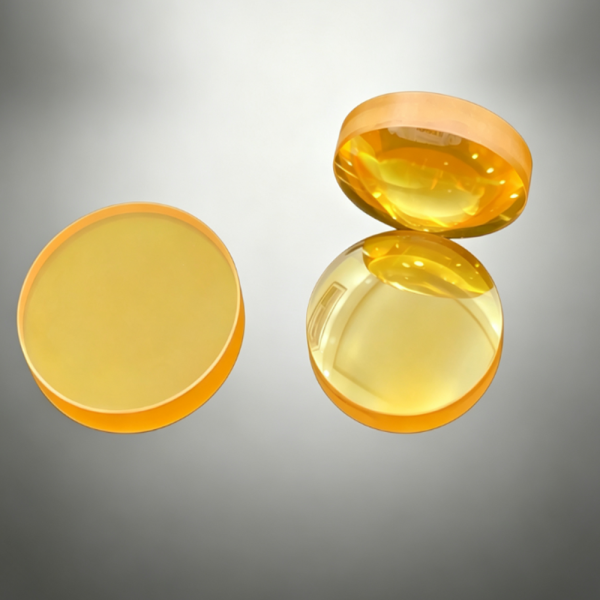

This 75mm diameter multispectral ZnS infrared window adopts Cleartran (FLIR grade) zinc sulfide substrate, designed for 8~12μm long-wave infrared band. One side is deposited DLC hard carbon coating following MIL-C-48497A / TS-1888 specification for scratch, abrasion and environmental resistance; the opposite side features BBAR broadband anti-reflection coating, delivering average transmittance ≥95% across 8–12μm. Strict optical figure and scratch-dig standards guarantee stable imaging performance for thermal imaging and infrared detection equipment.
Core Specifications
| Item | Parameter |
|---|---|
| Material | Multispectral ZnS (Cleartran / FLIR grade optional) |
| Dimension | Dia 75.0mm (+0.00/-0.10mm), Thickness 5.0mm (±0.10mm) |
| Clear Aperture | ≥67.5mm (>90%) |
| Surface Figure | λ/4 @632.8nm |
| Surface Quality | 60/40 or 40/20 scratch/dig |
| Outer Coating | DLC hard carbon coating, MIL-C-48497A / TS-1888 |
| Inner Coating | BBAR anti-reflection coating, Tavg ≥95% @8–12μm |
| Working Band | 8~12μm LWIR |
Key Features
- Dual coating design: DLC for mechanical protection + BBAR for high infrared transmission
- Cleartran multispectral ZnS, low scatter, suitable for FLIR thermal camera
- Precision diameter & thickness tolerance for tight housing assembly
- High clear aperture ratio, maximize effective infrared receiving area
- Optional premium 40/20 scratch dig for high-end infrared detection system
- Resist abrasion, sand, moisture and salt fog for outdoor & airborne IR systems
Typical Applications
- LWIR thermal imaging camera & FLIR observation system
- Infrared detection, perimeter surveillance & EOIR turret optical protection
- Optical protective window replacement for IR sensor assemblies
- Industrial thermal inspection and rugged outdoor infrared optics

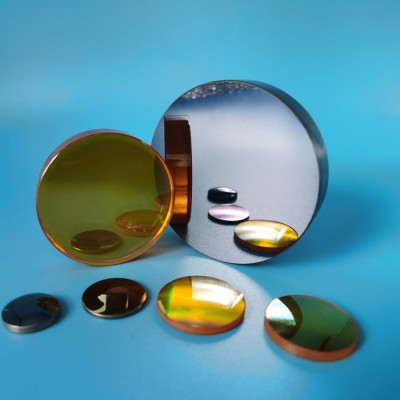

Full Range of Custom Infrared Optical Components
Our in-house manufacturing covers a complete portfolio of infrared optical components, including ZnS, ZnSe and Germanium domes, lenses and optical windows in a wide range of diameters and specifications. All components can be customized with wavelength-targeted IR coatings and precision optical finishing to match your exact system requirements.
Our Service Advantages
- Custom optical specifications available upon drawing request
- Provide official material datasheet and coating test report
- Full coating inspection before shipment, transmittance & surface check
- Stable production lead time for prototype and volume orders
- Support custom size, alternative coating and surface quality upgrade
In-House Precision Polishing & Coating Workshop
All infrared optics are machined, polished, coated and inspected in our dedicated clean workshop with professional grinding, polishing, vacuum coating and optical metrology equipment. Strict in-process quality control ensures consistent surface quality, coating performance and dimensional accuracy for every prototype and production batch.
Frequently Asked Questions
A: Cleartran is multispectral grade ZnS, compared with standard ZnS, it has lower scattering and better visible + IR transmission, widely known as FLIR grade substrate for high-performance thermal optics.
A: DLC stands for Diamond-Like Carbon. It is a hard protective coating for the exposed outer surface, featuring excellent anti-scratch, sand erosion, rain and salt fog resistance. It looks dark matte with low reflection.
BBAR means Broadband Anti-Reflection coating. It is a multilayer dielectric film on the inner sealed side. It reduces infrared reflection to raise average transmission ≥95% at 8–12μm, with colorful interference reflection under light. BBAR is optical-performance oriented but not scratch-resistant.
| Item | DLC Coating | BBAR Coating |
|---|---|---|
| Function | Hard protection, anti-erosion & scratch | Reduce reflection, boost IR transmission |
| Installation Side | Outer, exposed environmental side | Inner, sealed camera cavity side |
| Abrasion Resistance | Excellent | Poor, easy to scratch |
| Appearance | Dark grey matte, low reflection | Colorful interference tint |
A: Yes. We can customize BBAR wavelength range, and upgrade scratch dig from 60/40 to 40/20 for high-end infrared systems.
A: This is flat infrared protective window, not hemispherical dome. Please confirm mechanical interface with your optical housing before ordering.
Request Quotation or Datasheet for 75mm Multispectral ZnS IR Window
