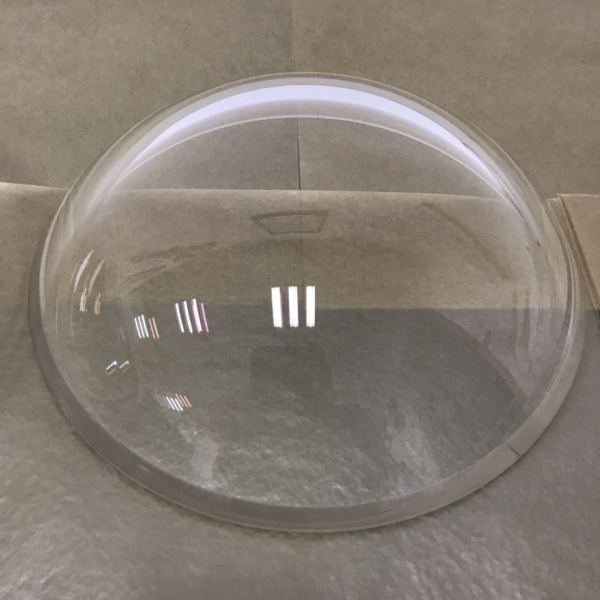

Optical Dome | Optical Fairing for IR & Visible Imaging
| Share | |
|---|---|
| Categories | IR Optical Dome |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Product Specifications | Optical Dome | Optical Fairing |
| Product Name | Product Name |
| Brand | Felix Glass |
| Material Options | CVD ZnS, CVD ZnSe, Sapphire, Fused Silica, CaF₂, Silicon, Germanium |
| Available Shape | Hemispherical, Spherical Cap, Ellipsoidal, Ogival (Pointed Arch) |
| Working Wavelength | Visible, Near IR, MWIR, LWIR 8–14μm, Multi-spectral |
| Coating Options | AR, BBAR, DLC Diamond-Like Carbon, Custom broadband coating |
| Surface Quality | Custom per drawing (e.g. 60-40, 40-20, 20-10) |
| Wall Thickness | Customized |
| Outer Diameter | Custom large & small diameter available |
| Application | Airborne pod, UAV EO/IR system, thermal imaging, multispectral payload, underwater detection, survei |
| Feature | Hollow curved shell, not solid lens; optical transmission + environmental protection + aerodynamic s |
| Download |  |

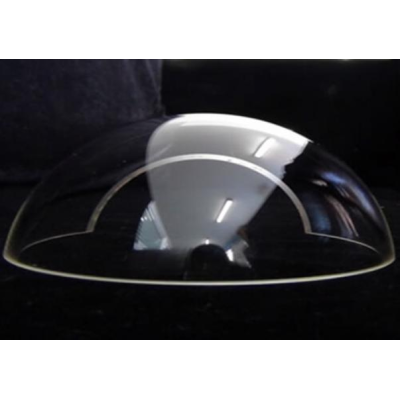

Custom Hollow Curved Optical Dome / Aerodynamic Optical Dome from Felix Glass ZnS Hemispherical Optical Dome Ellipsoidal Airborne Optical Dome Ogival Sapphire Optical Dome BBAR / DLC Coated IR Optical Dome Optical Dome is a hollow curved optical shell mounted outside cameras or optical sensors. It combines optical window, environmental protection and (for aerospace version) aerodynamic shaping. It is not a solid lens. The inner cavity reserves space for lenses and detectors, both inner and outer surfaces are precision optically polished. Hemispherical, spherical cap, ellipsoidal, ogival (pointed arch). Shape selection depends on FOV, imaging performance and aerodynamic requirements. Curved surface refraction will introduce aberration, so curvature, wall thickness uniformity and air gap with rear optics must be co-simulated with your optical system. Airborne survey camera pods, thermal infrared imaging, multi-spectral payload, underwater optical detection, security optical sensors, UAV electro-optical systems. Felix Glass Note: “Optical Dome” is the general category. The term “Optical Fairing / Optical Radome” is specially used for aerospace models with aerodynamic requirements.Optical Dome | Optical Fairing (Optical Radome)
What is Optical Dome?
Three Core Functions
Available Shapes
Available Materials & Coatings (Felix Glass)
Coating Options
Typical Applications
Need Custom Optical Glass Solution?
Send us your drawing, dimension & coating requirements for fast quotation within 24 hours.
Get Free RFQ
Custom Precision Optical & Glass Components Manufacturer – Felix Glass Co., Limited.
We supply Industrial Glass, Sapphire Optics, Optical Lenses/Prisms/Filters, Infrared IR Optics, Functional & Display Glass, N-BK7/H-K9L Optical Glass, supporting OEM mass production and laboratory custom prototypes. Flexible MOQ & free sample service available. Fill in the form to download full datasheets and get factory wholesale price within 24 hours.
- Name
- *Title
- *Content
- What is the minimum order quantity for custom precision optical glass components?
FELIX OPTICAL GLASS offers highly flexible MOQs to support customer projects, including prototype testing, small-batch trial orders, and high-volume production. All products can be fully customized to your drawings, tolerances, and application standards. Please send us your specifications, and we will reply within 1-5 hours and provide an accurate quotation after careful evaluation within 1-2 days.
- Can I get free glass samples for testing before bulk order?
Yes, our FELIX GLASS factory supports sample testing for a wide range of precision optical glass components and assemblies. The lead time for sample production is 3 to 7 working days. Please contact us today to arrange samples and obtain a customized solution that meets your needs.
- What is the production lead time for custom optical glass components?
A: The production cycle for standard samples is 3-10 working days, while mass production requires 15-35 working days, depending on the complexity of the product and the order quantity. We provide reliable precision optical glass components and fast delivery services for orders from industries such as defense, industrial equipment, medical devices, shipbuilding, robotics, automotive, and aerospace. Please submit your project details so we can provide you with an accurate delivery schedule.
- Are your optical glass products ISO, CE and RoHS certified?
All precision optical glass components from FELIX OPTICAL GLASS comply with ISO quality system standards as well as CE and RoHS requirements. We provide comprehensive test reports, spectral graphs, material certificates, and inspection documents for customer review. Please feel free to request complete certification details and a formal quotation at any time.
- Do you offer one-stop custom optical glass processing services?
Yes. We offer a full range of precision optical glass component processing services, including CNC machining, precision grinding, optical polishing, chemical/physical tempering, vacuum coating (AR anti-reflective coating, AF anti-fingerprint coating, AG anti-glare coating, IR infrared coating), and screen printing. From raw materials to finished products, every step is completed in our own factory. Please tell us your needs, and we will provide you with the most cost-effective solution.
