Sapphire Crystal Orientation Difference between C-Plane and A-Plane

Why Crystal Orientation Matters

Unlike isotropic optical materials, single-crystal sapphire is anisotropic. Its refractive index, thermal transport, elastic response, hardness, fracture behavior, and material-removal behavior can vary with crystallographic direction. The effect that matters most depends on how the finished component is oriented relative to the light path, heat flow, load, and polishing direction.

For precision optical designs, an orientation mismatch can introduce polarization-dependent behavior, nonuniform thermal deformation, direction-sensitive machining response, or avoidable production risk. Orientation should therefore be stated on the drawing together with surface normal, clocking requirement when applicable, wedge, flatness, surface quality, coating, and operating conditions.

• Optical: propagation direction relative to the optic axis determines whether birefringence affects the transmitted beam.
• Thermal: conductivity is direction-dependent and changes with temperature, so the assembly-level heat path matters more than a plane name alone.
• Mechanical: elastic response, crack behavior, and removal rate can vary by orientation and process.
• Manufacturing: orientation verification, fixturing, polishing recipe, coating design, and inspection method affect yield and cost.

Definition of C-Plane and A-Plane Sapphire

Sapphire (alpha-Al₂O₃) has a trigonal crystal structure commonly described with hexagonal axes. The C-plane and A-plane names identify different crystallographic surfaces. The plane normally becomes the major polished face of a wafer, window, or substrate, while the corresponding surface normal defines the cut direction.

Core Differences Between C-Plane and A-Plane Sapphire

1. Optical Transmission and Birefringence

Both cuts are made from the same sapphire material, so the intrinsic absorption range is not changed simply by renaming the plane. The important difference is the relationship between the light path and the optic axis. With a C-plane window at normal incidence, propagation is along the optic axis and birefringent beam splitting is suppressed. At oblique incidence, or when stress is present, polarization effects can still appear.

With an A-plane window at normal incidence, propagation is perpendicular to the optic axis. Ordinary and extraordinary polarization components can therefore accumulate different phase. This behavior may be useful in a deliberately polarization-sensitive design, but it may be unwanted in an imaging or interferometric system. Wavelength, thickness, incidence angle, polarization state, and axis clocking should be included in the optical model.

2. Thermal Conductivity and Heat Resistance

Sapphire provides useful thermal conductivity and high-temperature stability, but its thermal properties are anisotropic and temperature-dependent. C-plane parts conduct through thickness along the c-axis; A-plane parts conduct through thickness along an a-axis. The practical difference should be evaluated with the actual temperature range, contact area, mount, coating, cooling method, and heat-flux direction.

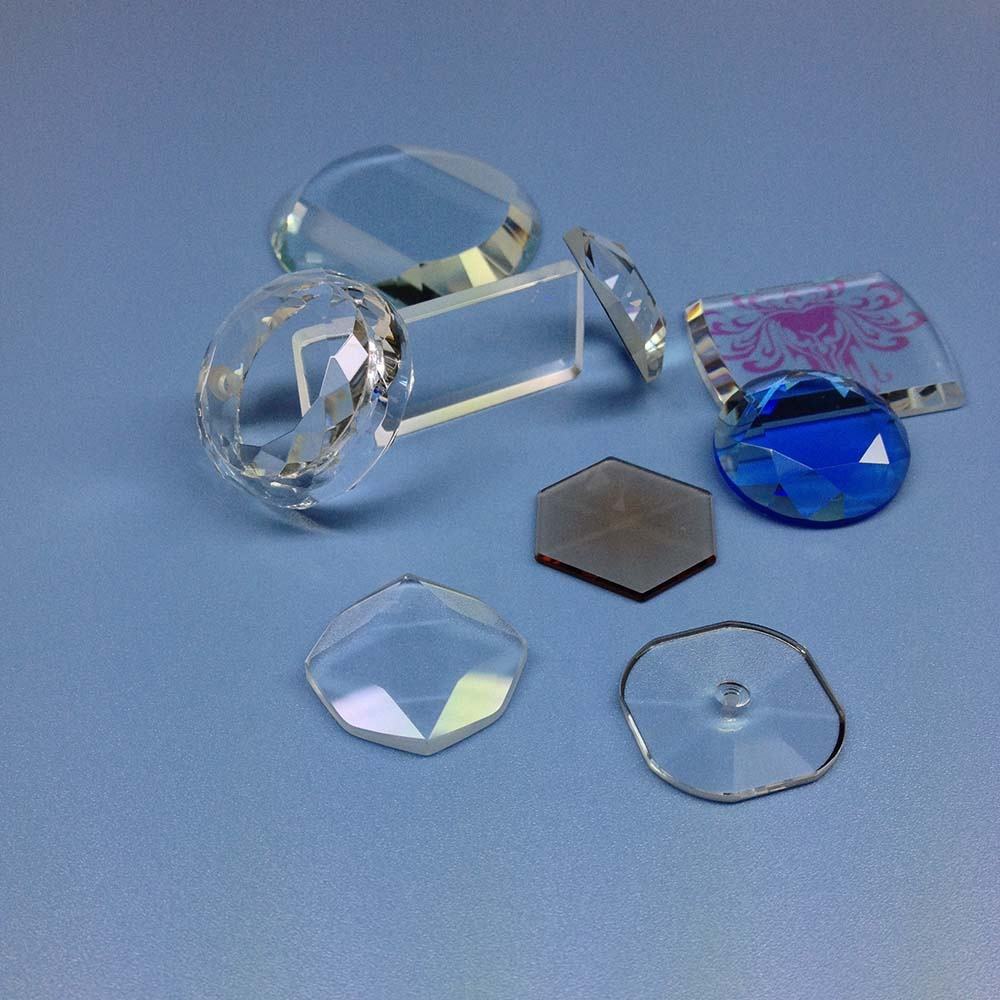

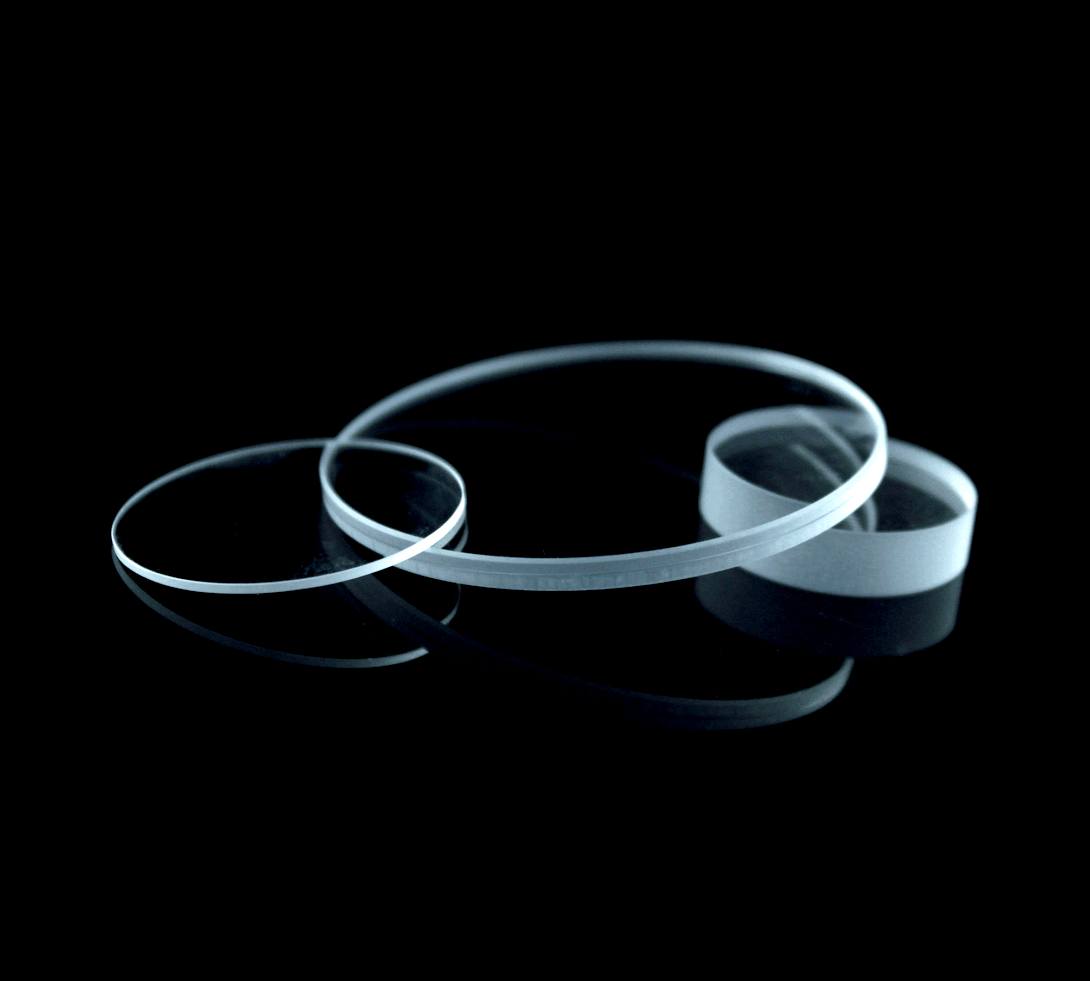

C-plane sapphire is widely used for furnace observation windows and other hot-environment optical components because it combines optical access, hardness, chemical stability, and established manufacturing. A-plane may be evaluated when a directional heat path or a specific in-plane axis is important. Neither orientation alone guarantees thermal-shock performance; edge finish, thickness, clear aperture, constraint, temperature ramp, and pressure differential also matter.

3. Machining and Polishing Characteristics

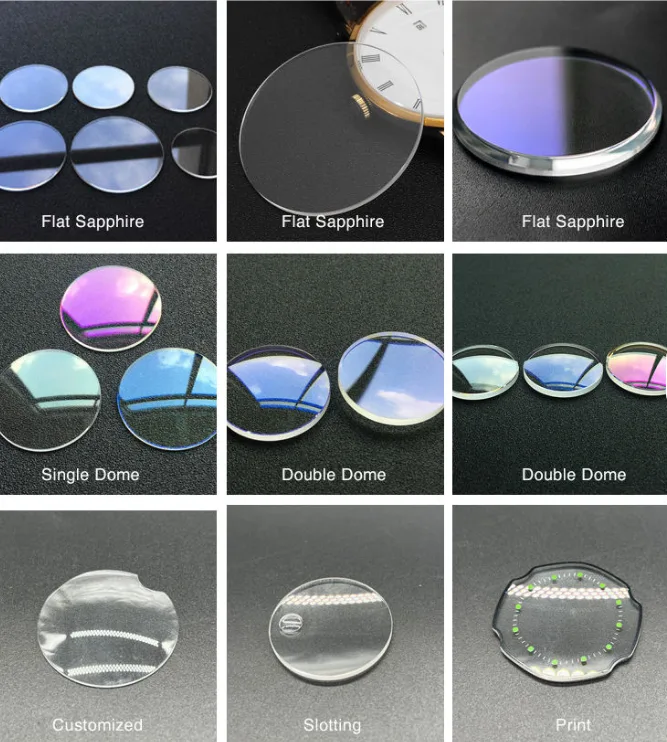

C-plane sapphire has mature process recipes for lapping and optical polishing, and it is commonly produced with controlled flatness and low surface roughness. Its commercial availability can support standard windows, lenses, and wafers at repeatable volume.

A-plane sapphire has orientation-dependent material-removal and fracture behavior. It is not accurate to assume that it is always harder or always easier to polish: results depend on the process, abrasive, scan or polishing direction, removal mechanism, and required surface specification. A qualified supplier should use an orientation-specific route and verify the finished surface using the inspection method stated on the drawing.

4. Typical Application Scenarios

C-plane sapphire applications: high-temperature observation windows, general industrial optical windows, protective windows for optical instruments, sapphire lenses, sensor covers, and standard substrates. It is a practical starting point when stable optical performance, established processing, and cost control are priorities.

A-plane sapphire applications: polarization-sensitive optical assemblies, semiconductor or thin-film substrates that require a specific surface relationship, high-heat-load systems with a defined directional model, aerospace research components, and precision parts whose function depends on the in-plane c-axis.

How to Choose Between C-Plane and A-Plane Sapphire

For many conventional optical projects that require clear transmission, predictable polishing, broad availability, and cost control, C-plane sapphire is the usual starting point. It is especially appropriate when the chief ray is near normal to the window and the design seeks to minimize orientation-driven birefringence along that path.

For polarized-light optics, semiconductor substrates, axis-specific heat-flow designs, or parts requiring controlled in-plane crystallographic direction, A-plane sapphire may be the better fit. The benefit must be tied to a modeled or measured requirement rather than selected from the plane name alone.

1. Define the optical path: wavelength band, incidence angles, polarization sensitivity, transmitted wavefront, and allowable retardance.
2. Define the thermal and mechanical case: temperature range, gradients, pressure differential, mounting load, shock, and heat-flow direction.
3. Define the drawing: plane, surface normal, in-plane clocking if needed, size, thickness, wedge, flatness, surface quality, and edge finish.
4. Define the coating: spectral band, angle, polarization, durability, and operating environment.
5. Validate production: orientation certificate, inspection report, sample approval, and lot-to-lot acceptance criteria.
