Custom AR Coated Tempered Optical Glass Dome for PTZ Speed Dome CCTV Camera

Custom AR Coated Tempered Optical Glass Dome for PTZ Speed Dome CCTV Camera
Custom AR Coated Tempered Optical Glass Dome for PTZ Speed Dome CCTV CameraCustom AR Coated Tempered Optical Glass Dome for PTZ Speed Dome CCTV CameraCustom AR Coated Tempered Optical Glass Dome for PTZ Speed Dome CCTV CameraCustom AR Coated Tempered Optical Glass Dome for PTZ Speed Dome CCTV CameraCustom AR Coated Tempered Optical Glass Dome for PTZ Speed Dome CCTV CameraCustom AR Coated Tempered Optical Glass Dome for PTZ Speed Dome CCTV Camera
Share
CategoriesPTZ Surveillance Dome
BrandFELIX GLASS optical glass Manufacturing base
Product SpecificationsFG-DOME-TEMPERED-CCTV01
Base MaterialHigh-strength tempered optical glass
CoatingWavelength-specific AR; other treatments by review
Optical PerformanceTransmission, reflection and image quality per agreed test
Structural FeaturePrecision hemispherical dome design for surveillance camera housing
Custom Dimension Range10-300 mm reference range; geometry reviewed per drawing
Surface PerformanceImpact, weather and wear tests per agreed specification
Edge TreatmentCustom precision edge finishing to match camera housing assembly
Surface QualityCustom optical grade per customer engineering drawing
MOQ Support5 pieces; single-piece prototypes subject to review
Quality InspectionPer-piece and sample inspection scope agreed before order
Manufacturing ServiceOEM / ODM full surveillance optical dome customization
Main ApplicationPTZ/CCTV camera housing covers; assembly validation required
Unit PriceUS $ 2.88-5.99 / piece
FOB portSHENGZHEN SHANGHAI GUANGZHOU
Terms of PaymentL/C, D/A, D/P, Western Union
DownloadDownload pdfDownload pdfDownload pdf
Detail Information

What to Send for a Quote

A sketch or preliminary dimensions are enough to start.

  • Camera model or reference photo, outer diameter and mounting lip dimensions
  • Lens travel and IR illuminator position, if applicable
  • Prototype quantity and expected production quantity

Quote basis. Final pricing and lead time depend on the approved geometry, material grade, coating, inspection scope and order quantity. Include any required tooling or validation in your request.

Request a project quote · Custom optics RFQ checklist

Dome Cross-Section Guide

PTZ camera dome · cross section

H · Dome height   |   t · Wall thickness

ØD · Outside diameter

Mounting interface

Schematic only, not to scale. Use the approved drawing for dimensions and tolerances.

How to Read the Listed Price

The displayed unit-price tiers and minimum order quantity are reference values. Ask us to confirm the price for your exact geometry, material, coating, inspection scope and quantity. Include the camera model, housing fit and any night-vision requirements. Specify prototype and production quantities separately. The written quotation identifies the configuration and quantity tier it covers and states any separate tooling or testing charges.

Tempered dome Ø50–400 mm · AR coated · quote in 24 hRequest a Quote
Custom Glass Dome for PTZ Cameras

Send the camera model or a photo of the current cover, its outer diameter and whether the camera uses night-vision illumination. If available, include the mounting lip or flange dimensions and lens travel. We can use these details to review fit, field-of-view clearance and potential reflections.

Check Fit for Your PTZ Camera

AR coated tempered glass dome for PTZ CCTV speed dome cameras

Custom AR Coated Tempered Optical Glass Dome | PTZ Security Camera Hemispherical Dome Cover

Felix Glass brings 19+ years of optical glass manufacturing and processing experience to custom PTZ and CCTV camera dome covers. We review the substrate, strengthening route, inner and outer radii, wall thickness, mounting edge and wavelength-specific AR coating around your housing drawing. Optical, mechanical and environmental acceptance requirements are agreed before quotation.

Custom AR Coated Tempered Optical Glass Dome, hemispherical protective cover for PTZ outdoor CCTV speed dome camera housing

Verify Day and Night Imaging Before Production

Specify the installed illuminator wavelength, such as 850 nm or 940 nm where used, and request the relevant spectral targets. Test a representative dome with the actual lens, IR illuminator, isolating seal and housing across the required viewing angles and zoom positions. Assess flare, ghosting, sharpness and reflections with clean, wet and contaminated surfaces as appropriate. AR alone cannot eliminate reflections caused by nearby objects, water droplets or light leakage.

Distinguish condensation inside the enclosure from water on the outside. If anti-fog, heating or water-repellent treatment is needed, define humidity, temperature transition, power/control limits where applicable and post-test optical acceptance. Do not assume ordinary AR or AF coating provides anti-fog performance.

Request prototype and production quotations separately. Confirm the dimensions, quantity, coating and test scope covered by the displayed price; it is not a quotation for every custom design. Use the custom optics RFQ preparation checklist to prepare your enquiry.

Why Use Tempered AR Coated Hemispherical Dome for PTZ Camera?

A dome can accommodate a PTZ camera viewing envelope when its geometry is matched to the lens position and housing. Evaluate image sharpness, distortion, vignetting and reflections across the required pan, tilt and zoom positions. Coating performance alone does not guarantee assembled-camera image quality or weather protection. Read our guide to dome protection, mounting and environmental validation when defining the complete assembly.

High-Strength Tempered Glass Substrate

Select the base glass and strengthening process together. Specify the impact method, test energy, mounting configuration, sample plan and acceptance criteria; vandal resistance requires testing of the relevant assembly.

Multilayer AR Functional Coating

Specify daytime and night-illumination bands, coated faces, incidence angles and transmission/reflection targets. AF or AG is considered only after image-quality, haze and cleaning-durability review.

Drawing-Driven Full Customization

Outer diameter, wall thickness, spherical radius, sealing edge profile and coating stack are customized strictly per your camera housing drawings.

AR coated tempered hemispherical glass dome for outdoor CCTV speed dome PTZ camera
Material & coating specification overview

Tempered Glass Dome Technical Parameters

All optical & structural specs customizable based on your PTZ housing drawings and surveillance operating requirements. Small batch prototyping available.

  • Base Substrate: High-strength tempered optical glass
  • Optional Functional Coatings: Wavelength-specific AR; AF or AG subject to imaging and durability review
  • Typical Transmittance: Per agreed spectral band, incidence angles, glass thickness, coated faces and measurement configuration
  • Optical Performance: Precision hemispherical polishing to minimize imaging distortion
  • Custom Size Range: Outer diameter 10–300 mm, customizable curvature and wall thickness
  • Surface Properties: Impact, abrasion, weather exposure and coating durability evaluated against agreed project tests
  • Edge Processing: Edge geometry and tolerance matched to the housing drawing; seal design and assembled-enclosure leak testing agreed separately
  • Quality Control: Agree per-piece visual and dimensional inspection scope separately from sampled impact, coating durability and qualification testing

Key Specifications for AR Coated Tempered Optical Glass Dome

Product type AR Coated Tempered Hemispherical Optical Glass Dome for PTZ Speed Dome CCTV Camera
Model reference FG-DOME-TEMPERED-CCTV01
Base Material High strength tempered optical glass
Functional coating Wavelength-specific AR after review; other treatments require image-quality and durability evaluation
Custom Manufacturing Custom outer diameter, spherical radius, wall thickness, edge finish and inspection standards
Inspection Items Dimensional tolerance test, surface defect screening, transmittance and coating adhesion verification
MOQ & Sample Current listing MOQ: 5 pieces. Single-piece prototype requests require separate feasibility and cost review
Typical Lead Time Prototype and production lead times quoted after drawing approval, material availability, coating and test scope are confirmed

Typical Application Scenarios

Define the actual camera, housing, exposure and image-quality requirements. Validate a representative dome in the intended assembly before approving production; component inspection does not establish an enclosure IP or impact rating.

Tempered glass dome for outdoor PTZ speed dome CCTV surveillance camera

Indoor & Outdoor PTZ Speed Dome Cameras

Parking lots, campus, city security cameras requiring full 360° rotating monitoring coverage.

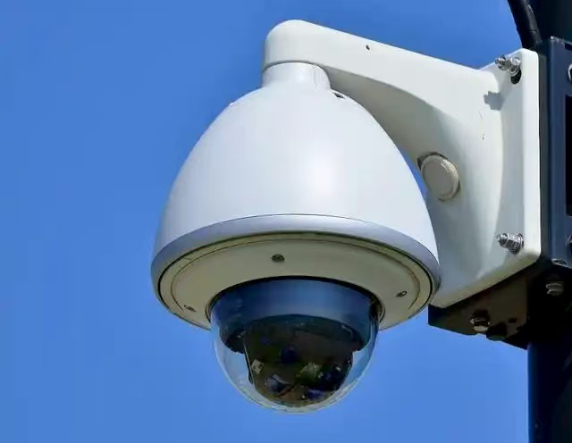

Tempered glass dome for public space security monitoring

Public Building Surveillance

Shopping malls, office buildings & access control systems with mixed indoor/outdoor conditions.

Protective tempered dome for industrial outdoor PTZ camera

Factory & Warehouse Industrial Monitoring

24/7 outdoor PTZ camera systems for industrial sites, ports and logistics warehouses.

Production Workflow for Custom Tempered Surveillance Glass Dome

02

Material, Forming & Strengthening Review

Confirm the substrate and manufacturing sequence for the selected geometry. Forming, machining and optical finishing are coordinated with the strengthening route; any post-strengthening processing requires engineering review.

03

Grinding & Precision Polishing

Review inner and outer radius, wall-thickness variation, edge geometry and optical surface finish. Final acceptance applies to the finished dome after the agreed processing route.

04

Vacuum Functional Coating

Review AR by spectrum, angle and treated faces. Include haze, cleaning and environmental tests for any additional surface treatment.

05

Inspection & Shockproof Packing

Full optical & dimensional inspection; dust-free anti-scratch packaging for shipment.

Material selection guide

Select the Substrate and Strengthening Route

Choose Tempered Glass Dome When

Consider an agreed glass substrate with a suitable strengthening route where mechanical protection and cost are priorities. Confirm optical quality after processing.

Upgrade To BK7 Optical Dome When

BK7 is a material selection; tempering describes a processing route. Compare material homogeneity, processing feasibility and measured camera performance rather than treating BK7 and tempered glass as mutually exclusive categories.

Upgrade To Sapphire Dome When

Consider sapphire when surface hardness is a priority. Review cost, spectral performance, geometry and environmental tests separately; material selection alone does not establish service life.

Frequently Asked Questions About AR Coated Tempered Glass Dome

Can dome dimension and curvature be customized?

Yes. We support drawing-based customization for outer diameter, spherical radius, wall thickness, edge sealing structure and optical clear zone. Submit your drawing for free DFM review.

What transmittance can AR coated tempered glass reach?

Transmission and reflection targets are agreed for the working band, angle, polarization, thickness and coated faces. State whether acceptance applies to the finished dome, a witness sample or the assembled camera; no universal 99% or zero-distortion value is assumed.

What is the difference between tempered glass dome and BK7 dome?

Tempering is a strengthening process, while BK7 identifies a glass family. Specify the substrate grade and strengthening requirements separately, then evaluate the finished dome against mechanical and image-quality acceptance criteria.

Can multiple coatings (AR+AG+AF) be applied on one dome?

Request feasibility review for each treatment and its location. AG can introduce scattering, so assess haze, flare and image sharpness on the intended camera. AF requires agreed cleaning and wear tests.

Do you accept prototype small batch orders?

The listing minimum is 5 pieces. Request separate review if one prototype is needed. Sample cost and lead time depend on the approved geometry, material, coating and inspection scope.

Can I get sample for testing?

Samples available for optical & assembly test. Send your drawing to check feasibility and sample cost.

Submit Your PTZ Dome Drawing | Free DFM Assessment & Formal Quote

Send your housing drawing, inner and outer radii, wall thickness, lens position, pan/tilt/zoom envelope, daytime and night-illumination bands, quantities and deployment conditions. We review feasibility and confirm the quotation schedule after receiving the required specifications.
