Custom Auto Display Cover Glass | AR/AF Coated Vehicle Touch Glass

Custom Auto Display Cover Glass | AR/AF Coated Vehicle Touch Glass
Custom Auto Display Cover Glass | AR/AF Coated Vehicle Touch GlassCustom Auto Display Cover Glass | AR/AF Coated Vehicle Touch GlassCustom Auto Display Cover Glass | AR/AF Coated Vehicle Touch GlassCustom Auto Display Cover Glass | AR/AF Coated Vehicle Touch GlassCustom Auto Display Cover Glass | AR/AF Coated Vehicle Touch GlassCustom Auto Display Cover Glass | AR/AF Coated Vehicle Touch Glass
Share
CategoriesDisplay Cover Glass
BrandFELIX GLASS optical glass Manufacturing base
Product SpecificationsM98
Product TypeCustom 1.1mm Tempered Glass Panel for Car DVR
Raw MaterialsCrystal White / Soda Lime / Low-Iron Glass
SizeCustomizable Size
Thickness0.33mm – 12mm
TemperingHeat Tempering / Chemical Tempering
Edge ProcessingFlat Surface (Flat / Pencil / Beveled / Chamfered
HolesRound / Square (Irregular Holes Available)
ColorBlack / White / Silver (Up to 7 Layers of Color)
CoatingsAnti-Glare (AG) / Anti-Reflection (AR) / Anti-Fing
Production ProcessCutting → Edge Polishing → CNC → Cleaning → Printi
FeaturesScratch Resistant / Waterproof / Anti-Fingerprint
Unit PriceUS $ 2.88-5.99 / piece
FOB portSHENGZHEN SHANGHAI GUANGZHOU
Terms of PaymentL/C, D/A, D/P, Western Union
DownloadDownload pdfDownload pdfDownload pdfDownload pdfDownload pdf
Detail Information
Custom Auto Display Cover Glass

Send your drawing or sample requirement for a fast quotation. MOQ, lead time and coating options are confirmed within one business day.

Request a Quote

Model M98 · Custom Automotive Display Cover Glass

Custom Auto Display Cover Glass for Vehicle Touch Displays

Dongguan Felix Glass Co., Ltd. manufactures custom display cover glass for automotive infotainment systems, dashboards, rear-seat displays, and car DVR equipment. Available processes include precision CNC machining, silk-screen printing, heat or chemical tempering, and AG, AR, AF, or combined functional coatings. Prototype quantities and production-volume programs are supported according to the drawing and qualification requirements.

ISO 9001 certified19+ years in optical glass manufacturingCustom size, printing, and coatingsPrototype MOQ: 1 piece

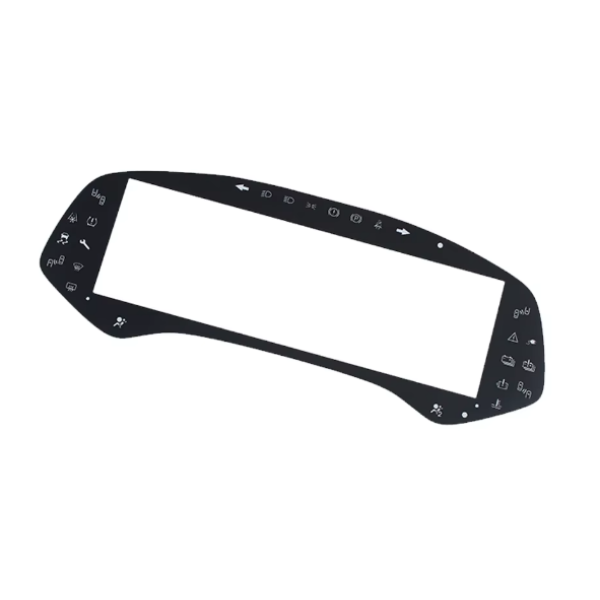

Custom automotive display cover glass for an in-vehicle touch display

Automotive Display Glass Options

The product range follows the original application sequence and can be configured to suit the display, assembly, and optical requirements of each vehicle program.

Custom Auto Display Glass

Tempered glass made to the specified cockpit screen size, outline, holes, edge profile, and printed border.

AR/AF Coated Vehicle Glass

Anti-reflection and anti-fingerprint surfaces can reduce reflected light and make touch surfaces easier to clean. Compare AG vs AF for surface selection.

Infotainment Touch Cover

Protective cover glass for central control and infotainment touch modules.

Precision-Cut Auto Glass

CNC cutting, hole machining, polishing, and chamfering for assembly-ready geometry. See edge processing guide.

Auto Display Cover Glass

Tempered protective glass for dashboards and rear entertainment displays.

Car DVR Glass Panel

Thin, scratch-resistant cover glass for vehicle driving recorders and monitoring devices.

AR and AF coated vehicle touch glass detail

Technical Specifications

Base materials Crystal white, soda-lime, low-iron, or automotive-grade aluminosilicate glass
Thickness 0.33–12 mm; common display options include 0.55, 0.7, 1.1, 1.8, and 2.0 mm
Tempering Heat tempering or chemical tempering; project values may include DOL 30–90 μm and CS 600–900 MPa. See chemical strengthening guide.
Edge processing Flat, pencil, beveled, chamfered, C/J chamfer, or 2.5D rounded edge
Holes and shapes Round, square, and irregular openings; custom outline sizes
Printing Black, white, silver, logos, and multilayer color printing; stated precision up to ±0.03 mm. See screen printing services.
Functional coatings AG, AR, AF, single coating, or AR+AF composite coating
Inspection AOI inspection for surface, printing, and coating defects

Values are configuration options, not universal guarantees. Final specifications are confirmed against the customer drawing, test method, and qualification plan.

Material Selection for Automotive Programs

Automotive-grade aluminosilicate glass is commonly selected when a project needs a thin cover, chemical strengthening, thermal-shock resistance, and stable coating adhesion. Soda-lime and low-iron glass remain available where the optical, mechanical, and cost targets favor those materials.

Dongguan Felix Glass Co., Ltd. can review thickness, edge geometry, printed masking, coating stack, and assembly conditions before sampling. Learn more in our display coating selection guide.

Automotive aluminosilicate display cover glass sample

In-House Manufacturing Process

1. Raw glass cutting2. Precision CNC machining3. Edge polishing4. Silk-screen printing5. Heat or chemical tempering6. AG, AR, or AF coating7. AOI inspection8. Protective film and packing

This sequence supports control of geometry, printed areas, mechanical strength, and optical surface requirements from prototype sampling through repeat production. See how custom glass processing boosts automotive display performance.

Precision processing for vehicle display cover glass

Application Problems and Practical Glass Solutions

Car Infotainment Touch Screen

Problem: Sunlight reflection and fingerprint residue can reduce screen visibility.

Option: AR/AF coated glass can combine lower reflection with a surface that is easier to wipe.

Vehicle Dashboard Display

Problem: Poor edge quality or insufficient strength can raise the risk of assembly damage.

Option: CNC-finished geometry and project-specific tempering can support the required fit and mechanical performance.

Car DVR Recorder

Problem: Surface scratches may affect the viewing or recording area.

Option: A thin tempered glass panel can provide a harder protective surface.

Custom vehicle display glass project application

Representative Automotive Project Types

New-Energy Vehicle Infotainment

Custom AR/AF coated infotainment touch cover glass with a C-chamfer for a vehicle display supply program.

Commercial Vehicle DVR

Precision-cut, thin tempered DVR glass designed for outdoor fleet-monitoring equipment and repeat production.

Project references indicate manufacturing experience; the specification and acceptance criteria for a new order are confirmed separately. See our AR+AF industrial HMI case study for a reference project.

Quality Control and Test Equipment

AOI Visual Inspection

Used to check scratches, printing pinholes, and visible coating defects.

Glass Stress Testing

Used to verify chemical-tempering depth of layer and surface compressive stress.

Haze and Reflectance Testing

Used to evaluate optical coating performance against the agreed test method.

Third-party test reports can be discussed for OEM qualification projects. Learn more about Dongguan Felix Glass Co., Ltd. or review the broader product catalog.

Why Work With Felix Glass

  • More than 19 years of optical glass manufacturing experience
  • CNC, printing, tempering, and coating capabilities under one supplier
  • AR/AF coating options for vehicle cockpit screens
  • Mechanical and optical parameters defined to the project specification
  • Prototype sampling from one piece and repeat production support
  • ISO 9001 quality-management certification

For technical articles and selection guidance, browse the Felix Glass Blog or our display glass technical library below.

Frequently Asked Questions

What is AR/AF coated vehicle glass used for?

AR coating is used to reduce reflected light, while AF coating helps limit fingerprint adhesion and makes the surface easier to clean. They may be applied separately or together.

Can the glass be cut for a special screen shape?

Yes. CNC processing can support custom outlines, holes, chamfers, rounded edges, and irregular display geometries based on a reviewed drawing.

Is the infotainment touch cover tempered?

Heat or chemical tempering can be selected according to thickness, strength targets, and the validation method. Final hardness and impact requirements should be stated in the project specification.

Where is car DVR cover glass used?

Typical uses include vehicle driving recorders, mirror-integrated camera systems, and fleet-monitoring equipment.

Can I order prototype samples?

Prototype sampling is available from one piece for drawing checks, assembly trials, and project qualification.

Display Glass Technical Library

Related reading for automotive display cover glass specification, coating selection and surface treatment.

Request a Custom Auto Display Glass Review

Send the glass drawing, dimensions, thickness, edge details, printing artwork, coating requirements, quantity, and test criteria. The engineering team can review manufacturability and prepare a project quotation.
