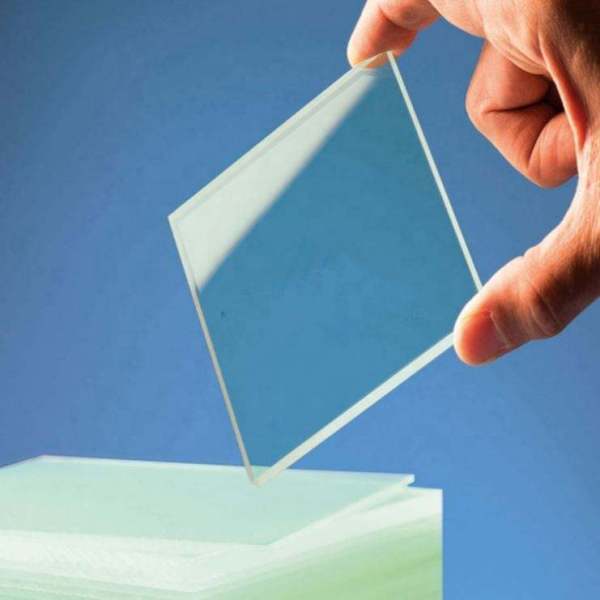

High Conductivity ITO Heater Glass for Medical Lab Heating - Felix Glass

High Conductivity ITO Heater Glass for Medical Lab Heating - Felix Glass
High Conductivity ITO Heater Glass for Medical Lab Heating - Felix GlassHigh Conductivity ITO Heater Glass for Medical Lab Heating - Felix GlassHigh Conductivity ITO Heater Glass for Medical Lab Heating - Felix GlassHigh Conductivity ITO Heater Glass for Medical Lab Heating - Felix GlassHigh Conductivity ITO Heater Glass for Medical Lab Heating - Felix GlassHigh Conductivity ITO Heater Glass for Medical Lab Heating - Felix Glass
Share
CategoriesCustom ITO Conductive Glass Manufacturer
BrandFELIX GLASS optical glass Manufacturing base
Product SpecificationsMDG-0539
Base SubstrateBorosilicate glass / UV fused silica quartz
Conductive FilmHigh-conductivity ITO (In₂O₃:SnO₂) thick uniform coating
Sheet Resistance (Heater Grade)3–10 Ω/sq (low resistance for fast heating)
Visible Transmittance≥83% @ 550 nm
Standard Dimensions50×50mm, 75×100mm, 100×150mm, custom sizes
Glass Thickness1.1mm, 1.5mm, 2.0mm, 3.0mm
Working Temperature RangeRT ~ 180°C constant temperature control
Heating UniformityTemperature deviation ≤ ±1.5°C across whole surface
Surface Roughness≤3 nm RMS for sample observation
Insulation SafetyInsulated edge processing to prevent electric leakage
Custom ProcessingCutting, drilling, electrode printing, ITO circuit patterning, edge chamfering
Chemical ResistanceResistant to lab solvents, alcohol and mild disinfectants
Unit PriceUS $ 3.09-4.98 / piece
FOB portSHENGZHEN SHANGHAI GUANGZHOU
Terms of PaymentL/C, D/A, D/P, Western Union
DownloadDownload pdfDownload pdfDownload pdfDownload pdfDownload pdf
Detail Information
High Conductivity ITO Heater Glass for Medical Lab Heating -

Send your drawing or sample requirement for a fast quotation. MOQ, lead time and coating options are confirmed within one business day.

Request a Quote

Custom Size
1PC Prototype
CNC Machining
ITO Sputtering
Precision Sheet Resistance
OEM/ODM

High-Conductivity ITO Heater Glass
for Medical and Laboratory Heating

High-conductivity ITO heater glass engineered for medical and laboratory heating — fast, uniform transparent heating from room temperature to 180°C, with temperature deviation within ±1.5°C across the full surface. Custom sheet resistance, dimensions, busbar layout and CNC machining from 1-piece prototype.

  • 1-Piece Low MOQ Prototype Support
  • Free Engineering Review Before Production
  • Custom CNC Machining & Irregular Shaping
  • Single-side / Double-side ITO Sputtering Coating
  • Tunable Sheet Resistance 3-1000 Ω/sq (Heater Grade)
  • Custom Drilling, Cutting & Edge Finishing
  • Full-Scale OEM / ODM Mass Production
Engineering Commitment: Send your drawing, dimensions or target surface temperature. Our engineers will review your heating project and recommend a suitable glass substrate, resistance grade and busbar layout for free.
High conductivity ITO heater glass for medical laboratory heating

Is Your Current ITO Heater Glass Supplier Causing These Problems?

Pain Points With Other Suppliers Felix Glass Solution
Heating temperature is uneven across the surface, hotspots damage samples We control sheet-resistance uniformity and busbar layout so surface temperature deviation stays within ±1.5°C, eliminating localized hot spots on medical heating stages and incubator windows.
Standard ITO glass cannot match your custom fixture dimension Off-the-shelf ITO substrates cannot fit your unique device housing, cutouts and edge profiles. We manufacture fully customized ITO heater glass strictly according to your CAD drawings and technical specifications.
Unstable sheet-resistance between batches ruins heating performance Poor sputtering control brings large resistance deviation and inconsistent surface temperature. Our in-house magnetron sputtering workshop tightly controls heater-grade sheet resistance (3-10 Ω/sq) for every batch.
ITO film peeling after cutting or machining Many suppliers machine after coating and cause ITO layer peeling. We prioritize substrate machining before sputtering for better coating adhesion and higher yield.
Busbar and edge leakage cause safety issues on medical equipment We add insulated edge processing and patterned busbar geometry to prevent current leakage and exposed conductive edges on medical heating glass.
Supplier requires high MOQ, hard for early-stage R&D validation We support 1-piece prototype testing to verify heating performance before mass-volume orders, lowering your R&D risk.
Difficult to find suppliers strictly follow drawing & resistance target Our engineering team reviews drawings, tolerance, target sheet-resistance and surface temperature requirements before production to ensure finished goods match your approved specification.

Why Global OEM Buyers Work With Felix Glass

19+ Years

Optical Glass Processing Experience

±0.01 mm*

Precision CNC Capability

1 Piece

Prototype Support

7-12 Days*

Typical Prototype Lead Time

14-25 Days*

Typical Production Lead Time

75,000 m²*

Manufacturing Facility

*Actual tolerance, lead time and production capability depend on material, geometry, coating, quantity and project requirements.

One Supplier From Prototype to Mass Production. Avoid quality disputes and delivery delays caused by multi-supplier coordination. We provide integrated control across substrate machining, magnetron sputtering ITO coating, busbar patterning and quality inspection for your custom ITO heater glass projects.

ITO Heater Glass Engineered for Your Application

Medical & Laboratory Heating

Low-resistance ITO coating (3-10 Ω/sq) for transparent heating stages, incubator windows, microscope warm plates and diagnostic equipment covers.

  • RT to 180°C constant temperature control
  • Temperature deviation ≤ ±1.5°C across surface
  • Insulated edge processing to prevent leakage
  • DC supply (12V / 24V) compatible

Recommended Solution: Borosilicate Substrate + Low-Resistance ITO Coating + Insulated Edge + Busbar Patterning

Discuss Your Heating Glass Requirement →

Electrochemistry Laboratory

Custom ITO conductive glass for photoelectrochemical cells, solar-cell R&D and material science test substrates.

  • Controllable sheet-resistance grades
  • Good chemical stability for electrolyte contact
  • High visible-range light transmittance
  • Strict batch-to-batch repeatability

Recommended Solution: Soda-lime / Borosilicate / Fused Silica Substrate + Single-side ITO Coating + Precision CNC Processing

Discuss Your Lab Glass Requirement →

Optoelectronic & Touch Sensors

High-precision ITO conductive glass for industrial touch-sensing layers and optoelectronic detector windows.

  • Stable conductive performance
  • Custom-cut dimensions & cutouts
  • Optional AR over-coating for higher transmission
  • Compatible with assembly fixture requirements

Recommended Solution: Borosilicate Substrate + ITO Coating + AR Composite Coating + CNC Machining

Request Sensor-Grade ITO Glass →

Industrial Anti-Fog & De-Icing

Large-format ITO heater glass for industrial HMI displays, CCTV dome windows, vehicle mirrors and outdoor optical viewports.

  • Fast anti-fog and de-icing response
  • DC 12V / 24V drive compatible
  • Long-edge or short-edge busbar options
  • Up to large format custom cut

Recommended Solution: Soda-lime / Borosilicate Substrate + Heater-Grade ITO + Edge Busbar + Insulated Border

Discuss Your Industrial Heater Project →

Core Technical Specifications

Item Parameter
Base Material Soda-lime / Borosilicate / Fused Silica Quartz
Coating Type Single-side / Double-side Magnetron Sputtered ITO
Thickness Range 0.5 mm - 3.0 mm, custom thickness available
Sheet Resistance (Heater Grade) 3-10 Ω/sq, customer-specified target*
Working Temperature Room temperature up to 180°C, ±1.5°C deviation*
Power Supply DC 12V / 24V (other voltage available on request)
Busbar Layout Long-edge / short-edge / patterned busbar, insulated edge
CNC Tolerance ±0.01 mm ~ ±0.15 mm typical*
Optional Extra Coating AR anti-reflection over-coating
Prototype MOQ 1 piece
Prototype Lead-time 7-12 days*
Mass Production Lead-time 14-25 days*

*Subject to material, geometry, coating, power supply and quantity.

Typical ITO Heater Glass Project Examples

Medical Heating Stage ITO Glass Project

Customer Requirement

Custom rectangular ITO heater glass for a laboratory microscope warm plate, surface temperature 60°C with tight uniformity, insulated edge to prevent leakage on medical equipment.

Our Solution

Borosilicate substrate precision CNC cutting, edge chamfer and insulated border, low-resistance ITO sputtering (target 5 Ω/sq), long-edge silver busbar patterning, four-point-probe resistance test and temperature mapping on every batch.

Typical Project Outcome

Prototype samples delivered in 9 days, approved by the customer's mechanical and electrical team for follow-up pilot production.

Industrial HMI Display ITO Heater Glass Project

Customer Requirement

Large-format 724×418mm ITO heater glass for a Korean industrial HMI display, 5 Ω/sq, 24V DC, long-edge busbar, soda-lime substrate, anti-fog in factory environment.

Our Solution

Large-format soda-lime substrate CNC cutting, low-resistance ITO sputtering, long-edge busbar with insulated border, batch resistance and optical inspection before shipment.

Typical Project Outcome

Custom samples delivered on schedule, validated under customer's HMI working conditions. Read more in our Korean HMI case study.

From CAD Drawing to Finished ITO Heater Glass

01 Engineering Drawing Review

Professionally verify drawing dimensions, tolerance, substrate material, target sheet-resistance, surface temperature and busbar layout to formulate customized production plans.

02 Professional Material Selection

Select matched substrates: soda-lime glass, borosilicate glass or fused silica quartz depending on temperature range, optical requirement and cost target.

03 Precision Raw Material Cutting

Original substrate cutting according to customized size standards to ensure blank dimension accuracy.

04 Custom CNC Machining

Complete personalized processing: holes, slots, cutouts, steps and irregular contour shaping for your fixture assembly.

05 Grinding & Polishing

Precision control of thickness, flatness and edge smoothness, eliminate burrs and sharp edges, strict ultrasonic cleaning before coating.

06 Magnetron Sputtering ITO Coating

High-vacuum magnetron sputtering process to achieve customer-specified heater-grade sheet resistance, single-side or double-side coating available.

07 Busbar Patterning & Insulated Edge

Apply silver or copper busbar along long or short edge, pattern contact pads, and add insulated border to prevent current leakage on medical and industrial equipment.

08 Strict Multi-Dimensional Inspection

Four-point-probe sheet-resistance test, optical transmittance test, dimension detection, surface temperature mapping and surface defect inspection.

Why Start With a 1-Piece ITO Heater Glass Prototype?

01 Verify the Design

Confirm custom dimensions, busbar position, cutout positions and edge insulation geometry before mass-production to avoid structural errors.

02 Test Heating Performance

Evaluate surface temperature uniformity, warm-up time, sheet-resistance consistency and coating adhesion under your real medical or laboratory working environment.

03 Reduce Production Risk

Validate all technical indicators with low-cost prototype testing before committing to large-batch ITO heater glass orders.

Not Sure Which ITO Heater Glass Configuration You Need?

Your Requirement Recommended Glass Solution
Medical heating stage, microscope warm plate, incubator window ITO-Coated Borosilicate + Insulated Edge + Long-Edge Busbar
Industrial HMI anti-fog, outdoor display de-icing ITO-Coated Soda-lime / Borosilicate + Heater-Grade ITO + DC 24V
High-temperature / vacuum heating window ITO-Coated Fused Silica Quartz Substrate
Higher visible-light transmittance ITO plus AR over-coating composite stack
Dual-sided conductive requirement Double-side ITO magnetron sputtering
Custom holes, cutouts & special-shaped outline Precision CNC Machining before ITO coating
Early-stage R&D product verification 1-Piece Custom ITO Heater Glass Prototype
Strict surface temperature uniformity requirement Specify target Ω/sq and allowed temperature deviation in drawing

Still confused about your project configuration? Ask Our Engineers for Free Guidance

Frequently Asked Questions Before Ordering

Q: Can you manufacture custom ITO heater glass according to our CAD drawing?
A: Yes. We support custom dimensions, thicknesses, holes, cutouts, busbar layout, edge insulation and irregular shapes according to approved technical drawings.
Q: Can I order 1 piece for prototype testing?
A: Yes. We support low-quantity prototype production, prototype orders start from 1 piece subject to project complexity.
Q: What sheet-resistance range can you achieve for heater-grade ITO?
A: For heater applications we typically tune sheet resistance within 3-10 Ω/sq. Please provide your target resistance and supply voltage for quotation and process evaluation.
Q: What surface temperature can the ITO heater glass reach?
A: Typical working range is room temperature up to 180°C. Higher temperature requires fused silica substrate and a different coating process. We recommend specifying your target temperature and allowed deviation (e.g. ±1.5°C) in the drawing.
Q: What power supply should I use?
A: Most medical and industrial heating projects use DC 12V or 24V. Higher voltage is available on request. Please tell us your available voltage and current capacity so our engineers can size the ITO resistance accordingly.
Q: How do you handle busbar and edge insulation on medical glass?
A: We apply patterned silver or copper busbar along the long edge (or short edge per drawing), then add an insulated border around the conductive area to prevent current leakage and exposed conductive edges on medical equipment.
Q: What substrate materials can be used for ITO heater glass?
A: Soda-lime glass for general industrial anti-fog, borosilicate glass for most medical and lab heating, and fused silica quartz for high-temperature or UV applications.
Q: Is it okay to perform CNC cutting after ITO coating?
A: Post-coating machining is technically possible but risks ITO-film peeling. We strongly recommend completing all substrate machining before sputtering ITO coating for higher yield.
Q: How long does custom ITO heater glass prototype take?
A: Typical prototype lead-time is 7-12 working days after specifications are confirmed. Actual timing depends on substrate, resistance target, busbar pattern and processing complexity.
Q: What information do you need for quotation?
A: CAD drawing / DXF file, substrate material, thickness, dimension, target sheet-resistance, supply voltage, target surface temperature, busbar position, quantity and application scenario. Incomplete specifications are acceptable for preliminary evaluation.

Request a Custom ITO Heater Glass Quote

Tell us what you need. Our engineers will review your heating requirements and provide a suitable manufacturing solution and quotation.

Before You Send Your Drawing, Prepare These Inputs

  • Application: medical heating stage, incubator window, microscope warm plate, diagnostic equipment cover, industrial HMI anti-fog, or other
  • Substrate: soda-lime / borosilicate / fused silica
  • Dimensions & thickness: outline, thickness, holes, cutouts, edge finish
  • Sheet resistance target: e.g. 5-10 Ω/sq for heater grade, or 100+ Ω/sq for conductive only
  • Power supply: voltage (12V / 24V DC), available current, control method
  • Heating target: surface temperature, warm-up time, allowed deviation
  • Busbar / contact layout: edge location, pad size, lead attachment, insulated border
  • Quantity: 1-piece prototype, pilot batch, or mass production

Free engineering review · 1-piece prototype support · 19+ years optical glass manufacturing

Explore More ITO Heater Glass Resources

Have an ITO Heater Glass Project? Let's Review It.

Send your drawing, sample photo, dimension or target surface temperature. You don't need to finalize every specification. Our engineering team will provide professional customized manufacturing solutions for your project.

Free engineering review · 1-piece prototype support · OEM/ODM manufacturing

Need Custom Optical Glass Solution?

Send us your drawing, dimension & coating requirements for fast quotation within 24 hours.

Get Free RFQ

Custom Precision Optical & Glass Components Manufacturer – Felix Glass Co., Limited.

We supply Industrial Glass, Sapphire Optics, Optical Lenses/Prisms/Filters, Infrared IR Optics, Functional & Display Glass, N-BK7/H-K9L Optical Glass, supporting OEM mass production and laboratory custom prototypes. Flexible MOQ & free sample service available. Fill in the form to download full datasheets and get factory wholesale price within 24 hours.

CONTACT US NOW FOR A QUOTE
We aim to respond to your inquiry within one business day. A formal quotation is typically provided within 1–2 business days after all required drawings and specifications are received. Complex designs or special material and coating requirements may require additional engineering review; we will advise you of the expected quotation timeline.
*Email
Name
*Title
*Content
Upload
  • Only supports .rar/.zip/.jpg/.png/.gif/.doc/.xls/.pdf, maximum 20MB.
Address
James Fu, Sales Director at Felix Glass, with contact information for custom optical components and precision glass manufacturing.James Fu, Sales Director at Felix Glass, with contact information for custom optical components and precision glass manufacturing.
Learn more from our FAQ
What is the minimum order quantity for custom precision optical glass components?

Felix Glass supports paid prototypes, small trial batches and volume production. Minimum order quantities depend on the material, dimensions, tolerances and coating requirements. Send us your drawings and required quantity so we can confirm the MOQ, price and lead time.

Can I order samples for testing before bulk production?

Yes. Felix Glass offers paid custom samples for evaluation before bulk production. Sample costs and lead times are assessed based on material, dimensions, tolerances, coating requirements and quantity. Please send us your drawings or specifications so we can provide a sample quotation and estimated production lead time.

What is the production lead time for custom optical glass components?

A: The production cycle for standard samples is 3-10 working days, while mass production requires 15-35 working days, depending on the complexity of the product and the order quantity. We provide reliable precision optical glass components and fast delivery services for orders from industries such as defense, industrial equipment, medical devices, shipbuilding, robotics, automotive, and aerospace. Please submit your project details so we can provide you with an accurate delivery schedule.

Are your optical glass products ISO, CE and RoHS certified?

All precision optical glass components from FELIX OPTICAL GLASS comply with ISO quality system standards as well as CE and RoHS requirements. We provide comprehensive test reports, spectral graphs, material certificates, and inspection documents for customer review. Please feel free to request complete certification details and a formal quotation at any time.

Do you offer one-stop custom optical glass processing services?

Yes. We offer a full range of precision optical glass component processing services, including CNC machining, precision grinding, optical polishing, chemical/physical tempering, vacuum coating (AR anti-reflective coating, AF anti-fingerprint coating, AG anti-glare coating, IR infrared coating), and screen printing. From raw materials to finished products, every step is completed in our own factory. Please tell us your needs, and we will provide you with the most cost-effective solution.

CONTACT US NOW FOR A QUOTE
We aim to respond to your inquiry within one business day. A formal quotation is typically provided within 1–2 business days after all required drawings and specifications are received. Complex designs or special material and coating requirements may require additional engineering review; we will advise you of the expected quotation timeline.
*Email
Name
*Title
*Content
Upload
  • Only supports .rar/.zip/.jpg/.png/.gif/.doc/.xls/.pdf, maximum 20MB.
Address

With 19 years of experience as a precision optical glass expert, we provide comprehensive and satisfactory customized solutions.

Navigation
News
