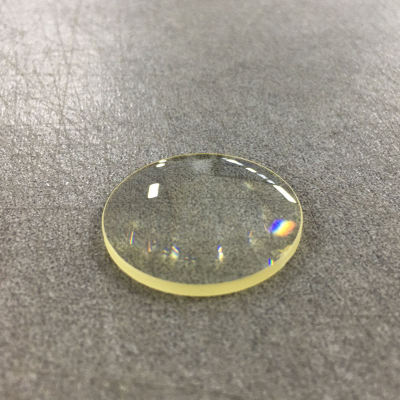

ZnS Optical Components | Infrared Windows, Lenses & Custom Fabrication
| Share | |
|---|---|
| Categories | Infrared Optical Components |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FE-GXQZ-0120 |
| Chemical Name | Zinc Sulfide (ZnS) |
| Transmission Range | 3 μm – 14 μm |
| Refractive Index (10 μm) | 2.25 |
| Density | 4.09 g/cm³ |
| Mohs Hardness | 3.0 |
| Coating Option | IR Anti-Reflection Coating (single side / double side) |
| Standard Dimensional Tolerance | ±0.02 mm |
| Surface Quality | Standard optical grade |
| Working Temperature | -40℃ ~ 80℃ (normal environment) |
| Applications | Defense & EO/IR Systems，Aerospace Infrared Optics，Laboratory |
| Unit Price | US $ 6.56-9.56 / piece |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
ZnS Optical Components | IR Windows, Lenses & Custom ZnS Optics Manufacturer
Zinc Sulfide (ZnS) is a classic infrared optical material with outstanding transmittance across mid-wave and long-wave infrared spectra. It features stable physical properties, moderate hardness, good machinability and low thermal distortion. Our factory supplies high-purity ZnS optical blanks, windows, lenses and machined components, supporting single-side / double-side anti-reflection coating and full customization per drawings. Widely deployed in thermal imaging, infrared detection, defense EO/IR systems, industrial monitoring and scientific optical instruments.
Core Advantages
- Broad IR transmission range: covers 3 μm ~ 14 μm, ideal for mainstream infrared working bands
- Good mechanical strength and scratch resistance, suitable for field and harsh working environments
- Easy precision machining, capable of complex shape processing and tight dimensional tolerance
- Low absorption rate and stable optical performance under normal temperature
- Compatible with various infrared anti-reflection coatings to maximize light transmittance
- Strict raw material screening and full inspection, consistent batch quality
Available Products
- ZnS Optical Windows: Round, square, rectangular flat windows; customized aperture & edge treatment
- ZnS Lenses: Plano-convex, double-convex, meniscus and custom infrared lenses
- ZnS Optical Blanks: Unprocessed raw material blocks for secondary machining
- Custom Machined ZnS Parts: Special profiles, grooving, drilling and shaped optical components
Key Technical Specifications
| Item | Parameter |
|---|---|
| Chemical Name | Zinc Sulfide (ZnS) |
| Transmission Range | 3 μm – 14 μm |
| Refractive Index (10 μm) | 2.25 |
| Density | 4.09 g/cm³ |
| Mohs Hardness | 3.0 |
| Coating Option | IR Anti-Reflection Coating (single side / double side) |
| Standard Dimensional Tolerance | ±0.02 mm |
| Surface Quality | Standard optical grade |
| Working Temperature | -40℃ ~ 80℃ (normal environment) |
Main Applications
- Defense & EO/IR Systems
- Thermal Imaging Cameras & Infrared Detection Equipment
- Industrial Temperature Monitoring & Non-contact Measurement
- Aerospace Infrared Optics
- Laboratory Infrared Spectroscopy Instruments
Custom Service
We provide one-stop customized service for ZnS optical components:
- Custom size, thickness, shape and radius according to CAD drawings / samples
- Professional edge grinding, chamfering and surface finishing
- Custom infrared coating solutions for different spectral requirements
- Small batch trial order and mass production are both acceptable
Call to Action
Get Custom Quote | View More Infrared Optical Components
Related Links
- Related Products: ZnSe Optical Components, Infrared Optical Windows
- Related Articles: [Knowledge Center] ZnS vs ZnSe: Difference & Selection Guide
Product Page Dedicated FAQ
Q1: What is ZnS used for in optics?
A: ZnS is a widely used infrared optical material, mainly manufactured into windows and lenses for thermal imaging, infrared detection, defense optoelectronic systems and industrial temperature measurement devices. It performs stably in the common mid and far infrared bands.
Q2: What is the difference between ZnS and ZnSe?
A: Both are mainstream IR materials. ZnS has lower cost, better mechanical strength and good machinability, fit for conventional infrared equipment. ZnSe has wider transmission range and higher transmittance, more suitable for high-precision infrared lasers and high-end optical systems.
Q3: Can you apply anti-reflection coating on ZnS components?
A: Yes. We offer professional infrared anti-reflection coating on single side or double side, which can effectively improve infrared light transmittance and reduce reflection loss.
Q4: What is your minimum order quantity for custom ZnS optics?
A: We support small batch orders. Standard parts are in stock, and customized products can start from a single piece.
Q5: Is ZnS suitable for outdoor long-term use?
A: ZnS has stable physical properties under normal temperature and dry outdoor environment. For high humidity or severe corrosive conditions, we suggest adding protective coating to extend service life.
