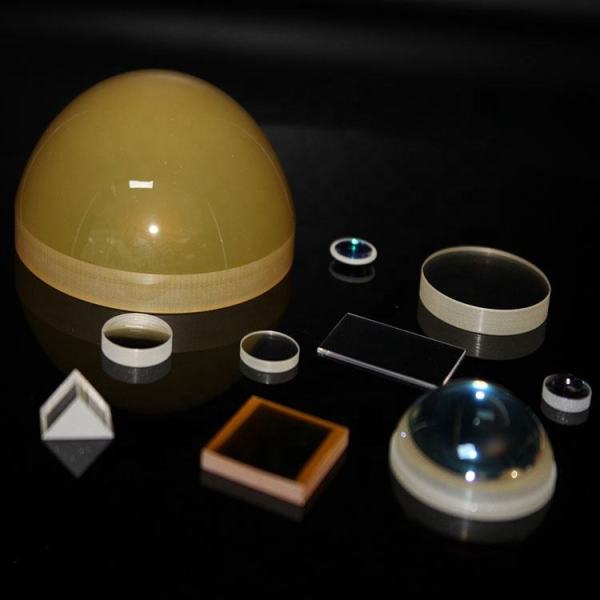

Standard & Multi-Spectral zns infrared dome Lens, CVD Zinc Sulfide Spherical Infrared Dome Window

Standard & Multi-Spectral zns infrared dome Lens, CVD Zinc Sulfide Spherical Infrared Dome Window
Standard & Multi-Spectral zns infrared dome Lens, CVD Zinc Sulfide Spherical Infrared Dome WindowStandard & Multi-Spectral zns infrared dome Lens, CVD Zinc Sulfide Spherical Infrared Dome WindowStandard & Multi-Spectral zns infrared dome Lens, CVD Zinc Sulfide Spherical Infrared Dome WindowStandard & Multi-Spectral zns infrared dome Lens, CVD Zinc Sulfide Spherical Infrared Dome WindowStandard & Multi-Spectral zns infrared dome Lens, CVD Zinc Sulfide Spherical Infrared Dome WindowStandard & Multi-Spectral zns infrared dome Lens, CVD Zinc Sulfide Spherical Infrared Dome Window
Share
CategoriesInfrared Windows, Lenses & Domes
BrandFELIX GLASS optical glass Manufacturing base
Product SpecificationsFG-ZNS-IR-DOME
Substrate MateriaHigh purity CVD polycrystalline Zinc Sulfide (ZnS)
Product TypeStandard single LWIR dome / Multi-spectral visible+IR dual-band dome optional
SIZECustom
FOB portSHENGZHEN SHANGHAI GUANGZHOU
Terms of PaymentL/C, D/A, D/P, Western Union, T/T, Paypal
DownloadDownload pdfDownload pdfDownload pdfDownload pdf
Detail Information
Standard & Multi-Spectral zns infrared dome Lens, CVD Zinc S

Send your drawing or sample requirement for a fast quotation. MOQ, lead time and coating options are confirmed within one business day.

Request a Quote

Standard & Multi-Spectral CVD Zinc Sulfide (ZnS) IR Dome Optical Lens

Felix Glass ZnS IR Dome Lens is a hemispherical spherical integrated optical protective lens, manufactured from high-purity CVD polycrystalline zinc sulfide crystal. We supply two mainstream versions: standard single long-wave infrared dome and multi-spectral visible-infrared dual-band dome, covering all outdoor infrared imaging equipment demands. As a China custom optical dome manufacturer with 23+ years of precision optics experience, we deliver consistent batch quality for aerospace and defense OEMs.

ZnS material features 0.4–14μm ultra-wide transmission range, higher hardness and superior moisture resistance compared with ZnSe crystal, greatly reducing oxidation and scratch risks in harsh rainy, dusty environments. Learn more about material properties in our CVD zinc sulfide multi-spectral IR substrate guide. The hemispherical dome structure acts as both sealing protective housing and weak focusing optical lens, effectively correcting infrared image distortion, and completely isolate internal infrared detector from dust, water vapor, sand and splash.

Custom multi-band AR anti-reflection coating and outer DLC hard protective coating can be deposited on inner and outer surfaces, improving infrared transmittance and further enhance surface wear resistance. Multi-spectral version supports simultaneous visible light auxiliary alignment and 8–14μm thermal imaging, while standard LWIR dome only transmits long-wave infrared to block visible stray light for pure thermal imaging effect.

Core Optical Specifications

  • Raw Material: High purity CVD polycrystalline Zinc Sulfide (ZnS)
  • Dome Shape: Full hemispherical spherical single-piece dome
  • Two Optional Versions:
      1. Standard Dome: 8–14μm LWIR single infrared band, block visible light
      2. Multi-Spectral Dome: 0.4–14μm visible + full infrared dual band transmission
  • Optional Coating: AR anti-reflection coating + DLC hard protective composite coating
  • Average Transmittance: >88% within target spectrum after AR coating
  • Surface Quality: Standard 60-40 scratch-dig, upgradeable to aerospace grade 20-10
  • Hardness & Stability: High hardness, moisture-proof, anti-oxidation, stable from -60℃ ~ +130℃
  • Custom Parameter: Custom dome diameter, wall thickness, inner & outer curvature radii

Core Product Advantages

Two Dome Types

Standard single LWIR for pure thermal imaging; multi-spectral dual-band for day-night dual-spectrum equipment.

ZnS vs ZnSe

CVD ZnS higher hardness & moisture resistance than ZnSe, suitable for long-term outdoor all-weather operation.

Integrated Design

Hemispherical dome combines protective shell and optical lens, simplify infrared module assembly structure.

AR+DLC Coating

Dual composite coating boosts IR transmittance and resists scratch, water vapor and oxidation.

Factory Direct

Large-diameter hemispherical forming, stable batch consistency for aerospace & vehicle bulk orders.

Fully Customizable

Size, curvature and coating spectrum matched to UAV, vehicle night vision and aerospace IR system drawings.

Typical Application Scenarios

OEM Manufacturing Capability

We provide full one-stop CVD ZnS optical processing including large ZnS blank hot forming, ultra-precision hemispherical spherical polishing, multi-band AR+DLC composite coating, edge deburring, strict spectral transmittance testing and surface hardness inspection.

Prototype sampling, small-batch trial production and factory mass supply are supported. Every standard & multi-spectral ZnS infrared dome is fully tested to meet customer-specified spectral, dimensional and environmental stability requirements before delivery. Need guidance on what to specify? Use our custom optics RFQ checklist to prepare your inquiry.

Frequently Asked Questions

1. What is the difference between standard ZnS dome and multi-spectral ZnS dome?

Standard dome only transmits 8–14μm long-wave infrared and blocks visible light, for single thermal imaging; multi-spectral dome transmits visible light + full infrared, for day-night dual-spectrum detection equipment.

2. Why choose ZnS dome instead of ZnSe dome for outdoor equipment?

ZnS has higher hardness and excellent moisture oxidation resistance, not easy to scratch or oxidize under long-term outdoor rain and dust environment; ZnSe is soft and prone to surface damage without DLC coating.

3. Can I customize dome size and coating parameters for aerospace optical pods?

Yes, we support custom hemispherical diameter, wall thickness, curvature radii, and AR+DLC composite coating optimized for single LWIR or multi-spectral dual band.

4. What equipment matches this ZnS infrared dome lens?

It fits UAV airborne photoelectric pods, vehicle night vision thermal cameras, outdoor industrial infrared monitoring equipment and aerospace infrared remote sensing assemblies.

5. Do you provide factory mass supply for CVD ZnS infrared domes?

We offer factory direct bulk supply, small trial samples and OEM customization, all ZnS domes pass full spectral transmittance and environmental stability inspection before shipment.

Get Your Custom ZnS IR Dome Quote

Send your drawing or dimensions. Our optical engineer will provide DFM feedback and quotation within 24 working hours.
