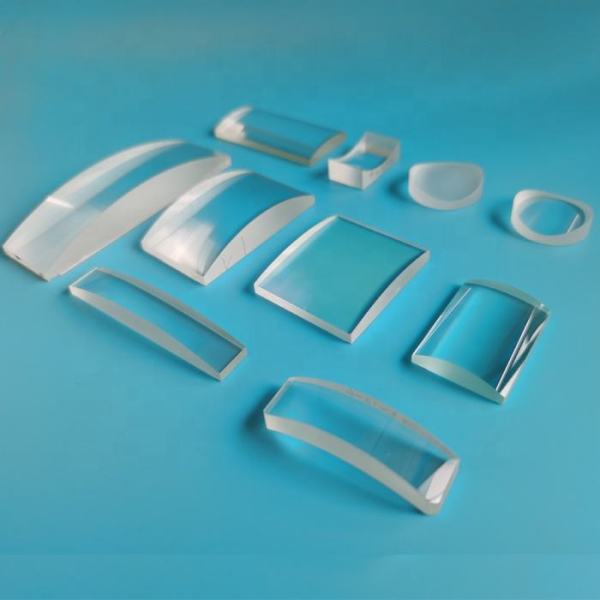

Custom Precision Optical Prism for Laser Medical Industrial Vision Scientific Instruments
| Share | |
|---|---|
| Categories | Optical Prisms |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FG-OPTICAL-PRISM-001 |
| Material Options | BK7/K9, fused silica, borosilicate, sapphire and specialty optical materials |
| Prism Type Available | Right angle, penta, Dove, equilateral, wedge, roof, beam splitter and custom prism |
| Precision Machining Index | Custom size, thickness, angle tolerance and optimized surface flatness |
| Polishing Grade | High-precision optical surface polishing for low distortion imaging |
| Optional Functional Coating | AR, mirror, beam splitter, UV, visible and IR band coating customization |
| Optical Performance | Accurate light deviation, high transmittance, stable long-term optical consistency |
| Production Service | Prototype trial, small batch and OEM mass manufacturing support |
| Quality Management System | ISO 9001:2015 certified, batch traceability, third-party inspection support |
| Main Application | Machine vision, medical optics, laser systems and scientific instruments |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Felix Glass Co., Limited manufactures custom precision optical prisms for laser systems, medical optical equipment, industrial machine vision, scientific research and optical instrumentation. We provide drawing-based customized prisms with multiple optical substrate options, strict angle tolerance control, ultra-precision optical polishing and customizable UV, visible and infrared anti-reflection & reflective coatings. Standard and custom prisms are available in BK7/K9 optical glass, fused silica, borosilicate glass, monocrystalline sapphire and special optical materials. Components are tailored for beam steering, image rotation, beam splitting and optical path correction inside optical assemblies. A custom precision optical prism is a shaped optical component used to redirect, rotate, split, fold or correct light paths inside optical systems. Felix Glass designs and produces prisms strictly according to customer engineering drawings, including substrate selection, dimension control, angle tolerance, surface flatness, optical coating and full inspection standards. BK7/K9, fused silica, borosilicate and sapphire can be selected according to operating wavelength and working environment. Angle accuracy, surface flatness, overall dimensions, edge finish and optical coatings are customized based on project specifications. Different prism geometries solve independent optical path folding, rotation and splitting tasks. Felix Glass manufactures prisms strictly following customer engineering drawings instead of forcing standard catalog shapes into customized optical assemblies. Right angle, penta and wedge prisms fold and redirect optical paths inside precision instruments and laser modules. Dove prisms, roof prisms realize image rotation to support compact optical system layout design. Beam splitter prisms support customized coating according to wavelength bands and light splitting ratio requirements. Material selection depends on operating wavelength, laser power, temperature environment, mechanical load and cost budget. BK7/K9 is widely adopted for general optical instruments and machine vision; fused silica suits UV transmission and high-power laser systems; borosilicate glass performs stably under wide temperature ranges; sapphire is selected for harsh environments requiring scratch resistance. Optical coating design is confirmed after defining working wavelength, incident angle, polarization requirements and system optical targets. Felix Glass provides AR anti-reflection coating, reflective mirror coating, beam splitter coating and customized UV, visible and infrared band thin-film coatings for prisms. Confirm UV, visible, NIR or IR operating waveband before coating design. Prism angle and coated surface position directly affect final optical performance. Match AR, mirror or beam splitter coating according to optical path design. Check surface quality, coating appearance, transmittance and reflectivity after vacuum coating. Our custom optical prisms serve mainstream optical equipment manufacturers across multiple vertical industries. Strict angle tolerance ensures stable imaging alignment for automated visual inspection equipment. Low distortion and high transmittance for endoscopes, diagnostic instruments and compact optical modules. Fused silica prisms with customized coatings are used for laser transmission and spectral measurement systems. Custom prism geometry meets laboratory measurement equipment and experimental optical path layout demands. Felix Glass supports OEM & ODM customization from single prototype evaluation to mass continuous production. Customers can specify dimensions, thickness, prism angle, tolerance range, surface quality, edge treatment, coated surfaces and packaging requirements. All prism orders follow standardized workflow: raw material inspection → CNC forming → ultra-precision polishing → vacuum coating → final optical testing. Inspection items include angle accuracy, surface flatness, scratch & dig evaluation, spectral transmittance, coating adhesion and full batch traceability. Shape and edge processing strictly implemented according to drawing tolerance requirements. Angle, flatness, appearance and spectral performance testing before delivery. Complete batch records; third-party inspection service available on demand. Clarify whether the prism realizes beam steering, rotation, splitting or optical path folding. Select BK7/K9, fused silica, borosilicate or sapphire based on wavelength, laser power and environment. Specify angle tolerance, surface flatness, coating band and surface quality matching system requirements. Right angle, penta, Dove, equilateral, wedge, roof, beam splitter and irregular special prisms, all produced according to engineering drawings. Fused silica is the preferred option due to low absorption and excellent thermal stability; final solution depends on wavelength, power and optical design. Yes. We provide customized AR, reflective and beam splitter coatings for UV, visible and infrared wavebands. We support single-piece prototype verification, small-batch trial production and large-scale repeat OEM orders. Internal product links help buyers compare prism types, coated prisms, prism cubes, optical lenses and optical filters within Felix Glass website. To obtain an accurate quotation, please provide prism type, dimensions, substrate material, tolerance requirements, coating specifications, order quantity and application environment information. Felix Glass optical engineers will evaluate manufacturability and offer formal quotation for custom optical prisms.
Attention stage
Custom Precision Optical Prism for Laser, Medical and Industrial Vision Systems
Model FG-OPTICAL-PRISM-001
BK7/K9, fused silica, sapphire
OEM custom prism geometry
Direct answer
What Is a Custom Precision Optical Prism?
Diversified Material Selection
Drawing-Driven Tolerance Control
Interest stage
Optical Prism Technical Specifications for Engineering Review
Category
Parameters
Brand
Felix Glass Co., Limited
Model
FG-OPTICAL-PRISM-001
Material Options
BK7/K9 optical glass, fused silica, borosilicate glass, monocrystalline sapphire and special optical materials
Available Prism Types
Right angle, penta, Dove, equilateral, wedge, roof, beam splitter and custom irregular geometry prisms
Machining Capacity
Custom dimensions, thickness, angle tolerance and surface flatness according to drawings
Surface Polishing Grade
Ultra-precision optical polishing to reduce wavefront distortion and ensure high-quality imaging
Optional Optical Coatings
AR anti-reflection coating, reflective mirror coating, beam splitter coating; customized for UV, visible and infrared wavebands
Optical Performance
Precise light deflection angle, high transmittance and stable long-term optical consistency
Production Service
Prototype trial, small batch trial and mass OEM & ODM manufacturing
Quality System
ISO 9001:2015 certified production, full batch traceability; third-party inspection available upon request
Prism geometry
Right Angle, Penta, Dove, Equilateral, Wedge, Roof and Beam Splitter Prisms
Beam Steering & Optical Folding
Image Rotation Correction
Beam Splitting Function
Material selection
BK7/K9, Fused Silica, Borosilicate and Sapphire Prism Materials
Coating options
AR, Mirror, Beam Splitter, UV, Visible and IR Coating Choices
Define Working Wavelength
Confirm Prism Geometry
Select Coating Function
Optical Performance Inspection
Application match
Applications in Machine Vision, Medical Optics, Lasers and Scientific Instruments
Industrial Machine Vision
Medical Optical Equipment
Laser Systems
Scientific Research Instruments
Desire stage
Drawing-Based Customization Capabilities for Optical Prism Projects
Quality control
Manufacturing & Inspection Process for Precision Optical Prisms
Precision CNC Machining
Comprehensive Optical Inspection
Batch Traceability System
Selection support
Guide To Specify Custom Optical Prism Parameters
Confirm Optical Function First
Match Substrate To Application
Define Clear Inspection Standards
Buyer FAQ
FAQ About Custom Precision Optical Prisms
What prism types can Felix Glass customize?
Which material suits high-power laser prisms?
Can optical coatings be customized for specific wavelengths?
Do you accept prototype and small-batch orders?
