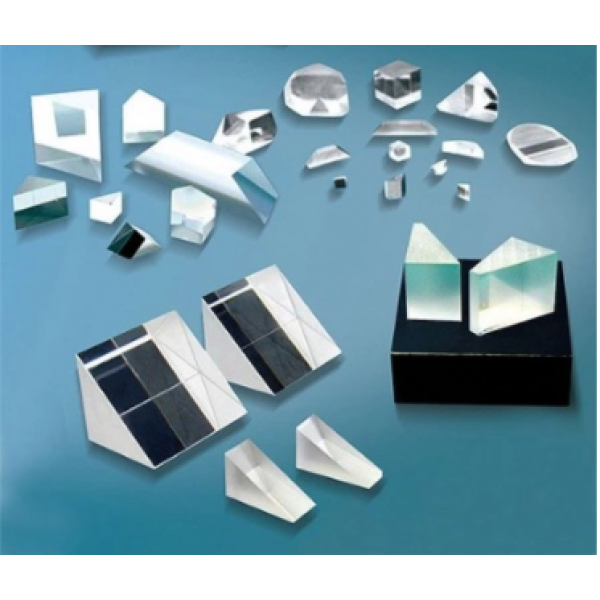

Custom N-BK7 Dove Prism Rhombic Rotation Image Reflective Optical Prism
| Share | |
|---|---|
| Categories | Optical Prisms |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FG-DP-01 |
| Coating Option | Uncoated / High reflection mirror coating |
| Core Function: | 180° image rotation |
| Custom Available | OEM ODM OBM custom dimension |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, T/T |
| Download |  |
Detail Information
Custom N-BK7 image-rotation optics

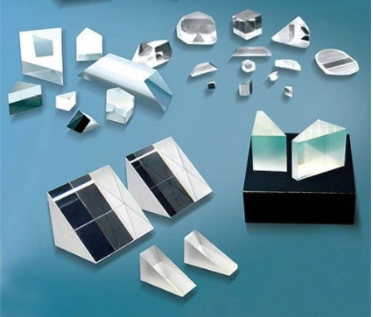

N-BK7 Dove Prism for Controlled 180-Degree Image Rotation

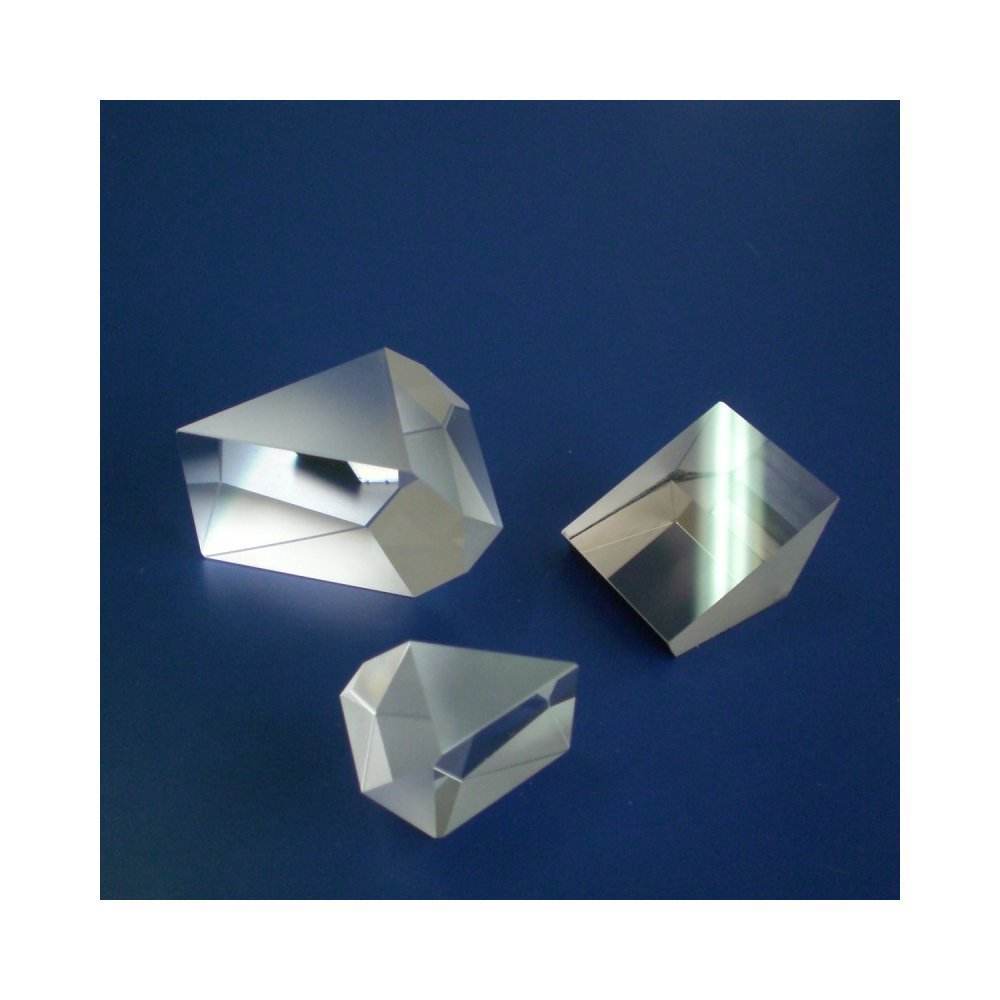

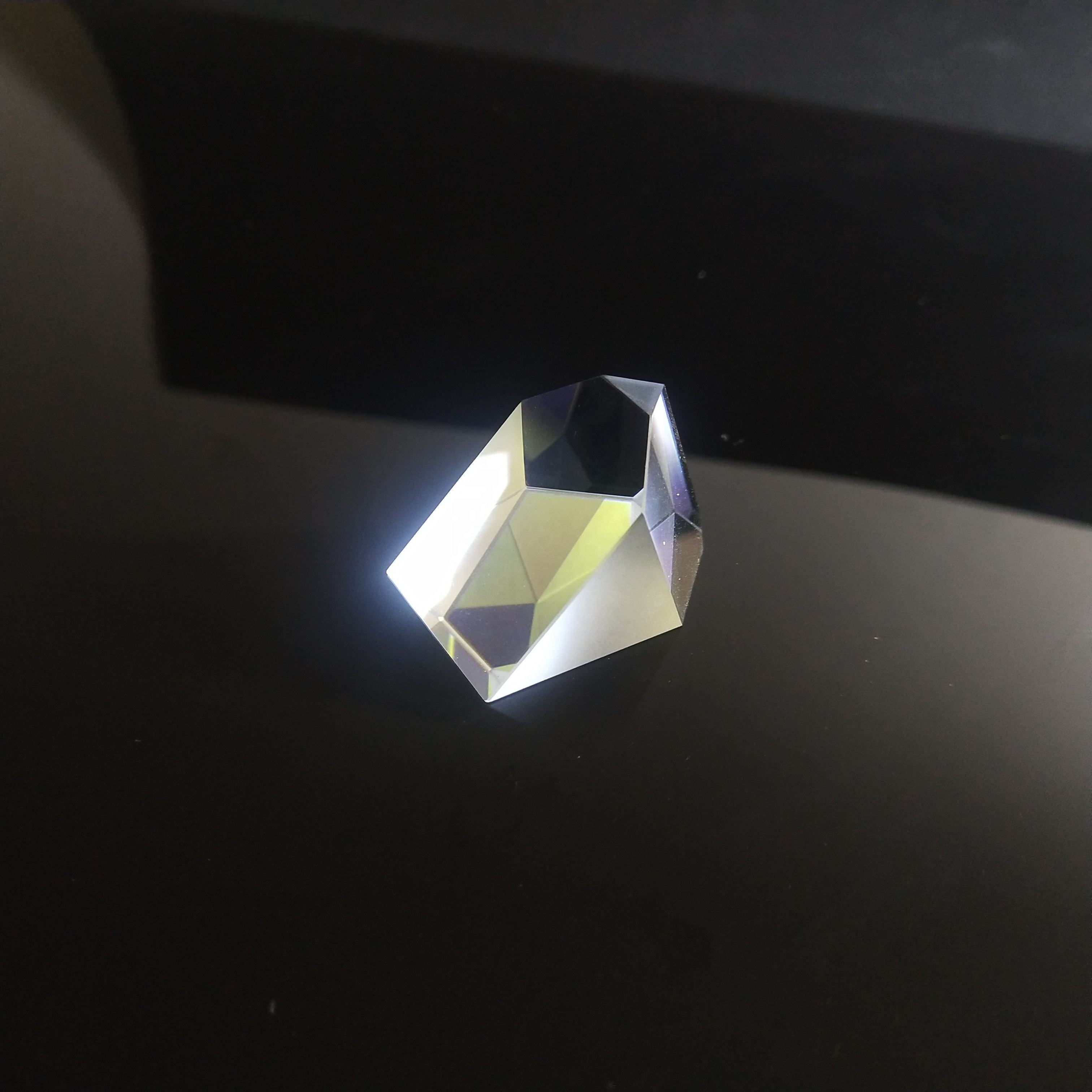

This rhombic Dove prism is precision ground and polished to rotate an image by 180 degrees while keeping the transmitted beam path compact. Felix Glass Co., Limited supplies drawing-based dimensions, uncoated parts, and optional high-reflection mirror-coated surfaces for optical alignment, interferometry, laboratory imaging, and instrument integration.
N-BK7 optical glassModel FG-DP-01OEM / ODM / OBM3-year product warranty
Send Your Drawing for Review
Direct answer
What Does a Dove Prism Do?
A Dove prism inverts an image after one internal reflection. When the prism rotates around its optical axis, the observed image rotates at twice the prism angle. This behavior makes the component useful where image orientation must be changed without adding a multi-element relay assembly.
System performance depends on entrance angle, material, surface quality, prism geometry, and any reflective coating. Final dimensions and tolerances should therefore be reviewed against the optical path and mounting design.
Specification reference
Typical Optical and Mechanical Parameters
The following values preserve the original product specification and are provided as a project reference. Confirm production tolerances for the required size, coating, wavelength, and quantity.
| Material | N-BK7 optical glass | Prism type | Rhombic Dove reflective prism |
|---|---|---|---|
| Core function | 180-degree image rotation and optical-path inversion | Coating | Uncoated or optional high-reflection mirror coating |
| Surface quality | 20/10; 60/40 optional | Surface flatness | 1/8 wave at 633 nm |
| Clear aperture | At least 80% of the central area | Angular tolerance | Up to ±3 arc minutes |
| Customization | Side length, geometry, edge treatment, and coating review | Origin | Guangdong, China |
Evaluation points
Why N-BK7 Is Used for Visible-Light Dove Prism Designs
Manufacturing flexibility
Drawing-based dimensions and tolerances can be reviewed for prototypes, replacement parts, and repeat production.
Coating choice
Use an uncoated prism when appropriate, or request a reflective coating based on wavelength and system requirements.
Compact image control
The prism supports image inversion and rotation without requiring a long multi-lens image relay.
Application fit
Where a Rhombic Dove Prism Can Be Integrated
Optical alignment
Image-orientation control in calibration fixtures and compact optical benches.
Interferometry
Optical measurement equipment where image inversion or controlled rotation is part of the system design.
Laboratory imaging
Research imaging paths, beam-rotation platforms, and experimental optical assemblies.
Instrument modules
Miniature sensing, spectroscopy, and custom optical modules with restricted installation space.
Drawing-based production

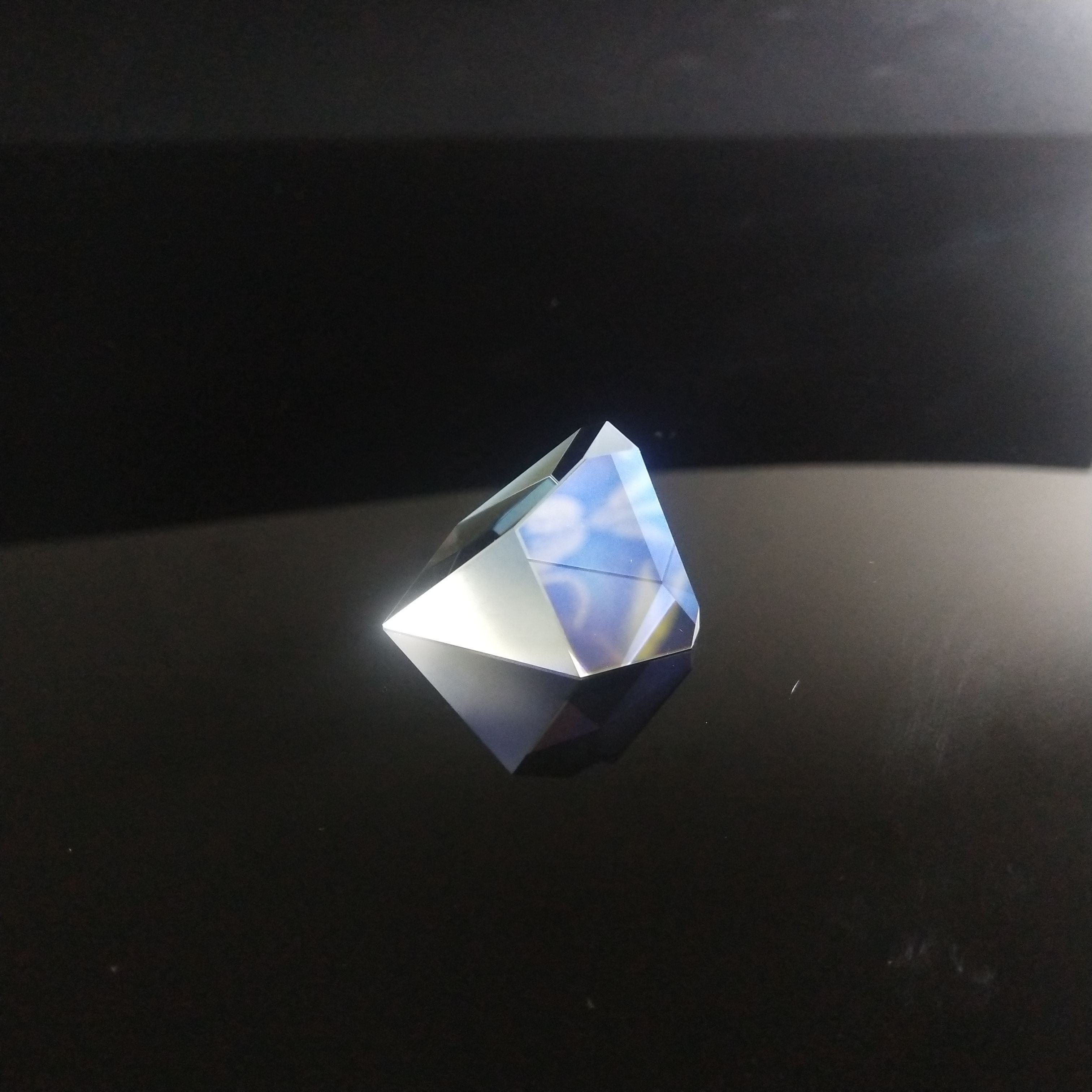

Custom Dimensions, Tolerances, and Reflective Coating Options
Felix Glass Co., Limited supports OEM, ODM, and OBM processing for custom side length, geometry, surface requirements, and coating. For an engineering review, provide the prism drawing, optical material, wavelength range, coated faces, surface-quality requirement, angular tolerance, clear aperture, quantity, and inspection needs.
- Uncoated N-BK7 prism blanks
- Optional high-reflection mirror coating
- Custom side length and mechanical envelope
- Prototype and batch-production review
- Inspection documentation discussed by project
Project workflow
01
02
03
04
From Drawing Review to Finished Prism Inspection
Requirement review
Confirm drawing, material, wavelength, tolerance, coating, and quantity.
Process planning
Review grinding, polishing, edge treatment, coating, and inspection requirements.
Prototype or production
Arrange the agreed sample or batch route and control the specified dimensions.
Final inspection
Check the agreed optical and mechanical criteria before clean packaging.
Quality discussion
Inspection Items to Define for a Custom Dove Prism
Inspection scope should match the system risk and drawing. Common review points include material confirmation, dimensions, angle, surface quality, flatness, clear aperture, coating appearance, and optical performance. Share any required test method or report format when requesting a quotation.
DimensionsAngular toleranceScratch-digFlatnessClear apertureCoating review
Buyer questions
Frequently Asked Questions About Custom Dove Prisms
Does the prism rotate the image by the same angle as the prism?
No. In the standard operating principle, the image rotation is twice the mechanical rotation angle of the Dove prism.
Can the prism be supplied without coating?
Yes. The original product supports an uncoated option as well as an optional high-reflection mirror coating.
Which project details are needed for a quote?
Send the drawing, dimensions, material, wavelength, coating faces, tolerances, quantity, and inspection requirements.
Can dimensions be customized?
Yes. Drawing-based side length and related mechanical requirements can be reviewed for custom production.
