Unsupported Aperture
The free diameter exposed to pressure directly affects stress. Provide the clear opening, supported diameter, and contact width.
Home / All / Custom Sapphire Optical Components / Sapphire Optical Windows / High Pressure Resistant Sapphire Sight Glass
Looking for Custom Optical Components?
✔ OEM / ODM Customization
✔ Free Drawing DFM Technical Review
✔ 24-Hour Professional Quotation
✔ Flexible Low MOQ & Fast Prototypes

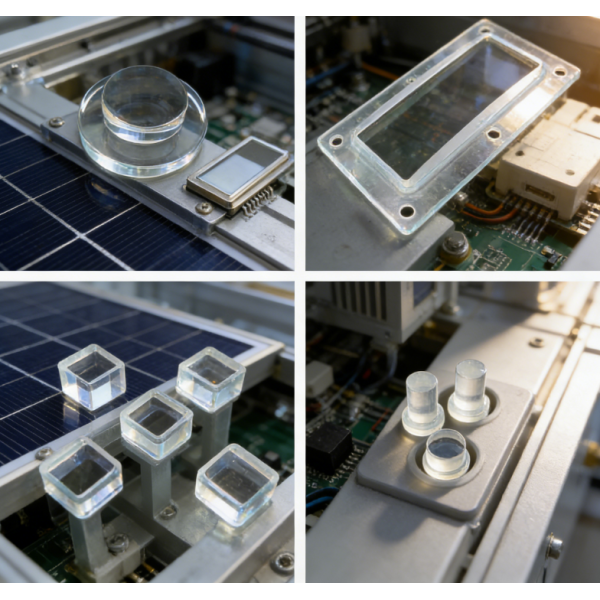

High Pressure Resistant Sapphire Sight Glass
| Share | |
|---|---|
| Categories | Sapphire Optical Windows |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FG-SAPP-SIGHT-HP-001 |
| Base Material | Optical Grade Single Crystal Sapphire (C-Plane Standard, Other Crystal Orientations Available) |
| Pressure Resistance | Custom Rated Pressure 0.1–120 MPa, Custom Wall Thickness For Extreme Pressure |
| Surface Finish | Double-Sided Optical Polishing, Optional Broadband AR Coating |
| Sealing Edge Process | Precision CNC Chamfer For O-Ring / Flange Sealing Assembly |
| Available Shapes | ound / Oval / Rectangle / Custom Cutout Sight Glass Blank |
| Application Field | High-Pressure Furnace, Hydraulic Test Chamber, Petrochemical Pipeline, Industrial Pressure Vessel |
| Custom Machining | Cutting, Drilling, Countersinks, Slots, Laser Marking, Edge Chamfering |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, T/T |
| Download |  |
Detail Information
Attention
Product Overview
High pressure resistant sapphire sight glass provides a clear observation surface for industrial equipment that combines pressure, temperature, corrosive media, or abrasive particles. Felix Glass Co., Limited manufactures drawing-based single-crystal sapphire windows for furnaces, pressure vessels, hydraulic and pneumatic test chambers, reactors, and petrochemical pipelines.
Direct answer: The listed customization range is 0.1 MPa to 120 MPa, with 3 mm to 60 mm thickness options and thicker blanks reviewed for higher-pressure projects. A finished sight-glass assembly must be rated from the complete design, including clear aperture, unsupported diameter, thickness, edge geometry, flange, gasket or O-ring, temperature, pressure cycles, and proof-test method.
For adjacent round, square, coated, and shaped formats, review the Sapphire Optical Windows category.
Interest
Core Technical Specification Table
These values preserve the current product's customization directions. Final dimensions, tolerances, ratings, and acceptance criteria should be stated on the approved drawing and purchase specification.
| Parameter | Current Customization Direction | Engineering Review Note |
|---|---|---|
| Base material | Optical-grade single-crystal sapphire; C-plane standard | Other crystal orientations can be reviewed. |
| Pressure range | 0.1 MPa to 120 MPa listed customization range | Not a blanket assembly rating; pressure capability depends on the complete installation. |
| Standard thickness | 3 mm to 60 mm; thicker blanks reviewed for pressure above 50 MPa | Thickness is selected with aperture, support, temperature, cycling, and safety factor. |
| Sealing interface | O-ring, metal flange, or metal-gasket assembly | Define seal material, groove, preload, media, and surface condition. |
| Surface finish | Double-sided optical polishing | State scratch-dig, roughness, clear aperture, and cosmetic limits. |
| Surface flatness | λ/4 to λ/10 options | Specify test wavelength, aperture, and measurement condition. |
| Optional coating | Broadband anti-reflection coating | Provide wavelength, angle, temperature, medium, and coated side. |
| Edge machining | Safety chamfer, countersink, sealing step, or groove | Include datums, radii, edge limits, and seal-interface tolerances. |
Interest
Core Technical Advantages
Compressive Load Capability
Single-crystal sapphire is considered for pressure-window designs where the blank thickness and supported aperture can be matched to the load case. The listed 0.1 MPa to 120 MPa range requires project-specific review.
Chemical Stability
Sapphire resists many acids, alkalis, salt environments, oils, and moisture conditions. Compatibility must also include the coating, seal, housing, and process medium.
Temperature Capability
The current product information identifies a -196°C to 1800°C material and application design range. Continuous assembly temperature depends on the seal, coating, thermal gradient, atmosphere, and duty cycle.
Machined Sealing Features
CNC chamfers, steps, grooves, countersinks, and locating features can be produced from the approved interface drawing to support repeatable assembly.
Mohs 9 Surface Hardness
Sapphire's hard surface helps resist scratching from handling, particles, and industrial exposure, supporting longer observation clarity than softer window materials in abrasive service.
For rectangular housings or drawing-based blanks, compare the square custom sapphire optical blank.
Interest
01
02
03
04
Full Custom CNC Machining Capacity
Blank Forming
Straight cutting, round or shaped profiling, through holes, and safety-edge chamfers.
Sealing Features
Countersinks, locating features, step edges, and grooves based on the flange and seal drawing.
Optical Finishing
Double-sided polishing, flatness control, surface-quality inspection, and optional AR coating.
Traceability Marking
Permanent laser marking for part number, drawing revision, pressure class, or batch identification when specified.
Desire
Wide Industrial Application Scenarios
Industrial Furnaces
Observation windows for process monitoring where temperature, deposits, and pressure are part of the design review.
Test Chambers
Visual access for hydraulic and pneumatic pressure testing with a defined proof-test and guarding plan.
Petrochemical Pipelines
Flow or liquid-level observation where media compatibility and the flange-seal system are specified.
Reactors and Autoclaves
Observation ports for process vessels that require coordinated pressure, temperature, and chemical-resistance criteria.
Energy and Subsea Equipment
Drawing-based windows for pressure tanks and underwater systems after external pressure, sealing, and cyclic-load review.
For furnace-specific planning, see the Furnace Observation Solution. Sensor projects can reference the high-temperature industrial sensor sapphire window.
Desire
Matching the Window to the Observation System
Provide the Load Case
- Normal, peak, and proof pressure
- Internal or external pressure direction
- Static or cyclic duty and ramp rate
- Operating and transient temperature
Provide the Interface
- Clear aperture and supported diameter
- Flange, groove, gasket, or O-ring drawing
- Bolt pattern and tightening method
- Allowable edge and surface contact
Provide the Optical Need
- Wavelength and viewing angle
- Flatness and surface quality
- Transmission or reflection target
- Coating side and environment
For a band-matched optical surface, review the AR-coated sapphire protection window.
Desire
Production and Inspection Standards
The current product quality plan identifies three inspection checkpoints. Test conditions, sample quantity, documentation, and acceptance criteria should be agreed before production.
- Pressure test planningHydrostatic proof or burst testing can be defined around the fixture, pressure profile, hold time, sample plan, and safety requirements.
- Flatness inspectionInterferometer measurement can verify the specified clear aperture, wavelength, and surface condition.
- Transmission measurementSpectrometry can document bare-sapphire or coated-window performance over the agreed wavelength range.
- Dimensional and visual reviewThickness, diameter, steps, grooves, chamfers, chips, scratches, and markings are checked against the approved criteria.
Prototype and production quantities are supported. Lead time is confirmed after the drawing, material, machining, coating, testing, and documentation scope are reviewed.
Desire
Frequently Asked Questions
What maximum pressure can this sapphire sight glass support?
The current customization range is 0.1 MPa to 120 MPa, with thicker blanks considered for higher-pressure work. The approved rating must come from the complete assembly design and its validation plan.
Can the sealing edge match an existing flange?
Yes. Provide the flange, gasket or O-ring, groove, bolt pattern, and mating-surface drawing so chamfers, steps, countersinks, and locating features can be reviewed.
Is AR coating available for furnace observation?
Broadband AR coating is optional. Specify wavelength, viewing angle, temperature, atmosphere, coated side, and the required transmission or reflection result.
What temperature range can be considered?
The current product information lists -196°C to 1800°C as a material and application design range. The usable assembly range depends on seals, coating, atmosphere, thermal gradient, dwell time, and cycling.
Can Felix Glass support prototypes?
Yes. Prototype and production quantities can be discussed after dimensions, pressure case, sealing interface, optical requirements, coating, and inspection scope are defined.
Action
Engineering Inquiry Guide
Felix Glass Co., Limited provides drawing-based sapphire blank forming, CNC machining, optical polishing, coating, marking, and inspection support for furnace, pressure-vessel, pipeline, reactor, test-chamber, and sensor projects.
Send the drawing, quantity, pressure profile, temperature range, medium, clear aperture, seal design, optical specification, coating requirement, and requested test documentation for a feasibility review and project-specific quotation.
