Optical Domes for Underwater Imaging

An underwater optical dome is a hollow curved window positioned in front of a camera or optical sensor. It transmits the required light while forming part of the housing's environmental boundary. Deep-sea imaging is an application of optical domes; suitability depends on the complete optical and pressure-housing design.

A hydrodynamic fairing is a broader term for an external shell shaped to manage water flow. It need not be transparent or pressure-bearing. An optical dome can form part of a fairing, but a curved optical surface alone does not guarantee reduced drag or cavitation suppression.

Felix Glass focuses on the optical dome component. Housing design, seals, structural qualification and any hydrodynamic analysis must be assigned and agreed as part of the project scope.

Three Design Priorities

• Optical Performance

  Match spectral transmission, clear aperture and surface quality to the camera. Review refraction, focus, field of view and calibration in the assembled system.

• Pressure and Sealing

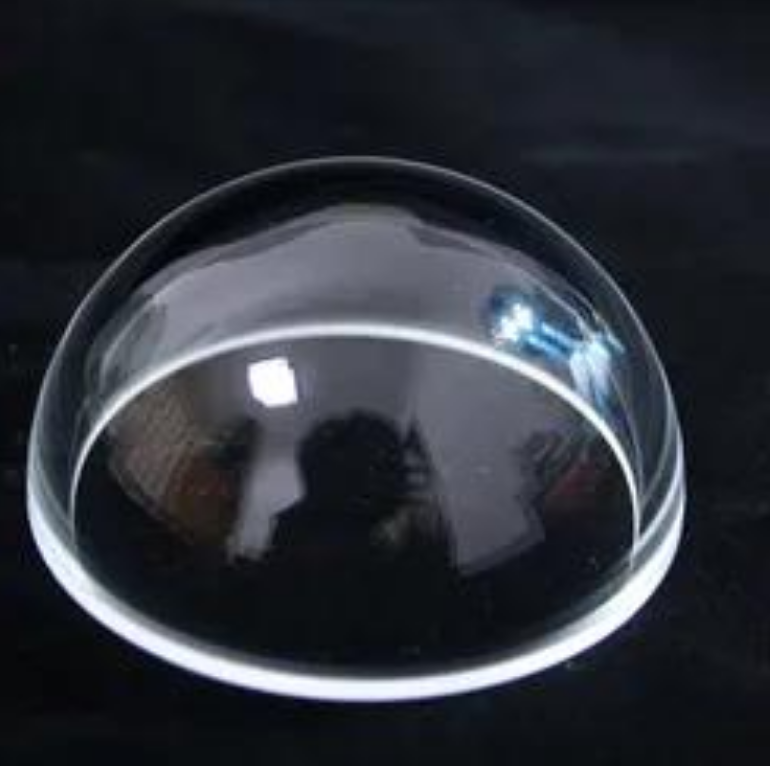

  Evaluate differential pressure together with dome geometry, material condition, edge support and seals. Working-depth claims require assembly-specific validation.

• Vehicle Integration

  Coordinate the external contour and mounting interface with the ROV, AUV or sensor housing. Assess flow loads and drag where relevant to operating speed.

Material and Surface Options

Select the material using the required spectrum, geometry, mechanical loads, exposure conditions and budget. Material name alone does not determine the permitted operating depth.

Geometry, Alignment and Image Quality

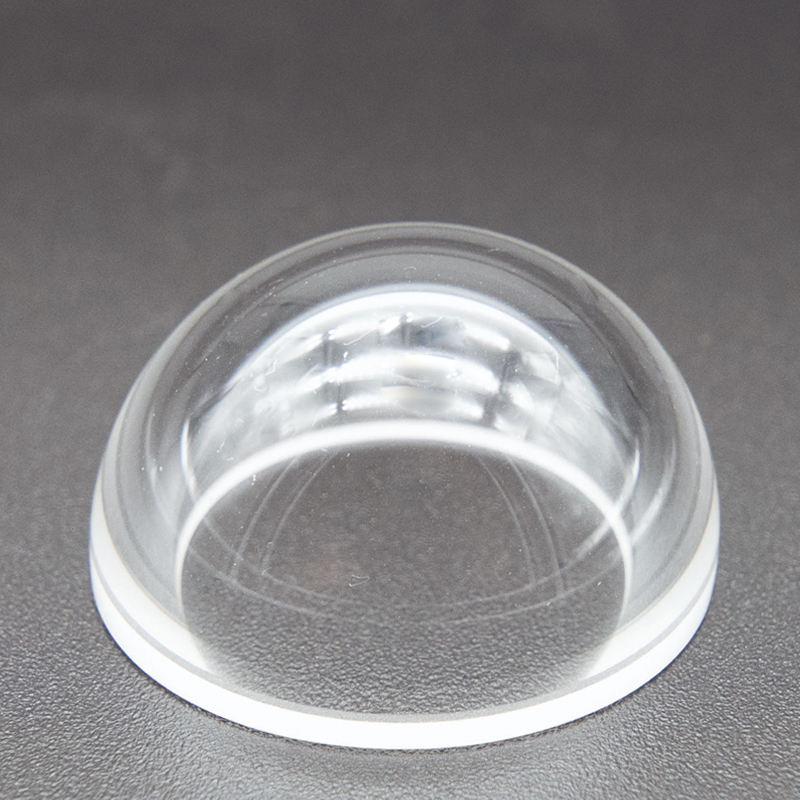

Hemispherical, spherical-cap and extended-hemisphere profiles can be considered according to the drawing. Other contours require separate optical and manufacturing review. Streamlining, wide field of view and pressure resistance are design objectives, not automatic properties of a particular shape.

Light crosses water–glass and glass–air interfaces in an air-filled camera housing. For a concentric spherical dome, positioning the lens entrance pupil near the common center of curvature can reduce chief-ray refraction and help preserve field of view. This does not eliminate all aberrations, focus effects or calibration requirements.

Review the lens, dome and housing together. Underwater ray tracing and calibration may be needed for imaging accuracy; structural analysis and pressure testing address load capacity. CFD is appropriate where flow performance is a project requirement. Analysis and test responsibilities should be agreed before manufacture.
