AR anti-reflective
Reduces surface reflection and can support display transmittance, contrast, and color evaluation. The source lists up to 97% visible transmittance for an AR-coated configuration.
Home / All / Custom Display &Functional Glass / Display Cover Glass / AR/AF/AG Tempered Display Cover Glass Manufacturer | Industrial HMI & Medical Touch Screen Glass
Looking for Custom Optical Components?
✔ OEM / ODM Customization
✔ Free Drawing DFM Technical Review
✔ 24-Hour Professional Quotation
✔ Flexible Low MOQ & Fast Prototypes
AR/AF/AG Tempered Display Cover Glass Manufacturer | Industrial HMI & Medical Touch Screen Glass
| Share | |
|---|---|
| Categories | Display Cover Glass |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FE-AGP-03004011 |
| Substrate | Ultra-low iron tempered glass |
| Coating Options | AR / AR+AF / AG+AF / AR+AF+AG |
| Visible Transmittance | ≥92% / ≥97% (AR coated) |
| Surface Reflectance | ≤0.5% |
| AG Haze | 5%–15% adjustable |
| AF Water Contact Angle | ≥110° |
| Surface Hardness | 9H Mohs |
| Thickness | 0.7mm / 1.1mm / 2.0mm / 3.0mm / 5.0mm |
| Working Temperature | -40°C ~ 180°C |
| Custom Processing | CNC cutting, drilling, full chamfering, screen printing, selective coating |
| Compliance | ISO 9001, RoHS, REACH |
| Unit Price | US $ 2.88-5.99 / piece |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Felix Glass Co., Limited · Model FE-AGP-03004011
1. AR, AF, and AG Tempered Display Cover Glass
Felix Glass manufactures ultra-low-iron tempered cover glass for industrial HMI panels, medical touchscreens, automotive displays, outdoor terminals, commercial interfaces, and optical-equipment windows.
The source product combines optional AR anti-reflective, AF anti-fingerprint, and AG anti-glare surface functions with drawing-based machining, printing, and selective coating.
This product remains in the Display Cover Glass category.
The values below retain the source specification. Final substrate, coating stack, dimensions, optical targets, durability, cleaning resistance, and compliance documents must be confirmed for the ordered configuration.
Surface functions
2. AR, AF, and AG Coating Functions
Each surface treatment addresses a different viewing or touch condition. Requirements should be expressed as measurable optical, surface, and durability criteria.
AF anti-fingerprint
A hydrophobic and oleophobic surface helps reduce fingerprint, oil, and dust adhesion and supports routine cleaning on frequently touched devices.
AG anti-glare
A matte diffusion surface reduces mirror-like ambient-light reflections. Haze, sparkle, image sharpness, and viewing comfort require evaluation on the actual display.
Compare other functional-glass options in the Felix Glass product catalog.
Configuration guide
3. Coating Combination Selection
AR onlySource recommendation for medical imaging, optical instruments, and indoor displays where reflection control is the primary requirement.
AR + AFSource recommendation for medical touch monitors, industrial HMI panels, and commercial POS terminals.
AG + AFSource recommendation for outdoor kiosks, EV chargers, and public self-service equipment.
AR + AF + AGSource recommendation for factory controls, automotive displays, and outdoor industrial touchscreens.
These are starting points rather than fixed prescriptions. Reflection, haze, sparkle, image sharpness, touch feel, cleaning, wear, and cost should be tested on the assembled display. Learn about the manufacturer on About Us.
Source data consolidated
4. Technical Specifications
| Substrate | Ultra-low-iron tempered glass |
|---|---|
| Coating options | AR, AR+AF, AG+AF, or AR+AF+AG |
| Visible transmittance | At least 92%; at least 97% source reference for AR-coated glass |
| Surface reflectance | At most 0.5% source reference |
| AG haze | 5%–15% adjustable source range |
| AF water contact angle | At least 110 degrees source reference |
| Surface hardness | Source attribute states “9H Mohs” |
| Thickness options | 0.7, 1.1, 2.0, 3.0, and 5.0 mm |
| Working-temperature reference | -40°C to 180°C |
| Custom processing | CNC cutting, drilling, full chamfering, screen printing, and selective coating |
| Compliance references | ISO 9001, RoHS, and REACH |
Confirm wavelength range, incidence angle, instrument, sample stack, coating side, temperature dwell and cycles, and document scope. “9H” and “Mohs” are different hardness conventions; the purchase specification should identify the actual method, scale, load, and pass criteria.
Mechanical and surface behavior

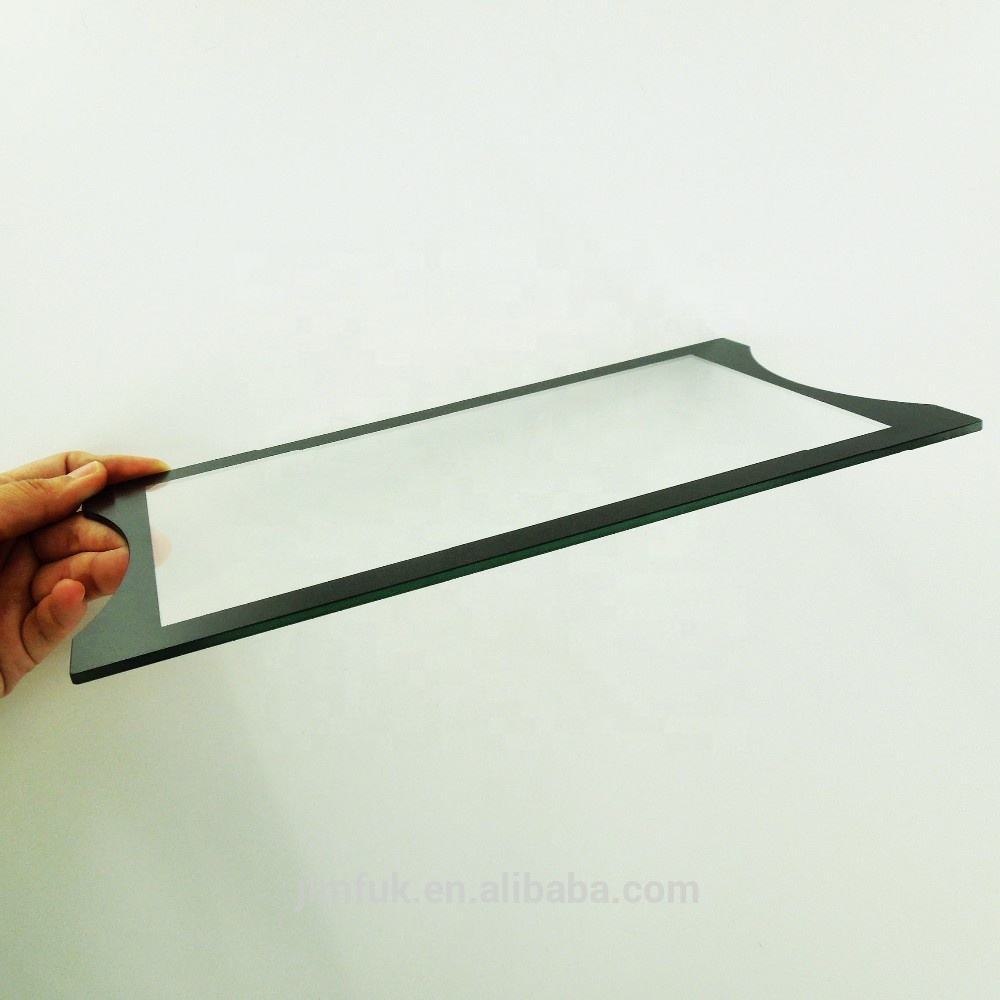

5. Tempered Glass and Surface Features
- Scratch-resistance reference: the source lists 9H and use in industrial and public-touch environments.
- Low-iron substrate: selected to reduce green tint and support display-color evaluation.
- Coating durability: wiping, UV, temperature cycling, and disinfection resistance require defined test loads, chemicals, cycles, and acceptance limits.
- Custom configuration: coating combinations, shapes, openings, and printed borders can be matched to an approved drawing.
- Edge treatment: smooth chamfered edges can support handling and assembly when the edge specification is controlled.
Additional coating and display guidance is available in the Felix Glass blog.
Display integration
6. Industrial, Medical, Automotive, and Outdoor Applications
The source identifies the following application groups. Each assembly should be reviewed for lighting, touch stack, bonding, cleaning, temperature, vibration, ingress protection, and operator use.
Drawing-based manufacturing
7. Custom Size, Printing, Openings, and Production

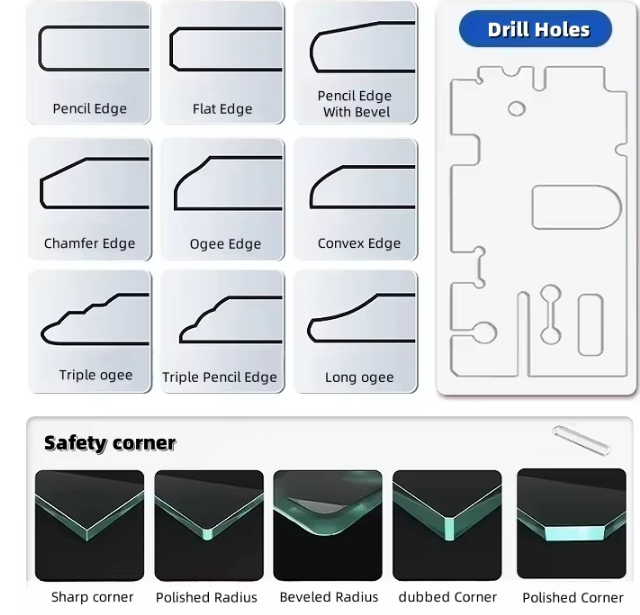

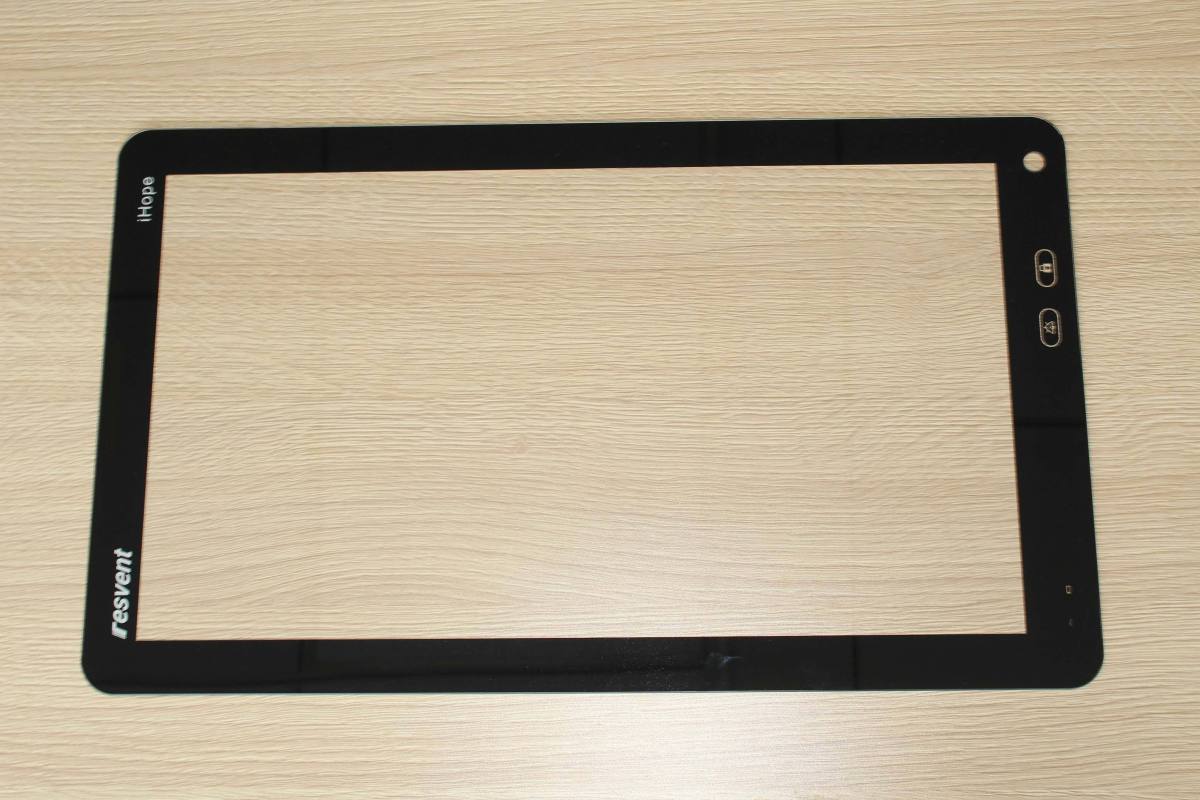

The source lists custom dimensions, thicknesses, irregular profiles, coating combinations, black borders, logos, patterns, holes, notches, and chamfered edges. Prototype and production programs can be reviewed after the process route is defined.
- 1Review display and housing drawings
- 2Select substrate and coating stack
- 3Define openings, edges, and tolerances
- 4Confirm print and selective-coating artwork
- 5Build and evaluate samples
- 6Release approved production files
Start from the Felix Glass home page for a broader view of its glass and coating capabilities.
Inspection and supplier review
8. Optical, Hardness, Haze, and Surface Inspection
The source states that hardness, transmittance, haze, and surface quality are inspected and that optical performance reports can be provided. It also references coating-selection guidance, batch consistency, sampling, and international supply.
For supplier qualification, define the sampling plan, traceability, appearance limits, optical methods, hardness method, coating-wear test, cleaning test, packaging, sample timing, capacity, and delivery terms. Availability and timing should be confirmed in the current quotation.
Optical checksTransmittance, reflectance, haze, color, sharpness, and uniformity.
Surface checksHardness, coating adhesion, abrasion, cleaning, stains, and scratches.
Dimensional checksProfile, thickness, openings, edges, printing, and selective-coating zones.
Technical FAQ
9. Coated Display Cover Glass FAQ
What is the difference between AR, AF, and AG?
AR reduces reflection, AF reduces fingerprint and oil adhesion, and AG diffuses glare. The chosen combination should be validated on the finished display.
Which coating can be considered for medical touchscreens?
The source recommends AR+AF as a starting point for readability and cleaning. Final selection depends on lighting, display luminance, touch use, cleaning chemistry, and equipment requirements.
Can the coating tolerate repeated alcohol disinfection?
The source describes resistance to alcohol and disinfectant wiping. Validation must use the actual chemical, concentration, dwell time, cloth, load, cycle count, and acceptance criteria; resistance is not universal.
What hardness is listed?
The source attribute says “9H Mohs.” Request the test standard and clarify whether the intended requirement is pencil hardness, Mohs hardness, or another method.
Can borders, holes, and irregular shapes be customized?
Yes, subject to CAD review, substrate, thickness, edge distance, tooling, print artwork, tolerances, and inspection criteria.
Use Contact Us to request project-specific test data and current documentation.
Related resources
10. Related Touch and Functional-Glass Resources
The original description contained unverified placeholders for touch-screen cover glass, quartz glass, ITO, and FTO products. Those placeholder links are removed. Use the approved catalog and blog paths above to compare cover-glass substrates, conductive glass, coating combinations, and processing options.
RFQ input checklist
Send project requirements
11. Request a Custom Display Cover Glass Quote
Send the application, CAD drawing, dimensions, tolerances, substrate, thickness, coating combination, transmittance and reflectance targets, haze, openings, edge geometry, printing artwork, selective-coating zones, bonding method, cleaning chemicals, environment tests, sample quantity, annual volume, documentation needs, and requested schedule.
