Wearable Front Window
Used for smart watches, fitness bands, sports trackers and compact HMI modules.
Home / All / Custom Display &Functional Glass / Smart Appliance Display Glass / Custom Smart Watch Cover Glass | Black Frame Tempered Wearable Glass
Looking for Custom Optical Components?
✔ OEM / ODM Customization
✔ Free Drawing DFM Technical Review
✔ 24-Hour Professional Quotation
✔ Flexible Low MOQ & Fast Prototypes

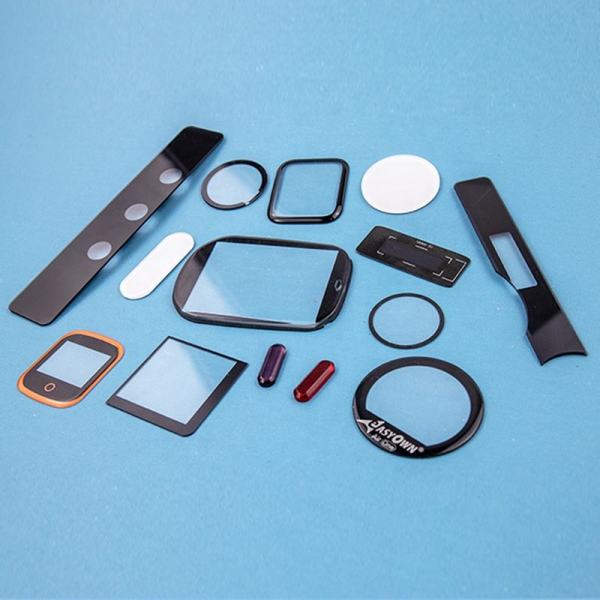

Custom Smart Watch Cover Glass | Black Frame Tempered Wearable Glass
| Share | |
|---|---|
| Categories | Smart Appliance Display Glass |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FG-SW-BFTG-033 |
| Available Thickness | 0.3mm,0.55mm,1mm,2mm,3mm |
| Frame Process | Black Silk Screen Printing |
| Optional Coating | AG/AR/AF/ITO |
| FOB port | SHENGZHEN SHANGHAI GUANGZHOU |
| Terms of Payment | L/C, D/A, D/P, Western Union, T/T |
| Download |  |
Detail Information
Attention stage
Custom Smart Watch Cover Glass Overview
Felix Glass Co., Limited supplies custom chemically tempered cover glass for smart watches, fitness trackers, sports bracelets and compact wearable display modules. This renovated page keeps the original direction: thin protective glass, black silk-screen frame, CNC contour shaping, edge polishing and optional AG, AR, AF or ITO coating support.
Available thickness options include 0.3mm, 0.55mm, 1mm, 2mm and 3mm. The integrated black border helps create a clean display window and can reduce the need for a separate decorative gasket when the wearable assembly design allows it.
0.3mm to 3mmBlack silk screen frameDrawing-based OEM glass
Direct answer
What Is Black Frame Tempered Smart Watch Glass?
Black frame tempered smart watch glass is a thin protective front window used above the wearable display and touch stack. The glass is cut to the required outline, chemically strengthened, polished at the edge and printed with a black border to cover bonding areas or internal structure around the active display.
Integrated Black Frame
Silk screen printing supports a stable border, logo area or hidden edge zone.
Chemically Strengthened
Tempering helps improve surface durability for daily wearable handling.
Interest stage
Technical Parameters and Custom Options
The original specification order is preserved and organized for faster engineering review.
| Base Material | Chemically tempered soda-lime glass; ultra-thin aluminosilicate glass can be reviewed for selected projects. |
|---|---|
| Available Thickness | 0.3mm, 0.55mm, 1mm, 2mm and 3mm. |
| Frame Treatment | Black silk-screen printed frame; custom color, logo or print pattern can be discussed. |
| Shape Processing | Round, square, rounded rectangle, curved 3D contour or fully custom CNC outline. |
| Edge Finishing | Fine polished edge, safety chamfer and anti-collision edge according to assembly needs. |
| Optional Coatings | AG anti-glare, AR anti-reflection, AF anti-fingerprint and ITO conductive coating. |
| Surface Hardness | Common reference is 6H or higher after chemical strengthening, subject to material and process. |
| Tolerance Control | Thickness and outline tolerance are confirmed by drawing, glass thickness and shape complexity. |
| Typical Application | Smart watch, fitness tracker, smart bracelet and miniature wearable HMI screen. |
Manufacturing capability
01
02
03
04
05
Core Manufacturing Capabilities for Wearable Cover Glass
CNC Machining
Custom contour cutting for round, square, rounded rectangle and irregular wearable outlines.
Chemical Strengthening
Tempering treatment is arranged to improve impact and scratch resistance for thin glass.
Silk Screen Printing
Black frame printing supports uniform visual borders, icons, logos and hidden bonding zones.
Optical Coating
AG, AR, AF and ITO coating options are reviewed according to display and touch requirements.
Inspection
Dimension, appearance, edge condition, print alignment and surface quality are checked before packing.
Display usability
AG, AR, AF and ITO Coating Choices
Coating should match the final wearable structure. AG can reduce glare under bright light, AR can support clearer display appearance, AF can improve wiping behavior, and ITO conductive coating can be reviewed when the glass is part of a touch or transparent electrode stack.
- AG coating: useful for outdoor readability and reduced reflection glare.
- AR coating: supports higher visible clarity where display brightness matters.
- AF coating: helps reduce fingerprint residue during daily use.
- ITO coating: considered when conductive glass behavior is required.
Use cases
Application Scenarios for Custom Wearable Display Glass
Smart watch cover glass is normally evaluated together with the display module, touch sensor, adhesive stack, housing design and final cosmetic requirements.
Smart Watch Cover Glass
Thin front windows with black border printing for wearable display modules.
Fitness Tracker Glass
Small-format tempered cover glass for bracelets, trackers and compact HMI screens.
Custom Smart Device Glass
Custom outline, edge and printing support for smart home and portable device assemblies.
Desire stage
Quality Control for Thin Black Frame Glass
Inspection is arranged around the wearable assembly requirement. A practical control plan can include dimension measurement, print position review, black frame appearance, edge safety, coating surface checks and packing protection.
Dimension Check
Outline, thickness, chamfer and print-to-edge distance can be checked against the drawing.
Surface Review
Scratches, chips, stains, coating marks and ink defects are reviewed before shipment.
Assembly Fit
Display window, black border width and bonding area can be matched to the module stack.
Selection support
How to Match Thickness, Shape and Printing
Choose 0.3mm or 0.55mm
For thin wearable structures where weight and stack height are important.
Choose 1mm to 3mm
For stronger front protection, larger panels or designs that allow more glass thickness.
Confirm Black Border Width
Match the active area, adhesive zone, display tolerance and housing coverage before printing.
OEM / ODM support
Custom Drawing Review and Sample Support
What to Send
Share drawing, glass size, thickness, black frame width, window area, coating request and quantity.
What Felix Glass Reviews
Material choice, cutting route, edge finish, printing feasibility, coating option and inspection scope.
What Buyers Receive
A practical production direction for samples or batch orders based on the provided drawing.
Buyer FAQ
FAQ About Smart Watch Cover Glass
Can Felix Glass make non-standard watch glass outlines?
Yes. Custom CNC cutting can be reviewed for round, square, rounded rectangle and special wearable outlines.
Can the black frame width be customized?
Yes. The frame width, logo, icon area and visible window are normally confirmed from the drawing.
Can coating be combined with silk screen printing?
AG, AR, AF and ITO options can be reviewed together with the printing route and final surface requirement.
What details help quotation?
Provide CAD drawing, thickness, quantity, coating type, print artwork, tolerance and application environment.
Cross-link guide
Related Functional Glass and Coating Pages
These internal pages help buyers compare wearable cover glass with display cover glass, touch panel glass, ITO conductive glass and coated functional glass options.
Action stage
Send Drawing for Review
Prepare a Smart Watch Glass RFQ
For a focused quotation review, prepare glass thickness, outline drawing, black frame artwork, coating choice, sample quantity and final assembly notes. Felix Glass can review the drawing and suggest a practical production route.
