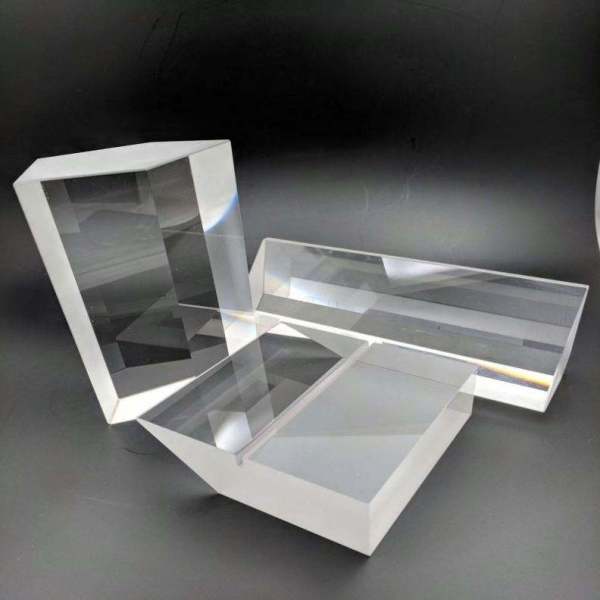

Custom N-BK7 Cube Beam Splitter Prism Black Painted Periscope Optical Measuring Prism
| Share | |
|---|---|
| Categories | Optical Prisms |
| Brand | FELIX GLASS optical glass Manufacturing base |
| Model | FG-CBSP-11 |
| Coating Option | Mirror reflective coating, AR anti-reflection coating |
| Side Treatment | Transparent uncoated / Black matte anti-stray-light paint |
| Base Glass Material | N-BK7 optical glass |
| Custom Available | Custom size, shape, coating supported OEM ODM OBM |
| Download |  |
Detail Information
Precision optical beam control
Custom N-BK7 Cube Beam Splitter Prism Overview
Felix Glass Co., Limited manufactures custom N-BK7 cube beam splitter prisms for optical measuring instruments, laboratory test platforms, periscope imaging devices, and industrial optical systems. The original product direction is retained: precision polished N-BK7 glass, optional reflective or anti-reflection coating, and black matte side paint for stray-light control.
Model FG-CBSP-11Drawing-based customizationOEM, ODM, and OBM support
Interest: optical function
How the Cube Beam Splitter Prism Works
Two precision prism elements form a compact cube geometry. A specified internal reflective surface can divide or redirect incident light, while polished entrance and exit faces support controlled transmission. Black matte paint on selected sides can reduce unwanted reflections outside the intended optical path.
Compact Alignment
Cube geometry can simplify mounting compared with separate angled optical elements.
Interest: retained specifications
Technical Parameters and Available Options
| Base glass | N-BK7 optical glass |
|---|---|
| Prism type | Cube beam splitter / periscope measuring prism |
| Coating options | Mirror reflective coating or customized AR anti-reflection coating |
| Side treatment | Transparent uncoated or black matte anti-stray-light paint |
| Surface quality | 20/10; 60/40 optional |
| Surface flatness | 1/8 wave at 633 nm |
| Clear aperture | At least 80% of the central area |
| Angular tolerance | Up to ±3 arc minutes |
| Customization | Custom size, shape, coating, and inspection requirements |
| Origin and warranty | Guangdong, China; 3-year product warranty |
Interest: stray-light management
Black Painted Sides and Coating Choices
Black matte edge treatment is intended to absorb stray light that reaches non-working faces. The treatment can be applied only where the assembly requires it, leaving designated optical surfaces clear or coated.
- Reflective coating: reviewed for the requested splitting or turning function.
- AR coating: specified by wavelength band, angle of incidence, and operating environment.
- Uncoated faces: available when the optical design or budget does not call for a coating.
Desire: engineering fit
Custom Dimensions, Tolerances, and Inspection
Geometry Review
Send cube size, face dimensions, bevel, angular relationship, and assembly space.
Optical Review
Define wavelength, transmission or reflection target, flatness, surface quality, and clear aperture.
Mechanical Review
Confirm datum faces, mounting method, edge paint boundaries, and any orientation marks.
Inspection Plan
Specify dimensional reporting, visual inspection, coating checks, and any optical test data required.
Desire: controlled production
Manufacturing Workflow for Custom Optical Prisms
- Requirement review: confirm drawings, optical path, coating, paint, quantity, and acceptance criteria.
- Material preparation: select N-BK7 stock suited to the geometry and production volume.
- Grinding and polishing: process faces and angles to the agreed dimensional and surface requirements.
- Coating and painting: apply specified optical coating and black matte treatment to defined areas.
- Inspection and packing: verify the agreed parameters and protect finished optical surfaces for shipment.
Desire: application matching
Applications in Measuring, Laboratory, and Periscope Systems
Optical Measuring Instruments
Routes or divides light inside metrology and alignment assemblies.
Laboratory Test Platforms
Supports configurable beam paths for experiments, prototypes, and optical benches.
Periscope Imaging Devices
Folds an optical path where the housing requires a compact viewing geometry.
Industrial Optical Detection
Fits machine inspection, sensing, and optical detection equipment built to a defined drawing.
Desire: supplier capability
Why Work With Felix Glass on a Custom Prism
Felix Glass Co., Limited supports drawing-based optical glass processing from sample evaluation through batch production. Engineering communication can cover glass selection, polish quality, angular tolerance, coatings, black paint, inspection scope, and protective packaging.
For US-market procurement, specifications are presented in practical engineering terms and reviewed against the final assembly rather than treated as a one-size-fits-all catalog item.
Action: quotation preparation
Information to Send for a Faster Technical Review
Drawing and Quantity
Provide dimensions, tolerances, bevels, quantity, sample needs, and expected production schedule.
Optical Requirements
Include wavelength band, angle of incidence, reflection or transmission target, flatness, and surface quality.
Finishing Details
Mark coated faces, black-painted areas, clear apertures, orientation, and packaging requirements.
Buyer questions
FAQ About N-BK7 Cube Beam Splitter Prisms
Can the cube size be customized?
Yes. Size, shape, bevels, and tolerances can be reviewed from a drawing or reference sample.
Can only selected sides be black painted?
Yes. The paint boundary should be identified on the drawing so working optical faces remain clear.
Is AR coating available?
Yes. State the wavelength range, incidence angle, and performance target for coating review.
What surface quality is available?
The retained product specification lists 20/10, with 60/40 optional; final acceptance should be confirmed for the project.
Need Custom Optical Glass Solution?
Send us your drawing, dimension & coating requirements for fast quotation within 24 hours.
Get Free RFQRelated Products
